◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#4915) — 99 parça

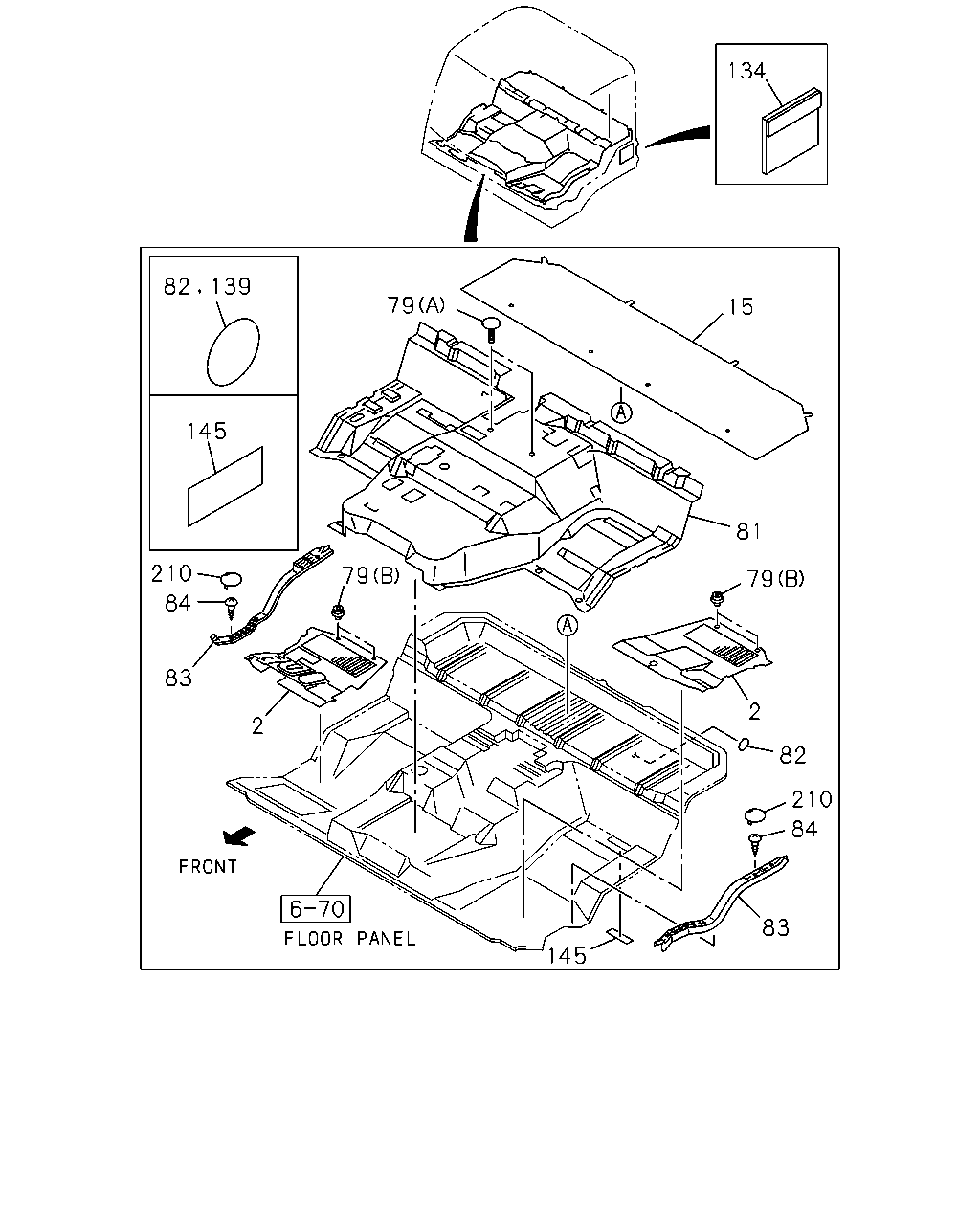

çizim 42682
134 82 139 79 15 145 81 79 210 79 84 83 2 2 82 210 84 83 145
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-513-2 01 1 9603-9901 ● ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-513-2 01 1 9902-9904 ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-513-2 01 1 9905- ● ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-512-1 01 1 9603-9901 ● ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-512-1 01 1 9902-9904 ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-512-1 01 1 9905- ● ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-517-1 01 1 9603-9901 ● ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-517-2 01 1 9902-9904 ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-517-2 01 1 9905- ● ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9603-9901 ● ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9902-9904 ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9905- ● ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9603-9901 ● ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9902-9904 ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9905- ● ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2> 		1-73237-540-9 01 1 9603-9810 ● ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2> 		1-73237-622-0 01 1 9811-9901 ● ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2> 		1-73237-622-3 01 1 9905- ● ● ●
81 MAT; FLOOR,CENTER
SPRING BRAKE(SU9) EXC. DELUXE CARPET<BF2> 		1-73237-510-9 01 1 9603-9810 ● ●
81 MAT; FLOOR,CENTER
SPRING BRAKE(SU9) EXC. DELUXE CARPET<BF2> 		1-73237-621-0 01 1 9811-9901 ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-621-3 01 1 9902-9904 ● ●
81 MAT; FLOOR,CENTER
SPRING BRAKE(SU9) EXC. DELUXE CARPET<BF2> 		1-73237-621-3 01 1 9905- ● ●
82 SEAL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 04 1 9701-9901 ● ● ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 9902-9904 ● ●
82 SEAL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 9905- ● ●
82 SEAL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 04 1 9905- ● ● ●
82 SEAL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 9701-9901 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9603-9901 ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9902-9904 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9905- ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9603-9901 ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9902-9904 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9905- ● ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9603-9901 ● ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9902-9904 ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9905- ● ● ●
134 SILENCER; RR FLOOR,SIDE
300X230 		1-73367-016-0 01 1 9603-9901 ● ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 300X230 		1-73367-016-0 01 1 9902-9904 ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 300X230 		1-73367-016-0 01 1 9905- ● ● ●
134 SILENCER; RR FLOOR,SIDE
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 300X230 		1-73367-016-0 01 1 9905- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9603-9901 ● ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9902-9904 ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ● ●
145 SEAL; FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X30 		1-72498-014-1 01 1 9603-9901 ● ●
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9902-9903 ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904-9904 ● ●
145 SEAL; FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40 		1-72498-022-0 01 1 9905- ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9603-9901 ● ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9902-9904 ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9905- ● ● ●

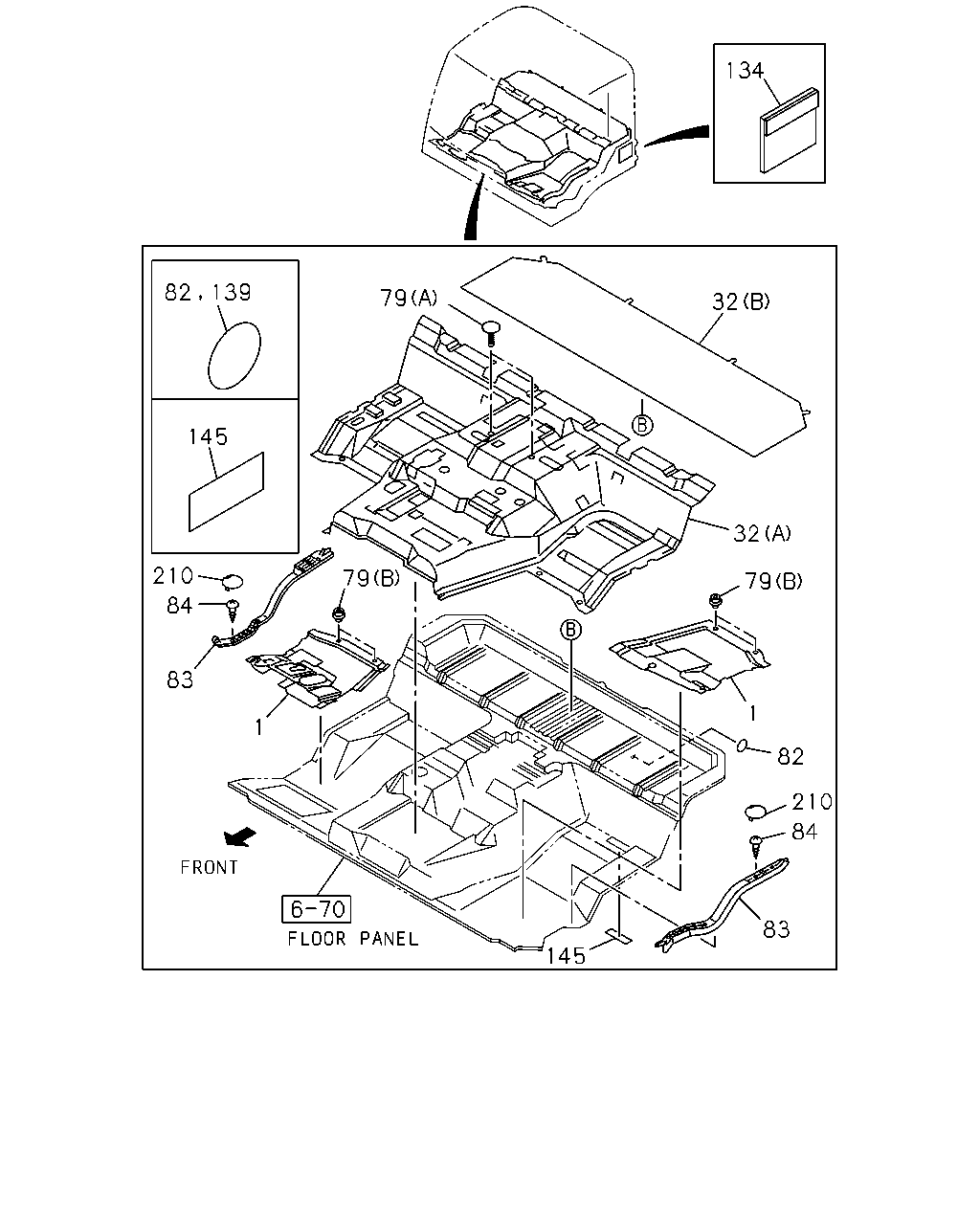

çizim 42683
134 139 82 79 32 145 32 210 79 79 84 83 1 1 82 210 84 83 145
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-516-1 01 1 9603-9901 ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-516-1 01 1 9902-9904 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-516-1 01 1 9905- ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-515-0 01 1 9603-9901 ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-515-0 01 1 9902-9904 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-515-0 01 1 9905- ● ● ●
32 CARPET; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> (A) 		1-73237-518-7 01 1 9603-9901 ● ● ●
32 CARPET; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> (A) 		1-73237-518-9 01 1 9905- ● ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-539-0 01 1 9603-9901 ● ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-539-0 01 1 9902-9904 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-539-0 01 1 9905- ● ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> SPRING BRAKE(SU9) (A) 		1-73237-519-8 01 1 9603-9901 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-519-9 01 1 9902-9904 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> SPRING BRAKE(SU9) (A) 		1-73237-519-9 01 1 9905-0103 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> SPRING BRAKE(SU9) (A) 		1-73237-760-2 01 1 0104- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9603-9901 ● ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9902-9904 ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9905- ● ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9603-9901 ● ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9902-9904 ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9905- ● ● ●
82 SEAL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 04 1 9701-9901 ● ● ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 9902-9904 ● ●
82 SEAL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 9905- ● ●
82 SEAL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 04 1 9905- ● ● ●
82 SEAL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 9701-9901 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9603-9901 ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9902-9904 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9905- ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9603-9901 ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9902-9904 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9905- ● ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9603-9901 ● ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9902-9904 ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9905- ● ● ●
134 SILENCER; RR FLOOR,SIDE
300X230 		1-73367-016-0 01 1 9603-9901 ● ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 300X230 		1-73367-016-0 01 1 9902-9904 ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 300X230 		1-73367-016-0 01 1 9905- ● ● ●
134 SILENCER; RR FLOOR,SIDE
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 300X230 		1-73367-016-0 01 1 9905- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9603-9901 ● ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9902-9904 ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ● ●
145 SEAL; FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X30 		1-72498-014-1 01 1 9603-9901 ● ●
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9902-9903 ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904-9904 ● ●
145 SEAL; FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40 		1-72498-022-0 01 1 9905- ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9603-9901 ● ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9902-9904 ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
