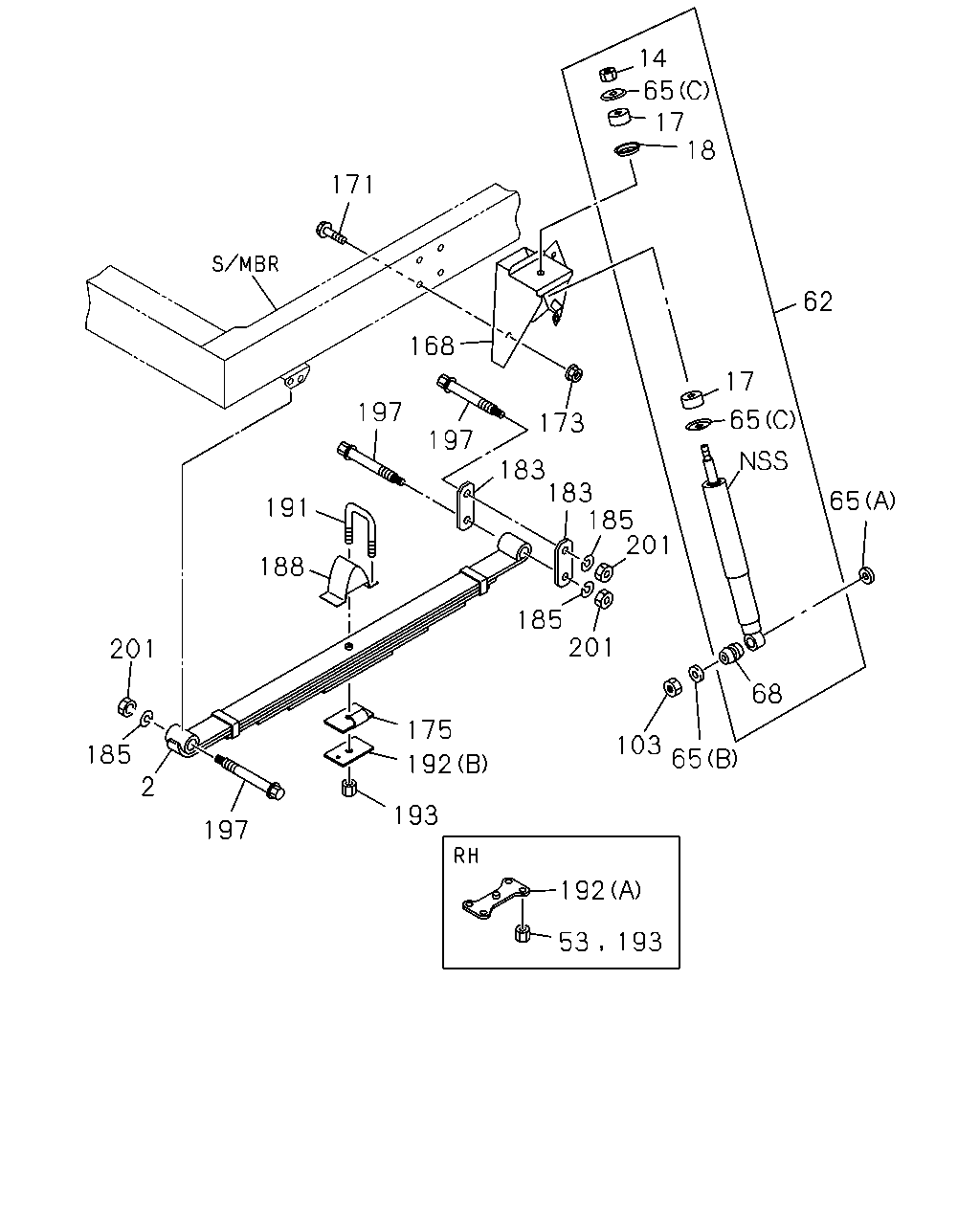

2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
5-LEAF
|
8-98090-401-0 |
01 |
1 |
1012- |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
5-LEAF
|
8-98090-402-0 |
01 |
1 |
1012- |
| |
14 |
07.389 NUT; S/ABS,UPR
M10 T=8
|
9-09640-020-0 |
02 |
1 |
1012- |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
1012- |
| |
18 |
07.347 WASHER; CENTERING,S/ABS
TOKICO
|
8-94412-791-0 |
02 |
1 |
1012- |
| |
53 |
06.174 NUT; LWR LINK
M14 FLANGE
|
8-97360-124-0 |
02 |
1 |
1012- |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97376-928-1 |
02 |
1 |
1407- |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97367-351-1 |
02 |
1 |
1012-1405 |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97367-351-1 |
02 |
1 |
1406- |
| |
65 |
07.347 WASHER; S/ABS
(A)
ID=21 OD=40
|
0-91614-620-0 |
02 |
1 |
1012- |
| |
65 |
07.347 WASHER; S/ABS
(B)
ID=15
|
8-97360-056-0 |
02 |
1 |
1012- |
| |
65 |
07.347 WASHER; S/ABS
(C)
OD=40
|
9-51631-614-0 |
04 |
1 |
1012- |
| |
68 |
07.388 BUSHING; S/ABS
TOKICO
|
8-94382-149-0 |
02 |
1 |
1012- |
| |
103 |
07.347 NUT; S/ABS TO LWR LINK
07.833
M14
|
0-91110-514-0 |
02 |
1 |
1012- |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98285-473-0 |
01 |
1 |
1407- |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-98049-995-3 |
01 |
1 |
1012-1406 |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98049-995-4 |
01 |
1 |
1407- |
| |
171 |
07.395 BOLT; S/ABS BRKT
09.003
M12X35 FLANGE
|
0-28651-235-0 |
04 |
1 |
1012- |
| |
173 |
07.395 NUT; S/ABS
M12
|
8-97360-126-0 |
03 |
1 |
1012- |
| |
175 |
06.170 SPACER; BRKT,S/ABS
FRAME STRAIGHT TYPE<7KJ>
07.518
|
8-94311-841-2 |
02 |
1 |
1012- |
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-94110-399-3 |
04 |
1 |
1012- |
| |
185 |
07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF>
ID=16.5
|
8-98011-489-0 |
06 |
1 |
1012- |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98090-443-0 |
02 |
1 |
1012- |
| |
191 |
07.417 U-BOLT; FRT SPR
L=185
|
8-94461-227-4 |
02 |
1 |
1012- |
| |
191 |
07.417 U-BOLT; FRT SPR
L=275
|
8-94461-228-2 |
02 |
1 |
1012- |
| |
192 |
07.436 PIECE; DIST
(A)
|
8-94462-218-2 |
01 |
1 |
1012- |
| |
192 |
07.436 PIECE; DIST
(B)
|
8-98049-991-0 |
02 |
1 |
1012- |
| |
193 |
07.417 NUT; U BOLT
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
1012- |
| |
197 |
07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF>
M16X122
|
8-98011-487-0 |
06 |
1 |
1012- |
| |
197 |
07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF>
M16X122 FLANGE
|
8-97360-110-0 |
06 |
1 |
1012- |
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
06.509
M16
|
0-91110-516-0 |
06 |
1 |
1012- |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
M16 FLANGE
|
8-97360-125-0 |
06 |
1 |
1012- |
