◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#4914) — 82 parça

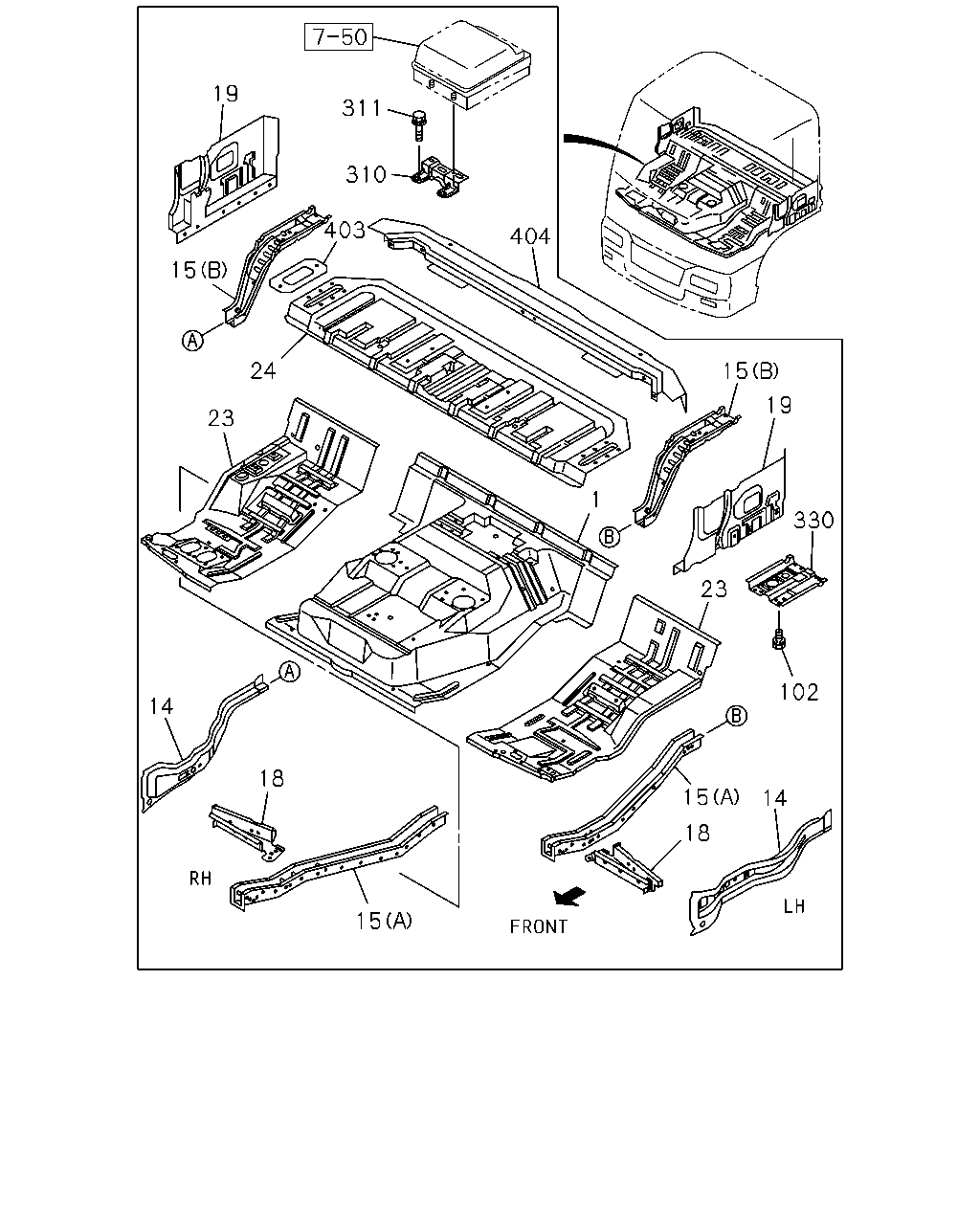

çizim 39308
19 311 310 403 404 15 24 15 19 23 1 330 23 102 14 18 15 14 18 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR 1-62172-625-3 01 1 9603-9901 ●
1 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62172-625-3 01 1 9603-9901 ● ●
1 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62172-625-5 01 1 9905- ● ● ●
1 PANEL; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> 		1-62172-614-2 01 1 9603-9901 ● ●
1 PANEL; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-614-4 01 1 9902- ● ●
1 PANEL; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> 		1-62172-614-4 01 1 9902- ● ●
1 PANEL; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> 		1-62172-627-2 01 1 9603-9901 ● ●
1 PANEL; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-627-2 01 1 9902-9909 ● ●
1 PANEL; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-627-4 01 1 9910- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9603-9901 ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9902-9904 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9905- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9603-9901 ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9902-9904 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9905- ● ● ●
15 FRAME; UNDER
(A) FRONT 		1-62472-670-1 01 1 9603-9901 ● ● ●
15 FRAME; UNDER
(A) FRONT 		1-62472-670-1 01 1 9902-9904 ● ●
15 FRAME; UNDER
(A) FRONT 		1-62472-670-3 01 1 9905- ● ● ●
15 FRAME; UNDER
(B) REAR 		1-62472-680-1 01 1 9603-9901 ● ● ●
15 FRAME; UNDER
(B) REAR 		1-62472-680-1 01 1 9902-9904 ● ●
15 FRAME; UNDER
(B) REAR 		1-62472-680-1 01 1 9905- ● ● ●
15 FRAME; UNDER
(B) REAR 		1-62472-598-6 01 1 9603-9901 ● ● ●
15 FRAME; UNDER
(B) REAR 		1-62472-598-6 01 1 9902-9904 ● ●
15 FRAME; UNDER
(B) REAR 		1-62472-598-6 01 1 9905- ● ● ●
15 FRAME; UNDER
(A) FRONT 		1-62472-669-1 01 1 9603-9901 ● ● ●
15 FRAME; UNDER
(A) FRONT 		1-62472-669-1 01 1 9902-9904 ● ●
15 FRAME; UNDER
(A) FRONT 		1-62472-669-3 01 1 9905- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-3 01 1 9603-9901 ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-3 01 1 9902-9904 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-4 01 1 9905- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-2 01 1 9603-9901 ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-2 01 1 9902-9904 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-2 01 1 9905- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 9603-9901 ● ● ●
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9902-9904 ● ●
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9905- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9603-9901 ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9902-9904 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9905- ● ● ●
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9902-9904 ● ●
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9905- ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-615-4 01 1 9603-9901 ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-615-4 01 1 9603-9901 ● ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-615-4 01 1 9902-9903 ● ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-801-0 01 1 9904-9904 ● ●
23 PANEL; FLOOR,SIDE 1-62172-801-0 01 1 9905-0101 ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-801-0 01 1 9905-0101 ● ●
23 PANEL; FLOOR,SIDE 1-62172-805-0 01 1 0102- ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-805-0 01 1 0102- ● ●
23 PANEL; FLOOR,SIDE 1-62183-272-4 01 1 9603-9901 ● ● ●
23 PANEL; FLOOR,SIDE 1-62183-272-4 01 1 9902-9903 ● ●
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 9904-9904 ● ●
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 9905- ● ● ●
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-642-4 01 1 9603-9901 ● ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-642-4 01 1 9603-9901 ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-642-4 01 1 9902-9903 ● ●
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-642-4 01 1 9902-9903 ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 9904-9904 ● ●
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-803-0 01 1 9904-9904 ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 9905- ● ●
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-803-0 01 1 9905- ● ●
24 PANEL; BED PAN 1-62172-540-7 01 1 9603-9901 ● ● ●
24 PANEL; BED PAN 1-62172-540-7 01 1 9902-9904 ● ●
24 PANEL; BED PAN 1-62172-540-9 01 1 9905- ● ● ●
102 BOLT; FLOOR BOARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9603-9901 ● ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9902-9904 ● ●
102 BOLT; FLOOR BOARD
SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9905- ● ●
102 BOLT; FLOOR BOARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9905- ● ● ●
102 BOLT; FLOOR BOARD
SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9603-9901 ● ●
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9603-9901 ● ● ●
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9902-9904 ● ●
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9905- ● ● ●
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9603-9901 ● ● ●
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9902-9904 ● ●
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9905- ● ● ●
330 REINFORCEMENT; FLOOR
CENTER REAR 		1-62172-585-5 01 1 9603-9901 ● ● ●
330 REINFORCEMENT; FLOOR
CENTER REAR 		1-62172-585-5 01 1 9902-9904 ● ●
330 REINFORCEMENT; FLOOR
CENTER REAR 		1-62172-585-5 01 1 9905- ● ● ●
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 9603-9810 ● ● ●
404 RAIL ASM; MTG,RR 1-62472-596-7 01 1 9603-9901 ● ● ●
404 RAIL ASM; MTG,RR 1-62472-596-7 01 1 9902-9904 ● ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 9905- ● ● ●
