Isuzu WW
▶
TRUCKS
▶
NPS
▶
51302 - NPS(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

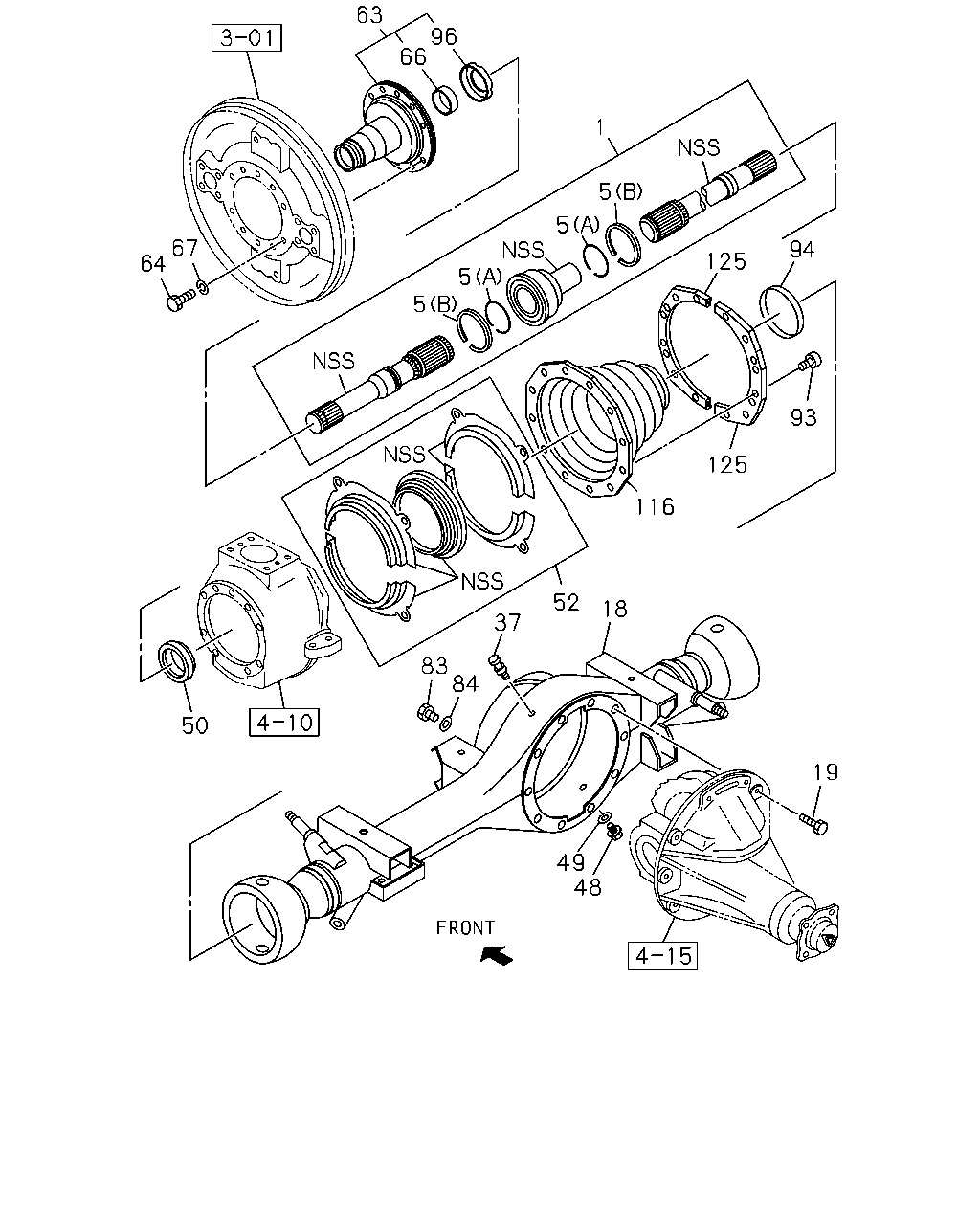

4-12 - FRONT DRIVE SHAFT
▶
4-12 — FRONT DRIVE SHAFT
(#49134) — 22 parça
63
96
66
1
5
5
5
5
67
64
94
125
93
125
116
18
52
37
19
48
49
84
83
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.055 SHAFT ASM; FRT DRIVE
8-97043-026-0
01
1
1012-
1
06.055 SHAFT ASM; FRT DRIVE
8-97043-027-0
01
1
1012-
5
06.061 RING; RET,FRT DRIVE SHAFT
(A)
8-97106-944-0
04
1
1012-
5
06.061 RING; RET,FRT DRIVE SHAFT
(B)
8-97106-945-0
04
1
1012-
18
06.008 CASE; FRT AXLE
8-97375-652-0
01
1
1012-
19
06.156 BOLT; FRT AXLE
M10X40 W/LK WASHER
0-50561-040-0
10
1
1012-
37
06.008 BREATHER; FRT AXLE CASE
05.387 L=29
8-98006-960-0
01
1
1012-
48
05.400 PLUG; DRAIN,AXLE CASE
05.508 M16X12.5
8-97307-060-0
01
1
1012-
49
05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24
9-09571-416-0
01
1
1012-
50
06.061 SEAL; OIL,SHAFT,FRT AXLE
8-94459-416-0
02
1
1012-
52
06.061 SEAL; OIL,KNUCKLE
8-97125-754-0
02
1
1012-
63
06.020 SPINDLE; KNUCKLE,FRT AXLE SHAFT
8-94440-882-0
02
1
1012-
64
06.050 BOLT; SPINDLE
8-98049-683-0
18
1
1012-
66
06.021 BUSHING; SPINDLE,FRT AXLE SHAFT
8-97116-630-0
02
1
1012-
67
06.022 WASHER; LK,SPINDLE
07.347 ID=12.2
0-91510-812-0
18
1
1012-
83
06.330 PLUG; OIL FILLER
05.400 M20X10.5
8-98009-333-0
01
1
1012-
84
06.326 GASKET; PLUG,OIL FILLER
05.400 ID=20 OD=30
8-94462-734-0
01
1
1012-
93
06.330 SCREW; TUBE END BOOT HOLDER,FRT
06.321 M6X12
8-94477-783-0
24
1
1012-
94
06.330 BAND; TUBE END BOOT,FRT AXLE
8-94447-698-0
02
1
1012-
96
06.056 WASHER; THRUST,SPINDLE,FRT AXLE
8-94440-903-0
02
1
1012-
116
06.061 BOOT; TUBE END,FRT AXLE
8-94321-407-0
02
1
1012-
125
06.061 HOLDER; TUBE END BOOT,FRT AXLE
8-98049-388-0
04
1
1012-
