2 |

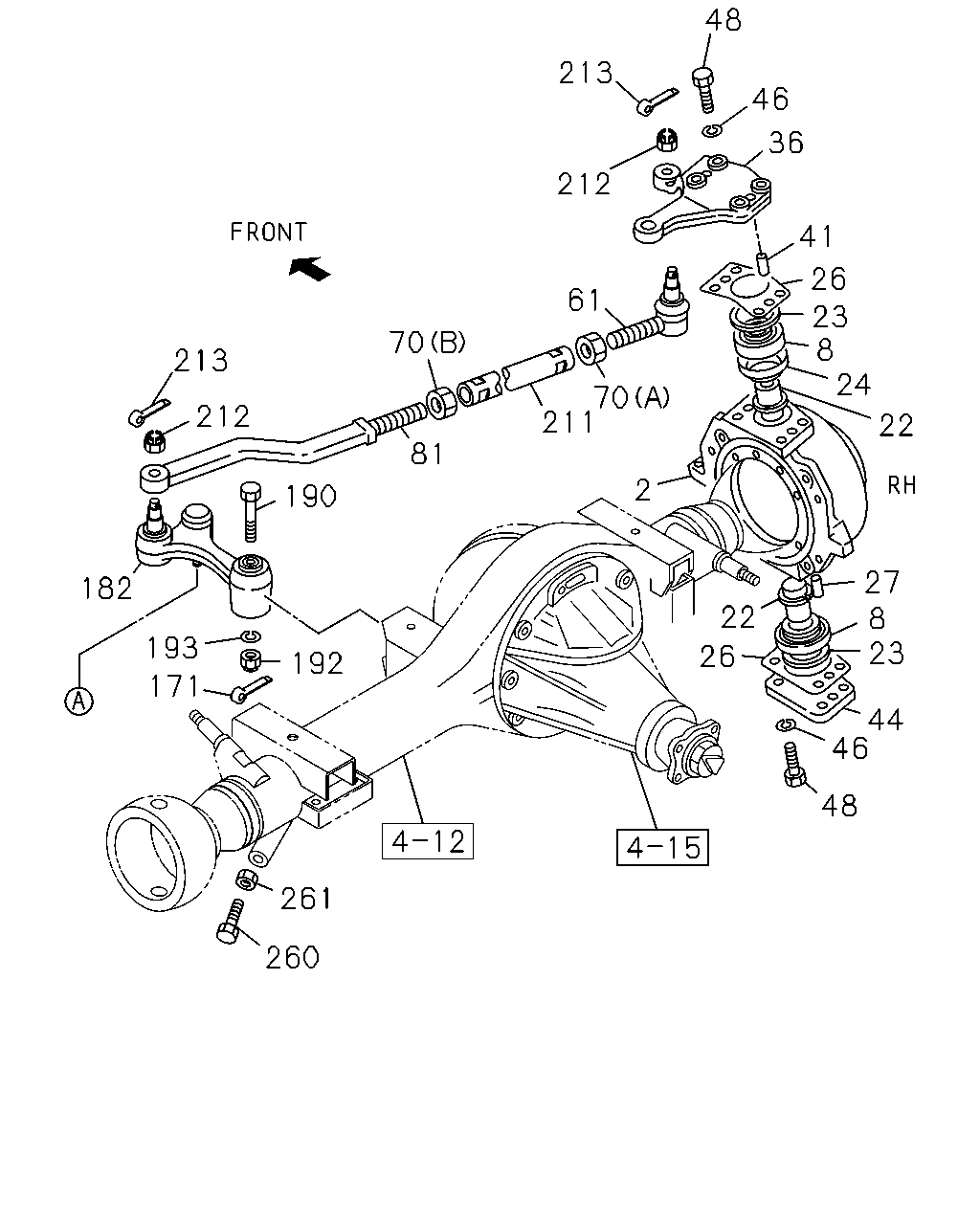

06.020 KNUCKLE; FRT AXLE
|
8-94458-330-2 |
01 |
1 |
1012- |
| |
2 |
06.020 KNUCKLE; FRT AXLE
|
8-94458-331-2 |
01 |
1 |
1012- |
| |
8 |
06.021 BEARING; NEEDLE,KING PIN
|
8-94440-901-0 |
04 |
1 |
1012- |
| |
22 |
06.203 PIN; KING,FRT AXLE
|
8-94440-228-0 |
04 |
1 |
1012- |
| |
23 |
07.242 COLLAR; DIST BRG
|
8-94440-839-0 |
04 |
1 |
1012- |
| |
24 |
06.210 RECEIVER; KING PIN
|
8-94458-454-0 |
02 |
1 |
1012- |
| |
26 |
06.022 SHIM; KING PIN,BRG
T=0.1
|
8-94440-840-0 |
AR |
1 |
1012- |
| |
26 |
06.022 SHIM; KING PIN,BRG
T=0.2
|
8-94440-841-0 |
AR |
1 |
1012- |
| |
26 |
06.022 SHIM; KING PIN,BRG
T=0.5
|
8-94440-842-0 |
AR |
1 |
1012- |
| |
27 |
06.203 PIN; STRAIGHT,KING PIN
00.662
OD=4 L=8
|
9-08160-408-0 |
04 |
1 |
1012- |
| |
36 |
06.103 ARM; KNUCKLE
|
8-97043-208-0 |
01 |
1 |
1012- |
| |
36 |
06.103 ARM; KNUCKLE
|
8-97375-653-0 |
01 |
1 |
1012- |
| |
41 |
06.177 PIN; KNOCK,KNUCKLE ARM
00.669
|
9-08161-028-0 |
04 |
1 |
1012- |
| |
44 |
06.225 COVER; KING PIN
|
8-94440-230-0 |
02 |
1 |
1012- |
| |
46 |
07.347 WASHER; LK,COVER
06.174
ID=14.2
|
0-91510-814-0 |
16 |
1 |
1012- |
| |
48 |
06.225 BOLT; COVER
|
8-98048-539-0 |
16 |
1 |
1012- |
| |
61 |
06.233 ROD END; TIE ROD
LH THREAD
|
8-94419-609-3 |
02 |
1 |
1012- |
| |
70 |
06.234 NUT; TIE ROD END
(B)
M20
|
0-91111-520-0 |
02 |
1 |
1012- |
| |
70 |
06.234 NUT; TIE ROD END
(A)
M20 LH THREAD
|
8-94254-726-0 |
02 |
1 |
1012- |
| |
81 |
06.230 ROD; TIE
|
8-94440-365-0 |
02 |
1 |
1012- |
| |
82 |

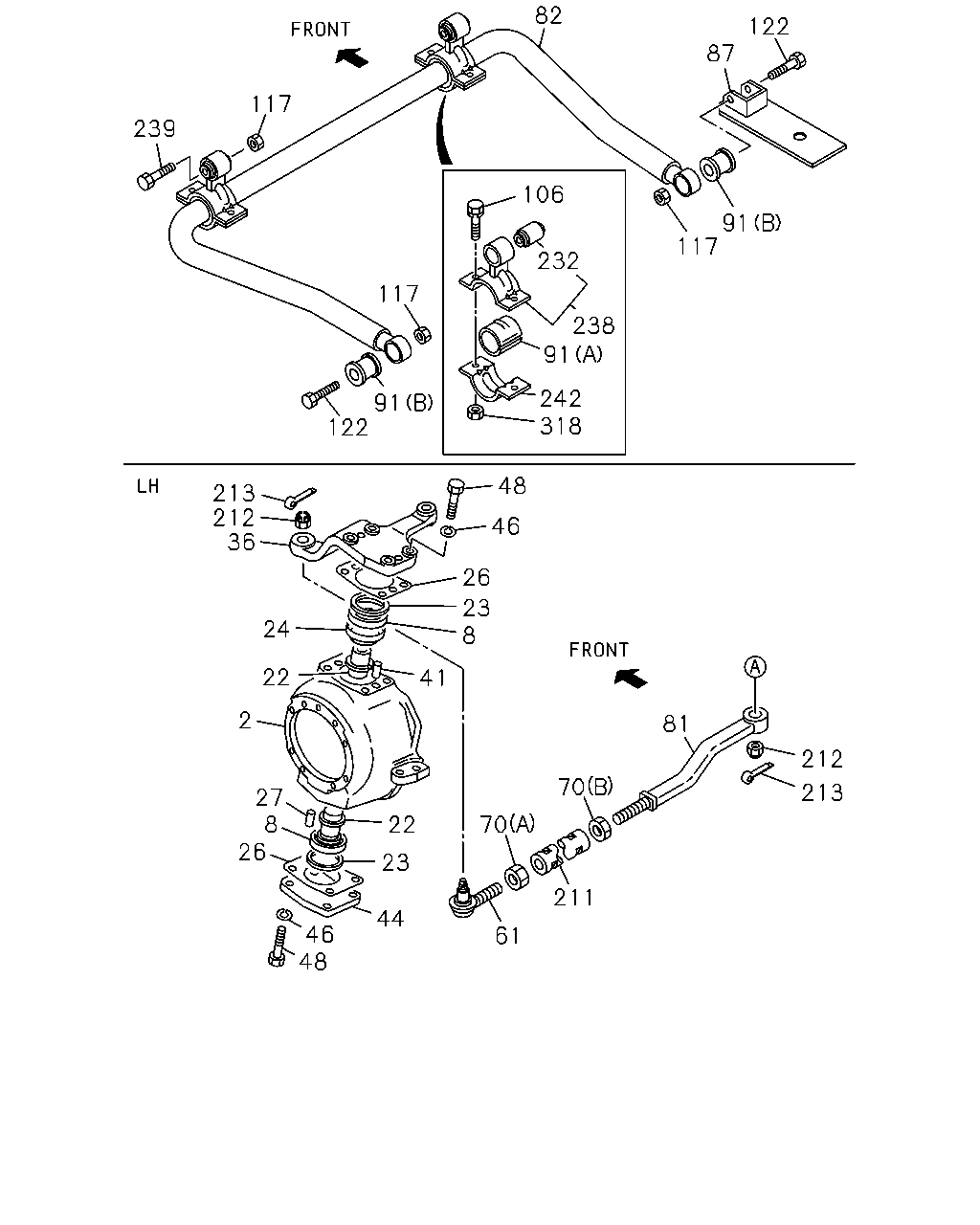

07.241 BAR; STAB,FRT SUSP
|
8-94322-468-2 |
01 |
1 |
1012- |
| |
87 |
07.242 BRACKET; STABILIZER
|
8-94321-458-0 |
01 |
1 |
1012- |
| |
91 |
07.243 BUSHING; RUBBER,STAB BAR
(B)
|
8-94331-581-0 |
02 |
1 |
1012-1207 |
| |
91 |
07.243 BUSHING; RUBBER,STAB BAR
(B)
|
8-97239-911-0 |
02 |
1 |
1208- |
| |
91 |
07.243 BUSHING; RUBBER,STAB BAR
(A)
|
8-94440-793-0 |
02 |
1 |
1012- |
| |
106 |
06.216 BOLT; CAP FIX
00.029
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
1012- |
| |
117 |
06.174 NUT; STAB BAR BUSHING
M14 FLANGE
|
8-97360-124-0 |
02 |
1 |
1012- |
| |
122 |
07.242 BOLT; BRKT
M14X70 FLANGE
|
0-28851-470-0 |
02 |
1 |
1012- |
| |
211 |
06.233 ROD ASM; STEERING TIE ROD
|
8-94458-045-0 |
02 |
1 |
1012- |
| |
212 |
06.216 NUT; STRG ROD
M16 SLOTTED
|
8-98049-689-0 |
02 |
1 |
1012- |
| |
213 |
06.203 PIN; COTTER,STRG ROD
OD=3.7 L=25
|
0-81124-025-0 |
04 |
1 |
1012- |
| |
232 |
07.243 BUSHING; LINK ROD
|
8-94331-581-0 |
02 |
1 |
1012-1207 |
| |
232 |
07.243 BUSHING; LINK ROD
|
8-97239-911-0 |
02 |
1 |
1208- |
| |
238 |
07.240 ROD LINK ASM; STABILIZER,FRT
|
8-97138-300-1 |
02 |
1 |
1012- |
| |
239 |
07.242 BOLT; LINK ROD
M14X70 FLANGE
|
0-28851-470-0 |
02 |
1 |
1012- |
| |
242 |
07.242 CAP; LINK ROD
|
8-94178-430-2 |
02 |
1 |
1012- |
| |
318 |
07.242 NUT; CAP FIX
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012- |
