Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#49130) — 322 parça

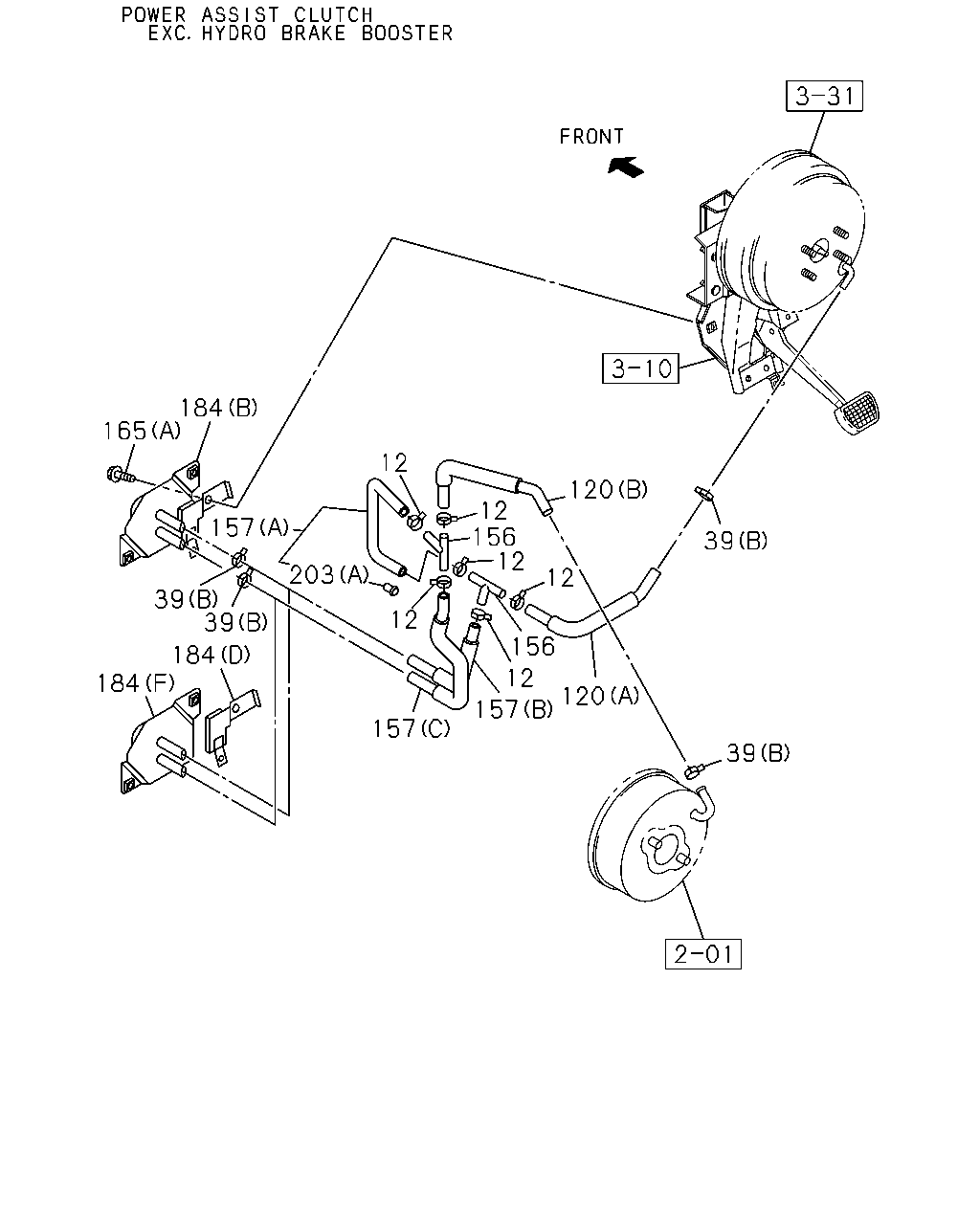

165 184 157 39 39 184 184 203 12 12 156 12 12 12 157 156 12 157 120 120 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-1405
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1406-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1405
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	06	1	1408-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1405
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1406-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1405
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1012-1405
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	1406-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1012-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1012-1405
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98035-106-0	02	1	1406-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1012-1405
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1406-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1012-1405
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1406-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1012-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (H)	8-98183-474-1	01	1	1406-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-538-0	01	1	1406-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-346-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98183-468-1	01	1	1101-1405
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1406-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-1405
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1406-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1012-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98156-347-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1101-1405
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1406-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1012-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-1405
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1406-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-1405
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1406-

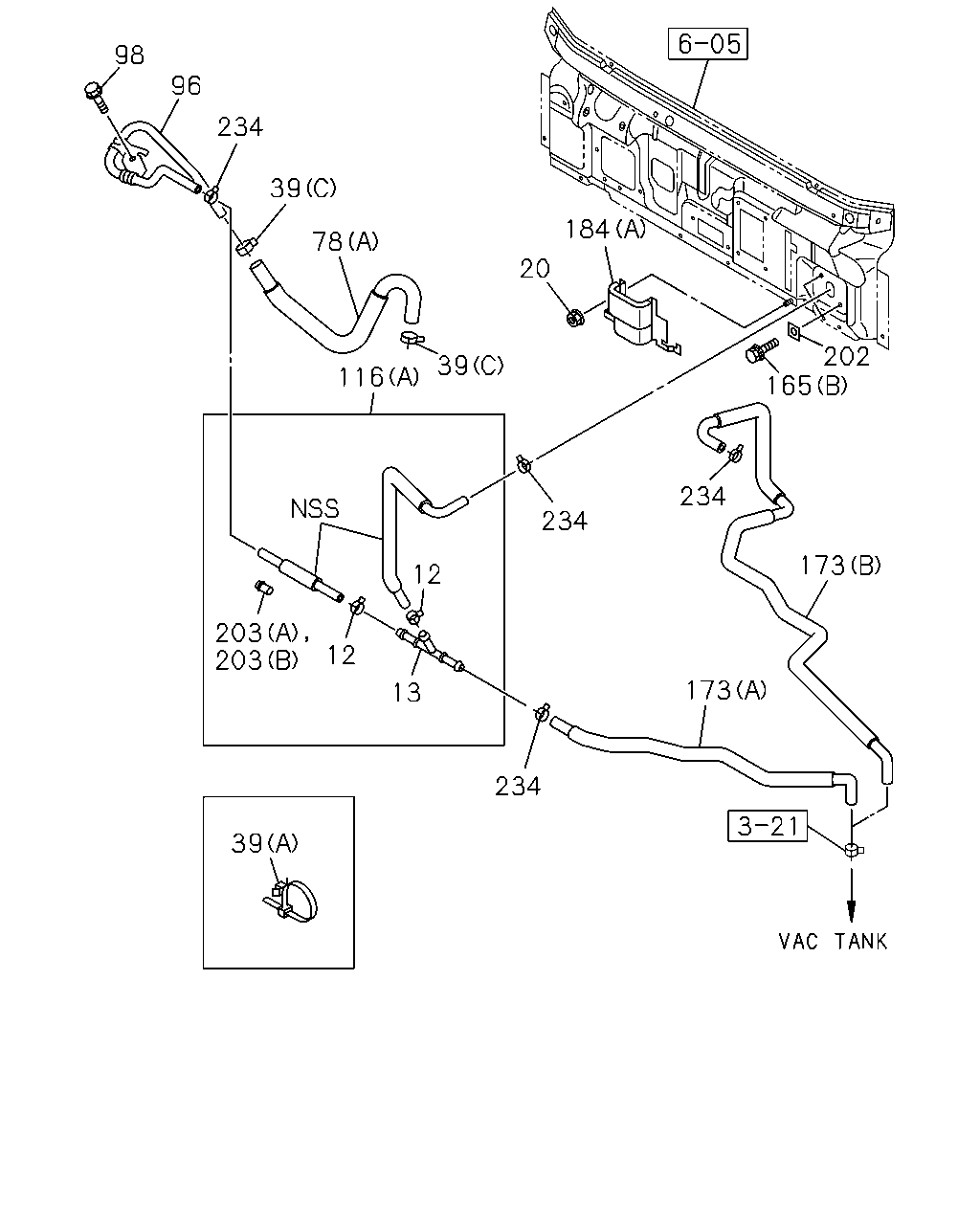

98 96 234 39 78 116 39 20 184 203 203 12 13 12 234 234 234 173 173 165 202 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-1405
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1406-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1405
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1012-1405
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1406-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	06	1	1408-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1405
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1406-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1405
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1408-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1012-1509
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1510-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1012-1405
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1406-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1406-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-321-0	01	1	1408-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98082-322-0	01	1	1012-1405
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-322-0	01	1	1406-
98	04.931 BOLT; VAC PIPE FIX FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1408-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-1407
98	04.931 BOLT; VAC PIPE FIX EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1408-
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1408-
98	04.931 BOLT; VAC PIPE FIX FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1408-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1509
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1509
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98158-378-0	01	1	1012-
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98100-244-1	01	1	1012-1104
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (B)	8-98130-735-0	01	1	1012-1104
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (B)	8-98189-219-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1012-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1012-1405
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1406-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1012-1405
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98047-184-2	01	1	1406-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1012-1405
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98031-774-1	01	1	1406-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (H)	8-98183-474-1	01	1	1406-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-538-0	01	1	1406-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-346-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98183-468-1	01	1	1101-1405
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1406-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-1405
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1406-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1012-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98156-347-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1101-1405
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1406-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1012-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-1405
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1406-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-1405
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1406-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1012-1405
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	04	1	1406-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1012-1405
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1406-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1406-

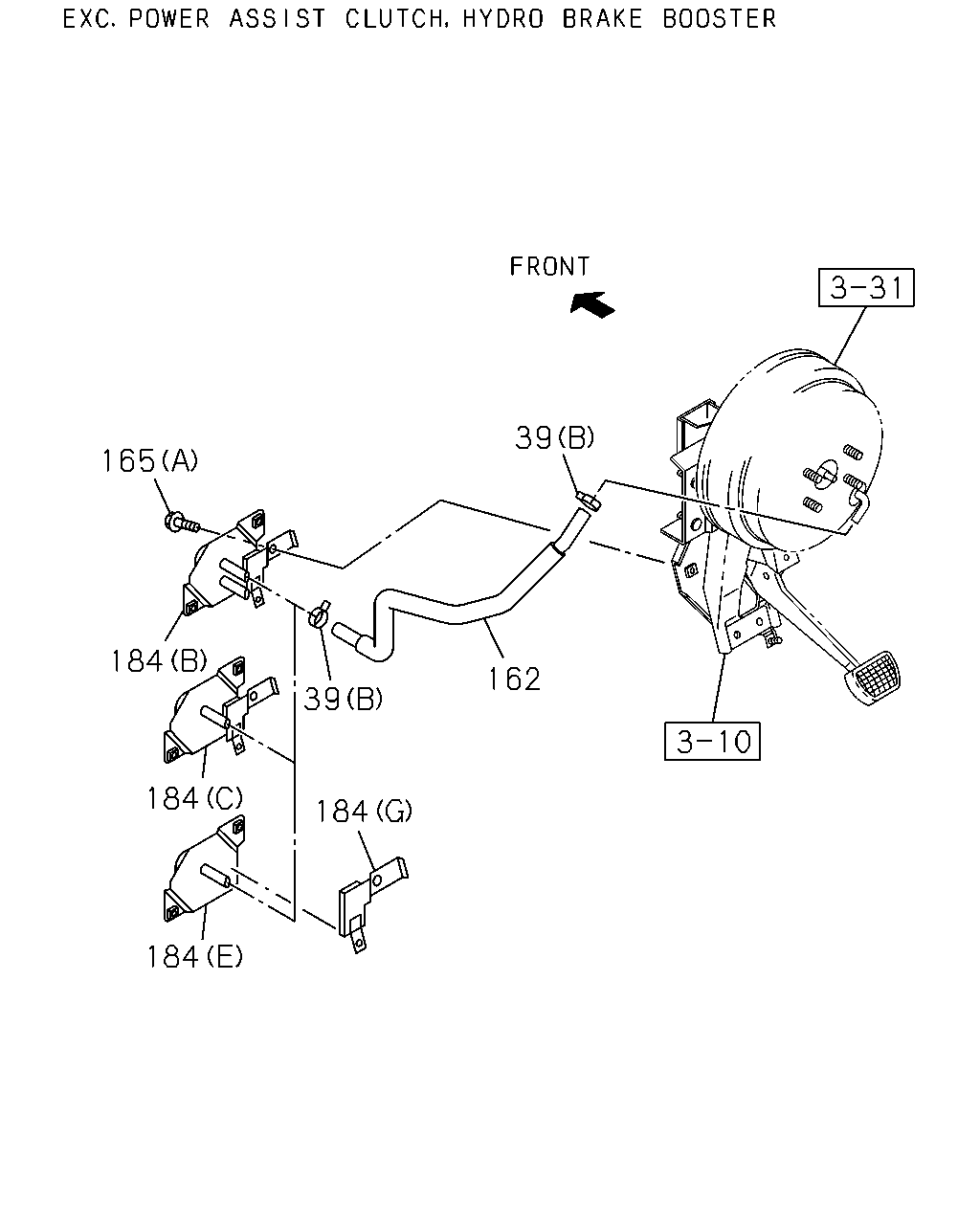

184 184 184 165 39 184 162 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	06	1	1408-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1405
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1406-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1405
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	1012-1405
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98034-154-2	01	1	1406-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (H)	8-98183-474-1	01	1	1406-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-538-0	01	1	1406-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-346-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98183-468-1	01	1	1101-1405
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1406-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-1405
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1406-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1012-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98156-347-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1101-1405
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1406-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1012-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-1405
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1406-

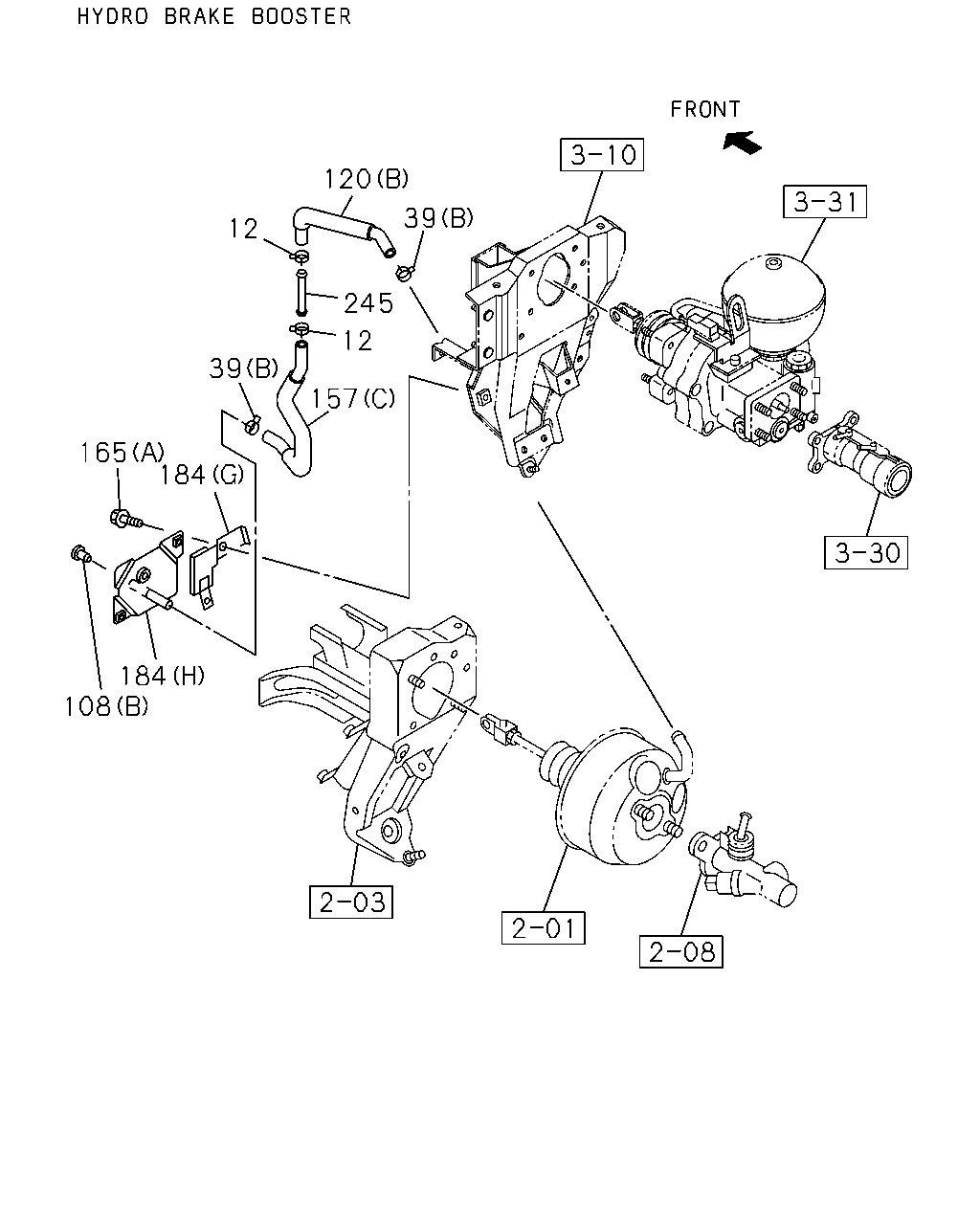

12 39 165 184 184 108 157 12 245 39 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-1405
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1406-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1405
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1406-
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	06	1	1408-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1405
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1406-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1405
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (B)	9-09956-353-0	01	1	1406-
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (A) ID=17	8-94128-319-2	01	1	1012-1509
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (A) ID=17	8-94128-319-2	01	1	1510-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1012-1405
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	1406-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1012-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1012-1405
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1406-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1012-1405
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1406-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1012-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (H)	8-98183-474-1	01	1	1406-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-538-0	01	1	1406-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-346-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98183-468-1	01	1	1101-1405
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1406-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-1405
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1406-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D)	8-98156-526-0	01	1	1012-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98156-347-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1101-1405
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1406-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	1012-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1012-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-1405
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1406-
245	04.931 JOINT; 2 WAY POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98048-075-0	01	1	1406-

136 78 136 136 44 236 122 136 108 235 136 78 136 44 66 116 66 169 66 116 66 169 66 66 116 66 75 169 116 66 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1012-
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-194-0	01	1	1012-1509
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-194-0	01	1	1510-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> (A)	8-98103-009-0	01	1	1012-
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	08	1	1012-
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1407
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1408-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1408-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1012-1509
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1510-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1012-1405
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1406-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1406-
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (B)	9-09956-353-0	01	1	1406-
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (A) ID=17	8-94128-319-2	01	1	1012-1509
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (A) ID=17	8-94128-319-2	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1509
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1509
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98158-378-0	01	1	1012-
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98100-244-1	01	1	1012-1104
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (B)	8-98130-735-0	01	1	1012-1104
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (B)	8-98189-219-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1012-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (D) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1012-1405
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1406-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98034-103-2	01	1	1012-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1104-1509
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1510-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1509
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1510-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98222-219-0	01	1	1408-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	1408-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98041-052-2	01	1	1012-1407
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98041-052-2	01	1	1408-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98092-067-0	01	1	1012-1405
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98092-067-0	01	1	1406-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98092-067-0	01	1	1406-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98100-234-2	01	1	1012-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98122-739-1	01	1	1012-1405
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98122-739-1	01	1	1406-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98122-739-1	01	1	1406-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C)	8-98100-233-1	01	1	1012-
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-479-3	01	1	1012-
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1509
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1407
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1408-1509
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1408-1509
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-

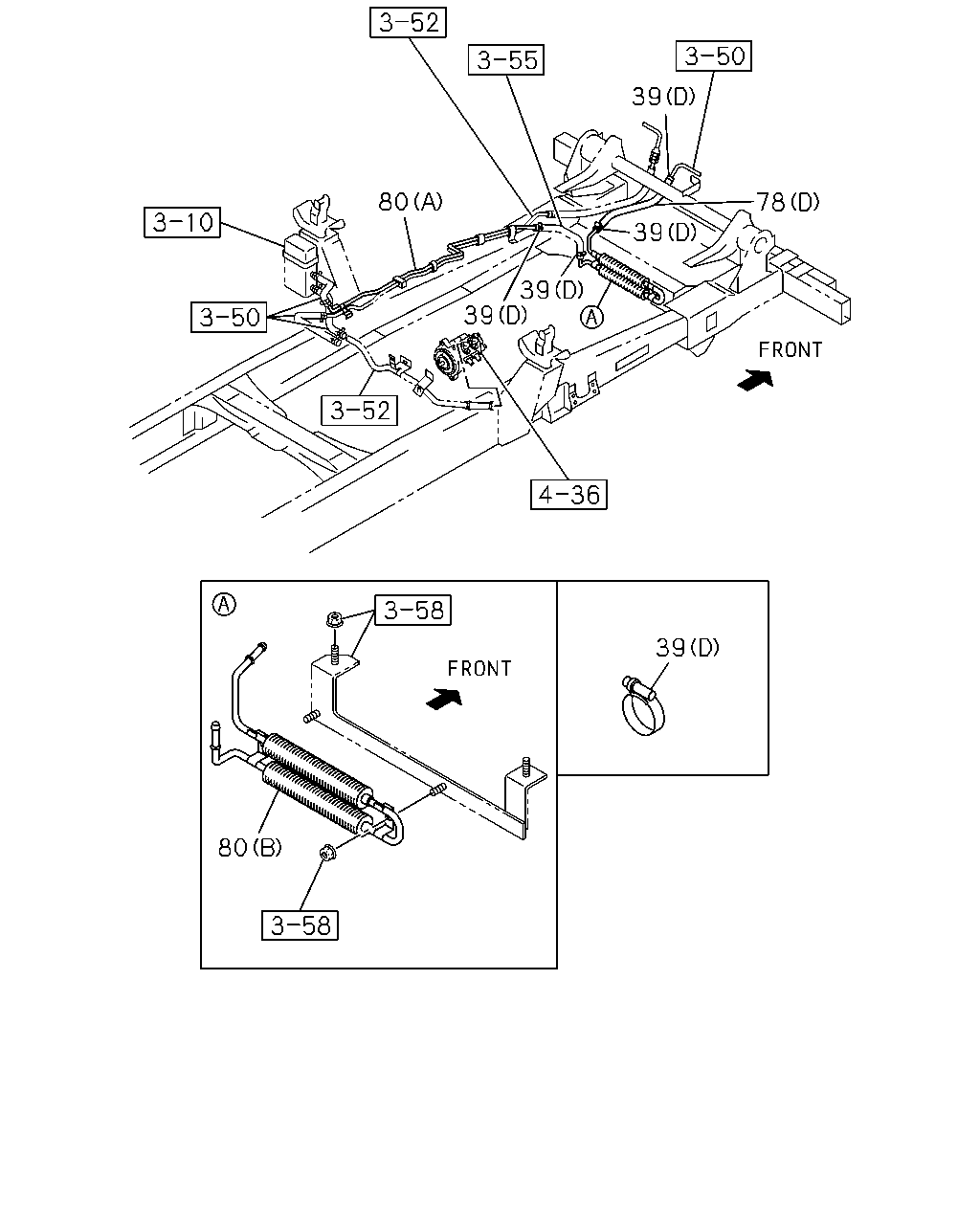

80 39 78 39 39 39 80 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	06	1	1408-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1405
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1406-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1405
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1406-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D)	8-98136-614-0	01	1	1408-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1012-1509
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1510-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	1012-1405
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1406-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-681-2	01	1	1406-
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1408-
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1408-

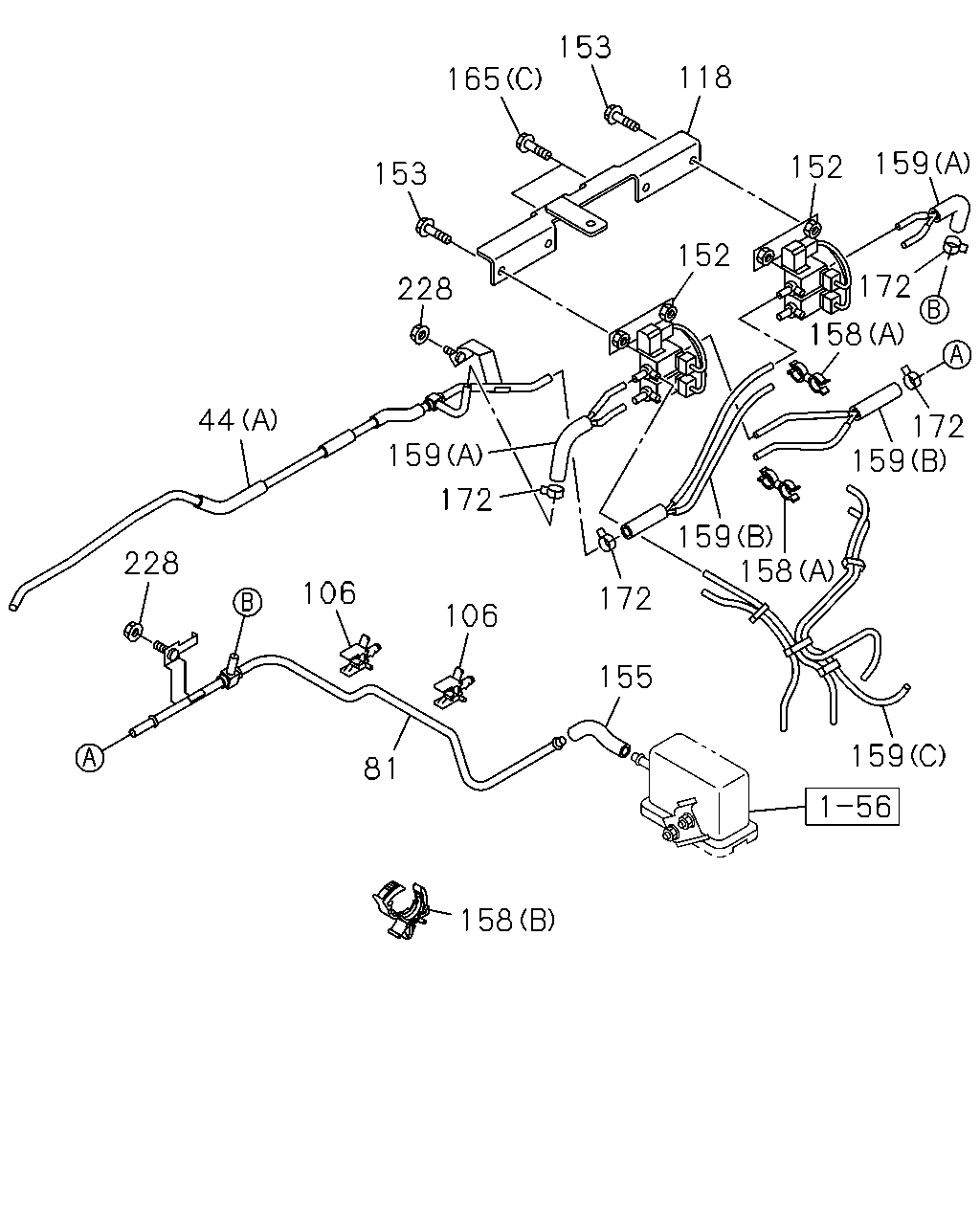

153 165 153 118 152 159 228 152 172 158 172 44 159 228 106 106 81 155 172 172 159 159 158 159 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-194-0	01	1	1012-1509
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-194-0	01	1	1510-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> (A)	8-98103-009-0	01	1	1012-
81	04.930 PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ>	8-98060-407-3	01	1	1012-
106	04.930 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> ID=10 H=40	8-94462-219-0	02	1	1012-
118	04.930 BRACKET; VSV FRAME STRAIGHT TYPE<7KJ>	8-98069-541-3	01	1	1012-
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO FRAME STRAIGHT TYPE<7KJ>	8-94481-999-4	02	1	1012-1302
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO FRAME STRAIGHT TYPE<7KJ> 09.755	8-98222-432-0	02	1	1303-1310
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO FRAME STRAIGHT TYPE<7KJ> 09.755	8-98256-404-0	02	1	1311-
153	04.686 BOLT; VSV FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1012-
155	04.931 HOSE; VAC,AIR FILTER FRAME STRAIGHT TYPE<7KJ> 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1012-
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 (B) ID=14-20	8-97061-603-0	01	1	1012-1509
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.559 (B) ID=14-20	8-97061-603-0	01	1	1510-
158	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	1012-
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-137-2	02	1	1012-
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-138-1	02	1	1012-
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-010-0	01	1	1012-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-
172	04.930 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
