◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#49126) — 138 parça
çizim 176670
35 11
BalonParca AdiParca NoAdetTipApplied Date
11 04.686 VALVE; BRK CONT
04.730 		8-94427-224-2 01 1 1012-1405
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> 04.730 		8-94427-224-2 01 1 1406-
35 04.685 PIPE; BRK,VLV TO RR AXLE
FRAME STRAIGHT TYPE<7KJ> 		8-98057-271-0 01 1 1012-1405
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98057-271-0 01 1 1406-

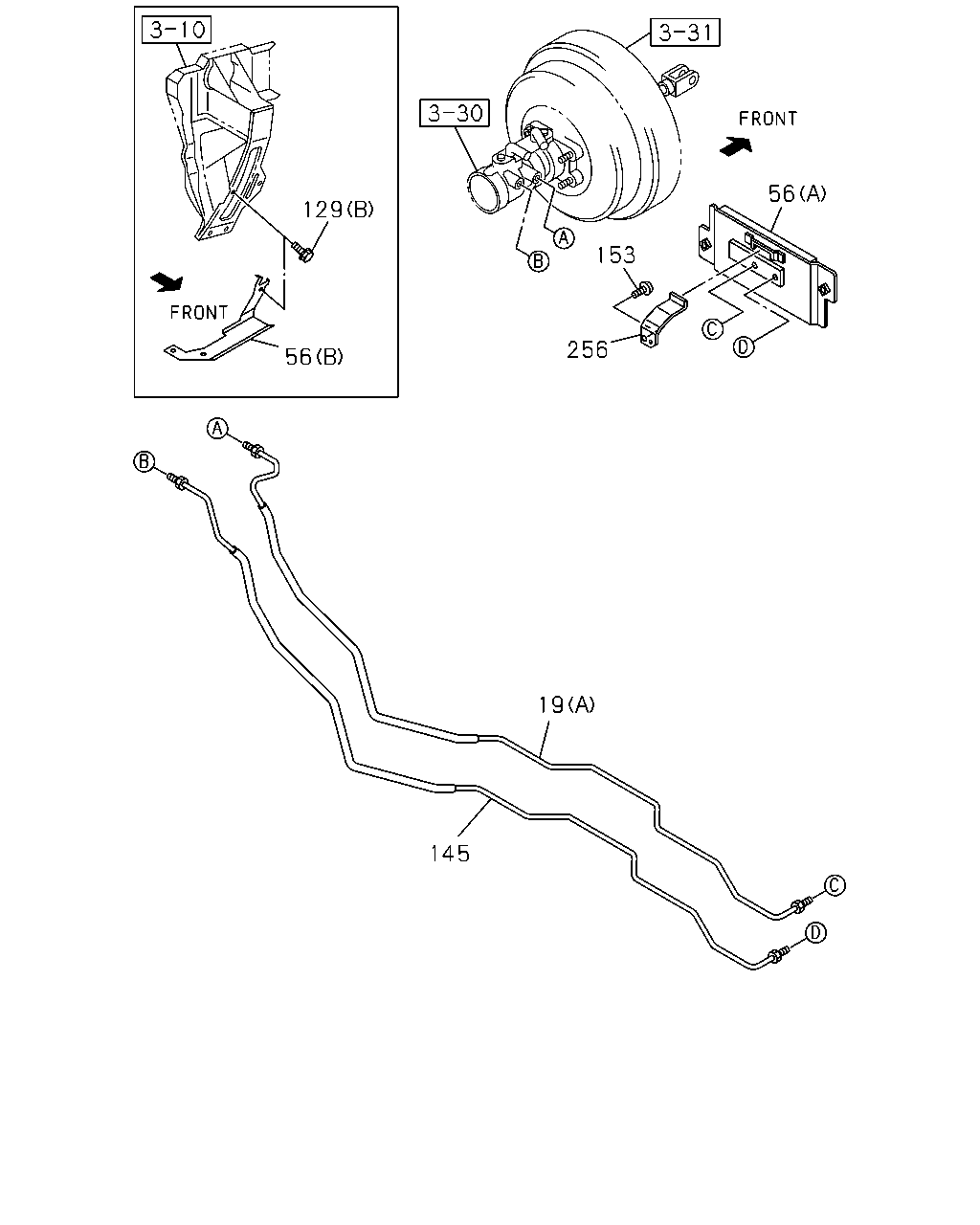

çizim 176679
56 129 153 256 56 19 145
BalonParca AdiParca NoAdetTipApplied Date
19 04.685 PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98080-579-1 02 1 1406-
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98099-794-0 01 1 1406-
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98056-155-1 02 1 1012-1405
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98056-155-1 02 1 1406-
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98097-183-1 01 1 1012-1405
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98097-183-1 01 1 1406-
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-270-1 01 1 1406-
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1012-
56 04.686 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1012-1405
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-268-1 01 1 1406-
129 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 1408-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1012-
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012-
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=228 		8-98133-411-0 01 1 1406-1406
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1052 		8-98099-793-0 01 1 1407-1505
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) L=1052 		8-98099-793-0 01 1 1506-
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98097-179-1 01 1 1012-1405
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-98097-179-1 01 1 1406-1505
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98097-179-1 01 1 1506-
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1012-
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1012-

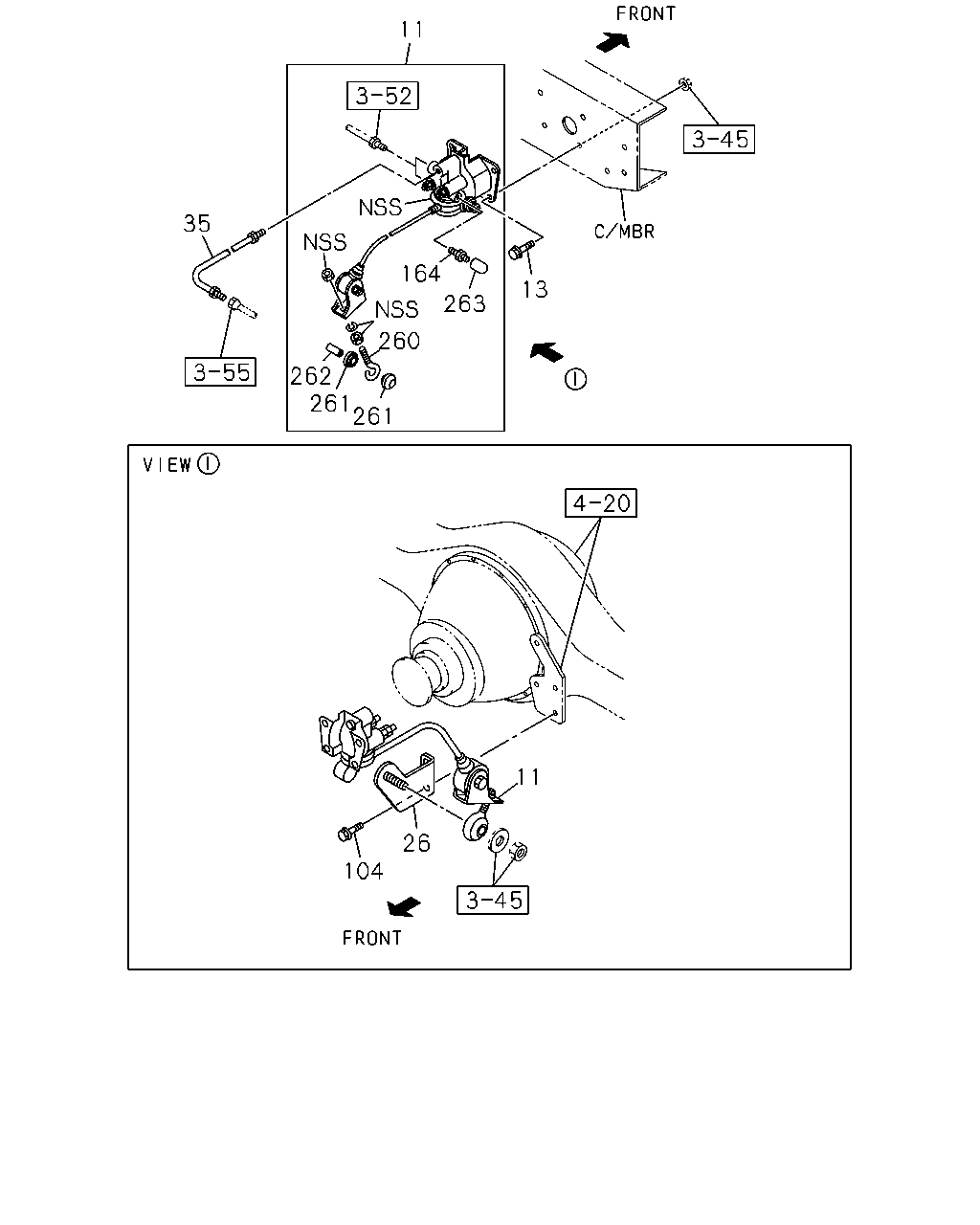

çizim 176682
11 35 164 13 263 260 262 261 261 11 26 104
BalonParca AdiParca NoAdetTipApplied Date
11 04.686 VALVE; BRK CONT
04.730 		8-94427-224-2 01 1 1012-1405
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> 04.730 		8-94427-224-2 01 1 1406-
13 04.686 BOLT; VLV TO BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1012-1405
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1406-
26 04.730 BRACKET; PROPORTIONING VLV 8-98057-012-0 01 1 1012-1405
26 04.730 BRACKET; PROPORTIONING VLV
BRK WHL LK CONT LSPV<6PH> 		8-98057-012-0 01 1 1406-
35 04.685 PIPE; BRK,VLV TO RR AXLE
FRAME STRAIGHT TYPE<7KJ> 		8-98057-271-0 01 1 1012-1405
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98057-271-0 01 1 1406-
104 04.730 BOLT; BRKT TO BODY
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012-1405
104 04.730 BOLT; BRKT TO BODY
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1406-
164 04.730 SCREW; BLEEDER
04.685 		8-97093-663-0 01 1 1012-1405
164 04.730 SCREW; BLEEDER
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 1406-
260 04.685 SHACKLE; LSPV
04.710 		8-97173-366-0 01 1 1012-1405
260 04.685 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97173-366-0 01 1 1406-
261 04.685 BUSHING; LSPV
04.710 		8-97145-631-0 02 1 1012-1405
261 04.685 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97145-631-0 02 1 1406-
262 04.685 COLLAR; LSPV
04.710 		8-97139-186-0 01 1 1012-1405
262 04.685 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97139-186-0 01 1 1406-
263 04.685 CAP; BLEEDER 8-97093-662-0 01 1 1012-1405
263 04.685 CAP; BLEEDER
BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 1406-

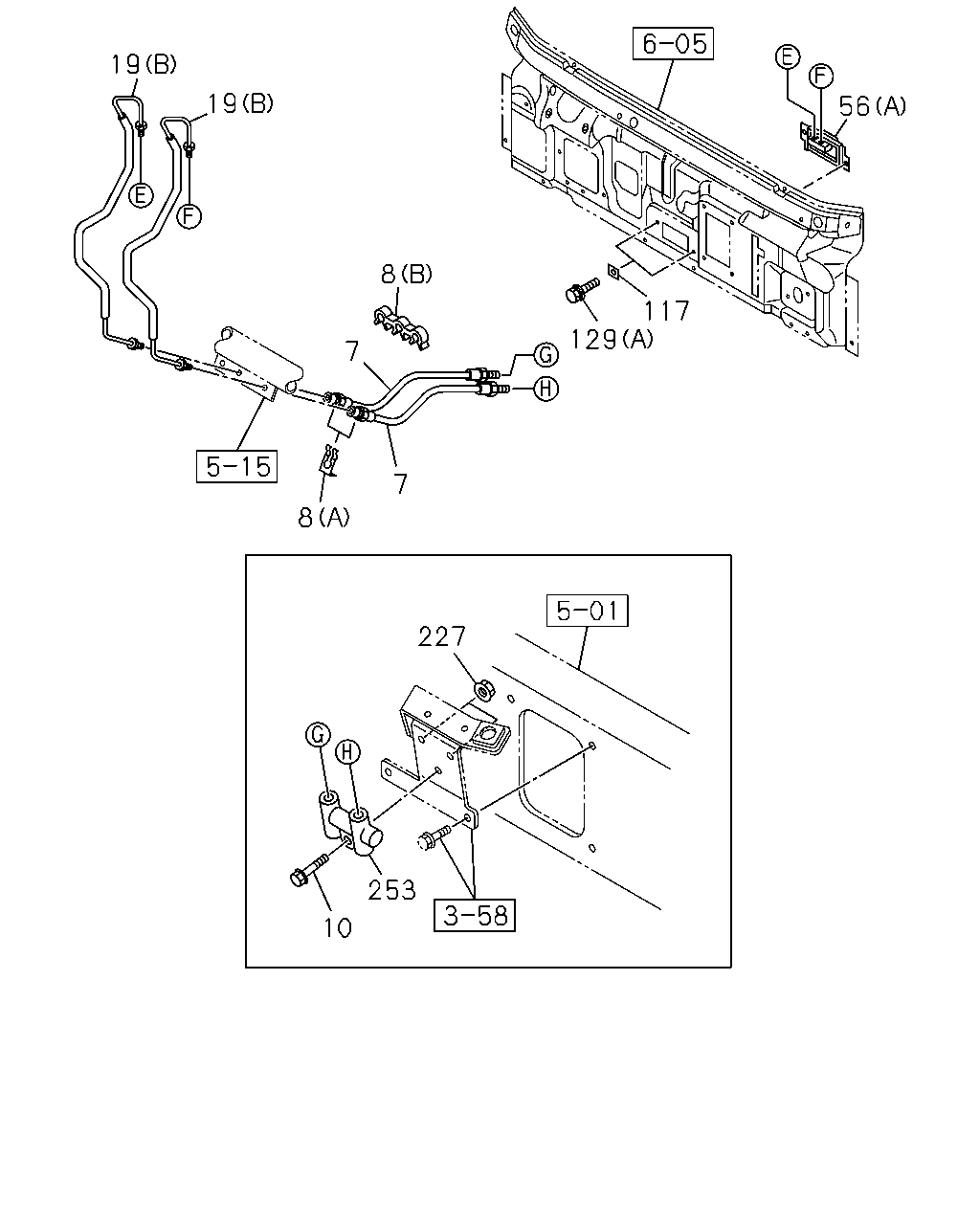

çizim 176685
19 19 56 8 117 129 7 7 8 227 253 10
BalonParca AdiParca NoAdetTipApplied Date
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 1012-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 1012-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1012-
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1012-
19 04.685 PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98080-579-1 02 1 1406-
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98099-794-0 01 1 1406-
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98056-155-1 02 1 1012-1405
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98056-155-1 02 1 1406-
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98097-183-1 01 1 1012-1405
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98097-183-1 01 1 1406-
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-270-1 01 1 1406-
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1012-
56 04.686 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1012-1405
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-268-1 01 1 1406-
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1012-
129 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 1408-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1012-
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012-
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-
253 04.840 JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686 		5-47456-009-1 01 1 1406-
253 04.840 JOINT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97038-940-1 01 1 1406-1407
253 04.840 JOINT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97038-940-1 01 1 1408-
253 04.840 JOINT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 		8-97139-922-1 01 1 1408-
253 04.840 JOINT
04.686 		8-97120-033-2 01 1 1012-1405
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97120-033-2 01 1 1406-

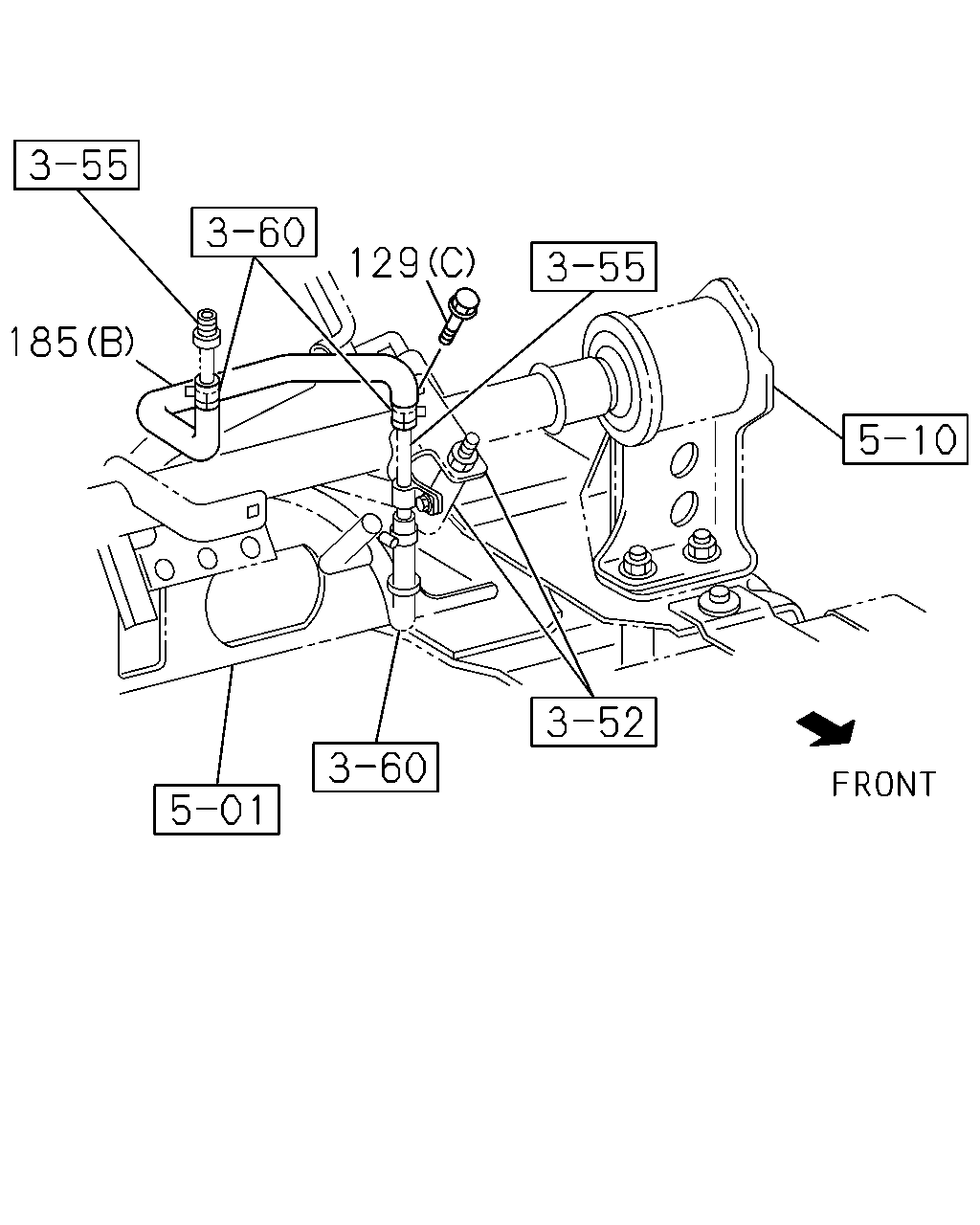

çizim 448860
129 185
BalonParca AdiParca NoAdetTipApplied Date
129 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 1408-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1012-
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012-
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1406-
185 04.681 HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98082-497-0 01 1 1408-
çizim 448906
131 130
BalonParca AdiParca NoAdetTipApplied Date
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97080-060-2 02 1 1407-1504
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97080-060-2 02 1 1505-
131 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1407-1504
131 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1505-

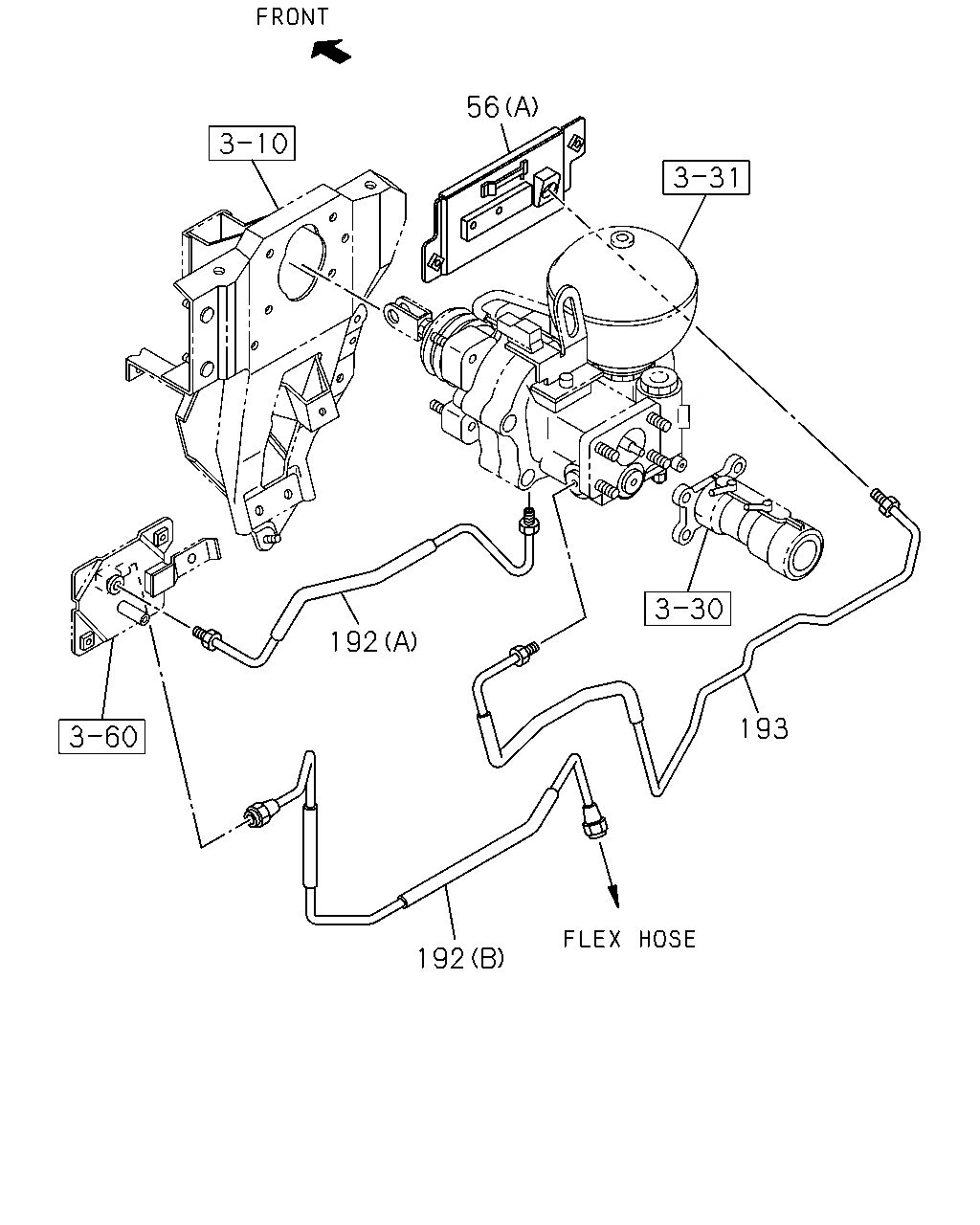

çizim 449362
192 193 192 56
BalonParca AdiParca NoAdetTipApplied Date
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-270-1 01 1 1406-
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1012-
56 04.686 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1012-1405
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-268-1 01 1 1406-
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98033-960-0 01 1 1406-
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98033-961-3 01 1 1406-
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-98099-795-0 01 1 1406-

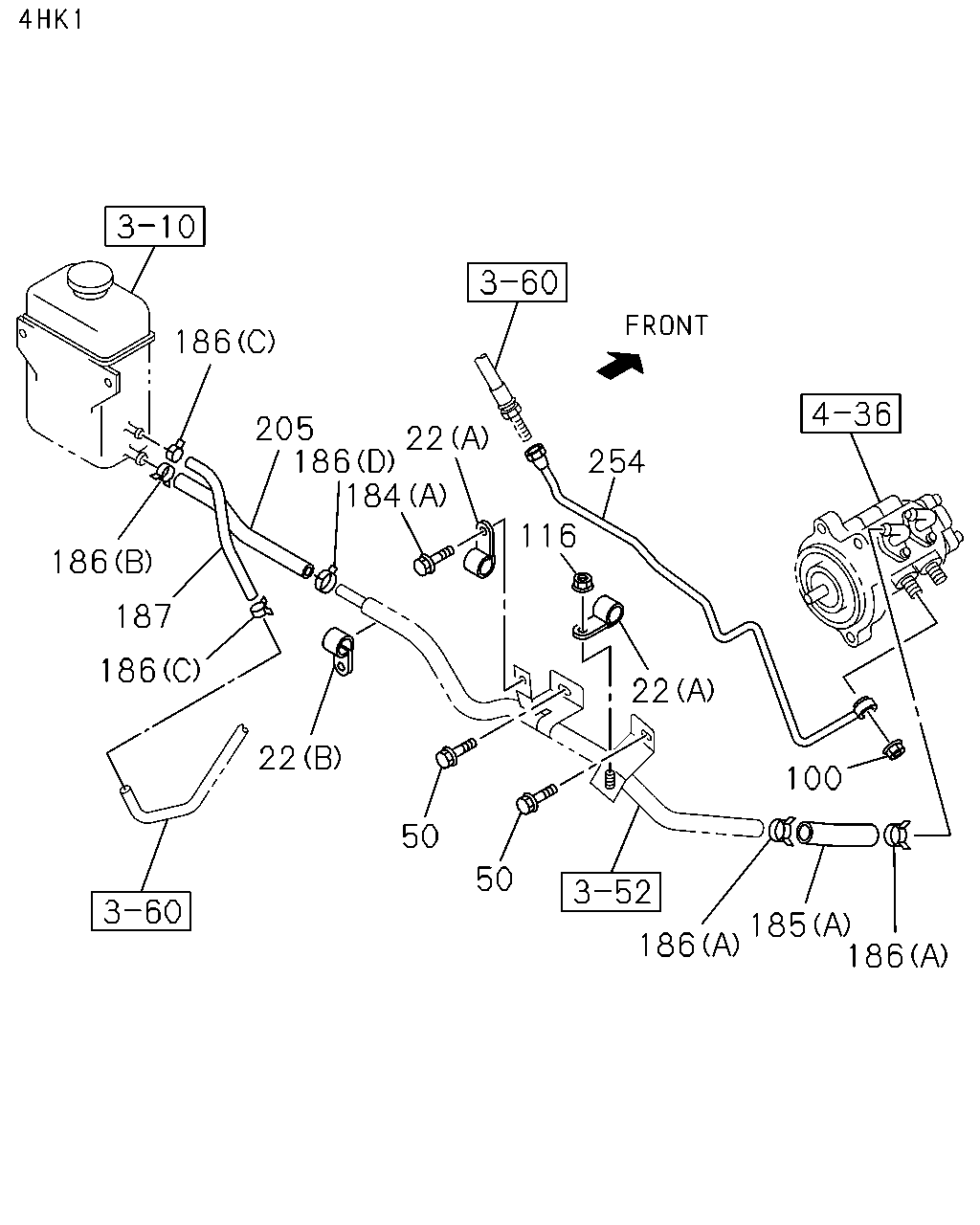

çizim 450315
186 205 22 186 184 116 254 22 100 186 185 186 50 50 22 186 187 186
BalonParca AdiParca NoAdetTipApplied Date
22 04.685 CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5 		8-98082-034-0 02 1 1406-
22 04.685 CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21 		8-98082-035-0 01 1 1406-
50 04.710 BOLT; PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1406-
50 04.710 BOLT; PIPE
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1406-
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER(7QQ) 		8-97358-958-0 01 1 1406-
116 04.686 NUT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1406-
116 04.686 NUT
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1406-
184 04.681 BOLT; CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1406-
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X27 W/PL WASHER 		8-98131-461-0 03 1 1407-
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1406-
185 04.681 HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98082-497-0 01 1 1408-
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21 		8-94242-034-0 02 1 1406-
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22 		8-97359-141-0 01 1 1408-
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16 		8-98008-098-0 02 1 1408-
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=21 		8-98150-355-0 01 1 1408-
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 1408-
205 04.681 HOSE; TANK TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 1408-
205 04.681 HOSE; TANK TO PIPE
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-259-1 01 1 1406-
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 1406-
254 04.685 PIPE; BRAKE,2WAY
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-118-1 01 1 1406-

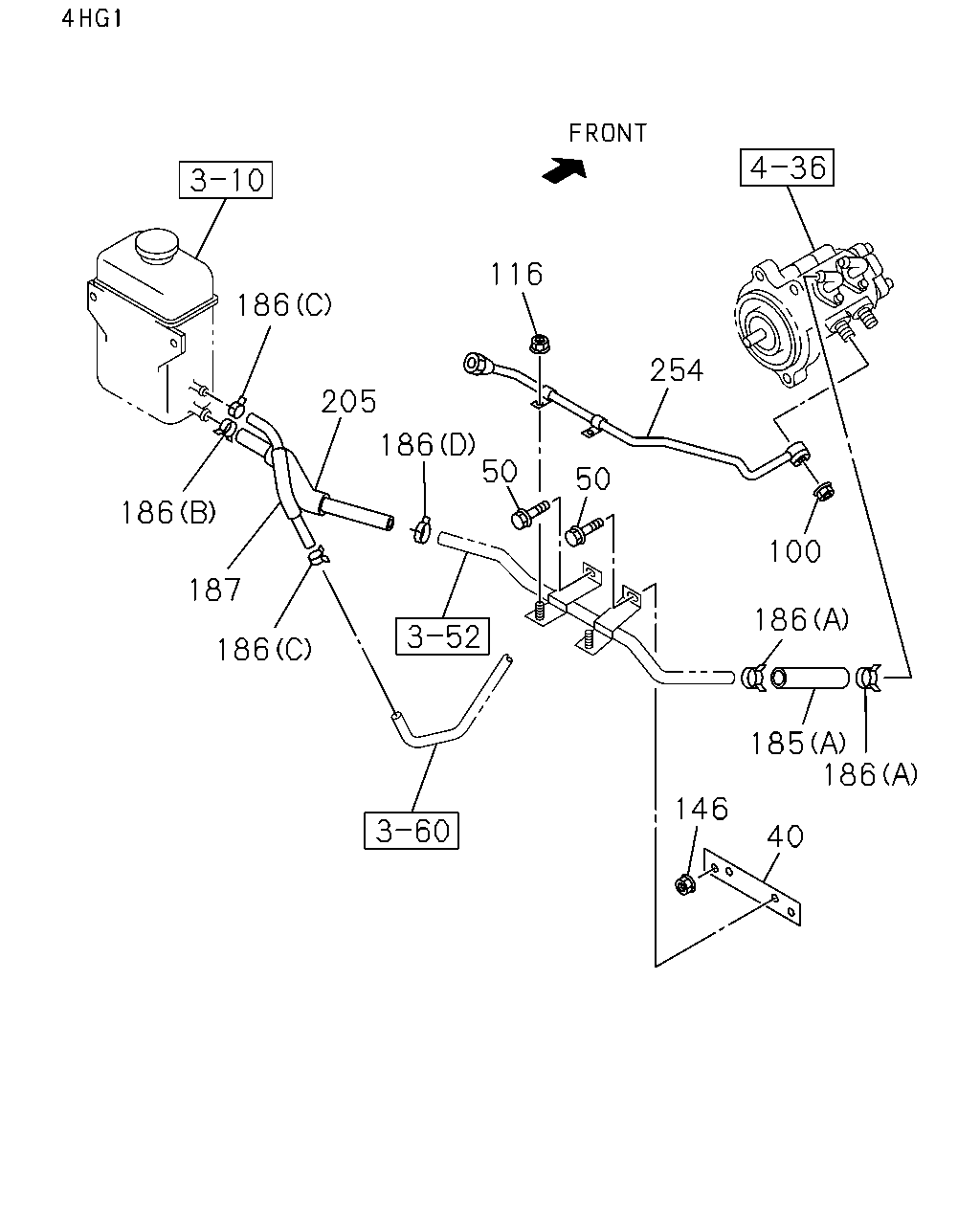

çizim 450349
116 186 205 186 186 187 186 50 50 254 100 186 185 186 146 40
BalonParca AdiParca NoAdetTipApplied Date
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97370-408-0 01 1 1406-
50 04.710 BOLT; PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1406-
50 04.710 BOLT; PIPE
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1406-
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER(7QQ) 		8-97358-958-0 01 1 1406-
116 04.686 NUT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1406-
116 04.686 NUT
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1406-
146 04.685 NUT; BRKT
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1406-
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 1406-
185 04.681 HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98082-497-0 01 1 1408-
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21 		8-94242-034-0 02 1 1406-
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22 		8-97359-141-0 01 1 1408-
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16 		8-98008-098-0 02 1 1408-
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=21 		8-98150-355-0 01 1 1408-
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 1408-
205 04.681 HOSE; TANK TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 1408-
205 04.681 HOSE; TANK TO PIPE
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-259-1 01 1 1406-
254 04.685 PIPE; BRAKE,2WAY
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 1406-
254 04.685 PIPE; BRAKE,2WAY
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 		8-97334-118-1 01 1 1406-

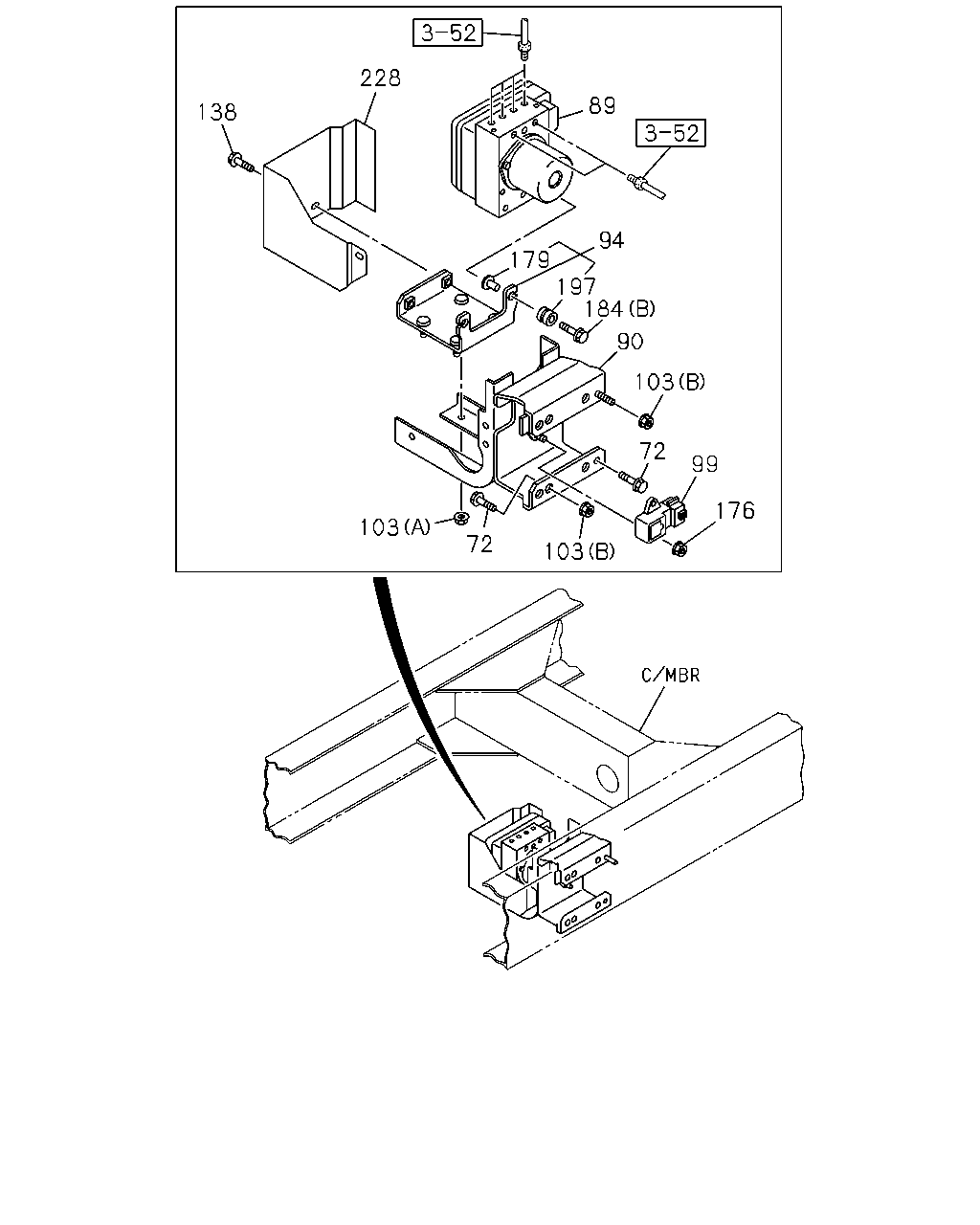

çizim 450803
138 228 89 179 94 197 90 184 103 72 99 176 103 72 103
BalonParca AdiParca NoAdetTipApplied Date
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 03 1 1407-
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98284-494-0 01 1 1407-
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98111-534-0 01 1 1407-
94 04.730 BRACKET; ABS CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98131-873-1 01 1 1407-
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97319-480-0 01 1 1408-
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 1407-
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1407-
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 03 1 1407-
176 04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 02 1 1408-
179 04.685 SPACER; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98130-134-0 03 1 1407-
184 04.681 BOLT; CLIP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1406-
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X27 W/PL WASHER 		8-98131-461-0 03 1 1407-
197 04.730 RUBBER; DAMPER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98130-133-0 03 1 1407-
228 04.730 COVER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98146-719-0 01 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
