◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#49121) — 67 parça
çizim 176654
237 241 338 235 8 238 198 237 198 85 225 181 235 198 241 231 220
BalonParca AdiParca NoAdetTipApplied Date
8 04.592 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98110-964-0 01 1 1012-
85 04.785 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1012-
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1012-
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-
198 04.785 BRACKET; CABLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97303-973-0 01 1 1012-
198 04.785 BRACKET; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97303-974-0 01 1 1012-
198 04.785 BRACKET; CABLE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98097-898-1 01 1 1012-
220 04.785 NUT; CLIP,PARKING CONT CABLE
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
231 04.785 CLIP; BAND,BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.681 ID=16 L=20 		0-95235-536-0 01 1 1012-
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98087-322-0 01 1 1012-
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1012-
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1405
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1405
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1406-
237 04.785 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1406-
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1111-
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012-
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1012-
338 04.785 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-

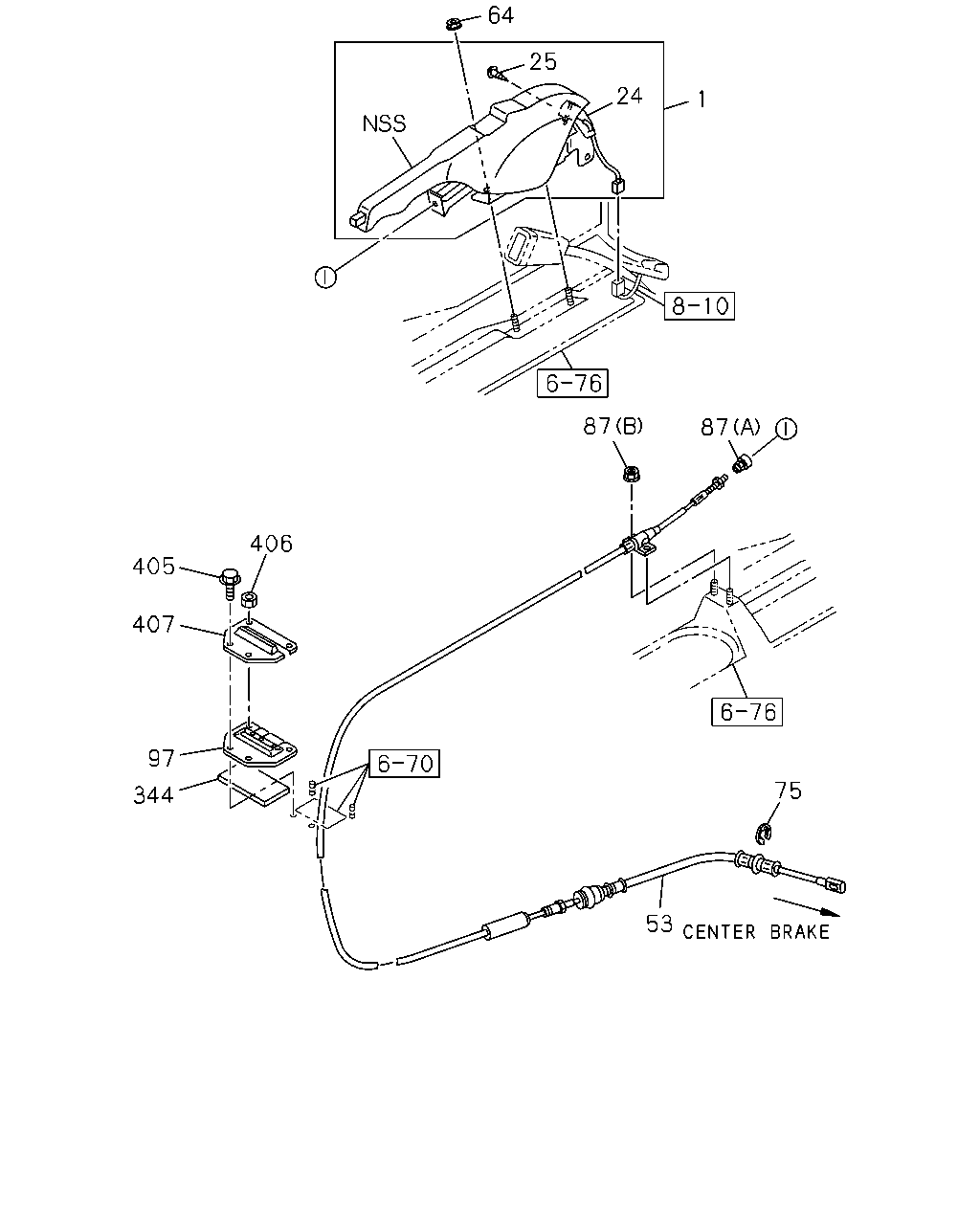

çizim 176655
64 25 24 1 87 87 406 405 407 97 75 344 53
BalonParca AdiParca NoAdetTipApplied Date
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1012-1303
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304-
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1012-1303
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304-
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1012-
53 04.779 CABLE; PARK BRK,FRT LWR
FRAME STRAIGHT TYPE<7KJ> 		8-98069-441-4 01 1 1012-
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1012-
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1012-
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1012-
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1012-
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1012-
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1012-
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1012-

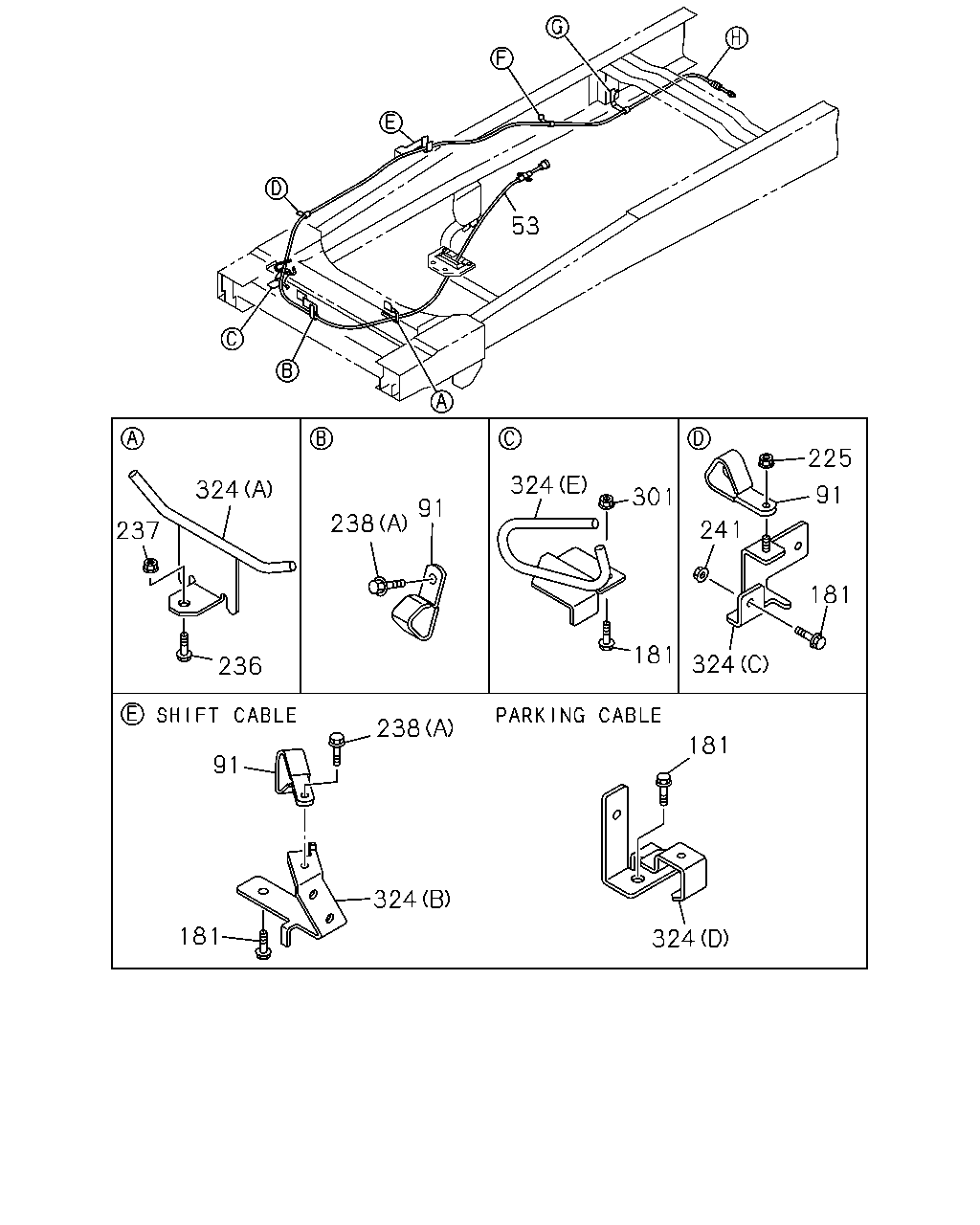

çizim 176662
53 225 324 324 91 301 91 238 241 237 181 181 324 236 238 181 91 324 181 324
BalonParca AdiParca NoAdetTipApplied Date
53 04.779 CABLE; PARK BRK,FRT LWR
FRAME STRAIGHT TYPE<7KJ> 		8-98069-441-4 01 1 1012-
91 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 1012-
91 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 1012-
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97036-333-1 01 1 1012-
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1012-
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
236 04.785 BOLT; BRKT TO FRAME
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012-
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1405
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1405
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1406-
237 04.785 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1406-
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1111-
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012-
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1012-
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98111-394-1 01 1 1012-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 1012-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98094-197-0 01 1 1012-1110
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (E) 		8-98189-804-0 01 1 1111-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1012-1508
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509-
324 04.785 BRACKET
04.047 (A) 		8-98061-626-1 01 1 1012-
