6-60 — ROOF PANEL (#4912) — 231 parça

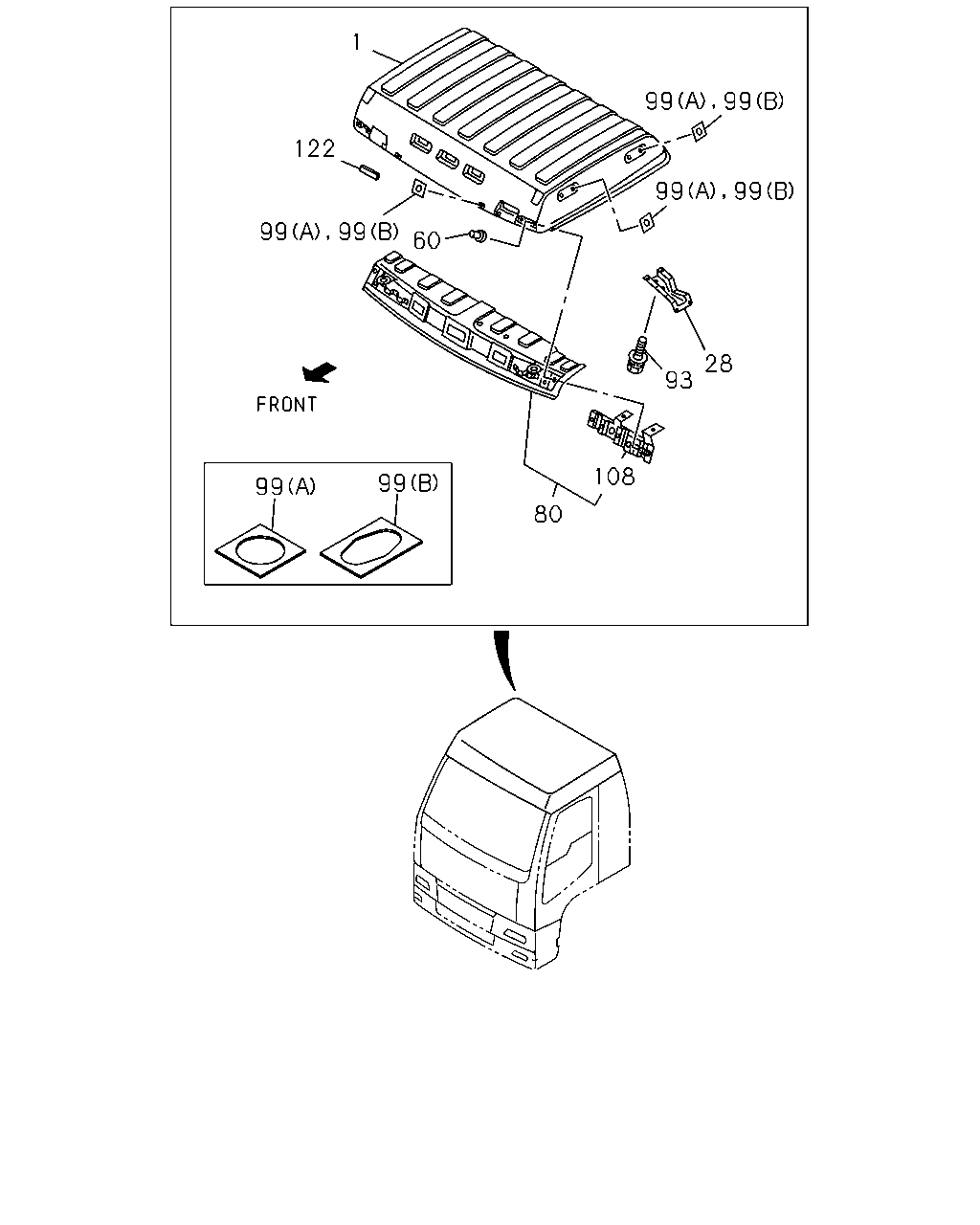

çizim 39365
1 99 99 122 99 99 99 99 60 28 93 108 99 99 80
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61170-768-0 01 1 9603-9901 ● ● ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F> 		1-61170-768-0 01 1 9902-9902 ● ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F> '990222- 		1-61170-848-0 01 1 9902-9904 ● ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-848-0 01 1 9905- ● ● ●
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> 		1-61170-775-0 01 1 9603-9901 ● ●
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> 		1-61170-821-1 01 1 9905- ● ●
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-861-0 01 1 9905- ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9603-9901 ● ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9902-9904 ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9905- ● ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9603-9901 ● ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9902-9904 ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9905- ● ● ●
60 COVER; ROOF 1-79998-922-3 03 1 9603-9702 ● ● ●
60 COVER; ROOF
EXC. SAKHALIN EQUIPMENT(TLE) 		1-79998-922-3 03 1 9703-9901 ● ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 05 1 9902-9912 ● ●
60 COVER; ROOF
SAKHALIN EQUIPMENT(TLE) 		1-79998-922-3 02 1 9703-9801 ●
60 COVER; ROOF
SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1) 		1-79998-922-3 02 1 9802-9901 ● ●
60 COVER; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 03 1 9902-9904 ● ●
60 COVER; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 03 1 9905-9912 ● ● ●
60 COVER; ROOF 1-79998-922-3 03 1 0001- ● ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 02 1 0003- ● ●
80 PANEL; HEADER,ROOF
HIGH ROOF<S2F> 		1-61170-741-0 01 1 9902-9902 ● ●
80 PANEL; HEADER,ROOF
HIGH ROOF<S2F> 		1-61170-845-0 01 1 9903-9904 ● ●
80 PANEL; HEADER,ROOF
HIGH ROOF<S2F> 		1-61170-845-0 01 1 9905- ● ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9603-9901 ● ● ●
93 BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9902-9904 ● ●
93 BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9905- ● ● ●
93 BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9902-9904 ● ●
93 BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 22 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 12 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 05 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 9902-9904 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1) (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9902-9904 ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9905- ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9807-9807 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9807-9807 ● ● ●
99 SEAL; BODY,METAL
EXC. SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1),DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) SLOT 75X50 ID=36 		1-61281-458-0 02 1 9603-9901 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9905- ● ● ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) SLOT 75X50 ID=36 		1-61281-458-0 02 1 9905- ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61170-438-5 01 1 9905- ● ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61170-469-5 01 1 9905- ● ● ●
108 PATCH; MIRROR
EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61170-438-5 01 1 9603-9901 ● ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F> 		1-61170-438-6 01 1 9902-9904 ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-438-6 01 1 9905- ● ● ●
108 PATCH; MIRROR
EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61170-469-5 01 1 9603-9901 ● ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F> 		1-61170-469-5 01 1 9902-9902 ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F> 		1-61170-857-2 01 1 9902-9904 ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-857-2 01 1 9905- ● ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61170-438-5 01 1 9902-9904 ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61170-469-5 01 1 9902-9904 ● ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> 		1-61170-772-2 01 1 9603-9901 ● ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> 		1-61170-771-2 01 1 9603-9901 ● ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-772-3 01 1 9905- ● ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-862-1 01 1 9905- ● ●
122 SEAL; FRT UPR
65X5 		1-61270-919-0 02 1 9705-9901 ● ● ●
122 SEAL; FRT UPR
65X5 		1-61270-919-0 02 1 9902-9904 ● ●
122 SEAL; FRT UPR
65X5 		1-61270-919-0 02 1 9905- ● ● ●

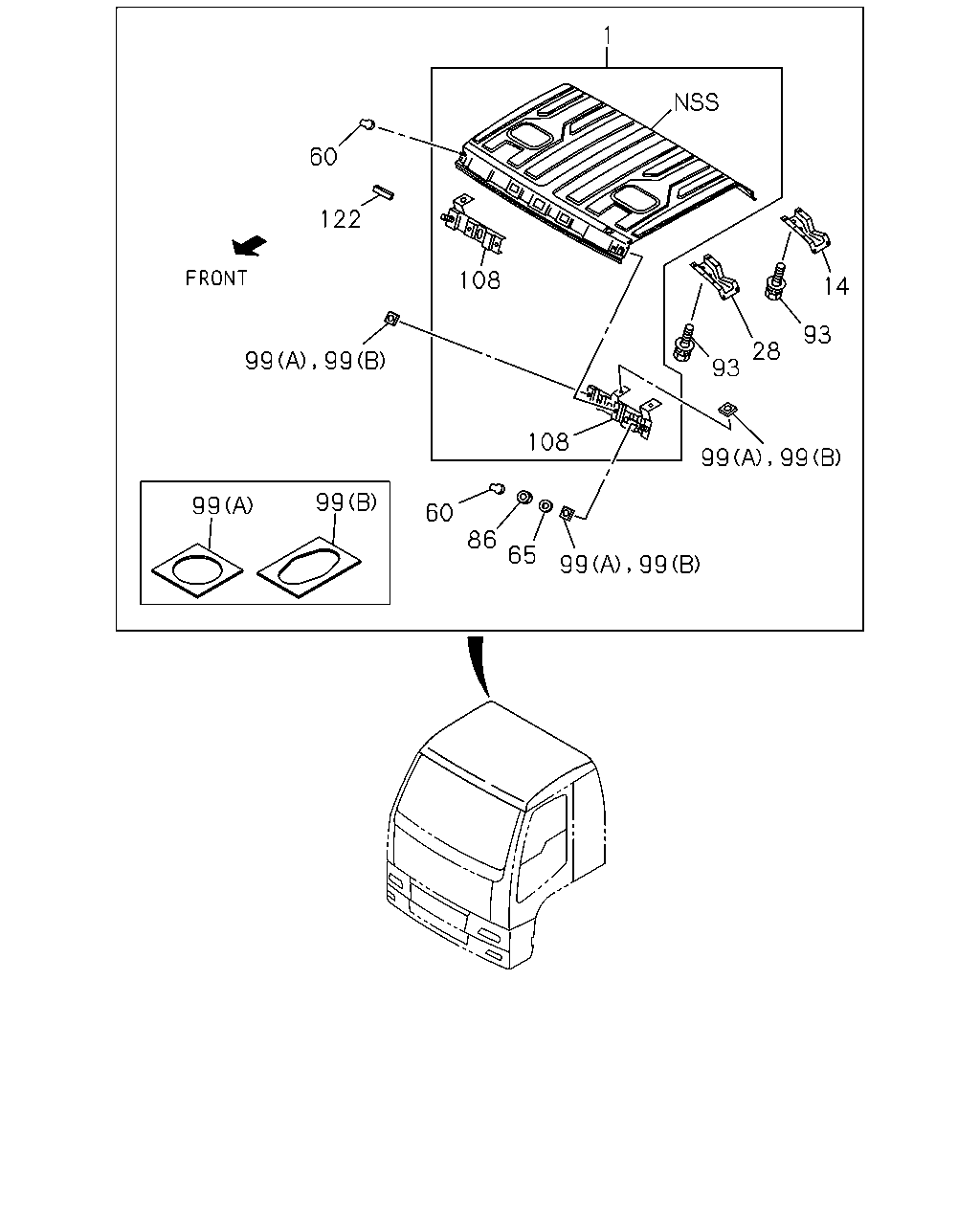

çizim 39405
1 60 122 108 14 93 28 99 99 93 108 99 99 99 99 60 86 65 99 99
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61170-768-0 01 1 9603-9901 ● ● ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F> 		1-61170-768-0 01 1 9902-9902 ● ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F> '990222- 		1-61170-848-0 01 1 9902-9904 ● ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-848-0 01 1 9905- ● ● ●
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> 		1-61170-775-0 01 1 9603-9901 ● ●
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> 		1-61170-821-1 01 1 9905- ● ●
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-861-0 01 1 9905- ● ●
14 SUPPORT; ROOF 1-73318-493-3 02 1 9603-9901 ● ● ●
14 SUPPORT; ROOF
EXC. HIGH ROOF<S2F> 		1-73318-493-3 02 1 9902-9904 ● ●
14 SUPPORT; ROOF
EXC. HIGH ROOF<S2F> 		1-73318-493-3 02 1 9905- ● ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9603-9901 ● ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9902-9904 ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9905- ● ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9603-9901 ● ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9902-9904 ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9905- ● ● ●
60 COVER; ROOF 1-79998-922-3 03 1 9603-9702 ● ● ●
60 COVER; ROOF
EXC. SAKHALIN EQUIPMENT(TLE) 		1-79998-922-3 03 1 9703-9901 ● ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 05 1 9902-9912 ● ●
60 COVER; ROOF
SAKHALIN EQUIPMENT(TLE) 		1-79998-922-3 02 1 9703-9801 ●
60 COVER; ROOF
SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1) 		1-79998-922-3 02 1 9802-9901 ● ●
60 COVER; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 03 1 9902-9904 ● ●
60 COVER; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 03 1 9905-9912 ● ● ●
60 COVER; ROOF 1-79998-922-3 03 1 0001- ● ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 02 1 0003- ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 9603-9702 ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 9703-9801 ● ● ●
65 WASHER; PL
SAKHALIN EQUIPMENT(TLE) ID=8 T=2.3 		8-94368-403-1 01 1 9703-9801 ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 9802-9901 ● ● ●
65 WASHER; PL
SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1) ID=8 T=2.3 		8-94368-403-1 01 1 9802-9901 ● ●
65 WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 02 1 9902-9912 ● ●
65 WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9902-9904 ● ●
65 WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9905-9912 ● ● ●
65 WASHER; PL
EXC. HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 0001- ● ● ●
65 WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 0001- ● ●
86 NUT; ROOF
M8 FLANGE 		9-09130-408-0 01 1 9603-9702 ● ● ●
86 NUT; ROOF
M8 FLANGE 		9-09130-408-0 01 1 9703-9705 ● ● ●
86 NUT; ROOF
SAKHALIN EQUIPMENT(TLE) M8 FLANGE 		9-09130-408-0 01 1 9703-9705 ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-408-0 01 1 9706-9801 ● ● ●
86 NUT; ROOF
SAKHALIN EQUIPMENT(TLE) M8 LOCK NUT 		9-09131-408-0 01 1 9706-9801 ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-408-0 01 1 9802-9901 ● ● ●
86 NUT; ROOF
SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1) M8 LOCK NUT 		9-09131-408-0 01 1 9802-9901 ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 02 1 9902-9912 ● ●
86 NUT; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 9902-9904 ● ●
86 NUT; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 9905-9912 ● ● ●
86 NUT; ROOF
EXC. HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 0001-0103 ● ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 0001-0103 ● ●
86 NUT; ROOF
EXC. HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-508-0 01 1 0104- ● ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-508-0 01 1 0104- ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9603-9901 ● ● ●
93 BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9902-9904 ● ●
93 BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9905- ● ● ●
93 BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9902-9904 ● ●
93 BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 22 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 12 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 05 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 9902-9904 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1) (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9902-9904 ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9905- ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9807-9807 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9807-9807 ● ● ●
99 SEAL; BODY,METAL
EXC. SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1),DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) SLOT 75X50 ID=36 		1-61281-458-0 02 1 9603-9901 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9905- ● ● ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) SLOT 75X50 ID=36 		1-61281-458-0 02 1 9905- ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61170-438-5 01 1 9905- ● ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61170-469-5 01 1 9905- ● ● ●
108 PATCH; MIRROR
EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61170-438-5 01 1 9603-9901 ● ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F> 		1-61170-438-6 01 1 9902-9904 ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-438-6 01 1 9905- ● ● ●
108 PATCH; MIRROR
EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61170-469-5 01 1 9603-9901 ● ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F> 		1-61170-469-5 01 1 9902-9902 ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F> 		1-61170-857-2 01 1 9902-9904 ● ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-857-2 01 1 9905- ● ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61170-438-5 01 1 9902-9904 ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61170-469-5 01 1 9902-9904 ● ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> 		1-61170-772-2 01 1 9603-9901 ● ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> 		1-61170-771-2 01 1 9603-9901 ● ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-772-3 01 1 9905- ● ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-862-1 01 1 9905- ● ●
122 SEAL; FRT UPR
65X5 		1-61270-919-0 02 1 9705-9901 ● ● ●
122 SEAL; FRT UPR
65X5 		1-61270-919-0 02 1 9902-9904 ● ●
122 SEAL; FRT UPR
65X5 		1-61270-919-0 02 1 9905- ● ● ●
çizim 39452
99 99
BalonParca AdiParca NoAdetTipApplied Date A B C
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 22 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 12 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 05 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9603-9806 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 9902-9904 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9807-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1) (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-9901 ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9902-9904 ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9905- ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9807-9807 ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9807-9807 ● ● ●
99 SEAL; BODY,METAL
EXC. SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1),DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-9901 ● ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902-9904 ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9905- ● ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) SLOT 75X50 ID=36 		1-61281-458-0 02 1 9603-9901 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9902-9904 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9905- ● ● ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) SLOT 75X50 ID=36 		1-61281-458-0 02 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
