3-05 — REAR WHEEL BRAKE (#49118) — 63 parça

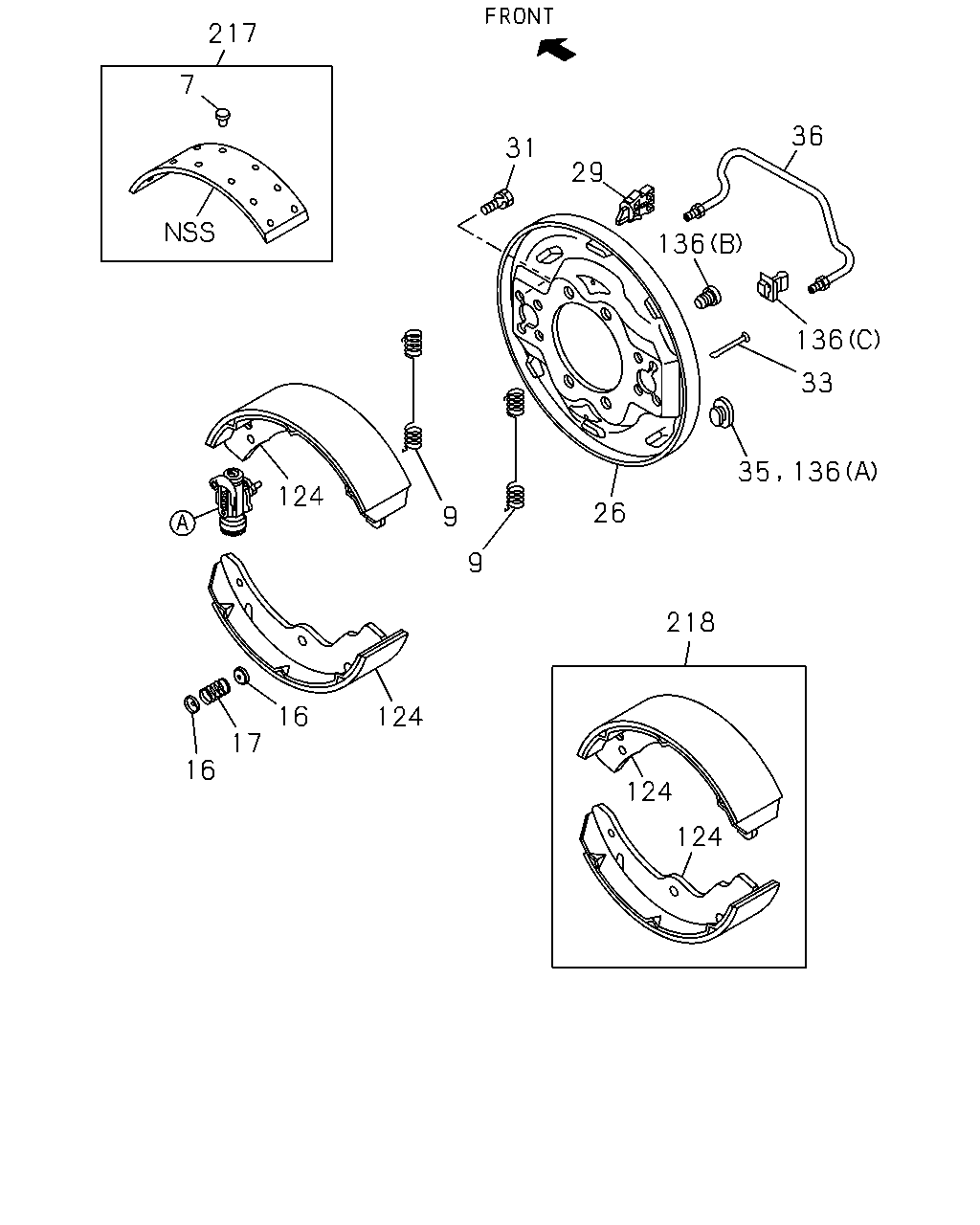

217 7 124 16 17 16 124 218 124 124 136 35 26 9 9 33 136 36 136 29 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	48	1	1012-
9	05.026 SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	1012-
16	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	1012-
17	04.043 SPRING; SHOE HOLD DOWN 05.043	5-09580-101-1	04	1	1012-
26	05.001 PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98148-182-0	01	1	1408-
26	05.001 PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98148-183-0	01	1	1408-
26	05.001 PLATE; BACK,RR BRK	8-97223-575-0	01	1	1012-1405
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97223-575-0	01	1	1406-
26	05.001 PLATE; BACK,RR BRK	8-97223-576-0	01	1	1012-1405
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97223-576-0	01	1	1406-
29	04.685 CLIP; PIPE,BRK	8-97022-086-0	02	1	1012-
31	04.665 BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1012-
33	05.043 PIN; SHOE HOLD DOWN	8-97022-089-0	04	1	1012-
35	05.002 GROMMET; CHECK HOLE	8-97017-507-0	02	1	1012-
36	04.685 PIPE; OIL,RR BRK	8-97192-215-0	02	1	1012-
124	05.017 SHOE ASM; BRK,RR	8-97201-061-0	04	1	1012-
136	05.002 GROMMET 4 WHEEL ANTI LOCK BRAKE<JE5> 04.670 (B)	1-47154-008-0	04	1	1408-
136	05.002 GROMMET 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97017-507-0	04	1	1408-
136	05.002 GROMMET (C)	8-97044-742-1	04	1	1012-1405
136	05.002 GROMMET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97044-742-1	04	1	1406-
217	05.018 LINING KIT; RR BRK	5-87831-774-0	01	1	1012-
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	1012-
218	05.017 SHOE KIT; BRK,RR	5-87831-775-0	01	1	1012-

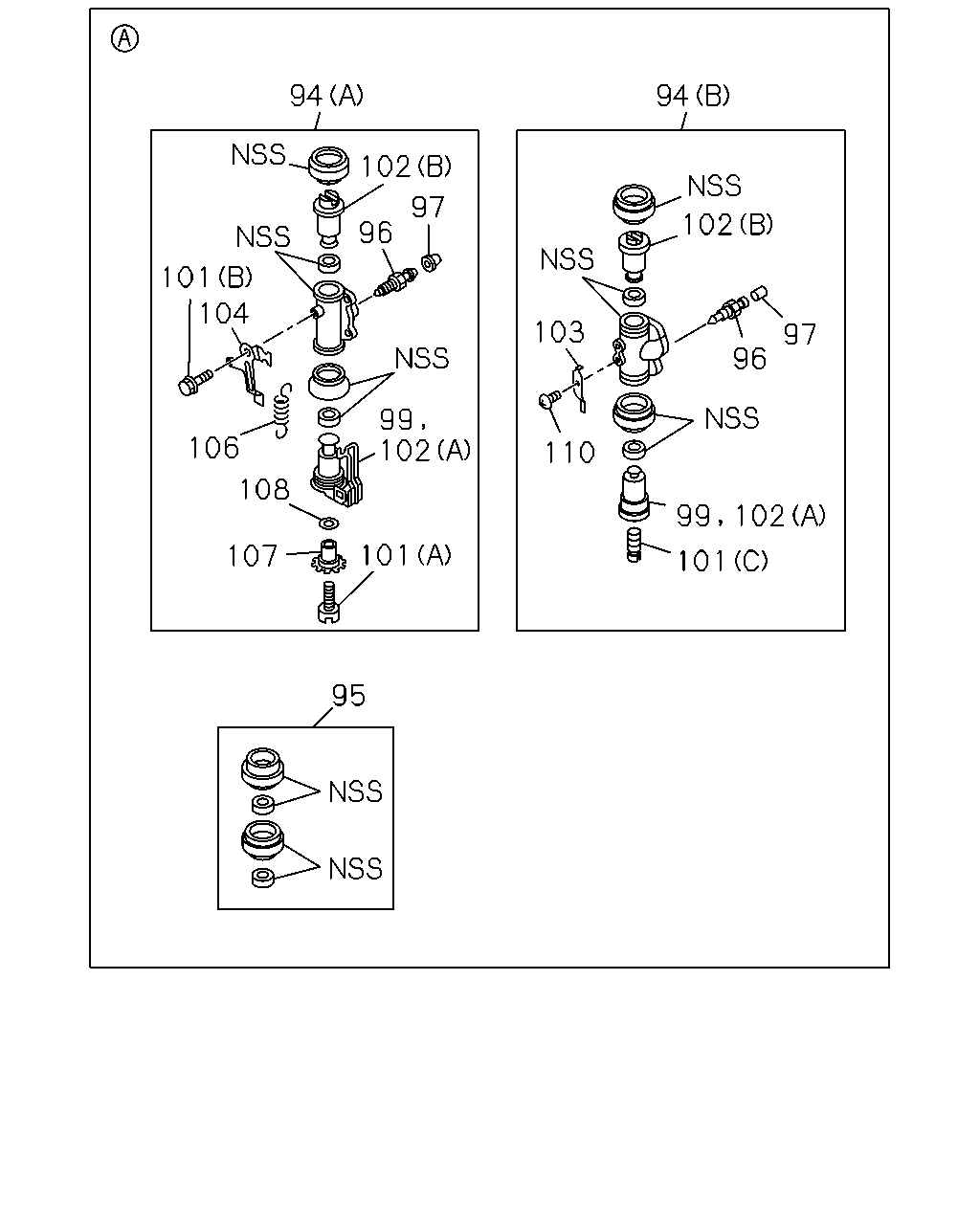

94 102 97 96 99 102 101 95 107 108 106 104 101 94 102 97 96 102 101 99 110 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	04.665 CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-98139-201-0	01	1	1408-
94	04.665 CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-98139-202-0	01	1	1408-
94	04.665 CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-98139-203-0	01	1	1408-
94	04.665 CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-98139-204-0	01	1	1408-
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-97332-225-0	01	1	1012-1405
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97332-225-0	01	1	1406-
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-97332-226-0	01	1	1012-1405
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97332-226-0	01	1	1406-
94	04.665 CYLINDER; WHEEL,RR BRK (B)	8-97332-227-0	02	1	1012-1405
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97332-227-0	02	1	1406-
95	04.665 CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1012-
96	04.666 SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-476-0	02	1	1408-
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-476-0	01	1	1012-1405
96	04.666 SCREW; BLEEDER,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-476-0	01	1	1406-
97	04.666 CAP; BLEEDER,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	02	1	1408-
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	1012-1405
97	04.666 CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	01	1	1406-
99	04.668 PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-731-0	01	1	1408-
99	04.668 PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-732-0	02	1	1408-
99	04.668 PISTON; RR WHEEL CYL	8-97332-229-0	03	1	1012-1405
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97332-229-0	03	1	1406-
101	04.666 SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97349-741-0	02	1	1408-
101	04.666 SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97349-742-0	02	1	1408-
101	04.666 SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97349-747-0	04	1	1408-
101	04.666 SCREW; ADJ,RR WHEEL CYL (C)	8-94414-702-0	04	1	1012-1405
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94414-702-0	04	1	1406-
102	04.668 PISTON; REAR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97349-731-0	01	1	1408-
102	04.668 PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	1012-
102	04.668 PISTON; REAR WHEEL CYL (A)	8-97332-229-0	01	1	1012-1405
102	04.668 PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97332-229-0	01	1	1406-
103	05.107 SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	1012-1405
103	05.107 SPRING; LK,RR WHEEL CYL,ADJ EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	1406-
104	05.103 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-743-0	02	1	1408-
104	05.103 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-744-0	02	1	1408-
106	05.107 SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-745-0	04	1	1408-
107	05.110 GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-738-0	02	1	1408-
107	05.110 GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-740-0	02	1	1408-
108	05.110 WASHER; THRUST,GEAR ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-736-0	04	1	1408-
110	05.107 SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	1012-1405
110	05.107 SCREW; LOCK SPRING,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	1406-
