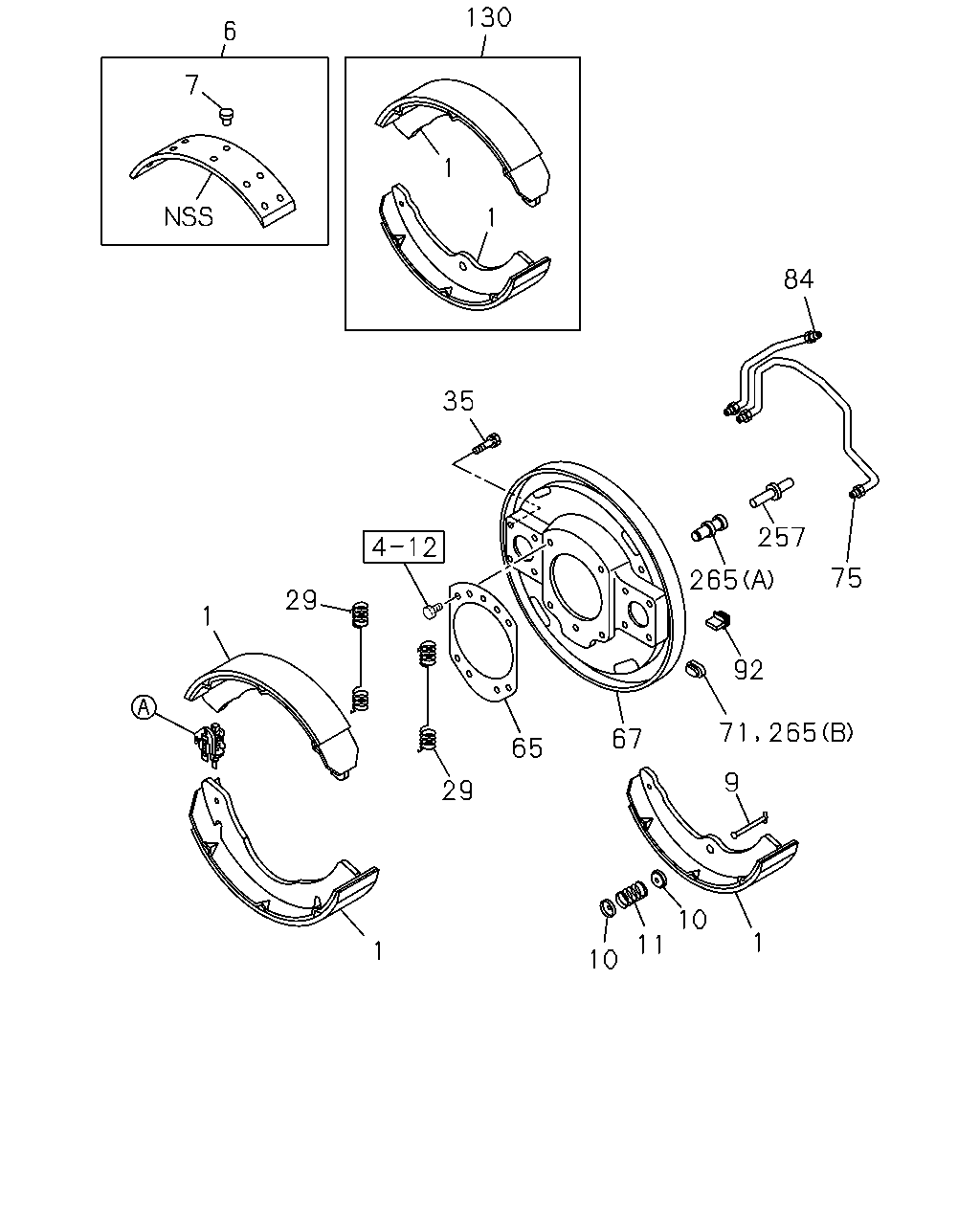

3-01 — FRONT WHEEL BRAKE (#49117) — 68 parça

6 7 130 35 29 1 1 29 65 67 84 257 265 75 92 71 265 9 1 10 11 10 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.017 SHOE; BRK,FRT	8-97287-778-0	04	1	1012-
6	05.018 LINING KIT; FRT BRK	5-87831-801-0	01	1	1012-
6	05.018 LINING KIT; FRT BRK BEST VALUE PARTS	5-87610-121-0	01	1	1012-
7	05.019 RIVET; LINING,FRT BRK	1-09732-029-0	40	1	1012-
9	05.026 PIN; SHOE HOLDER 05.043	5-47162-001-0	04	1	1012-
10	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	1012-
11	05.027 SPRING; SHOE HOLDING 05.043	5-09580-101-1	04	1	1012-
29	05.026 SPRING; RETURN,FRT BRK SHOE	5-09583-118-0	04	1	1012-
35	04.665 BOLT; FRT WHEEL CYL	5-09030-016-1	16	1	1012-
65	05.815 COVER; OIL SHIELD,FRT	8-94438-775-1	02	1	1012-
67	05.001 PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97192-137-0	01	1	1407-
67	05.001 PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97192-138-0	01	1	1407-
67	05.001 PLATE; BACK,FRT BRK	8-97078-595-0	01	1	1012-1406
67	05.001 PLATE; BACK,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97078-595-0	01	1	1407-
67	05.001 PLATE; BACK,FRT BRK	8-97078-596-0	01	1	1012-1406
67	05.001 PLATE; BACK,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97078-596-0	01	1	1407-
71	05.002 GROMMET; CHECK HOLE	8-94171-287-0	02	1	1012-
75	04.685 PIPE; OIL,FWD,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97222-480-0	02	1	1407-
75	04.685 PIPE; OIL,FWD,FRT BRK	8-94473-818-0	02	1	1012-1406
75	04.685 PIPE; OIL,FWD,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94473-818-0	02	1	1407-
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97222-481-0	01	1	1407-
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97222-482-0	01	1	1407-
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-94473-819-1	01	1	1012-1406
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94473-819-1	01	1	1407-
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-94473-820-1	01	1	1012-1406
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94473-820-1	01	1	1407-
92	05.002 GROMMET; ADJ HOLE	9-09756-034-0	04	1	1012-1406
92	05.002 GROMMET; ADJ HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	9-09756-034-0	04	1	1407-
130	05.017 SHOE KIT; BRK,FRT	5-87832-047-0	01	1	1012-
257	04.665 PIN; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> 05.020	8-97078-700-0	04	1	1407-
265	04.685 GROMMET; PLATE,BACK 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 (B)	8-94171-287-0	04	1	1407-
265	04.685 GROMMET; PLATE,BACK 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 (A)	8-94366-295-0	04	1	1407-

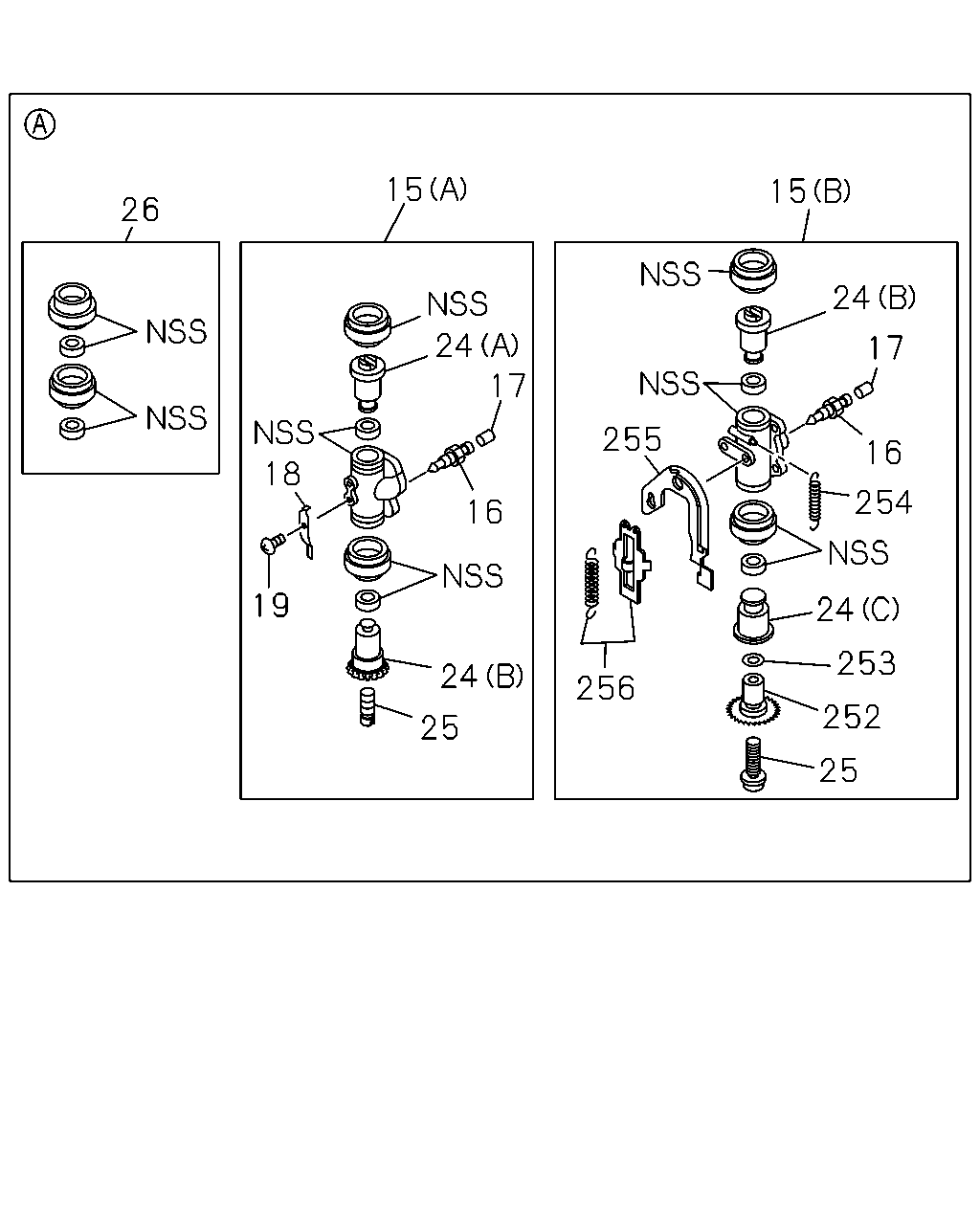

26 15 15 18 19 24 17 16 24 25 255 256 24 17 16 254 24 253 252 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97192-142-0	01	1	1407-
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97192-143-0	01	1	1407-
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT	8-97192-144-0	01	1	1407-
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97192-145-0	01	1	1407-
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT ID=30.16(1 3/16")	8-97139-814-0	01	1	1012-
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT ID=30.16(1 3/16")	8-97139-815-0	01	1	1012-1406
15	04.665 CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT ID=30.16(1 3/16")	8-97139-815-0	01	1	1407-
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR ID=30.16(1 3/16")	8-97139-816-0	01	1	1012-1406
15	04.665 CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR ID=30.16(1 3/16")	8-97139-816-0	01	1	1407-
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR ID=30.16(1 3/16")	8-97139-817-0	01	1	1012-1406
15	04.665 CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR ID=30.16(1 3/16")	8-97139-817-0	01	1	1407-
16	04.666 SCREW; BLEEDER,FRT BRK	8-98050-476-0	02	1	1012-
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	8-98050-479-0	02	1	1012-
18	05.107 STOPPER; ADJ SCREW	8-94128-486-0	04	1	1012-1406
18	05.107 STOPPER; ADJ SCREW EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	1407-
19	05.107 SCREW; STOPPER SETTING	8-94128-727-0	04	1	1012-1406
19	05.107 SCREW; STOPPER SETTING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	1407-
24	04.668 PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97078-043-0	02	1	1407-
24	04.668 PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97078-044-0	02	1	1407-
24	04.668 PISTON; FRT WHEEL CYL (A)	8-94414-700-1	04	1	1012-1406
24	04.668 PISTON; FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94414-700-1	04	1	1407-
24	04.668 PISTON; FRT WHEEL CYL (B)	8-97078-045-0	04	1	1012-
25	05.110 SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 M12X30.2 RH THREAD	5-47622-003-1	02	1	1407-
25	05.110 SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 M12X30.2 LH THREAD	5-47622-004-1	02	1	1407-
25	05.110 SCREW; ADJ,FRT WHEEL CYL 04.666	8-94414-702-0	04	1	1012-1406
25	05.110 SCREW; ADJ,FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.666	8-94414-702-0	04	1	1407-
26	04.667 CUP SET; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-777-0	02	1	1407-
26	04.667 CUP SET; FRT WHEEL CYL 04.665	5-87831-598-0	02	1	1012-1406
26	04.667 CUP SET; FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665	5-87831-598-0	02	1	1407-
252	04.665 GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 05.110	5-47623-005-0	02	1	1407-
252	04.665 GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 05.110	5-47623-006-0	02	1	1407-
253	04.665 WASHER; THRUST 4 WHEEL ANTI LOCK BRAKE<JE5> 05.110	8-97029-304-0	04	1	1407-
254	04.665 SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5> 05.107	5-09585-045-0	04	1	1407-
255	04.665 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> 05.103	8-94366-173-0	02	1	1407-
255	04.665 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> 05.103	8-94366-174-0	02	1	1407-
256	04.665 SPRING; OVER TRAVEL 4 WHEEL ANTI LOCK BRAKE<JE5> 05.107	5-47619-046-0	04	1	1407-
