◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#49100) — 76 parça

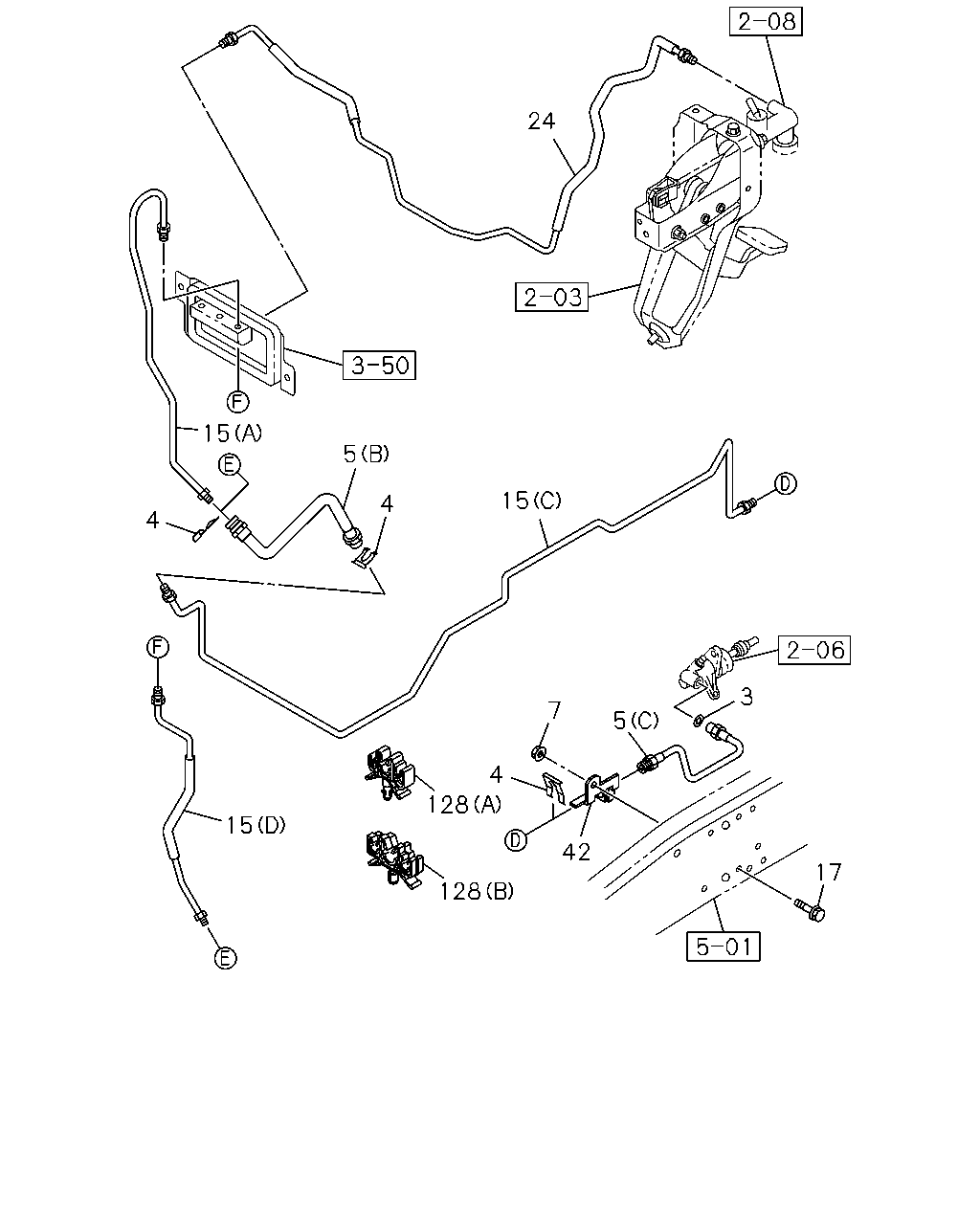

çizim 176631
24 15 4 5 4 15 15 128 128 4 7 5 3 42 17
BalonParca AdiParca NoAdetTipApplied Date
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012-
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH) 		9-09920-873-1 01 1 1012-
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 04.681 		8-97365-304-0 01 1 1012-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) (A) 		8-98077-611-2 01 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH) (C) 		8-97064-108-1 01 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1406
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1407-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1407-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1406
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407-
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98047-202-3 01 1 1406-
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98160-043-0 01 1 1408-
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-742-3 01 1 1012-1407
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98041-742-3 01 1 1408-
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98100-236-0 01 1 1012-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98100-910-0 01 1 1012-1405
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98100-910-0 01 1 1406-
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1406
17 00.785 BOLT; BRKT
4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407-
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407-
17 00.785 BOLT; BRKT
4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1406
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1407-
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1407-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98099-806-2 01 1 1012-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1505-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98097-187-1 01 1 1012-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1505-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 		8-98100-943-1 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EXC. EURO2 SPECIFICATION(NT2) 		8-98082-472-2 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 		8-98102-893-0 01 1 1012-
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 01 1 1408-
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1012-1407
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) 04.686 (A) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1408-
çizim 176632
183
BalonParca AdiParca NoAdetTipApplied Date
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 1012-

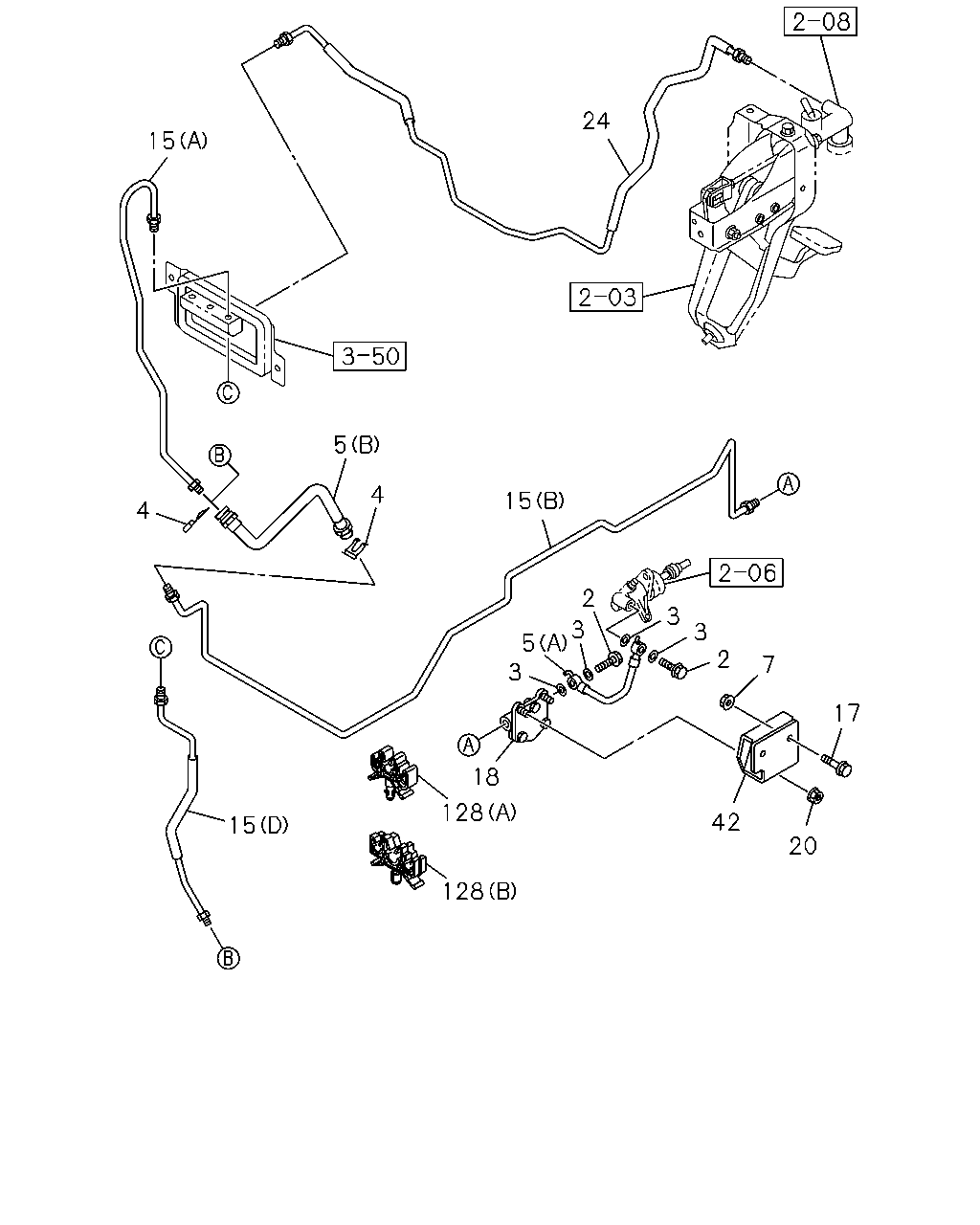

çizim 176636
24 15 5 15 3 3 2 7 17 20 42 128 128 18 3 5 3 2 15 4 4
BalonParca AdiParca NoAdetTipApplied Date
2 00.782 BOLT; EYE,SLAVE CYL
4HK1-TCN ENG(RDQ) 04.681 M10X22 		8-98014-005-0 02 1 1012-
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012-
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH) 		9-09920-873-1 01 1 1012-
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 04.681 		8-97365-304-0 01 1 1012-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) (A) 		8-98077-611-2 01 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH) (C) 		8-97064-108-1 01 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1406
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1407-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1407-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1406
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407-
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98047-202-3 01 1 1406-
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98160-043-0 01 1 1408-
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-742-3 01 1 1012-1407
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98041-742-3 01 1 1408-
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98100-236-0 01 1 1012-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98100-910-0 01 1 1012-1405
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98100-910-0 01 1 1406-
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1406
17 00.785 BOLT; BRKT
4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407-
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407-
17 00.785 BOLT; BRKT
4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1406
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1407-
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1407-
18 00.830 DAMPER ASM; CLU OIL
4HK1-TCN ENG(RDQ) 		8-98077-610-1 01 1 1012-
20 00.837 NUT; CLU OIL DAMPER
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98099-806-2 01 1 1012-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1505-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98097-187-1 01 1 1012-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1505-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 		8-98100-943-1 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EXC. EURO2 SPECIFICATION(NT2) 		8-98082-472-2 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 		8-98102-893-0 01 1 1012-
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 01 1 1408-
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1012-1407
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) 04.686 (A) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1408-
