1-50 — EXHAUST PIPE AND SILENCER (#49095) — 147 parça

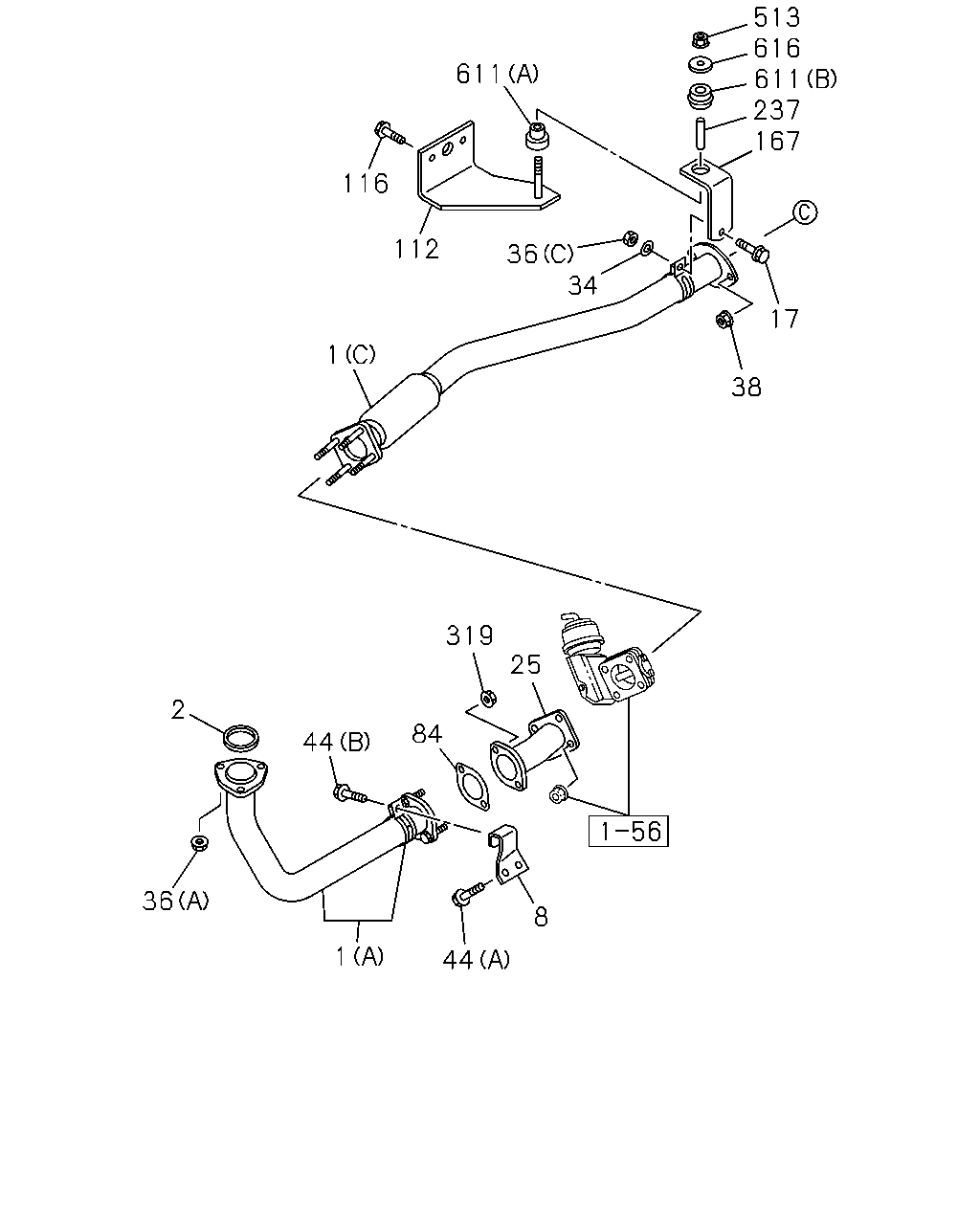

513 616 611 237 167 611 116 112 36 34 17 1 38 319 25 2 84 44 36 8 1 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98082-540-0	01	1	1012-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (B)	8-98082-542-0	01	1	1012-
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-98108-162-1	01	1	1012-1404
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-98216-284-0	01	1	1405-
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (C)	8-98108-166-1	01	1	1012-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1012-
8	03.704 BRACKET; EXH PIPE	8-98072-165-0	01	1	1012-
17	03.613 BOLT; EXH PIPE 4HG1 ENG(RJH) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1012-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98082-541-0	01	1	1012-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-98108-165-1	01	1	1012-
34	03.613 WASHER; EXH PIPE 4HG1 ENG(RJH) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) 00.833 (C) M10	0-91110-510-0	01	1	1012-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	1012-
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-98072-183-0	01	1	1012-
116	03.704 BOLT; BRKT 4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1012-1112
116	03.704 BOLT; BRKT 4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1201-
167	03.706 HANGER; EXH PIPE 4HG1 ENG(RJH)	8-98126-485-0	01	1	1012-
237	03.706 SPACER; EXH PIPE 4HG1 ENG(RJH) L=37.5	9-22151-217-0	01	1	1012-
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
513	03.704 NUT; INSULATOR 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	01	1	1012-
611	03.706 INSULATOR; HANGER 4HG1 ENG(RJH) 03.704 (A)	8-94457-277-1	01	1	1012-
611	03.706 INSULATOR; HANGER 4HG1 ENG(RJH) 03.704 (B)	8-94457-278-1	01	1	1012-
616	03.704 WASHER; INSULATOR 4HG1 ENG(RJH) OD=55	9-09852-169-0	01	1	1012-

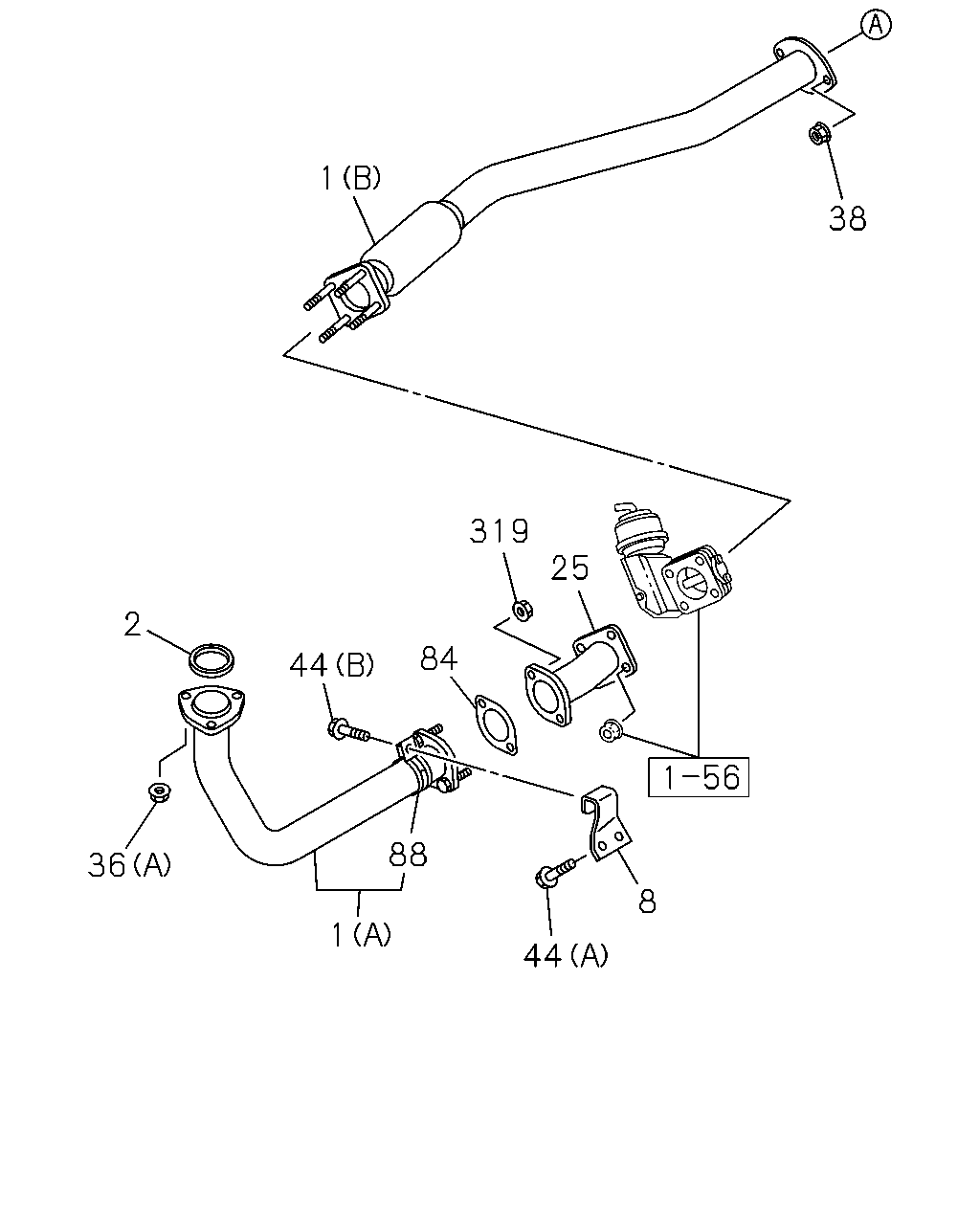

1 38 319 25 2 84 44 88 36 8 1 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98082-540-0	01	1	1012-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (B)	8-98082-542-0	01	1	1012-
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-98108-162-1	01	1	1012-1404
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-98216-284-0	01	1	1405-
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (C)	8-98108-166-1	01	1	1012-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1012-
8	03.704 BRACKET; EXH PIPE	8-98072-165-0	01	1	1012-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98082-541-0	01	1	1012-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-98108-165-1	01	1	1012-
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) 00.833 (C) M10	0-91110-510-0	01	1	1012-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	1012-
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-1401
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-1401
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1401
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97373-158-0	01	1	1402-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1402-
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH)	8-97373-158-0	01	1	1402-
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97373-158-0	01	1	1402-
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-

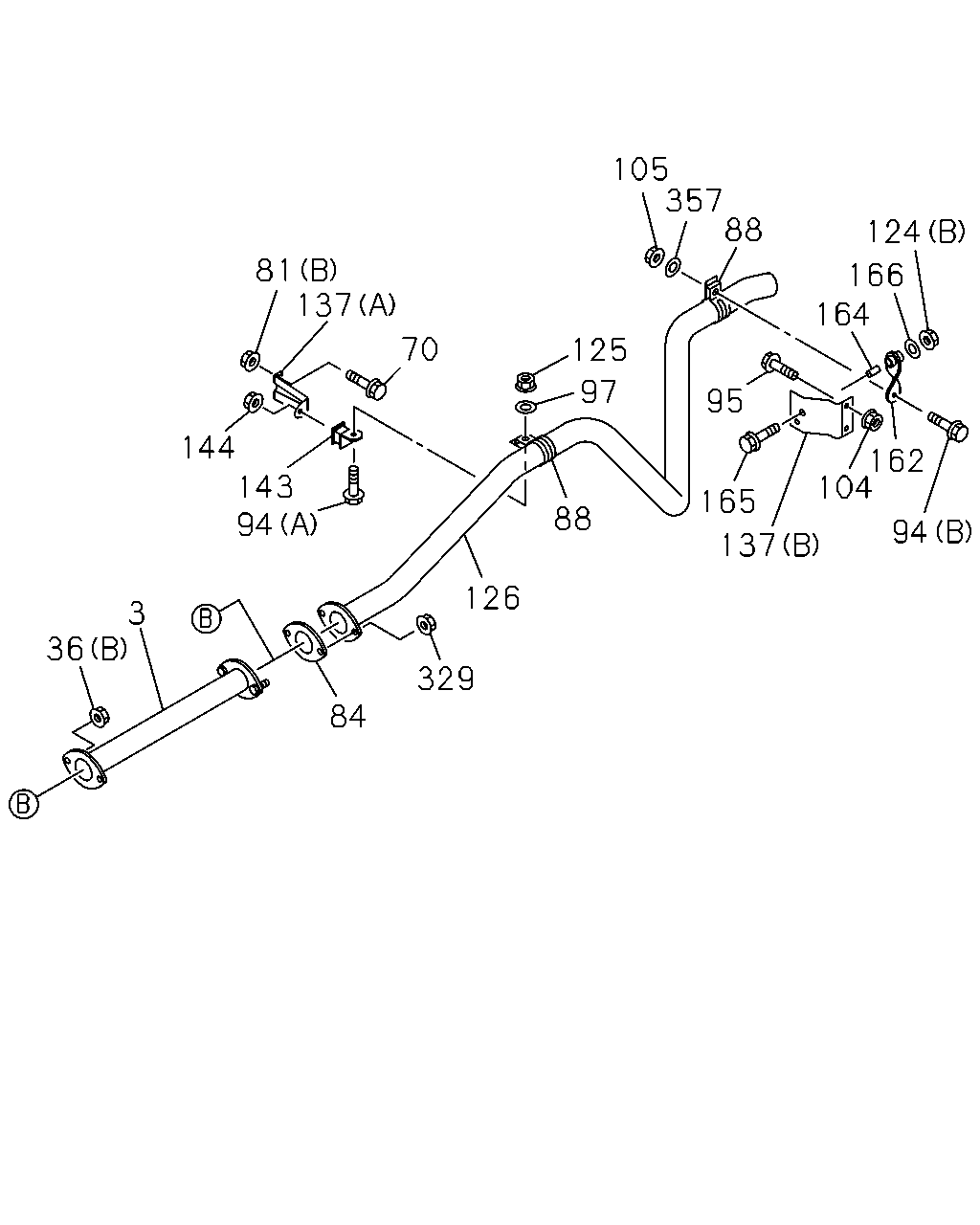

105 357 88 124 81 137 166 164 70 125 97 95 144 162 104 143 94 165 88 94 137 126 3 36 329 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ)	8-97355-648-0	01	1	1012-
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) 00.833 (C) M10	0-91110-510-0	01	1	1012-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-
81	03.704 NUT; BRKT 4HG1 ENG(RJH) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1112
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1201-
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-1401
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-1401
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1401
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97373-158-0	01	1	1402-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1402-
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH)	8-97373-158-0	01	1	1402-
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97373-158-0	01	1	1402-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1012-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1012-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98082-543-0	01	1	1012-
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH)	8-98108-167-0	01	1	1012-
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	1012-
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	1012-
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	1012-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1012-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1012-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1012-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-

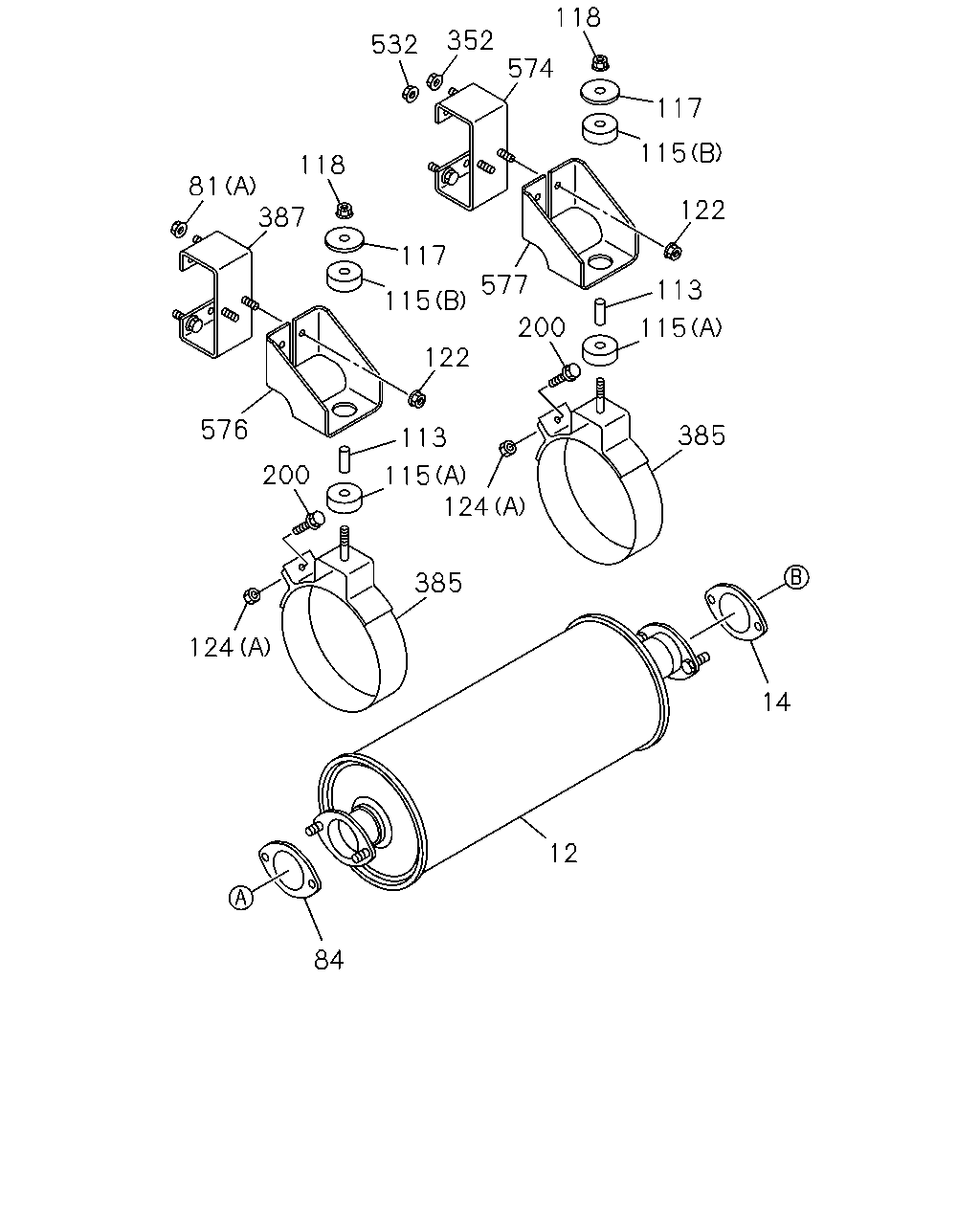

118 352 532 574 117 115 118 81 387 122 117 577 113 115 200 115 122 576 385 113 200 115 124 385 124 14 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1012-
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-98126-484-0	01	1	1012-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1012-
81	03.704 NUT; BRKT 4HG1 ENG(RJH) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1112
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1201-
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1012-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1012-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ)	8-97207-224-0	02	1	1012-
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706	8-97076-020-0	02	1	1012-
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1012-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1012-
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1012-
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1012-

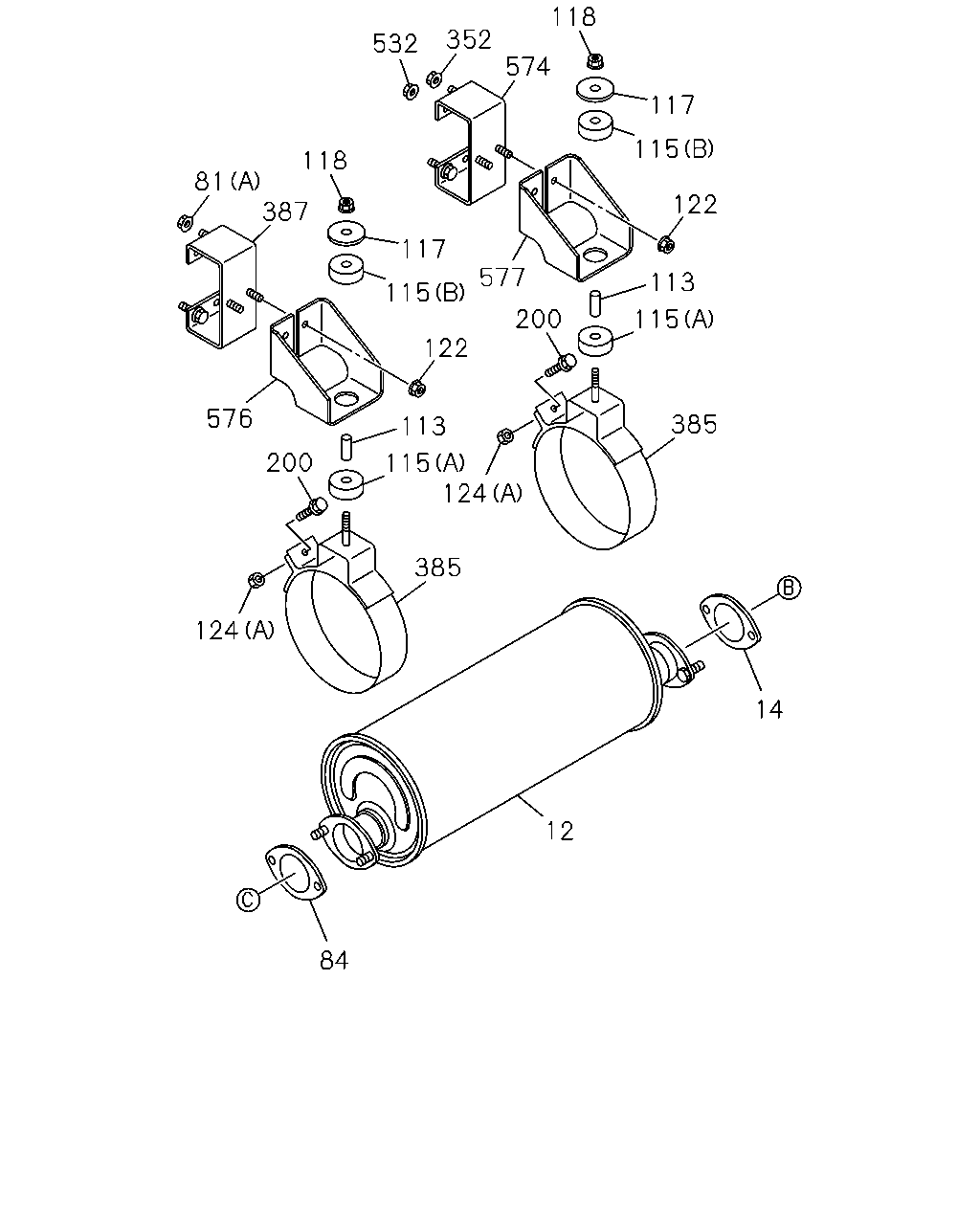

118 352 532 574 117 115 118 81 387 122 117 577 113 115 200 115 122 576 385 113 200 115 124 385 124 14 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1012-
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-98126-484-0	01	1	1012-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1012-
81	03.704 NUT; BRKT 4HG1 ENG(RJH) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1112
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1201-
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1012-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1012-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ)	8-97207-224-0	02	1	1012-
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706	8-97076-020-0	02	1	1012-
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1012-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1012-
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1012-
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1012-
