Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#49090) — 250 parça

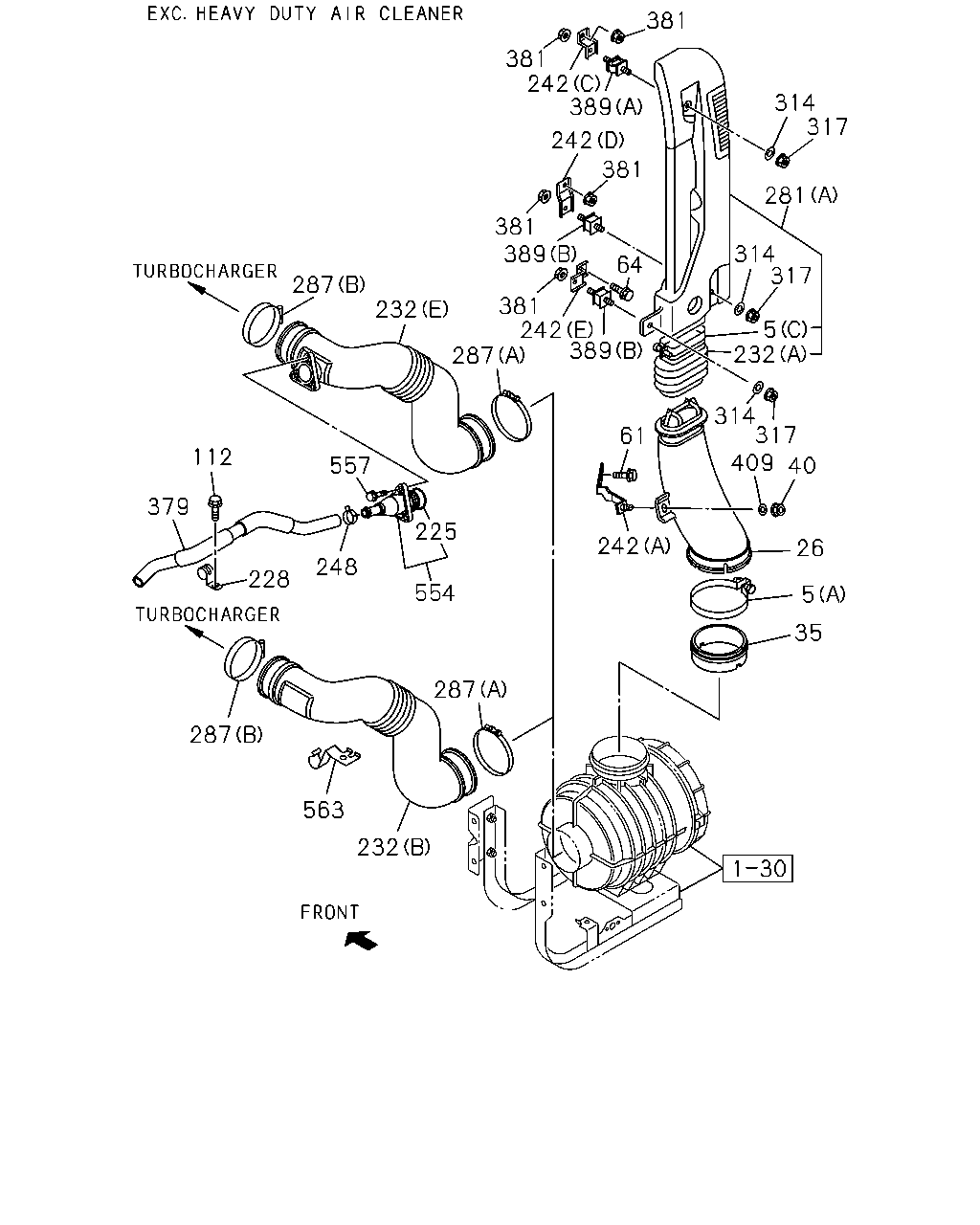

381 381 242 389 242 381 381 389 64 381 242 389 287 232 287 112 379 557 225 554 248 228 287 563 232 287 242 61 314 317 409 40 26 5 35 232 5 317 314 281 317 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1208
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1012-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-
112	03.417 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1211-
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 01.097 ID=43.7	9-09561-344-0	01	1	1209-
228	03.278 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 04.866 ID=28 H=45 L=30	1-09700-948-0	01	1	1211-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1209-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1208
232	03.417 HOSE; CONN 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-1405
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-
248	03.417 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 08.846 ID=21.7	8-97203-074-0	01	1	1209-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-4	01	1	1012-1208
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1209-
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1012-1208
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1209-
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1012-1208
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1209-
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-1405
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85	8-98133-350-0	01	1	1012-
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-1405
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90	8-98122-372-0	01	1	1012-
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1012-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-
379	03.675 HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3)	8-98075-711-0	01	1	1211-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-
554	04.439 FLANGE; PIPE,PCV 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3)	8-98038-208-0	01	1	1209-
557	03.403 BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1209-
563	03.417 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98090-587-0	01	1	1012-

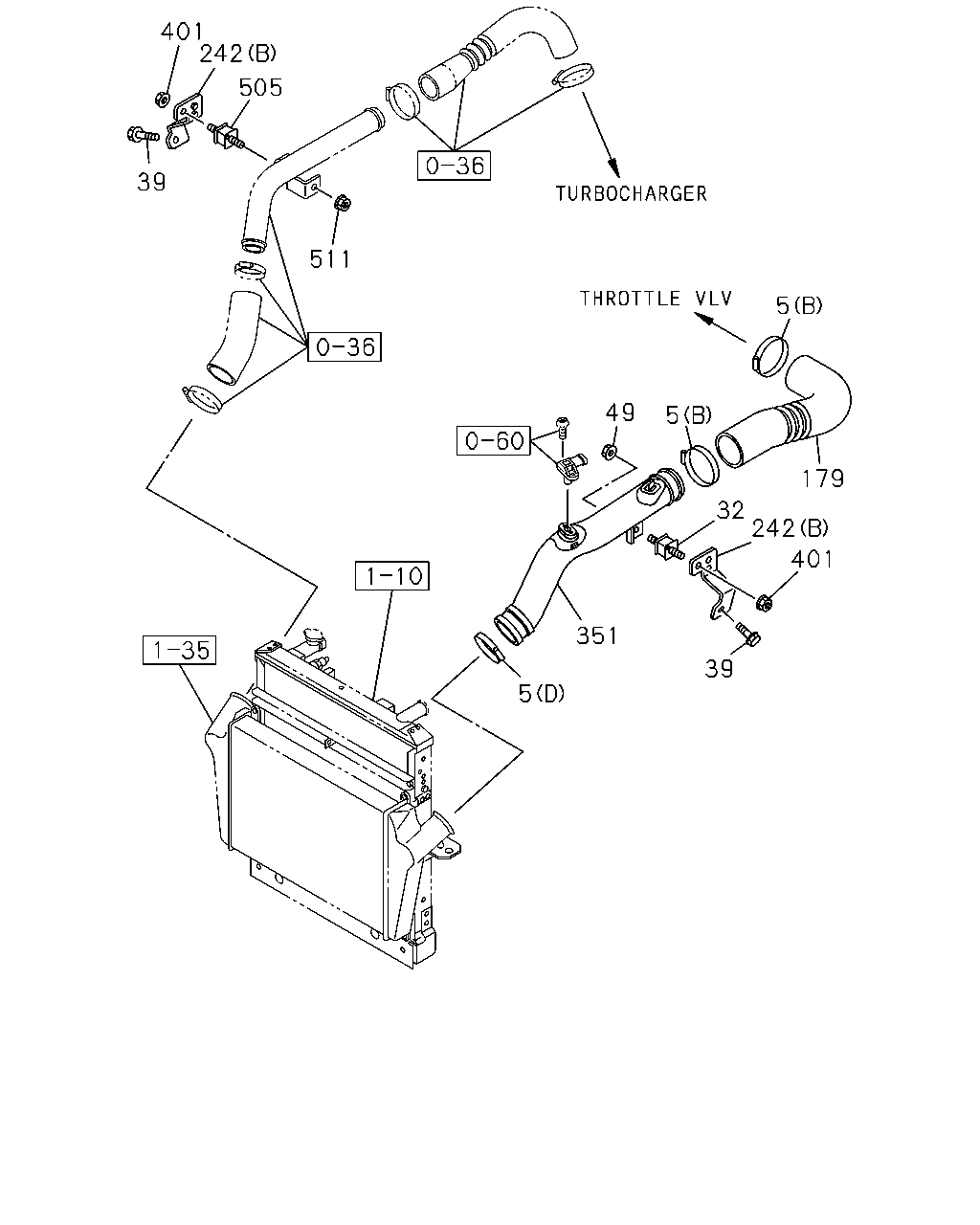

401 242 505 39 511 5 49 5 179 32 242 401 351 39 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1208
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ)	8-98036-826-0	01	1	1012-1106
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ)	8-97081-886-0	01	1	1107-
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98114-719-0	01	1	1012-
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) 03.417	8-98059-995-2	01	1	1012-
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-98036-826-0	01	1	1012-1106
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-97081-886-0	01	1	1107-
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-

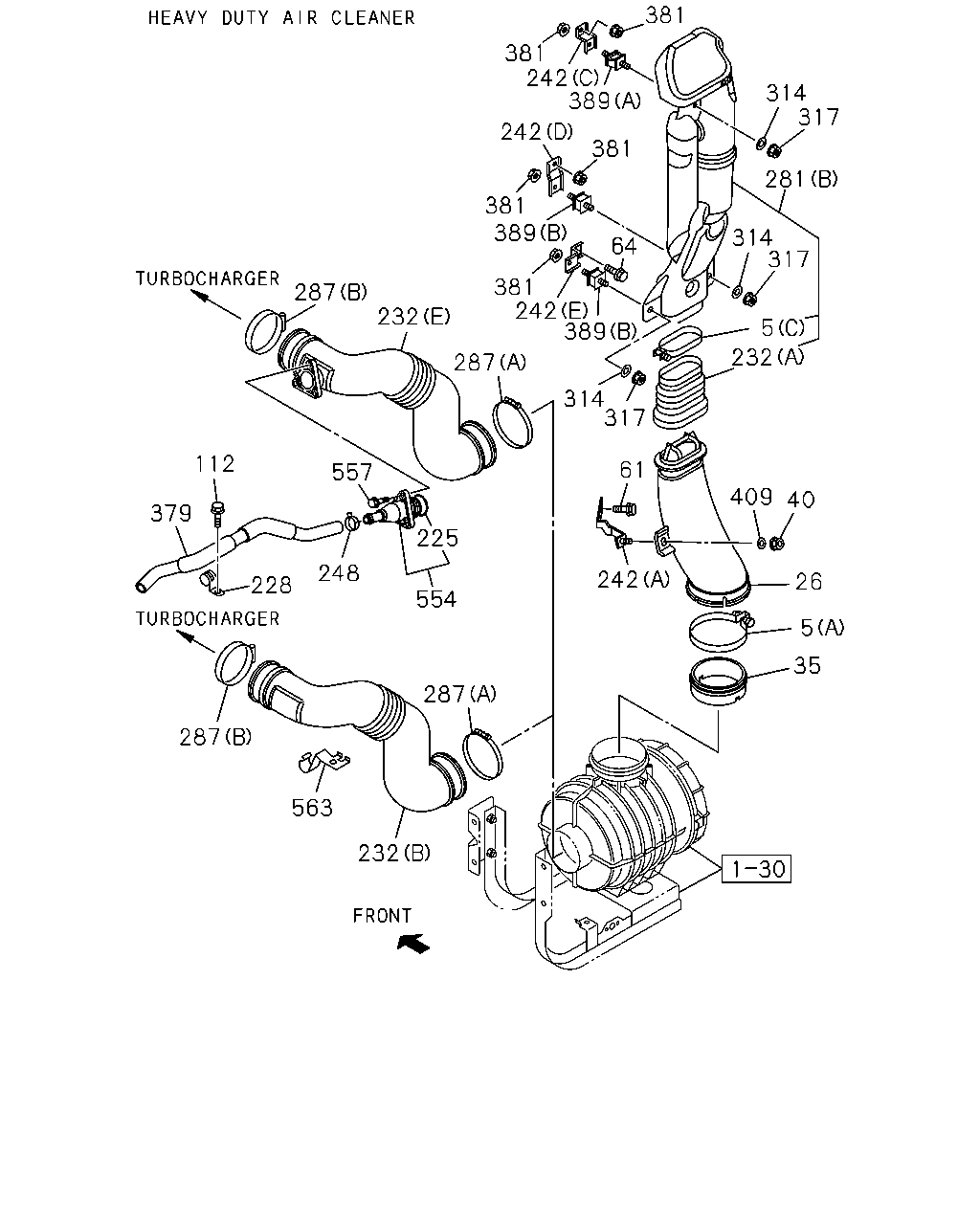

381 381 242 389 242 381 381 389 64 381 242 389 287 232 287 557 225 554 248 228 379 112 287 563 232 287 242 35 5 26 40 409 61 317 314 232 5 317 314 281 317 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1208
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1012-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-
112	03.417 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1211-
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 01.097 ID=43.7	9-09561-344-0	01	1	1209-
228	03.278 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 04.866 ID=28 H=45 L=30	1-09700-948-0	01	1	1211-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1209-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1208
232	03.417 HOSE; CONN 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-1405
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-
248	03.417 CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 08.846 ID=21.7	8-97203-074-0	01	1	1209-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-4	01	1	1012-1208
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1209-
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1012-1208
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1209-
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1012-1208
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1209-
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-1405
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85	8-98133-350-0	01	1	1012-
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-1405
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90	8-98122-372-0	01	1	1012-
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1012-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-
379	03.675 HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3)	8-98075-711-0	01	1	1211-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-
554	04.439 FLANGE; PIPE,PCV 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3)	8-98038-208-0	01	1	1209-
557	03.403 BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1209-
563	03.417 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98090-587-0	01	1	1012-

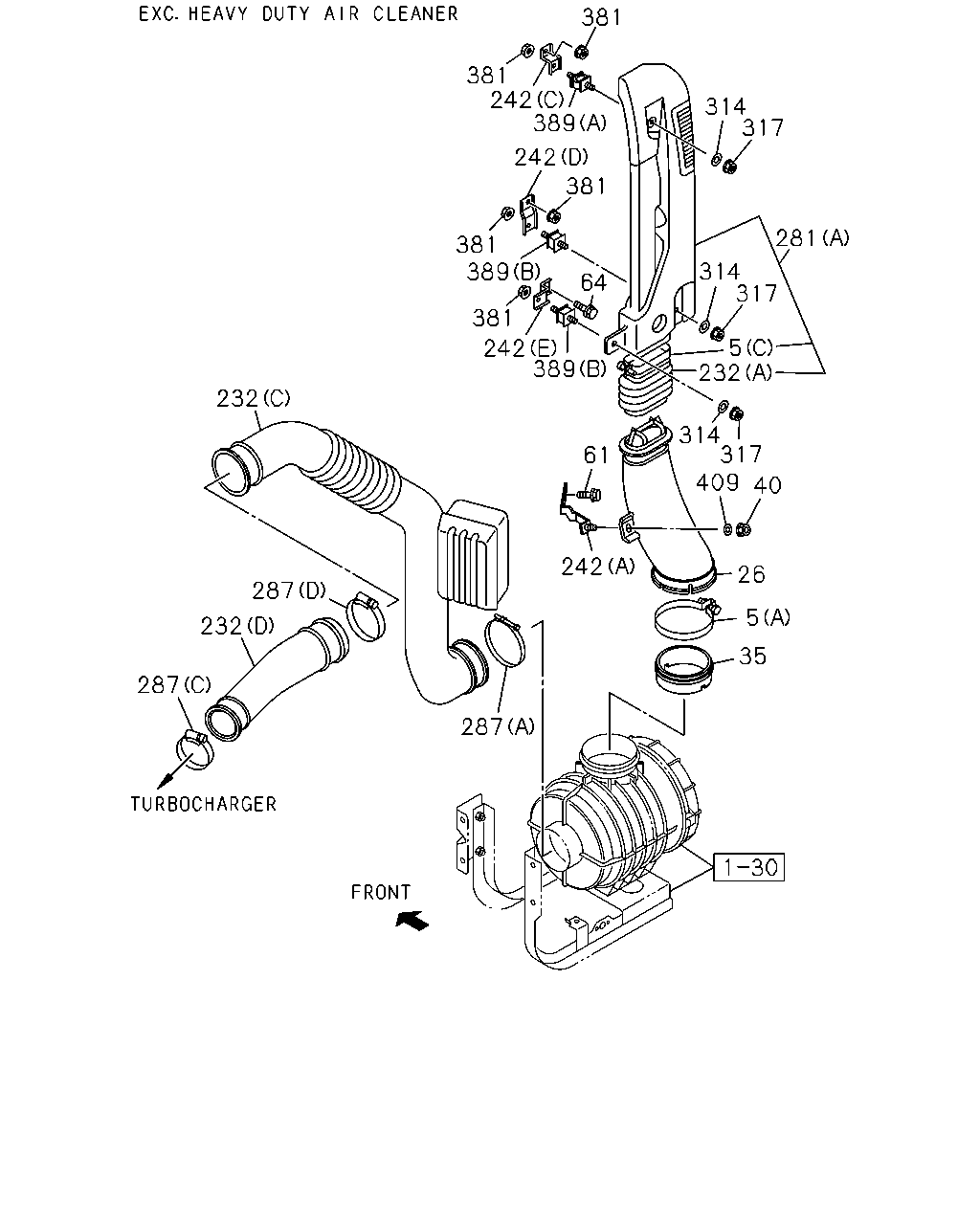

381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 5 232 242 389 232 314 317 409 61 40 242 26 287 5 232 35 287 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1208
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1012-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1209-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1208
232	03.417 HOSE; CONN 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-1405
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-4	01	1	1012-1208
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1209-
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1012-1208
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1209-
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1012-1208
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1209-
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-1405
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85	8-98133-350-0	01	1	1012-
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-1405
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90	8-98122-372-0	01	1	1012-
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1012-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-

381 381 242 389 242 314 317 381 281 381 389 314 317 64 381 242 389 5 232 314 317 232 61 409 40 242 26 287 5 232 35 287 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1208
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1209-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1012-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1209-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1208
232	03.417 HOSE; CONN 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1209-1309
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-1405
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-4	01	1	1012-1208
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1209-
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1012-1208
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1209-
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1012-1208
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1209-
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-1405
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85	8-98133-350-0	01	1	1012-
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-1405
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90	8-98122-372-0	01	1	1012-
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1012-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
