◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#49087) — 71 parça

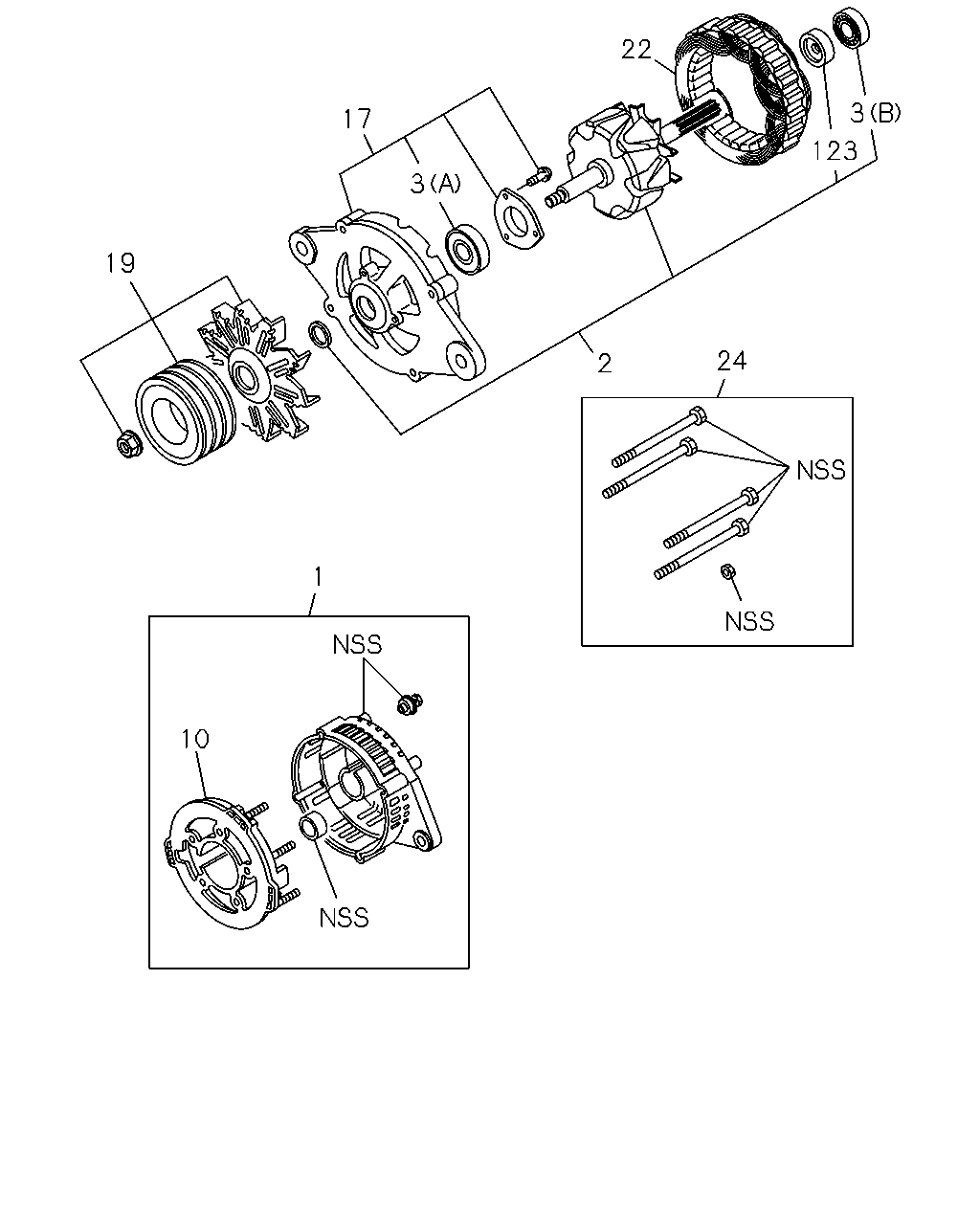

çizim 158612
22 3 17 123 3 19 24 2 1 10
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2 		8-98046-185-0 01 1 -1208
1 COVER ASM; RR,GEN
ASM PART: B = 8-98029-889-2 		8-98046-187-0 01 1 -1208
1 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2 		8-98230-316-0 01 1 1209-
1 COVER ASM; RR,GEN
ASM PART: B = 8-98029-889-2 		8-98230-317-0 01 1 1209-
1 COVER ASM; RR,GEN
ASM PART: C = 8-98251-635-1 		8-98273-821-0 01 1 -
1 COVER ASM; RR,GEN
ASM PART: D = 8-98268-791-0 		8-98278-929-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98029-887-2 		8-98038-914-0 01 1 -
2 ROTOR; GEN
ASM PART: B = 8-98029-889-2 		8-98038-916-1 01 1 -
2 ROTOR; GEN
ASM PART: C = 8-98251-635-1 		8-98273-816-0 01 1 -
2 ROTOR; GEN
ASM PART: D = 8-98268-791-0 		8-98278-914-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98029-887-2, B = 8-98029-889-2 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98029-887-2, B = 8-98029-889-2 		8-97161-473-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-814-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-817-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2 		8-98046-188-0 01 1 -1208
10 RECTIFIER; GEN
ASM PART: B = 8-98029-889-2 		8-98046-190-0 01 1 -1208
10 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2 		8-98230-326-0 01 1 1209-
10 RECTIFIER; GEN
ASM PART: B = 8-98029-889-2 		8-98230-327-0 01 1 1209-
10 RECTIFIER; GEN
ASM PART: C = 8-98251-635-1 		8-98273-823-0 01 1 -
10 RECTIFIER; GEN
ASM PART: D = 8-98268-791-0 		8-98278-931-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98029-887-2 		8-98038-922-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: B = 8-98029-889-2 		8-98038-924-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: D = 8-98268-791-0 		8-98273-812-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: C = 8-98251-635-1 		8-98273-813-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98029-887-2 		8-98038-925-0 01 1 -
19 PULLEY; GEN
ASM PART: B = 8-98029-889-2 		8-98040-132-0 01 1 -
19 PULLEY; GEN
ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-829-0 01 1 -
22 STATOR; GEN
ASM PART: A = 8-98029-887-2 		8-97192-850-0 01 1 -
22 STATOR; GEN
ASM PART: B = 8-98029-889-2 		8-97249-331-1 01 1 -
22 STATOR; GEN
ASM PART: C = 8-98251-635-1 		8-98273-819-0 01 1 -
22 STATOR; GEN
ASM PART: D = 8-98268-791-0 		8-98278-915-0 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98029-887-2 		8-98038-927-0 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: B = 8-98029-889-2 		8-98038-928-0 01 1 -
123 GUIDE; BRUSH
ASM PART: A = 8-98029-887-2, B = 8-98029-889-2 		8-97062-644-0 01 1 -

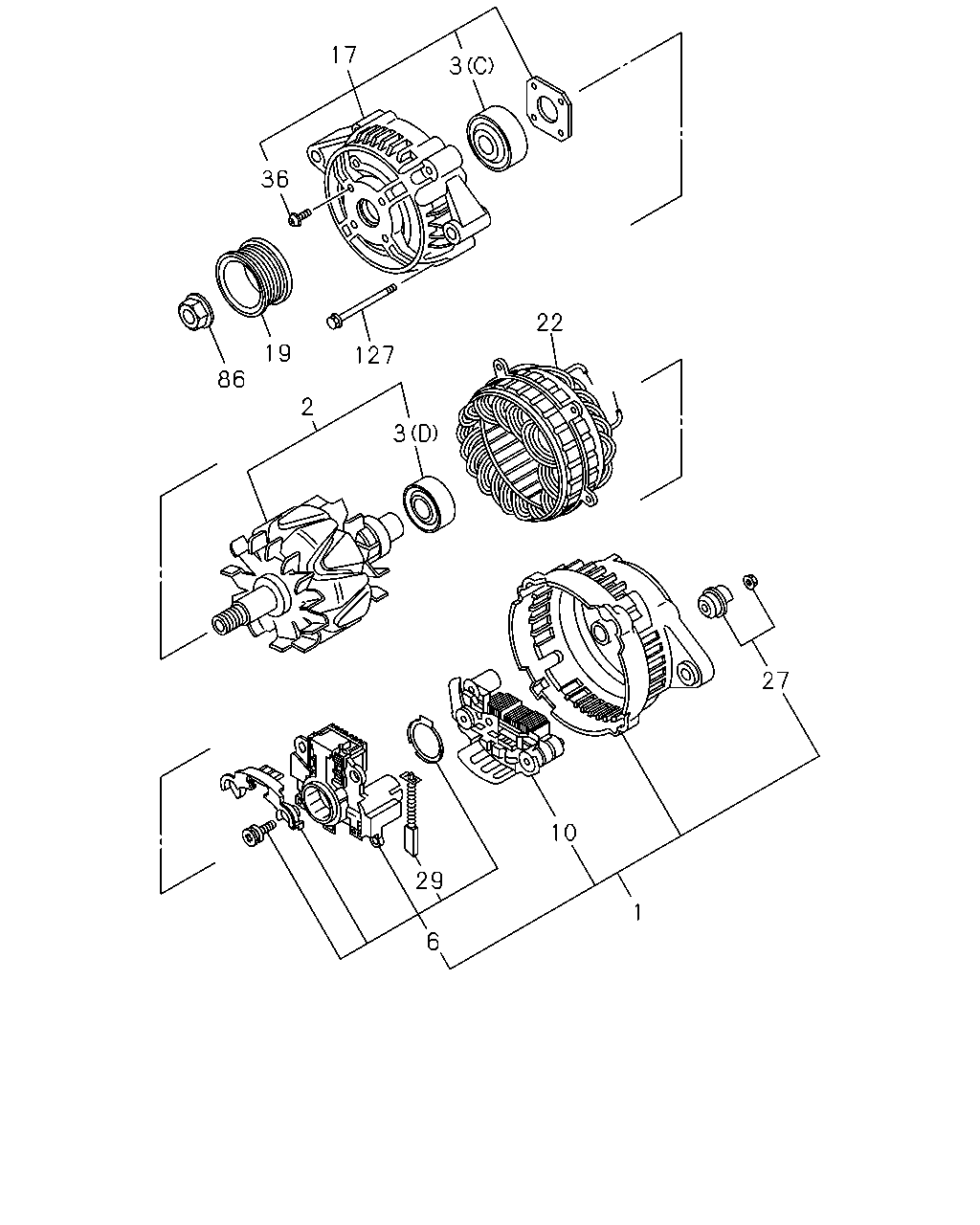

çizim 451769
17 36 3 86 19 127 2 3 22 29 10 27 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2 		8-98046-185-0 01 1 -1208
1 COVER ASM; RR,GEN
ASM PART: B = 8-98029-889-2 		8-98046-187-0 01 1 -1208
1 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2 		8-98230-316-0 01 1 1209-
1 COVER ASM; RR,GEN
ASM PART: B = 8-98029-889-2 		8-98230-317-0 01 1 1209-
1 COVER ASM; RR,GEN
ASM PART: C = 8-98251-635-1 		8-98273-821-0 01 1 -
1 COVER ASM; RR,GEN
ASM PART: D = 8-98268-791-0 		8-98278-929-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98029-887-2 		8-98038-914-0 01 1 -
2 ROTOR; GEN
ASM PART: B = 8-98029-889-2 		8-98038-916-1 01 1 -
2 ROTOR; GEN
ASM PART: C = 8-98251-635-1 		8-98273-816-0 01 1 -
2 ROTOR; GEN
ASM PART: D = 8-98268-791-0 		8-98278-914-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98029-887-2, B = 8-98029-889-2 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98029-887-2, B = 8-98029-889-2 		8-97161-473-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-814-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-817-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-825-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2 		8-98046-188-0 01 1 -1208
10 RECTIFIER; GEN
ASM PART: B = 8-98029-889-2 		8-98046-190-0 01 1 -1208
10 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2 		8-98230-326-0 01 1 1209-
10 RECTIFIER; GEN
ASM PART: B = 8-98029-889-2 		8-98230-327-0 01 1 1209-
10 RECTIFIER; GEN
ASM PART: C = 8-98251-635-1 		8-98273-823-0 01 1 -
10 RECTIFIER; GEN
ASM PART: D = 8-98268-791-0 		8-98278-931-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98029-887-2 		8-98038-922-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: B = 8-98029-889-2 		8-98038-924-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: D = 8-98268-791-0 		8-98273-812-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: C = 8-98251-635-1 		8-98273-813-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98029-887-2 		8-98038-925-0 01 1 -
19 PULLEY; GEN
ASM PART: B = 8-98029-889-2 		8-98040-132-0 01 1 -
19 PULLEY; GEN
ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-829-0 01 1 -
22 STATOR; GEN
ASM PART: A = 8-98029-887-2 		8-97192-850-0 01 1 -
22 STATOR; GEN
ASM PART: B = 8-98029-889-2 		8-97249-331-1 01 1 -
22 STATOR; GEN
ASM PART: C = 8-98251-635-1 		8-98273-819-0 01 1 -
22 STATOR; GEN
ASM PART: D = 8-98268-791-0 		8-98278-915-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-824-0 01 1 -
29 BRUSH; GEN
ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-98273-826-0 01 1 -
36 SCREW; FRT COVER
ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-97178-136-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-97145-327-0 01 1 -
127 BOLT SET; GEN
ASM PART: C = 8-98251-635-1, D = 8-98268-791-0 		8-97145-328-0 01 1 -
