Isuzu WW
▶
TRUCKS
▶
ELF
▶
51205 - ELF200/300(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

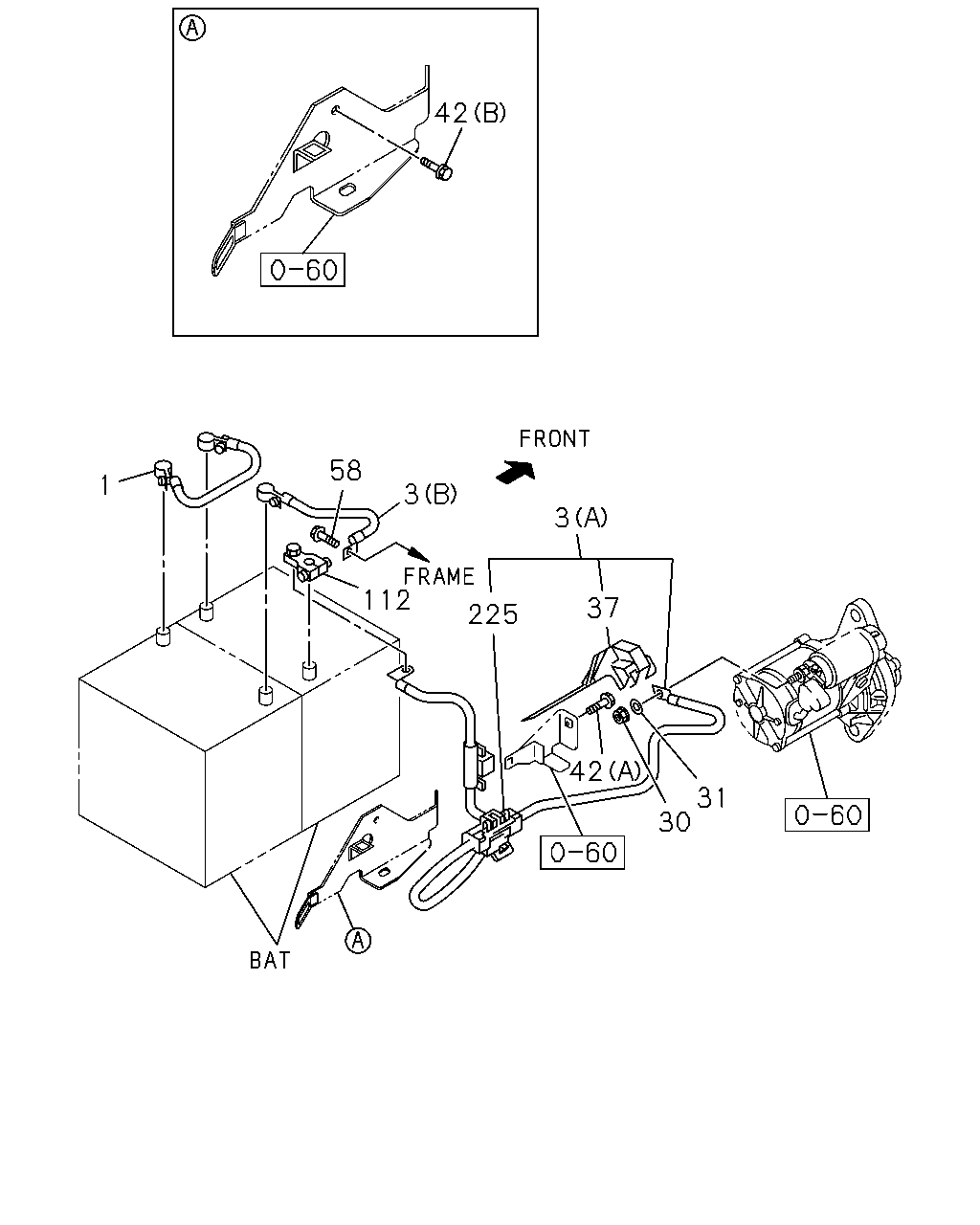

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#49085) — 19 parça
42
58
1
3
3
112
37
225
42
31
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280
8-98025-412-3
01
1
0811-
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 2400MM(24W) (A)
8-98048-439-3
01
1
0811-1409
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 2400MM(24W) (A)
8-98293-886-0
01
1
1410-
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 3300MM(33W) (A)
8-98048-441-2
01
1
0811-0901
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 3300MM(33W) (A)
8-98131-620-0
01
1
0902-1409
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 3300MM(33W) (A)
8-98294-685-0
01
1
1410-
3
HARNESS; CABLE,BATTERY TO STARTER
(B) L=200
8-98056-337-1
01
1
0811-
30
NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
0811-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
0-91510-808-0
01
1
0811-
37
CAP; TERMINAL,BATTERY CABLE
8-98042-507-0
01
1
0811-
42
BOLT; BRKT,BATTERY CABLE
(A) M6X25 FLANGE
0-28650-625-0
01
1
0811-0901
42
BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W) (A) M6X25 FLANGE
0-28650-625-0
01
1
0902-
42
BOLT; BRKT,BATTERY CABLE
ELF300(NM***N) (B) M6X16 FLANGE
8-97329-599-0
01
1
0811-0901
42
BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE
8-97329-599-0
01
1
0902-
58
BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0811-1004
58
BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1005-
112
TERMINAL; BATTERY
<+>
8-97365-771-0
01
1
0811-
225
BLOCK; TERMINAL
8-98029-689-0
01
1
0811-1409
225
BLOCK; TERMINAL
8-98294-524-0
01
1
1410-
