Isuzu WW
▶
TRUCKS
▶
ELF
▶
51205 - ELF200/300(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#49077) — 54 parça
◀

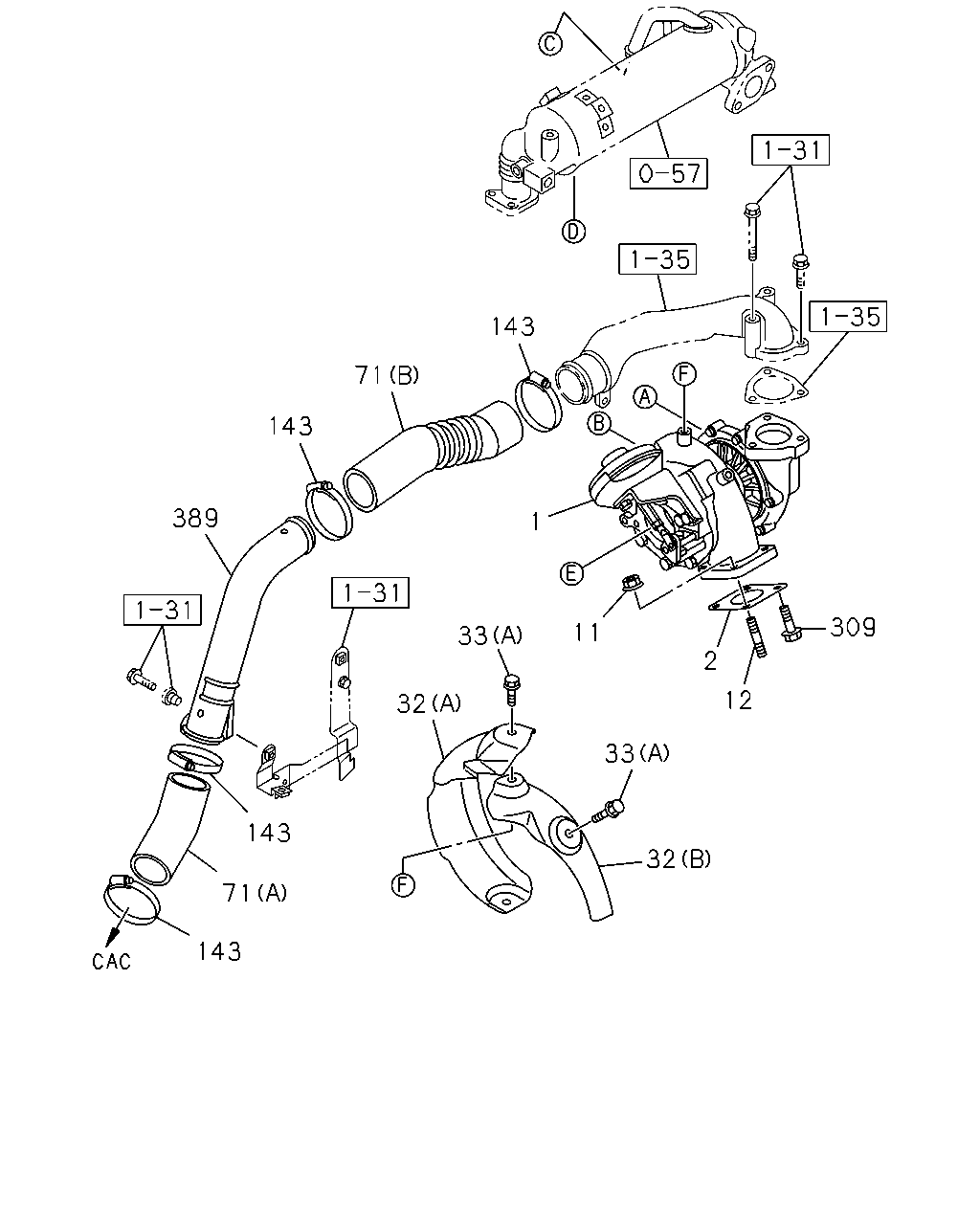

[036A] TURBO AND INLET PIPE (19 parça)

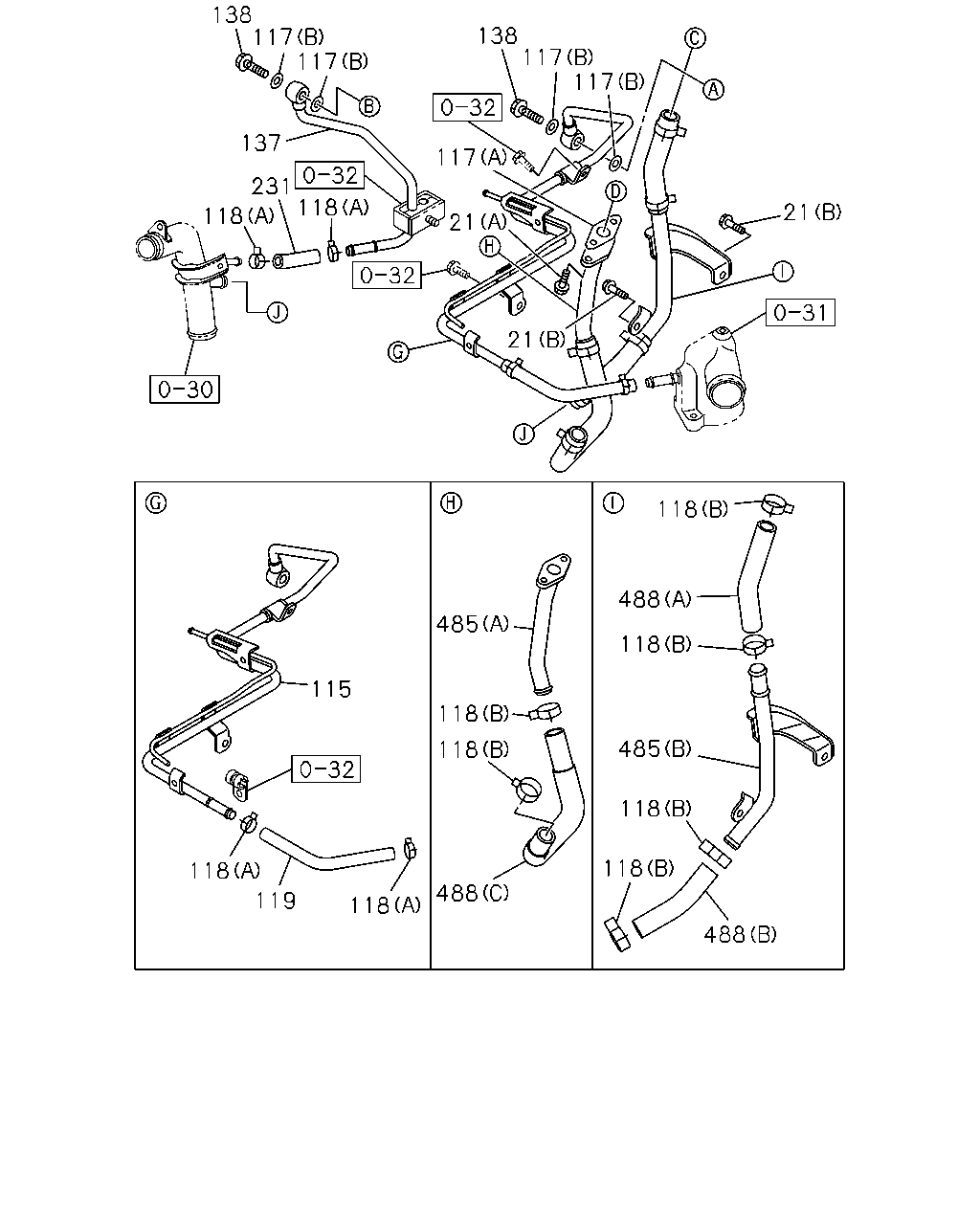

[036A] WATER PIPE (18 parça)

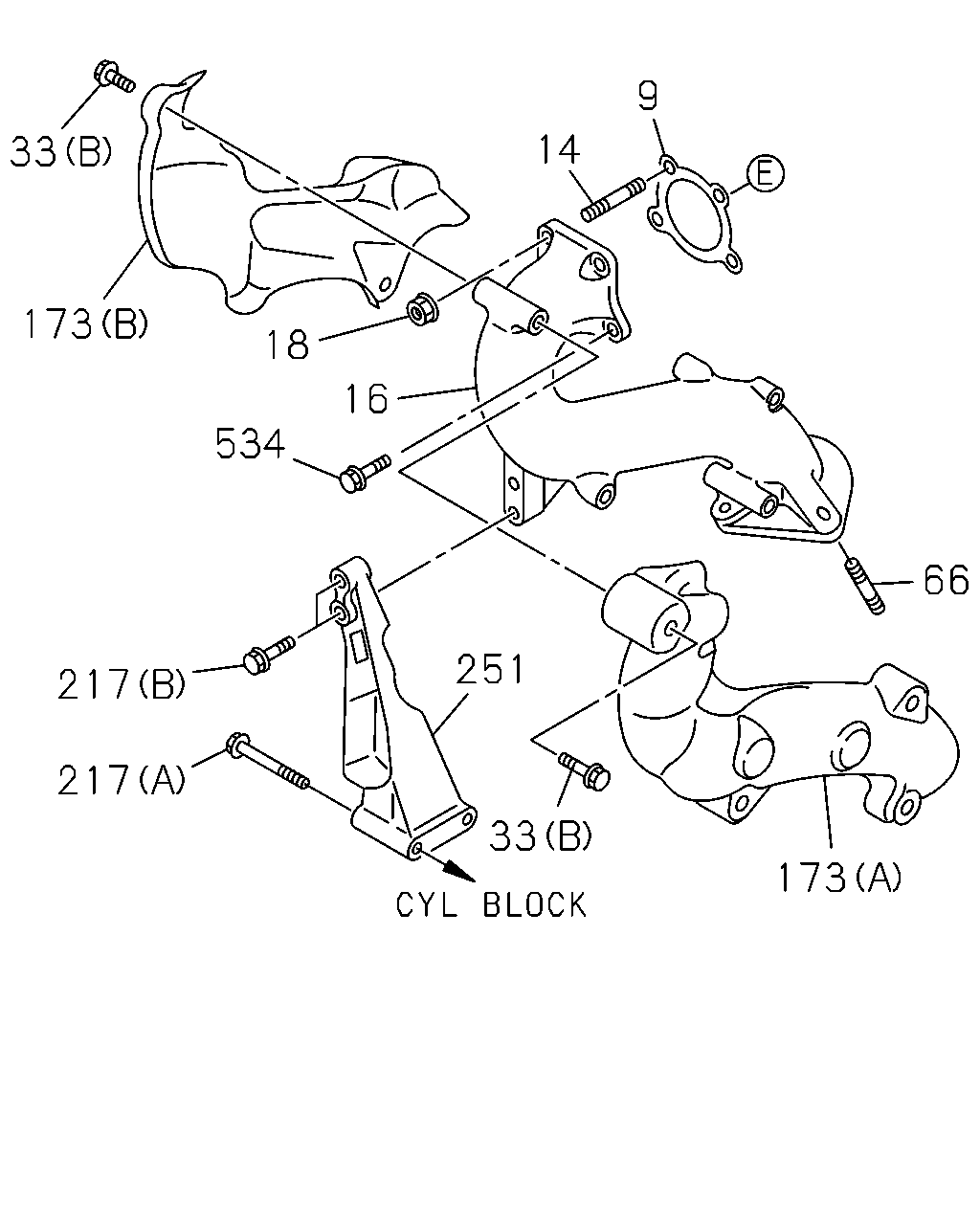

[036A] ADAPTER AND BRACKET (17 parça)
▶
143
71
143
389
1
309
11
33
2
12
32
33
143
32
71
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-98111-548-2
01
1
0811-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
0811-
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
02
1
0811-
12
STUD; TURBOCHARGER
M8X25 L=36
8-97378-062-0
02
1
0811-
32
PROTECTOR; HEAT,TURBOCHARGER
(A)
8-98034-990-3
01
1
0811-
32
PROTECTOR; HEAT,TURBOCHARGER
(B)
8-98034-991-1
01
1
0811-
33
BOLT; HEAT PROTECTOR
(A) M6X12 FLANGE
0-28050-612-0
03
1
0811-
33
BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE
0-28050-812-0
07
1
0811-
71
HOSE; INLET PIPE TO TURBOCHARGER
(B)
8-98050-918-1
01
1
1003-
71
HOSE; INLET PIPE TO TURBOCHARGER
(A)
8-98036-513-2
01
1
0811-
71
HOSE; INLET PIPE TO TURBOCHARGER
(B)
8-98050-918-0
01
1
0811-1001
71
HOSE; INLET PIPE TO TURBOCHARGER
(B)
8-98159-280-0
01
1
1002-
143
CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> ID=60-65
8-98096-418-0
04
1
0901-1001
143
CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65
8-98096-418-0
04
1
1002-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=45-65
8-98133-348-0
04
1
0811-0812
143
CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> ID=45-65
8-98133-348-0
04
1
0901-1001
143
CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> ID=45-65
8-98133-348-0
04
1
1002-
309
BOLT; TURBOCHARGER
M8X28 FLANGE
8-98043-528-0
02
1
0811-
389
PIPE; INL,TURBOCHARGER TO CAC
8-98038-996-1
01
1
0811-
138
117
117
138
117
117
137
117
231
118
21
118
21
21
118
488
485
118
115
118
485
118
118
118
118
488
119
118
488
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BOLT; PIPE
(A) M6X20 FLANGE
0-28650-620-0
02
1
0811-
21
BOLT; PIPE
(B) M8X16 FLANGE
0-28050-816-0
02
1
0811-
115
PIPE; WATER,TURBOCHARGER OUT
8-98113-333-0
01
1
0811-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97262-117-0
01
1
0811-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2
9-09571-412-0
04
1
0811-0904
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6
8-97331-137-1
02
1
0905-
118
CLIP; WATER HOSE
(A) ID=12.8
8-94367-943-0
04
1
0811-
118
CLIP; WATER HOSE
(B) ID=22
8-94382-401-0
06
1
0811-1003
118
CLIP; WATER HOSE
(B) ID=22
8-97359-141-0
06
1
1004-
119
HOSE; WATER,TURBOCHARGER
8-98113-336-0
01
1
0811-
137
PIPE; WATER,TURBOCHARGER IN
8-97381-650-0
01
1
0811-
138
BOLT; EYE,WATER PIPE
M12X24 EYE-BOLT
1-09675-081-0
02
1
0811-
231
HOSE; RUBBER,TURBOCHARGER OUT
8-98030-402-0
01
1
0811-
485
PIPE; WATER EGR
(A)
8-97381-651-0
01
1
0811-
485
PIPE; WATER EGR
(B)
8-97381-652-0
01
1
0811-
488
HOSE; RUBBER
(A) L=110 SERVICED BY L=3000
0-03566-300-0
01
1
0811-
488
HOSE; RUBBER
(B) L=120 SERVICED BY L=3000
0-03666-300-0
01
1
0811-
488
HOSE; RUBBER
(C)
8-98015-118-0
01
1
0811-
9
14
33
173
18
16
534
66
251
217
217
33
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98011-532-0
01
1
0811-
14
STUD; TURBOCHARGER TO EXH PIPE
M8X25 L=36
8-97378-062-0
03
1
0811-0903
14
STUD; TURBOCHARGER TO EXH PIPE
M8X25 L=36
8-97378-062-0
02
1
0904-
16
ADAPTER; EXH PIPE
8-98009-717-3
01
1
0811-0910
16
ADAPTER; EXH PIPE
8-98147-897-1
01
1
0911-
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
03
1
0811-0903
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
02
1
0904-
33
BOLT; HEAT PROTECTOR
(A) M6X12 FLANGE
0-28050-612-0
03
1
0811-
33
BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE
0-28050-812-0
07
1
0811-
66
STUD; EXH PIPE
M10X25 L=45
0-43211-025-0
03
1
0811-
173
PROTECTOR; HEAT,FUEL PIPE
(A)
8-98032-022-3
01
1
0811-
173
PROTECTOR; HEAT,FUEL PIPE
(B)
8-98032-024-3
01
1
0811-
217
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
02
1
0811-
217
BOLT; BRKT
(B) M10X30 FLANGE
8-98032-158-0
02
1
0811-
251
BRACKET; ADAPTER
8-98009-098-1
01
1
0811-
534
BOLT; TURBOCHARGER TO EXH PIPE
M8X23 FLANGE
8-97378-077-0
01
1
0811-0903
534
BOLT; TURBOCHARGER TO EXH PIPE
M8X23 FLANGE
8-97378-077-0
02
1
0904-
