Isuzu WW
▶
TRUCKS
▶
ELF
▶
51205 - ELF200/300(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

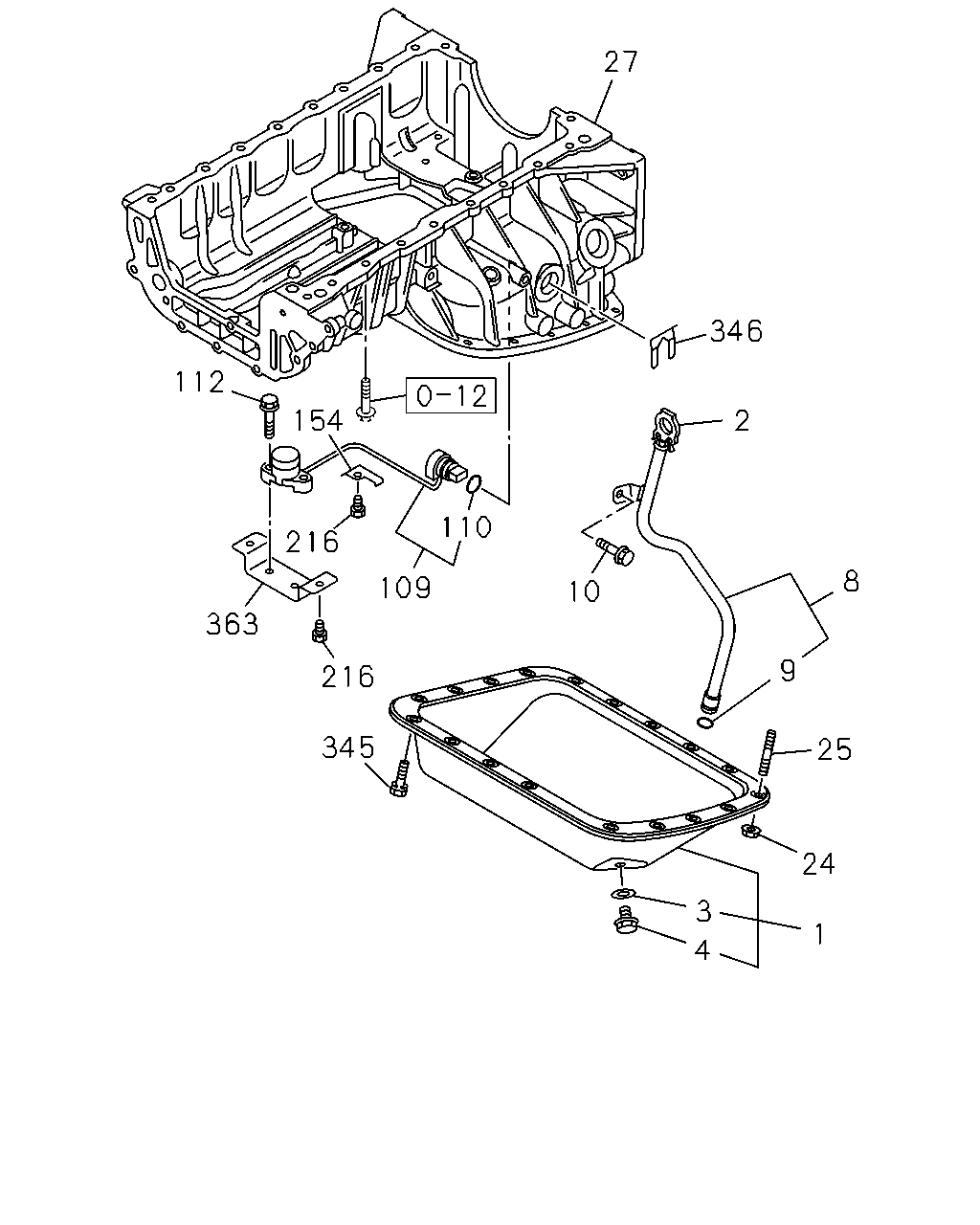

0-13 — OIL PAN AND LEVEL GAUGE
(#49066) — 20 parça
27
346
112
154
2
110
216
8
109
10
363
9
216
345
25
24
3
1
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-97383-067-3
01
1
0811-
2
GAUGE; OIL LEVEL
8-98112-777-1
01
1
0811-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
0811-
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
0811-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-97381-490-3
01
1
0811-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
01
1
0811-
10
BOLT; GUIDE TUBE
M8X12 FLANGE
0-28050-812-0
01
1
0811-
24
NUT; OIL PAN
M8 FLANGE
0-91180-208-0
02
1
0811-
25
STUD; OIL PAN
M8X16 L=28
0-41010-816-0
02
1
0811-1405
25
STUD; OIL PAN
M8X20 L=31
8-97945-022-0
02
1
1406-
27
CRANKCASE
8-97381-483-6
01
1
0811-1106
27
CRANKCASE
8-97381-483-7
02
1
1107-
109
SWITCH; OIL LEVEL
8-97328-879-0
01
1
0811-
110
GASKET; SW,OIL LEVEL
8-98048-191-0
01
1
0811-
112
BOLT; SW,OIL LEVEL
M6X30 FLANGE
0-28650-630-0
02
1
0811-
154
BRACKET; CLIP,ENG HARNESS
8-97386-380-0
01
1
0811-
216
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
03
1
0811-
345
BOLT; SENSOR,OIL LEVEL
M8X12 FLANGE
0-28050-812-0
17
1
0811-
346
CLIP; OIL LEVEL SW
ID=19.2
8-97211-011-0
01
1
0811-
363
BRACKET; OIL LEVEL SW
8-97381-486-0
01
1
0811-
