◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶
9-33 — REAR BODY; GATE AND SIDE GUARD (#49060) — 106 parça

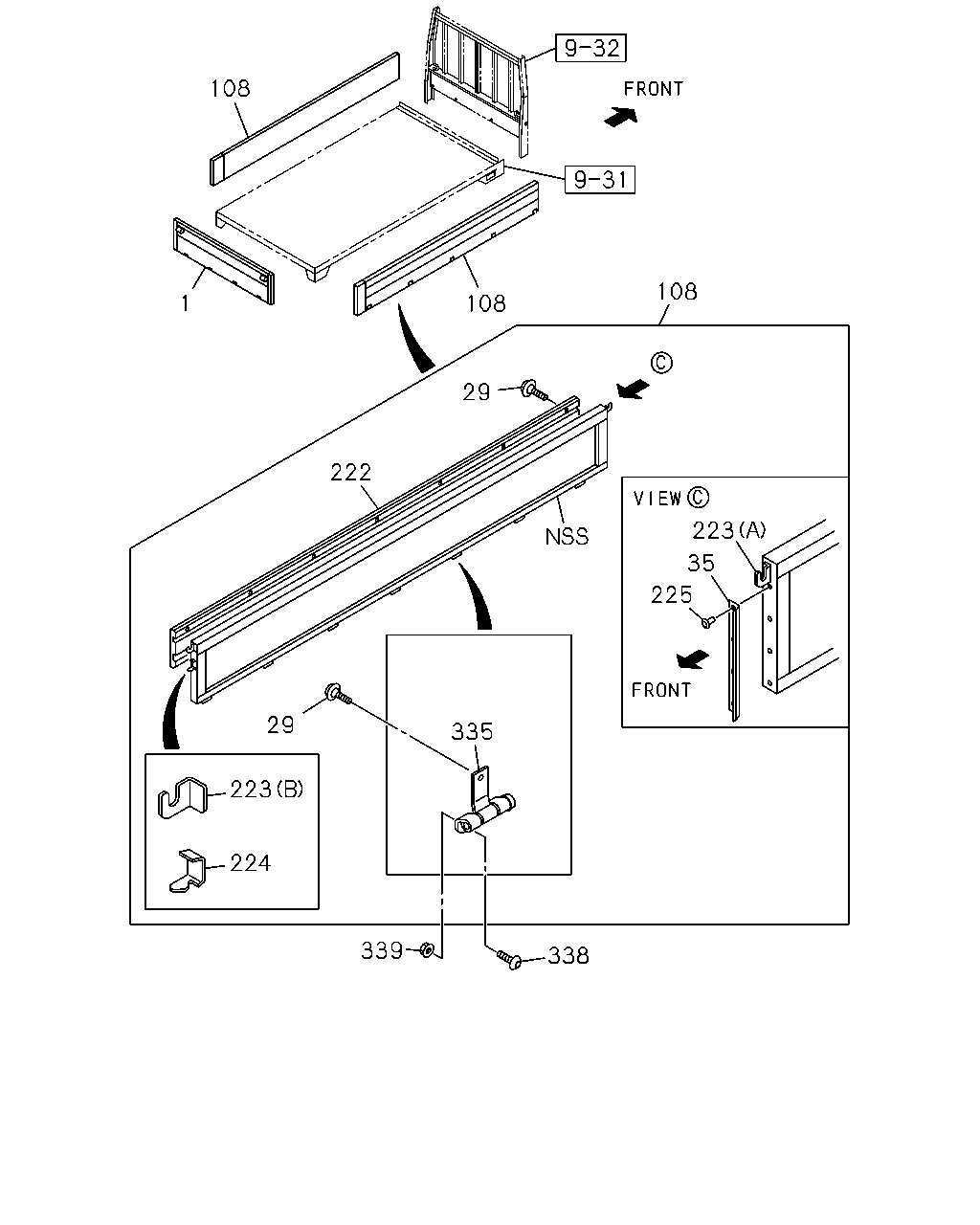

çizim 59623
108 108 1 108 29 222 223 35 225 29 335 223 224 339 338
BalonParca AdiParca NoAdetTipApplied Date
1 17.185 GATE ASM; RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=2071 H=389 B=50 PLYWOOD PABCO 		8-98030-806-2 01 1 0810-0903
1 17.185 GATE ASM; RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=2071 H=389 B=50 PLYWOOD PABCO 		8-98030-806-2 01 1 0904-
29 17.455 SCREW; PANEL SIDE GATE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 17.185 M8X25 PABCO 		8-98045-183-0 28 1 0810-0903
29 17.455 SCREW; PANEL SIDE GATE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 17.185 M8X25 PABCO 		8-98045-183-0 28 1 0904-
29 17.455 SCREW; PANEL SIDE GATE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 17.185 M8X25 PABCO 		8-98045-183-0 32 1 0810-0903
29 17.455 SCREW; PANEL SIDE GATE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 17.185 M8X25 PABCO 		8-98045-183-0 32 1 0904-
35 17.455 WEATHERSTRIP; FRT SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-209-0 02 1 0810-0903
35 17.455 WEATHERSTRIP; FRT SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-209-0 02 1 0904-
108 17.505 GATE ASM; SIDE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4265 H=389 B=50 PLYWOOD PABCO 		8-98106-930-0 01 1 0810-0903
108 17.505 GATE ASM; SIDE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4265 H=389 B=50 PLYWOOD PABCO 		8-98106-930-0 01 1 0904-
108 17.505 GATE ASM; SIDE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4265 H=389 B=50 PLYWOOD PABCO 		8-98106-931-0 01 1 0810-0903
108 17.505 GATE ASM; SIDE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4265 H=389 B=50 PLYWOOD PABCO 		8-98106-931-0 01 1 0904-
108 17.505 GATE ASM; SIDE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO 		8-98089-981-1 01 1 0810-0903
108 17.505 GATE ASM; SIDE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO 		8-98089-981-1 01 1 0904-
108 17.505 GATE ASM; SIDE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO 		8-98089-983-1 01 1 0810-0903
108 17.505 GATE ASM; SIDE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO 		8-98089-983-1 01 1 0904-
222 17.505 BOARD; SIDE GATE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 		8-98093-290-0 02 1 0810-0903
222 17.505 BOARD; SIDE GATE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 		8-98093-290-0 02 1 0904-
222 17.505 BOARD; SIDE GATE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-238-1 02 1 0810-0903
222 17.505 BOARD; SIDE GATE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-238-1 02 1 0904-
223 17.505 HOOK; PLATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) FRONT PABCO 		5-87580-002-0 01 1 0810-0903
223 17.505 HOOK; PLATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) FRONT PABCO 		5-87580-002-0 01 1 0904-
223 17.505 HOOK; PLATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) FRONT PABCO 		5-87580-003-0 01 1 0810-0903
223 17.505 HOOK; PLATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) FRONT PABCO 		5-87580-003-0 01 1 0904-
223 17.505 HOOK; PLATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) REAR PABCO 		5-87580-004-0 01 1 0810-0903
223 17.505 HOOK; PLATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) REAR PABCO 		5-87580-004-0 01 1 0904-
223 17.505 HOOK; PLATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) REAR PABCO 		5-87580-005-0 01 1 0810-0903
223 17.505 HOOK; PLATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) REAR PABCO 		5-87580-005-0 01 1 0904-
224 17.505 HOOK; VERTICAL LOCK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-007-0 01 1 0810-0903
224 17.505 HOOK; VERTICAL LOCK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-007-0 01 1 0904-
224 17.505 HOOK; VERTICAL LOCK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-008-0 01 1 0810-0903
224 17.505 HOOK; VERTICAL LOCK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-008-0 01 1 0904-
225 17.505 CLIP; WEATHERSTRIP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-207-0 08 1 0810-0903
225 17.505 CLIP; WEATHERSTRIP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-207-0 08 1 0904-
335 17.208 HINGE ASM; SIDE GATE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-006-0 14 1 0810-0903
335 17.208 HINGE ASM; SIDE GATE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-006-0 14 1 0904-
335 17.208 HINGE ASM; SIDE GATE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-006-0 16 1 0810-0903
335 17.208 HINGE ASM; SIDE GATE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-006-0 16 1 0904-
338 17.185 SCREW; HINGE,GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X20 PABCO 		8-98045-181-0 40 1 0810-0903
338 17.185 SCREW; HINGE,GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X20 PABCO 		8-98045-181-0 40 1 0904-
339 17.185 NUT; HINGE,GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 01.062 M8 FLANGE 		0-91180-108-0 22 1 0810-0903
339 17.185 NUT; HINGE,GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 01.062 M8 FLANGE 		0-91180-108-0 22 1 0904-

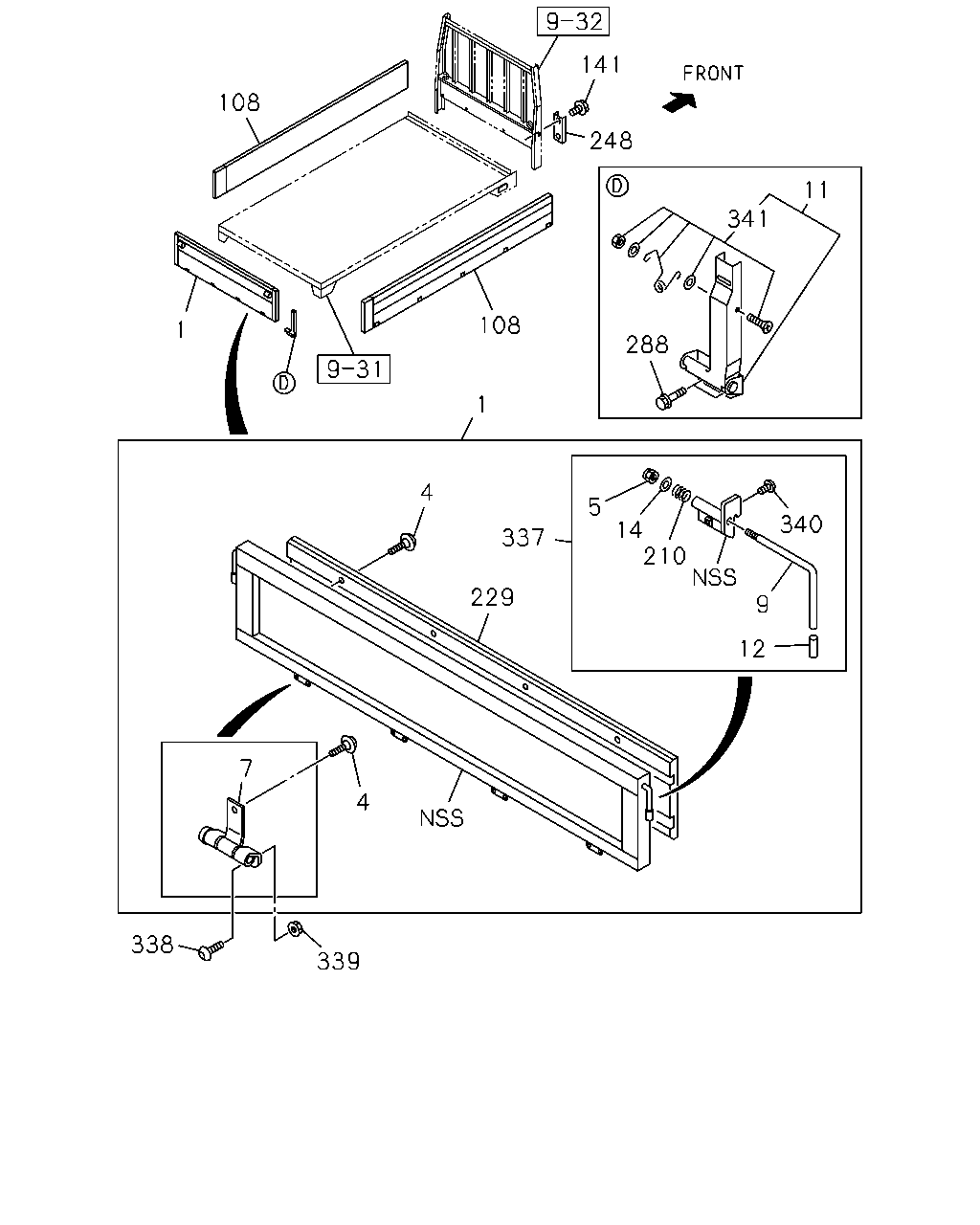

çizim 59624
141 108 248 11 341 108 1 288 1 4 5 340 14 210 337 229 9 12 7 4 38 339
BalonParca AdiParca NoAdetTipApplied Date
1 17.185 GATE ASM; RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=2071 H=389 B=50 PLYWOOD PABCO 		8-98030-806-2 01 1 0810-0903
1 17.185 GATE ASM; RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=2071 H=389 B=50 PLYWOOD PABCO 		8-98030-806-2 01 1 0904-
4 17.185 SCREW; PANEL,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X25 PABCO 		8-98045-183-0 08 1 0810-0903
4 17.185 SCREW; PANEL,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X25 PABCO 		8-98045-183-0 08 1 0904-
5 17.204 NUT; LATCH HANDLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M12 PABCO 		8-98045-194-0 02 1 0810-0903
5 17.204 NUT; LATCH HANDLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M12 PABCO 		8-98045-194-0 02 1 0904-
7 17.208 HINGE ASM; RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-016-0 04 1 0810-0903
7 17.208 HINGE ASM; RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-016-0 04 1 0904-
9 17.204 HANDLE; LATCH,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-104-0 02 1 0810-0903
9 17.204 HANDLE; LATCH,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-104-0 02 1 0904-
11 17.198 LOCK ASM; VERTICAL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98031-211-0 01 1 0810-0903
11 17.198 LOCK ASM; VERTICAL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98031-211-0 01 1 0904-
11 17.198 LOCK ASM; VERTICAL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98031-212-0 01 1 0810-0903
11 17.198 LOCK ASM; VERTICAL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98031-212-0 01 1 0904-
12 17.204 PIECE; END,RR HANDLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-208-0 02 1 0810-0903
12 17.204 PIECE; END,RR HANDLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-208-0 02 1 0904-
14 17.204 WASHER; PL,HANDLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-201-0 02 1 0810-0903
14 17.204 WASHER; PL,HANDLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-201-0 02 1 0904-
38 17.507 RUBBER; STOPPER,SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) H=30 PABCO 		8-98045-162-0 02 1 0810-0903
38 17.507 RUBBER; STOPPER,SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) H=30 PABCO 		8-98045-162-0 02 1 0904-
38 17.507 RUBBER; STOPPER,SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) H=23 PABCO 		8-98045-164-0 02 1 0810-0903
38 17.507 RUBBER; STOPPER,SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) H=23 PABCO 		8-98045-164-0 02 1 0904-
108 17.505 GATE ASM; SIDE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4265 H=389 B=50 PLYWOOD PABCO 		8-98106-930-0 01 1 0810-0903
108 17.505 GATE ASM; SIDE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4265 H=389 B=50 PLYWOOD PABCO 		8-98106-930-0 01 1 0904-
108 17.505 GATE ASM; SIDE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4265 H=389 B=50 PLYWOOD PABCO 		8-98106-931-0 01 1 0810-0903
108 17.505 GATE ASM; SIDE
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4265 H=389 B=50 PLYWOOD PABCO 		8-98106-931-0 01 1 0904-
108 17.505 GATE ASM; SIDE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO 		8-98089-981-1 01 1 0810-0903
108 17.505 GATE ASM; SIDE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO 		8-98089-981-1 01 1 0904-
108 17.505 GATE ASM; SIDE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO 		8-98089-983-1 01 1 0810-0903
108 17.505 GATE ASM; SIDE
WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> L=4940 H=389 B=50 PLYWOOD PABCO 		8-98089-983-1 01 1 0904-
141 17.505 BOLT
RR BODY FLAT BED<RS6> 00.724 M8X16 FLANGE 		0-28060-816-0 02 1 0810-
210 17.505 SPRING; LATCH HANDLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-213-0 02 1 0810-0903
210 17.505 SPRING; LATCH HANDLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-213-0 02 1 0904-
229 17.505 BOARD; RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-115-2 01 1 0810-0903
229 17.505 BOARD; RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-115-2 01 1 0904-
248 17.442 PATCH; CARGO RR
RR BODY FLAT BED<RS6> PABCO 		8-98030-315-0 02 1 0810-
288 17.505 BOLT; LOCK ASM,VERTICAL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 17.185 M8X20 PABCO 		8-98045-181-0 04 1 0810-0903
288 17.505 BOLT; LOCK ASM,VERTICAL
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 17.185 M8X20 PABCO 		8-98045-181-0 04 1 0904-
337 17.208 HANDLE ASM; LATCH,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-149-0 01 1 0810-0903
337 17.208 HANDLE ASM; LATCH,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-149-0 01 1 0904-
337 17.208 HANDLE ASM; LATCH,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-150-0 01 1 0810-0903
337 17.208 HANDLE ASM; LATCH,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-150-0 01 1 0904-
339 17.185 NUT; HINGE,GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 01.062 M8 FLANGE 		0-91180-108-0 22 1 0810-0903
339 17.185 NUT; HINGE,GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 01.062 M8 FLANGE 		0-91180-108-0 22 1 0904-
340 17.505 SCREW; BRKT,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X17 PABCO 		8-98045-185-0 04 1 0810-0903
340 17.505 SCREW; BRKT,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X17 PABCO 		8-98045-185-0 04 1 0904-
341 17.505 SPRING KIT; VERTICAL LOCK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-198-0 01 1 0810-0903
341 17.505 SPRING KIT; VERTICAL LOCK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-198-0 01 1 0904-
341 17.505 SPRING KIT; VERTICAL LOCK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-199-0 01 1 0810-0903
341 17.505 SPRING KIT; VERTICAL LOCK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-199-0 01 1 0904-
çizim 101269
40 40 40 37 36 37 39 37 38 39 39 38
BalonParca AdiParca NoAdetTipApplied Date
36 17.202 RUBBER; STOPPER,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-163-0 02 1 0810-0903
36 17.202 RUBBER; STOPPER,RR GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-163-0 02 1 0904-
37 17.202 SCREW
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) M6X30 PABCO 		8-98045-188-0 04 1 0810-0903
37 17.202 SCREW
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) M6X30 PABCO 		8-98045-188-0 04 1 0904-
37 17.202 SCREW
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) M6X25 PABCO 		8-98045-191-0 02 1 0810-0903
37 17.202 SCREW
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) M6X25 PABCO 		8-98045-191-0 02 1 0904-
38 17.507 RUBBER; STOPPER,SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) H=30 PABCO 		8-98045-162-0 02 1 0810-0903
38 17.507 RUBBER; STOPPER,SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (A) H=30 PABCO 		8-98045-162-0 02 1 0904-
38 17.507 RUBBER; STOPPER,SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) H=23 PABCO 		8-98045-164-0 02 1 0810-0903
38 17.507 RUBBER; STOPPER,SIDE GATE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> (B) H=23 PABCO 		8-98045-164-0 02 1 0904-
39 17.505 WASHER; STOPPER RUBBER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-202-0 06 1 0810-0903
39 17.505 WASHER; STOPPER RUBBER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-202-0 06 1 0904-
40 17.202 NUT; STOPPER RUBBER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 01.062 M6 FLANGE 		0-91180-106-0 06 1 0810-0903
40 17.202 NUT; STOPPER RUBBER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 01.062 M6 FLANGE 		0-91180-106-0 06 1 0904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
