6-31 — FRONT DOOR GLASS AND REGULATOR (#4906) — 444 parça

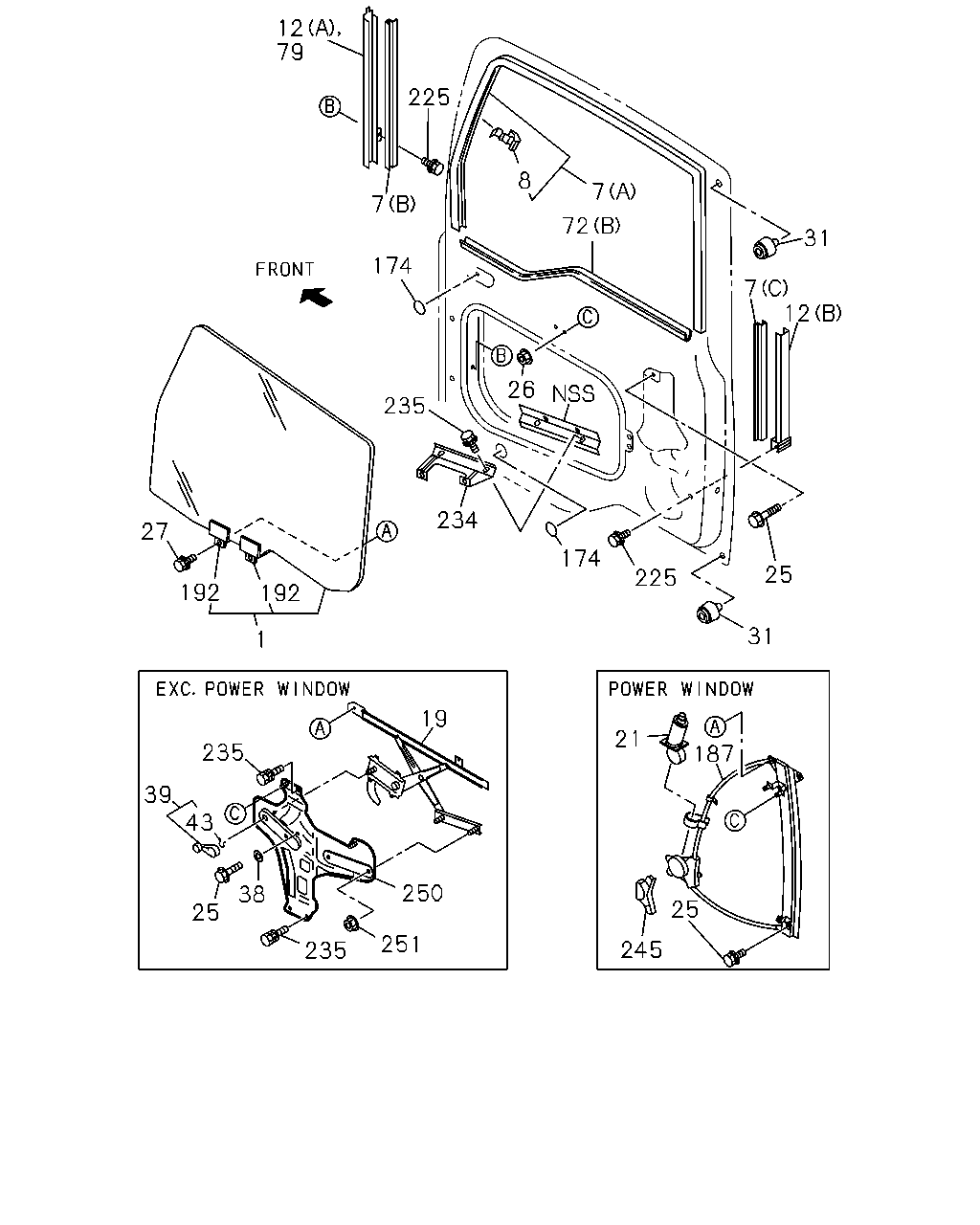

çizim 4751
12 79 225 8 7 7 72 31 174 7 12 26 235 234 27 174 25 225 192 192 31 1 19 21 235 187 39 43 250 38 25 25 251 245 235
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
POWER WINDOW<A30> BLUE 		1-76148-071-0 01 1 9603-9611 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76148-083-0 01 1 9612-9801 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76148-095-0 01 1 9802-9901 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76148-095-1 01 1 9902-9904 ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76148-095-1 01 1 9905- ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> BLUE 		1-76148-060-1 01 1 9603-9611 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-153-0 01 1 9612-9801 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-172-0 01 1 9802-9901 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-172-0 01 1 9902-9904 ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-172-0 01 1 9905-9905 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-177-1 01 1 9906- ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> BLUE 		1-76148-069-1 01 1 9603-9611 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76148-079-0 01 1 9612-9801 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76148-094-0 01 1 9802-9901 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76148-094-1 01 1 9902-9904 ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76148-094-1 01 1 9905- ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> BLUE 		1-76148-068-1 01 1 9603-9611 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76167-159-0 01 1 9612-9801 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76167-174-0 01 1 9802-9901 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76167-174-1 01 1 9902-9904 ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76167-174-1 01 1 9905- ● ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-022-7 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-022-7 01 1 9902-9904 ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-022-7 01 1 9905- ● ● ●
7 GLASS RUN; FRT DOOR
(C) REAR 		1-74318-041-0 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
(B) UPPER 		1-74318-043-0 01 1 9603-9705 ● ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-021-7 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-021-7 01 1 9902-9904 ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-021-7 01 1 9905- ● ● ●
7 GLASS RUN; FRT DOOR
(C) REAR 		1-74318-040-0 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT 		1-74318-042-0 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT 		1-74318-042-0 01 1 9902-9904 ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT 		1-74318-042-0 01 1 9905- ● ● ●
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT 		1-74318-038-0 01 1 9603-9705 ● ● ●
7 GLASS RUN; FRT DOOR
(B) FRONT RH &LH 		1-74318-038-0 01 1 9706-9901 ● ● ●
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT RH &LH 		1-74318-038-0 01 1 9706-9901 ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9603-9901 ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9902-9904 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9905- ● ● ●
12 CHANNEL; GLASS RUN,FRT
(A) FRONT 		1-74338-037-1 01 1 9603-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-049-1 01 1 9603-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-071-2 01 1 9902-9904 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-071-2 01 1 9905- ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-048-1 01 1 9603-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-070-2 01 1 9902-9904 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-070-2 01 1 9905- ● ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT 		1-74338-036-0 01 1 9603-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT 		1-74338-036-0 01 1 9902-9904 ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT 		1-74338-036-0 01 1 9905- ● ● ●
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT 		1-74338-046-1 01 1 9603-9901 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9603-9901 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9902-9904 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9905- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9603-9901 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9902-9904 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9905- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-139-2 01 1 9603-9608 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9609-9901 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9902-9904 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9905-0003 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0004- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9603-9608 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9609-9901 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9902-9904 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9905-0003 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004- ● ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9603-9901 ● ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9902-9904 ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9905- ● ● ●
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9603-9606 ● ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9603-9901 ● ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9902-9904 ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9905- ● ● ●
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9603-9606 ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9603-9901 ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9902-9904 ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905- ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9603-9901 ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9902-9904 ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9905- ● ● ●
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9603-9606 ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9603-9901 ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9902-9904 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9905- ● ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9603-9901 ● ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9902-9904 ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9905- ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9902-9904 ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9905- ● ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 9902-9904 ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 9905- ● ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9603-9901 ● ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9902-9904 ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9905- ● ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9603-9901 ● ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9902-9904 ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9905- ● ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9603-9901 ● ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9902-9904 ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9905- ● ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9603-9901 ● ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9902-9904 ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9905- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-138-2 01 1 9603-9608 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-0 01 1 9609-9901 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-1 01 1 9902-9904 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-1 01 1 9905-0003 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-2 01 1 0004- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9603-9608 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-0 01 1 9609-9901 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9902-9904 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9905-0003 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004- ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9603-9801 ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9603-9801 ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-9901 ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-9901 ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9902-9904 ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9902-9904 ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9905- ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9905- ● ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9603-9801 ● ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-9901 ● ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9902-9904 ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9905- ● ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603-9901 ● ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9902-9904 ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-0003 ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004- ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-2 01 1 9603-9901 ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9902-9904 ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9905- ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-2 01 1 9603-9901 ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9902-9904 ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9905- ● ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-9901 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-9901 ● ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-9904 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-9904 ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905- ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905- ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-181-0 01 1 0004- ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9902-9904 ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9902-9904 ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9905-0003 ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9905-0003 ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-180-0 01 1 0004- ● ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 02 1 9902-9904 ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 02 1 9905- ● ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 02 1 9902-9904 ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 02 1 9905- ● ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9603-9901 ● ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9603-9901 ● ● ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9603-9901 ● ● ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9902-9904 ● ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9905- ● ● ●

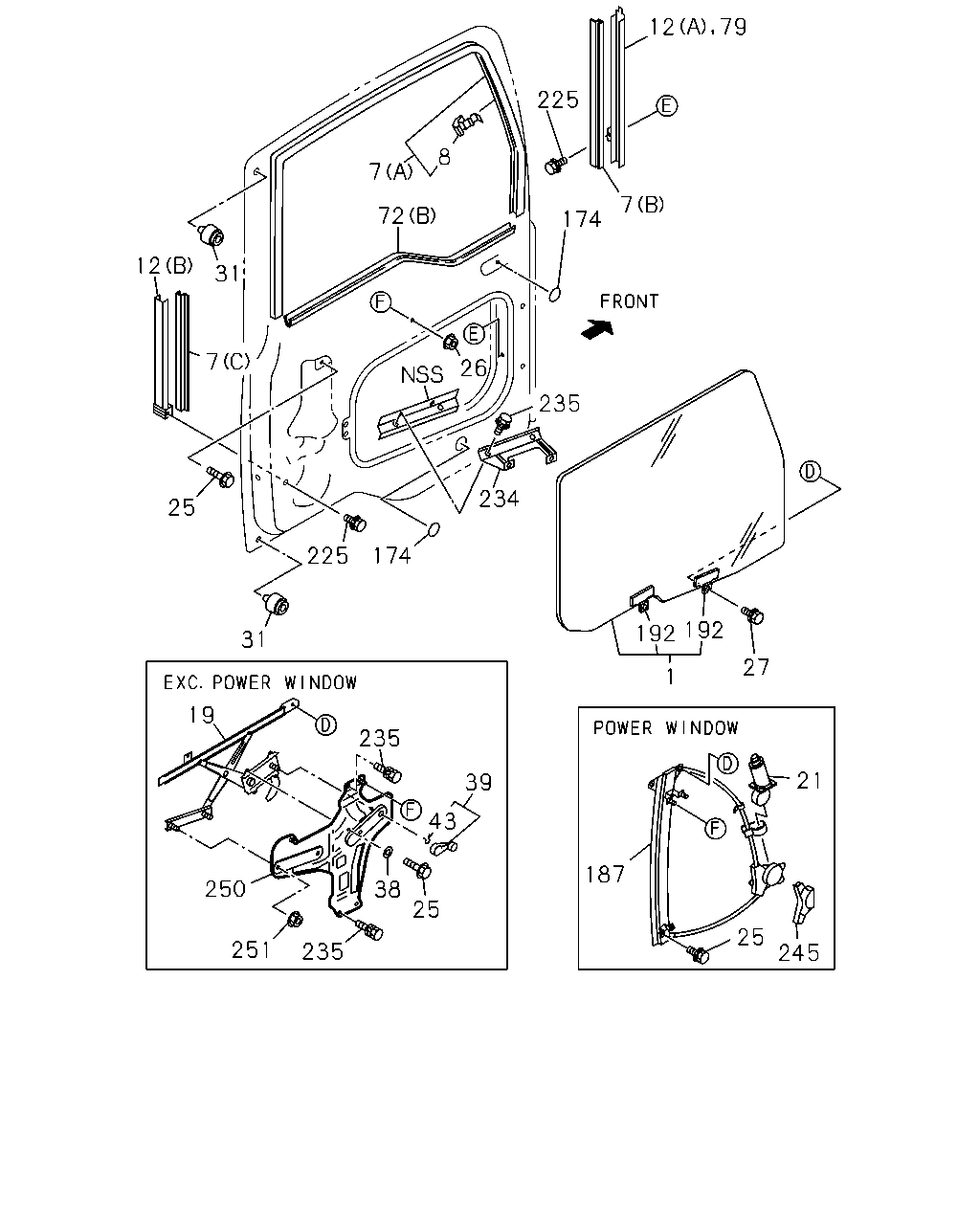

çizim 5098
12 79 225 8 7 7 72 174 12 31 7 26 235 234 25 225 174 192 192 31 27 1 19 235 21 39 43 187 250 38 25 25 251 235 245
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
POWER WINDOW<A30> BLUE 		1-76148-071-0 01 1 9603-9611 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76148-083-0 01 1 9612-9801 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76148-095-0 01 1 9802-9901 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76148-095-1 01 1 9902-9904 ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76148-095-1 01 1 9905- ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> BLUE 		1-76148-060-1 01 1 9603-9611 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-153-0 01 1 9612-9801 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-172-0 01 1 9802-9901 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-172-0 01 1 9902-9904 ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-172-0 01 1 9905-9905 ● ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> GREEN 		1-76167-177-1 01 1 9906- ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> BLUE 		1-76148-069-1 01 1 9603-9611 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76148-079-0 01 1 9612-9801 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76148-094-0 01 1 9802-9901 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76148-094-1 01 1 9902-9904 ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76148-094-1 01 1 9905- ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> BLUE 		1-76148-068-1 01 1 9603-9611 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76167-159-0 01 1 9612-9801 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76167-174-0 01 1 9802-9901 ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76167-174-1 01 1 9902-9904 ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> GREEN 		1-76167-174-1 01 1 9905- ● ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-022-7 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-022-7 01 1 9902-9904 ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-022-7 01 1 9905- ● ● ●
7 GLASS RUN; FRT DOOR
(C) REAR 		1-74318-041-0 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
(B) UPPER 		1-74318-043-0 01 1 9603-9705 ● ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-021-7 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-021-7 01 1 9902-9904 ● ●
7 GLASS RUN; FRT DOOR
(A) UPPER 		1-74318-021-7 01 1 9905- ● ● ●
7 GLASS RUN; FRT DOOR
(C) REAR 		1-74318-040-0 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT 		1-74318-042-0 01 1 9603-9901 ● ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT 		1-74318-042-0 01 1 9902-9904 ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT 		1-74318-042-0 01 1 9905- ● ● ●
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT 		1-74318-038-0 01 1 9603-9705 ● ● ●
7 GLASS RUN; FRT DOOR
(B) FRONT RH &LH 		1-74318-038-0 01 1 9706-9901 ● ● ●
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) FRONT RH &LH 		1-74318-038-0 01 1 9706-9901 ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9603-9901 ● ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9902-9904 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9905- ● ● ●
12 CHANNEL; GLASS RUN,FRT
(A) FRONT 		1-74338-037-1 01 1 9603-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-049-1 01 1 9603-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-071-2 01 1 9902-9904 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-071-2 01 1 9905- ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-048-1 01 1 9603-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-070-2 01 1 9902-9904 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) REAR 		1-74338-070-2 01 1 9905- ● ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT 		1-74338-036-0 01 1 9603-9901 ● ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT 		1-74338-036-0 01 1 9902-9904 ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT 		1-74338-036-0 01 1 9905- ● ● ●
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT 		1-74338-046-1 01 1 9603-9901 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9603-9901 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9902-9904 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9905- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9603-9901 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9902-9904 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9905- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-139-2 01 1 9603-9608 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9609-9901 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9902-9904 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9905-0003 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0004- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9603-9608 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9609-9901 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9902-9904 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9905-0003 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004- ● ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9603-9901 ● ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9902-9904 ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9905- ● ● ●
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9603-9606 ● ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9603-9901 ● ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9902-9904 ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9905- ● ● ●
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9603-9606 ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9603-9901 ● ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9902-9904 ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905- ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9603-9901 ● ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9902-9904 ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9905- ● ● ●
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9603-9606 ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9603-9901 ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9902-9904 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9905- ● ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9603-9901 ● ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9902-9904 ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9905- ● ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9902-9904 ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9905- ● ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 9902-9904 ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 9905- ● ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9603-9901 ● ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9902-9904 ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9905- ● ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9603-9901 ● ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9902-9904 ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9905- ● ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9603-9901 ● ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9902-9904 ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9905- ● ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9603-9901 ● ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9902-9904 ● ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9905- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-138-2 01 1 9603-9608 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-0 01 1 9609-9901 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-1 01 1 9902-9904 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-1 01 1 9905-0003 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-2 01 1 0004- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9603-9608 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-0 01 1 9609-9901 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9902-9904 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9905-0003 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004- ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9603-9801 ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9603-9801 ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-9901 ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-9901 ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9902-9904 ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9902-9904 ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9905- ● ● ●
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9905- ● ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9603-9801 ● ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-9901 ● ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9902-9904 ● ●
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9905- ● ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603-9901 ● ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9902-9904 ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-0003 ● ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004- ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-2 01 1 9603-9901 ● ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9902-9904 ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9905- ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-2 01 1 9603-9901 ● ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9902-9904 ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9905- ● ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-9901 ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-9901 ● ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-9904 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-9904 ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905- ● ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905- ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-181-0 01 1 0004- ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9902-9904 ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9902-9904 ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9905-0003 ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 01 1 9905-0003 ● ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-180-0 01 1 0004- ● ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 02 1 9902-9904 ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 02 1 9905- ● ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 02 1 9902-9904 ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 02 1 9905- ● ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9603-9901 ● ● ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9603-9901 ● ● ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9603-9901 ● ● ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9902-9904 ● ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9905- ● ● ●

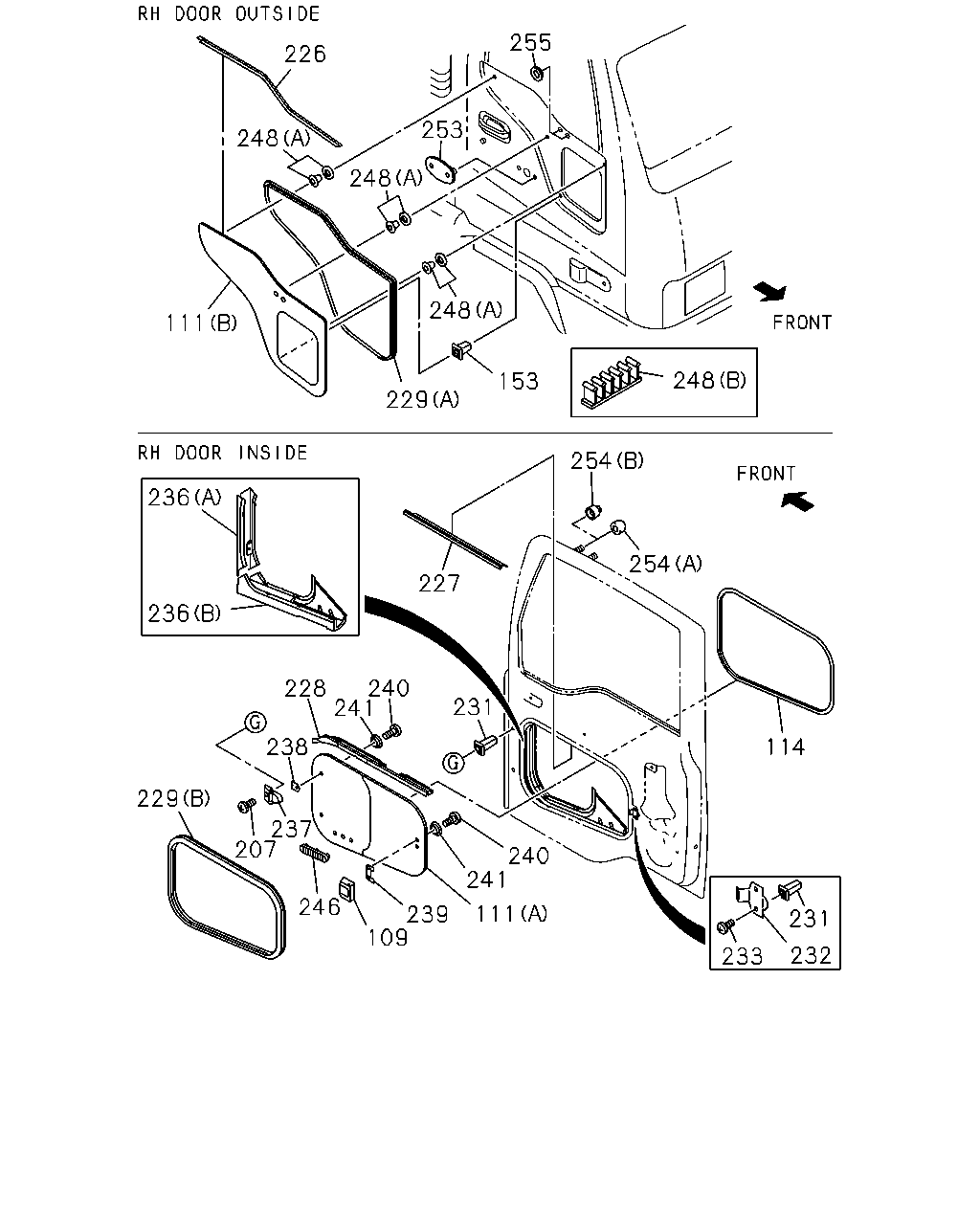

çizim 6739
255 226 253 248 248 248 111 248 153 229 254 236 254 227 236 228 240 241 231 238 114 229 237 207 240 241 246 111 239 109 231 232 233
BalonParca AdiParca NoAdetTipApplied Date A B C
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 9603-9901 ● ● ●
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 9902-9904 ● ●
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 9905- ● ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) INNER 		1-76167-150-0 01 1 9603-9901 ● ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) INNER 		1-76167-150-0 01 1 9902-9904 ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) INNER 		1-76167-150-0 01 1 9905-9910 ● ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) INNER 		8-97893-167-0 01 1 9911- ● ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) OUTER BLUE 		1-76168-032-2 01 1 9603-9611 ● ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) OUTER GREEN 		1-76148-081-2 01 1 9612-9901 ● ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) OUTER GREEN 		1-76148-081-2 01 1 9902-9904 ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) OUTER GREEN 		1-76148-081-2 01 1 9905- ● ● ●
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> L=1675 		1-71538-037-1 01 1 9603-9901 ● ● ●
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> L=1675 		1-71538-037-1 01 1 9902-9904 ● ●
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> L=1675 		1-71538-037-1 01 1 9905- ● ● ●
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 13X13 L=14.2 OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 9603-9901 ● ● ●
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 13X13 L=14.2 OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 9902-9904 ● ●
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 13X13 L=14.2 OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 9905- ● ● ●
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9603-9901 ● ● ●
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9902-9904 ● ●
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9905- ● ● ●
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-156-0 01 1 9603-9901 ● ● ●
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-156-0 01 1 9902-9904 ● ●
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-156-0 01 1 9905- ● ● ●
227 RUBBER; SHUTTER
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-162-0 01 1 9603-9709 ● ● ●
228 RAIL; DRIP,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-157-0 01 1 9603-9709 ● ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER 		1-76738-160-2 01 1 9603-9901 ● ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER 		1-76738-160-2 01 1 9902-9904 ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER 		1-76738-160-2 01 1 9905- ● ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER 		1-76738-161-1 01 1 9603-9901 ● ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER 		1-76738-161-1 01 1 9902-9904 ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER 		1-76738-161-1 01 1 9905- ● ● ●
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9603-9901 ● ● ●
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9902-9904 ● ●
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9905- ● ● ●
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 9603-9901 ● ● ●
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 9902-9904 ● ●
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 9905- ● ● ●
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9603-9901 ● ● ●
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9902-9904 ● ●
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9905- ● ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-461-1 01 1 9603-9901 ● ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-461-2 01 1 9902-9904 ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-461-2 01 1 9905- ● ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-462-0 01 1 9603-9901 ● ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-462-0 01 1 9902-9904 ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-462-0 01 1 9905- ● ● ●
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 9603-9901 ● ● ●
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 9902-9904 ● ●
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 9905- ● ● ●
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 9603-9901 ● ● ●
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 9902-9904 ● ●
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 9905- ● ● ●
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 9603-9901 ● ● ●
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 9902-9904 ● ●
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 9905- ● ● ●
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> W/LK&PL WASHER M6X12 		8-94279-346-0 04 1 9603-9901 ● ● ●
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> W/LK&PL WASHER M6X12 		8-94279-346-0 04 1 9902-9904 ● ●
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> W/LK&PL WASHER M6X12 		8-94279-346-0 04 1 9905- ● ● ●
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> ID=10 OD=18 		1-74998-054-0 04 1 9603-9901 ● ● ●
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> ID=10 OD=18 		1-74998-054-0 04 1 9902-9904 ● ●
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> ID=10 OD=18 		1-74998-054-0 04 1 9905- ● ● ●
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 9603-9901 ● ● ●
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 9902-9904 ● ●
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 9905- ● ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8 		1-09989-019-0 03 1 9603-9901 ● ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8 		1-09989-019-0 03 1 9902-9904 ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8 		1-09989-019-0 03 1 9905- ● ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=12.5 		1-74998-072-0 01 1 9902-9904 ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=12.5 		1-74998-072-0 01 1 9905- ● ● ●
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> WHITE 		8-97865-049-0 01 1 9603-9605 ● ● ●
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> WHITE 		1-74997-142-0 01 1 9606-9901 ● ● ●
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> WHITE 		8-97865-049-0 01 1 9902-9904 ● ●
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> WHITE 		8-97865-049-0 01 1 9905- ● ● ●
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> (A) M8 		1-71736-200-0 02 1 9603-9608 ● ● ●
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> (B) M8 		8-94276-413-1 02 1 9609-9901 ● ● ●
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> (B) M8 		8-94276-413-1 02 1 9902-9904 ● ●
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> (B) M8 		8-94276-413-1 02 1 9905- ● ● ●
255 GROMMET; MIRROR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 		8-94225-442-0 02 1 9603-9901 ● ● ●
255 GROMMET; MIRROR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 		8-94225-442-0 02 1 9902-9904 ● ●
255 GROMMET; MIRROR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 		8-94225-442-0 02 1 9905- ● ● ●
çizim 7404
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B C
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-089-7 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-092-5 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(A)OUTER 		1-76738-088-7 01 1 9905- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9603-9901 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9902-9904 ● ●
72 SEAL; WAIST,FRT DOOR
(B)INNER 		1-76738-091-5 01 1 9905- ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9603-9901 ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9902-9904 ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9905- ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9603-9901 ● ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9902-9904 ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9905- ● ● ●
132 CLIP; SEAL,DOOR
(A) PINK 		1-09987-256-0 08 1 9603-9901 ● ● ●
132 CLIP; SEAL,DOOR
(A) NATURAL 		1-09987-257-0 08 1 9603-9901 ● ● ●
132 CLIP; SEAL,DOOR
(B) YELLOW 		1-09987-254-1 06 1 9911- ● ● ●
132 CLIP; SEAL,DOOR
(B) NATURAL 		1-09987-253-1 06 1 9911- ● ● ●
çizim 39283
130 132 130 132
BalonParca AdiParca NoAdetTipApplied Date A B C
130 SEAL; DOOR,SUB LWR 1-71907-411-0 01 1 9603-9901 ● ● ●
130 SEAL; DOOR,SUB LWR 1-71907-410-0 01 1 9603-9901 ● ● ●
132 CLIP; SEAL,DOOR
(A) PINK 		1-09987-256-0 08 1 9603-9901 ● ● ●
132 CLIP; SEAL,DOOR
(A) NATURAL 		1-09987-257-0 08 1 9603-9901 ● ● ●
132 CLIP; SEAL,DOOR
(B) YELLOW 		1-09987-254-1 06 1 9911- ● ● ●
132 CLIP; SEAL,DOOR
(B) NATURAL 		1-09987-253-1 06 1 9911- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
