◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 9 - Tools ▶ 9-32 - REAR BODY; GUARD FRAME ▶
9-32 — REAR BODY; GUARD FRAME (#49059) — 23 parça

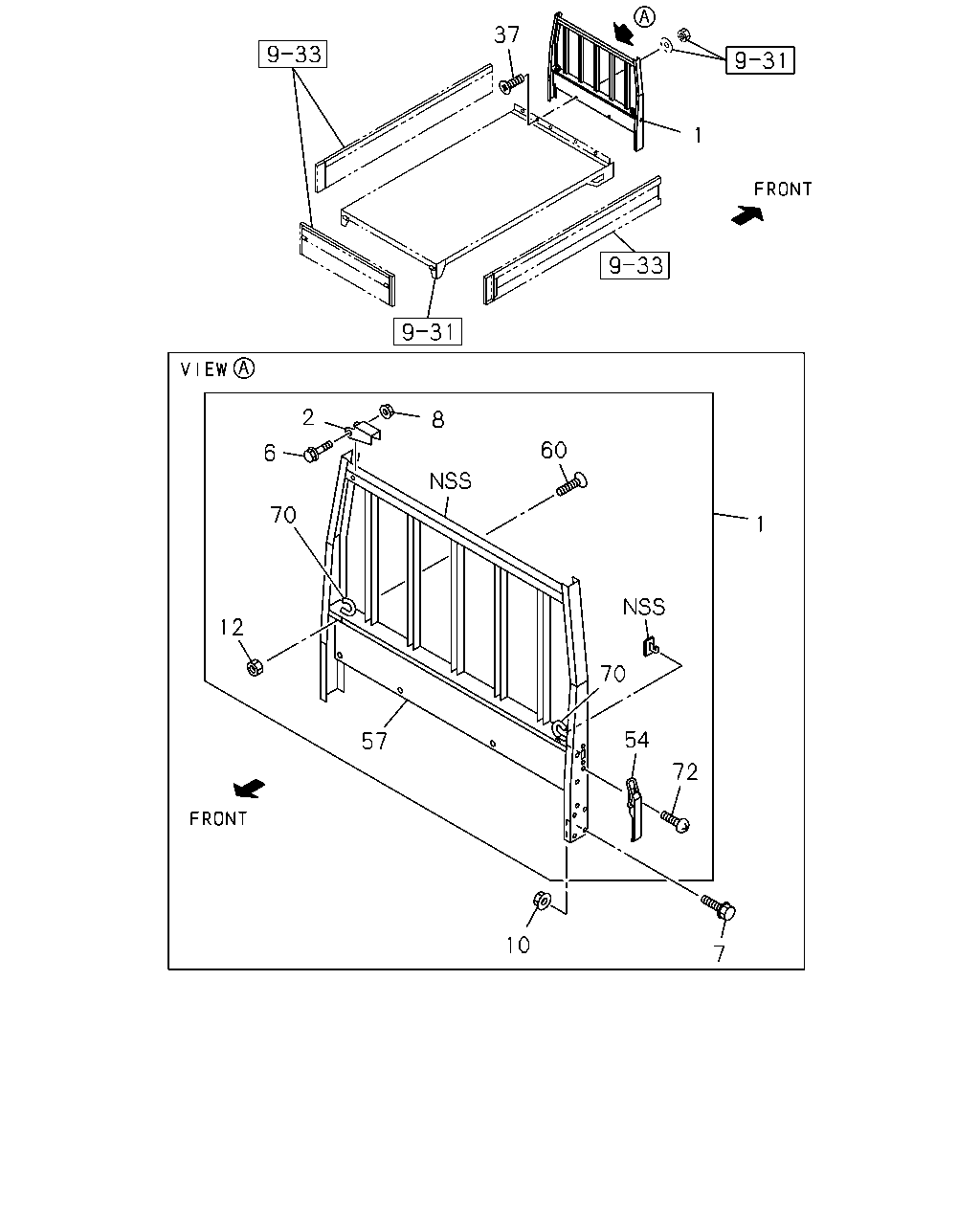

çizim 59770
1 2 8 60 6 70 1 12 70 54 57 72 10 7 37
BalonParca AdiParca NoAdetTipApplied Date
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98024-567-1 01 1 0810-0903
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98024-567-2 01 1 0904-
2 17.447 STOPPER; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 		8-98045-225-0 02 1 0810-0903
2 17.447 STOPPER; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 		8-98045-225-0 02 1 0904-
6 17.447 BOLT; STOPPER TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 		8-98045-226-0 02 1 0810-0903
6 17.447 BOLT; STOPPER TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 		8-98045-226-0 02 1 0904-
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED<RS6> M12X25 FLANGE 		0-28661-225-0 08 1 0810-
8 17.447 NUT; STOPPER BOLT
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M10 		8-98045-227-0 02 1 0810-0903
8 17.447 NUT; STOPPER BOLT
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M10 		8-98045-227-0 02 1 0904-
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> 05.816 M12 FLANGE 		0-91180-212-0 08 1 0810-
12 17.455 NUT; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 05 1 0810-0903
12 17.455 NUT; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> 16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 05 1 0904-
37 17.455 BOLT; GUARD FRAME
RR BODY FLAT BED<RS6> SCREW M8X25 PABCO 		8-98030-412-0 05 1 0810-
54 17.455 HANDLE; LOCK,GATE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-206-0 02 1 0810-0903
54 17.455 HANDLE; LOCK,GATE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-206-0 02 1 0904-
57 17.400 BOARD; HEADER
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-229-2 01 1 0810-0903
57 17.400 BOARD; HEADER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		8-98045-229-2 01 1 0904-
60 17.455 SCREW; BOARD
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X25 PABCO 		8-98030-412-0 05 1 0810-0903
60 17.455 SCREW; BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X25 PABCO 		8-98030-412-0 05 1 0904-
70 17.455 HOOK; ROPE,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-001-0 02 1 0810-0903
70 17.455 HOOK; ROPE,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> PABCO 		5-87580-001-0 02 1 0904-
72 17.455 SCREW; HANDLE TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X13 PABCO 		8-98045-180-0 04 1 0810-0903
72 17.455 SCREW; HANDLE TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> M8X13 PABCO 		8-98045-180-0 04 1 0904-
