8-15 — FIXING PARTS; WIRING HARNESS (#49040) — 107 parça

483 570 488 16 570 16 16 48 488 48 570 22 16 16 16 513 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	0810-	●	●
16	02.559 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) (E) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	0810-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0810-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0810-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0810-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0810-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0810-	●	●
22	02.559 CLIP; ENG HARNESS L=170.3	1-09987-182-0	01	1	0811-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0810-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0810-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0810-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (A) ID=14 L=47	5-09700-319-0	07	1	0810-		●
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-1	01	1	0810-	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED<RS6> (B) L=250	5-09707-030-1	04	1	0810-	●
488	02.559 CLIP; CABLE,TRAILER (B) L=250	5-09707-030-1	04	1	0810-		●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> 02.587 (A) L=112	8-94232-618-0	05	1	0810-	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 130X80	8-97304-373-0	01	1	0810-	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0810-	●	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0810-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0810-1506	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1507-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	0810-1506	●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1507-	●

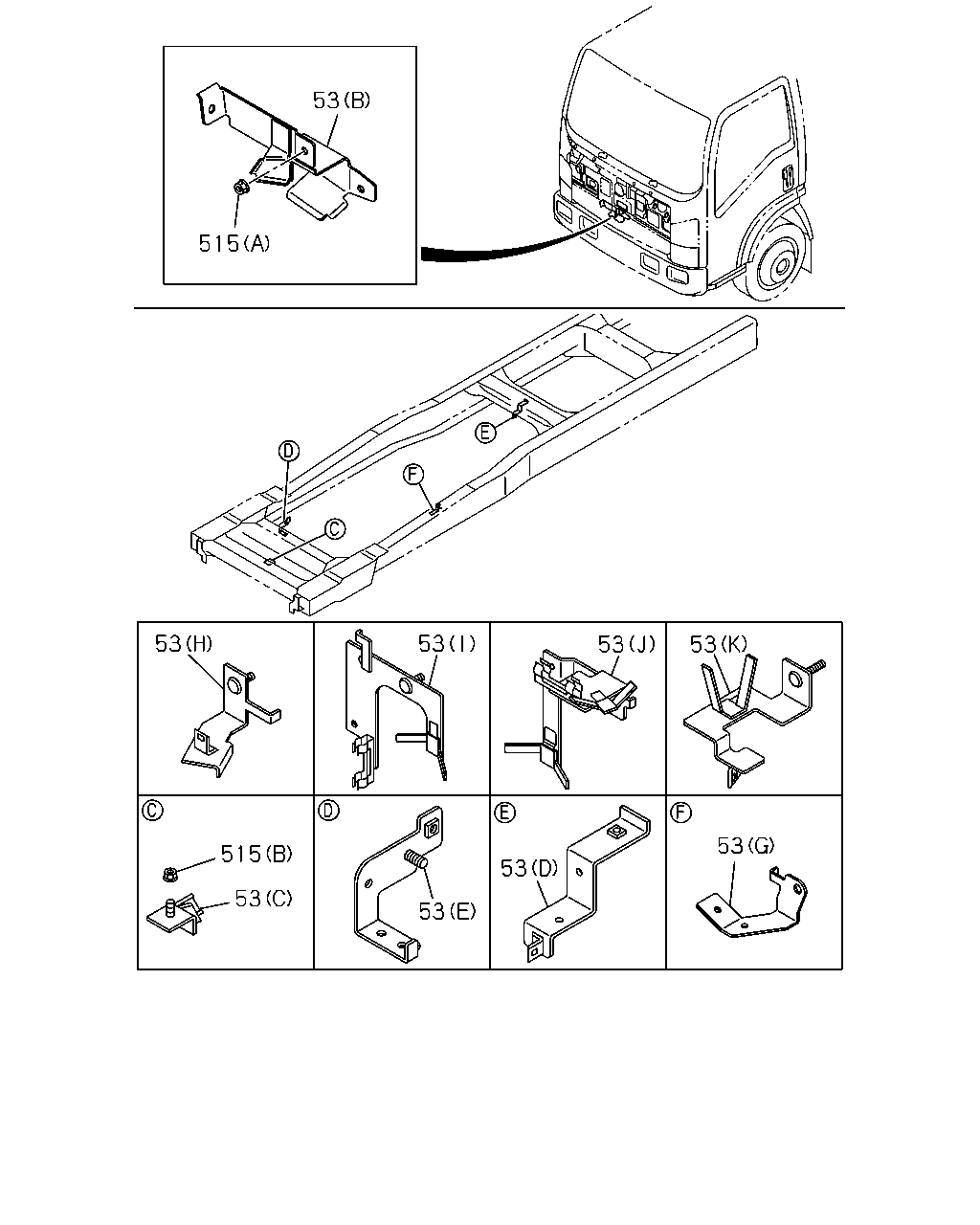

53 515 53 53 53 53 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS (G)	8-98130-669-1	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (K)	8-98132-377-0	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS DUMP CHASSIS(V4D) (J)	8-98126-491-0	01	1	0810-	●
53	02.483 BRACKET; HARNESS EXC. DUMP CHASSIS(V4D) (I)	8-98126-454-2	01	1	0810-	●
53	02.483 BRACKET; HARNESS (I)	8-98126-454-2	01	1	0810-		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98051-457-0	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98077-503-1	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98077-504-0	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98114-461-2	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (F)	8-98084-590-0	01	1	0810-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	02	1	0810-0909	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-		●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0810-0909	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0911	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0911	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0912-	●	●
515	02.559 NUT; BRKT (C) M8 FLANGE	8-98040-024-0	01	1	0810-	●	●

516 529 38 38 139 480 480 377 377 386 377 386 386 377 386 24 294 515 577 219 294 515 515 552 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-1409	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
38	02.559 BOLT; CLIP,HARNESS AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) M6X12 FLANGE	0-28250-612-0	02	1	0810-	●	●
38	02.559 BOLT; CLIP,HARNESS PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0810-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-1506	●	●
294	02.559 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0810-0904	●	●
294	02.559 NUT 02.343 (B) M6 W/LK WASHER	8-94424-179-0	01	1	0810-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0810-1004	●	●
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0810-1004	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0810-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	02	1	0810-0909	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-		●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0810-0909	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0911	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0911	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0912-	●	●
515	02.559 NUT; BRKT (C) M8 FLANGE	8-98040-024-0	01	1	0810-	●	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0810-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0810-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0810-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-	●	●

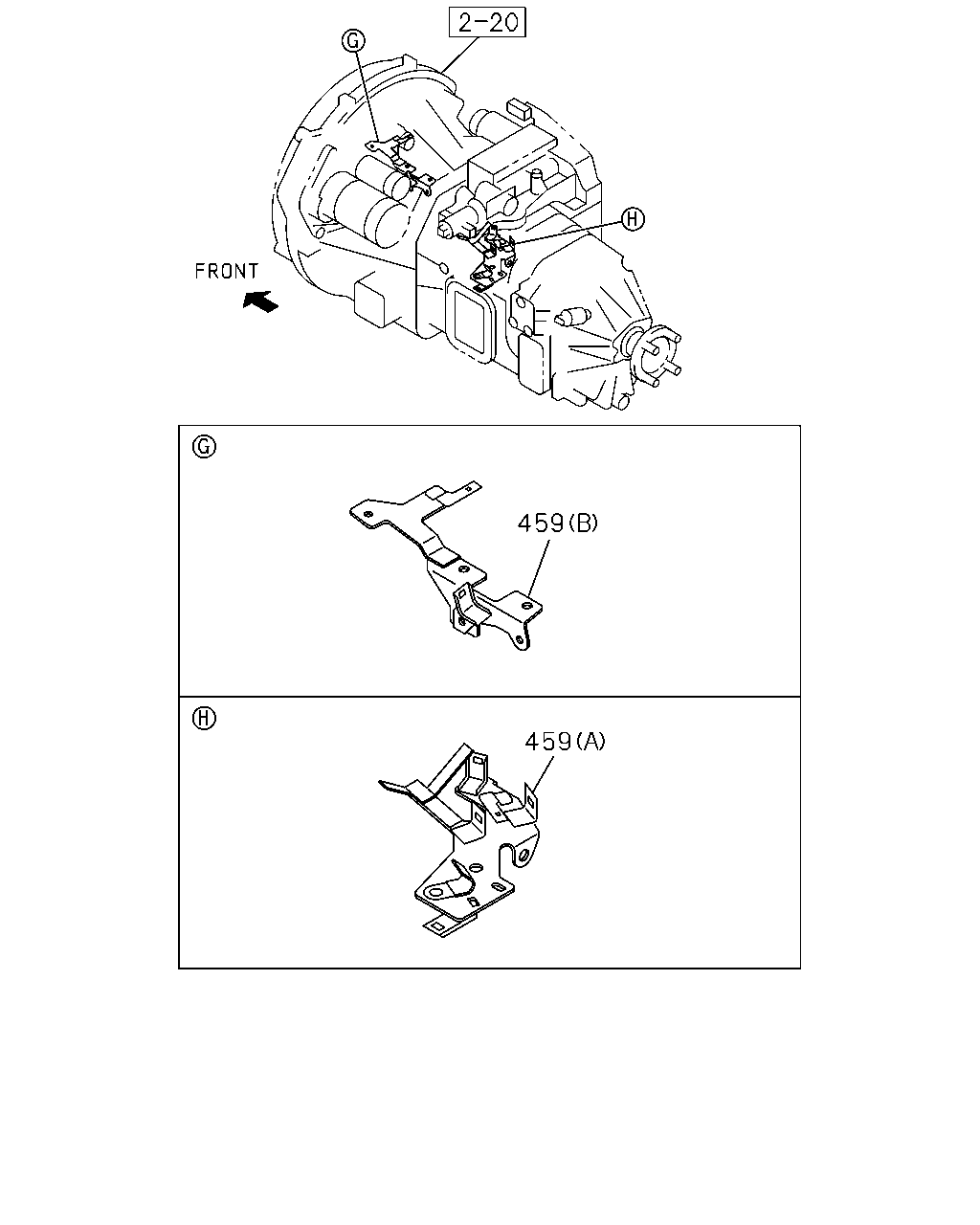

459 459

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98123-282-0	01	1	0810-	●	●
	459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98123-286-1	01	1	0810-	●	●

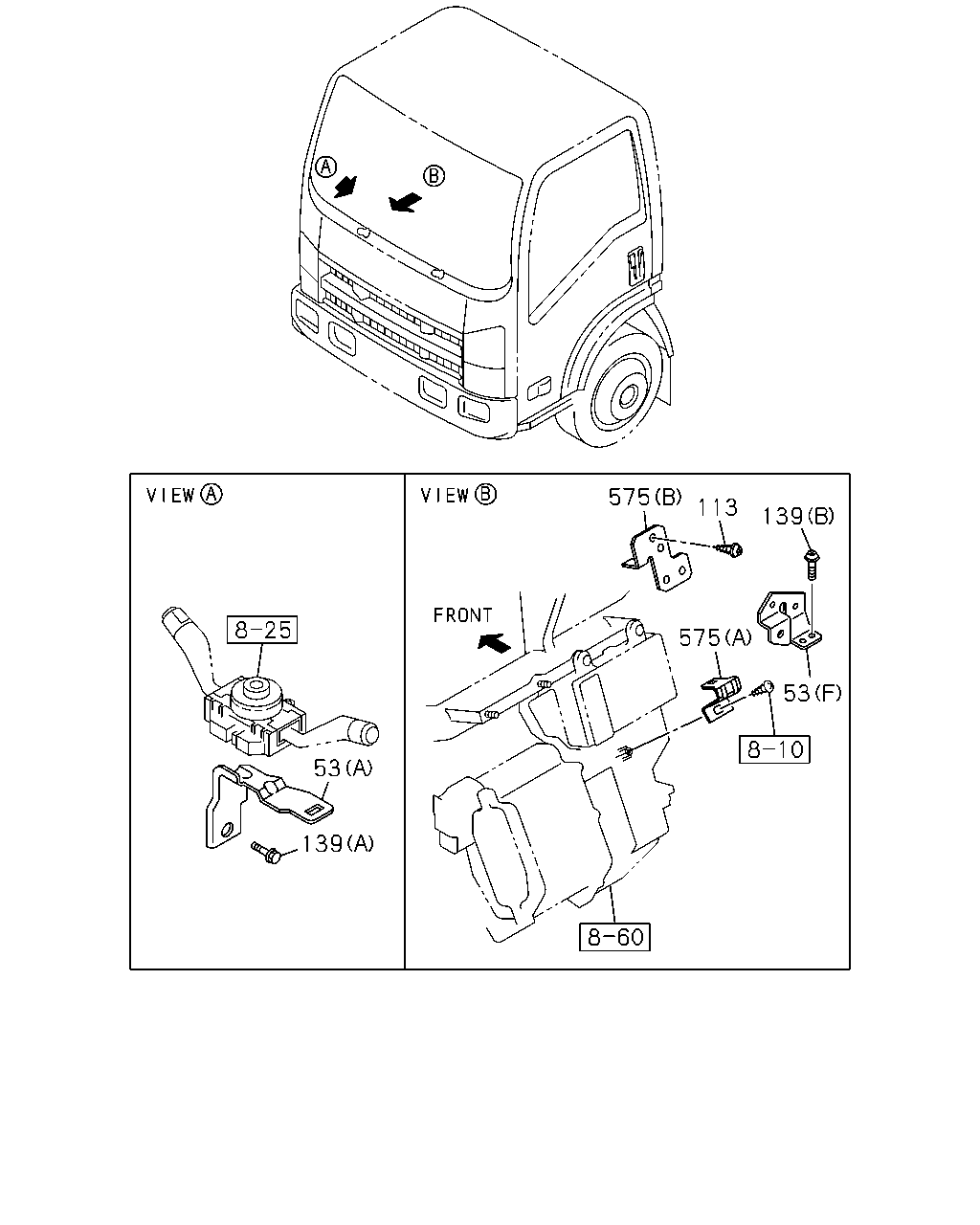

53 139 53 575 113 139 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS (G)	8-98130-669-1	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (K)	8-98132-377-0	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS DUMP CHASSIS(V4D) (J)	8-98126-491-0	01	1	0810-	●
53	02.483 BRACKET; HARNESS EXC. DUMP CHASSIS(V4D) (I)	8-98126-454-2	01	1	0810-	●
53	02.483 BRACKET; HARNESS (I)	8-98126-454-2	01	1	0810-		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98051-457-0	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98077-503-1	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98077-504-0	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98114-461-2	01	1	0810-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (F)	8-98084-590-0	01	1	0810-	●	●
113	02.483 SCREW; HARNESS CONNECTOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212	●
113	02.483 SCREW; HARNESS CONNECTOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	1-82698-128-2	01	1	1208-	●
575	02.559 BRACKET; FUSE BOX (A)	8-98042-656-2	01	1	0810-	●	●
