7-50 — FRONT SEAT (#49034) — 170 parça

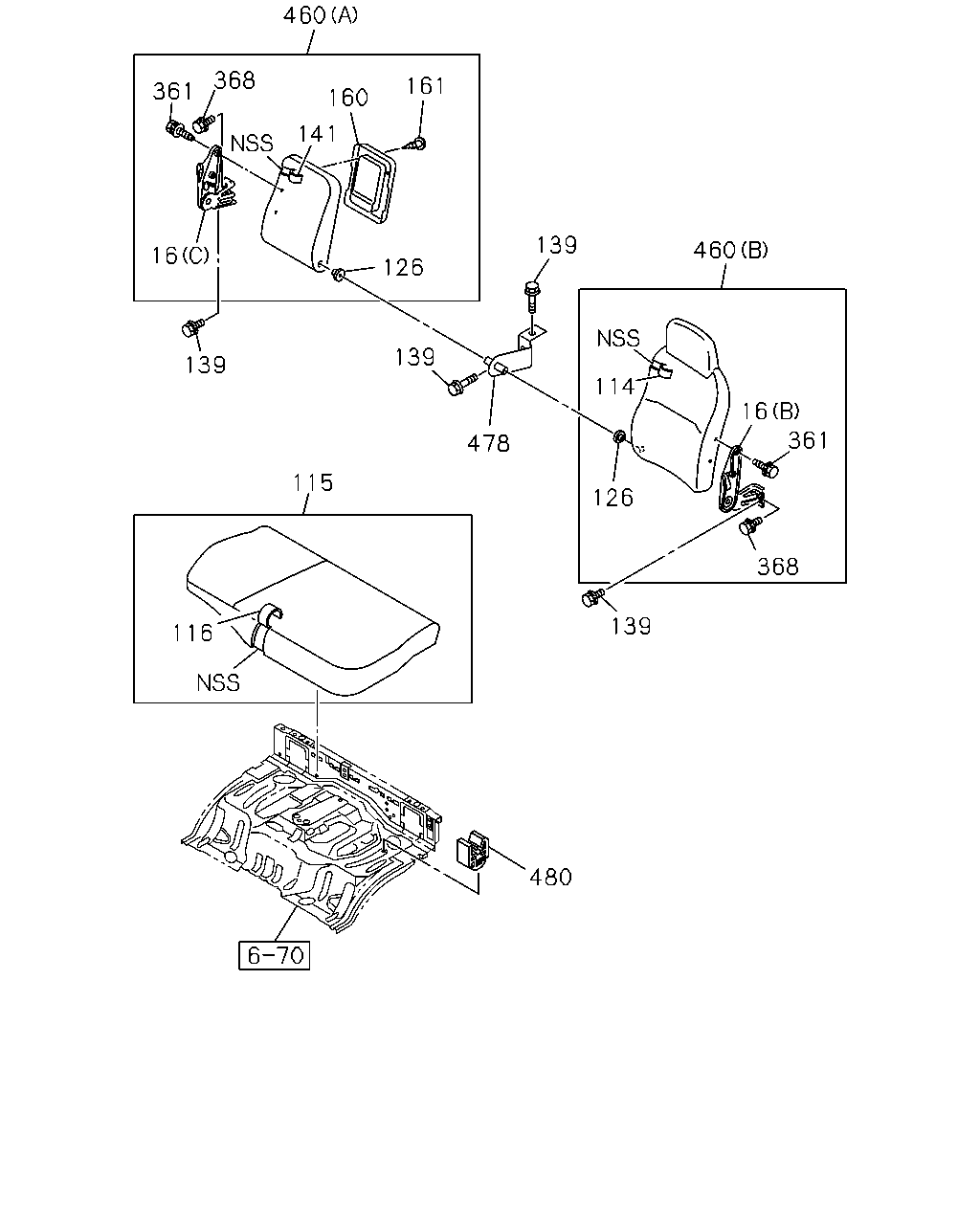

çizim 59550
460 368 161 361 160 141 139 460 16 126 139 139 114 16 361 478 115 126 368 139 116 480
BalonParca AdiParca NoAdetTipApplied Date A B
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-274-3 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0810- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-721-0 01 1 1001-1009 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-292-0 01 1 1010- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-720-0 01 1 1001- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97409-277-1 01 1 0810-0912 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-277-1 01 1 1001-1009 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-291-0 01 1 1010- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-276-1 01 1 0810-0912 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-276-1 01 1 1001- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-321-3 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0810-0810 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0811-0812 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0811-0812 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0901-0902 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0901-0902 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0903-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0903-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-344-4 01 1 0810-0902 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 0903-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-706-0 01 1 1001-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-320-3 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97405-346-5 01 1 0810- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-343-4 01 1 0810-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-705-2 01 1 1001- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-341-2 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0810-0810 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0811-0812 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0811-0812 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0901-0902 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0901-0902 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0903-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0903-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-288-2 01 1 0810-0902 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 0903-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-735-0 01 1 1001-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-340-2 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-290-3 01 1 0810- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-287-2 01 1 0810-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-734-1 01 1 1001- ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0810- ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0810- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-727-0 01 1 1001-1009 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-306-0 01 1 1010- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-726-0 01 1 1001- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97409-334-1 01 1 0810-0912 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-334-1 01 1 1001-1009 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-305-1 01 1 1010- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-336-1 01 1 0810-0912 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-336-2 01 1 1001- ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97405-361-1 01 1 0810- ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 03 1 0810-0812 ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0901- ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0810- ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0810- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97418-692-0 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-279-0 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97418-691-0 01 1 1001- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97405-335-4 01 1 0810-0912 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97405-335-4 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-278-0 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97405-334-4 01 1 0810-0912 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97405-334-4 01 1 1001- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-698-1 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-300-1 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-697-2 01 1 1001- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97405-338-2 01 1 0810-0912 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97405-338-3 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-299-1 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97405-337-2 01 1 0810-0912 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97405-337-4 01 1 1001- ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-98002-092-0 01 1 0810- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0810- ● ●

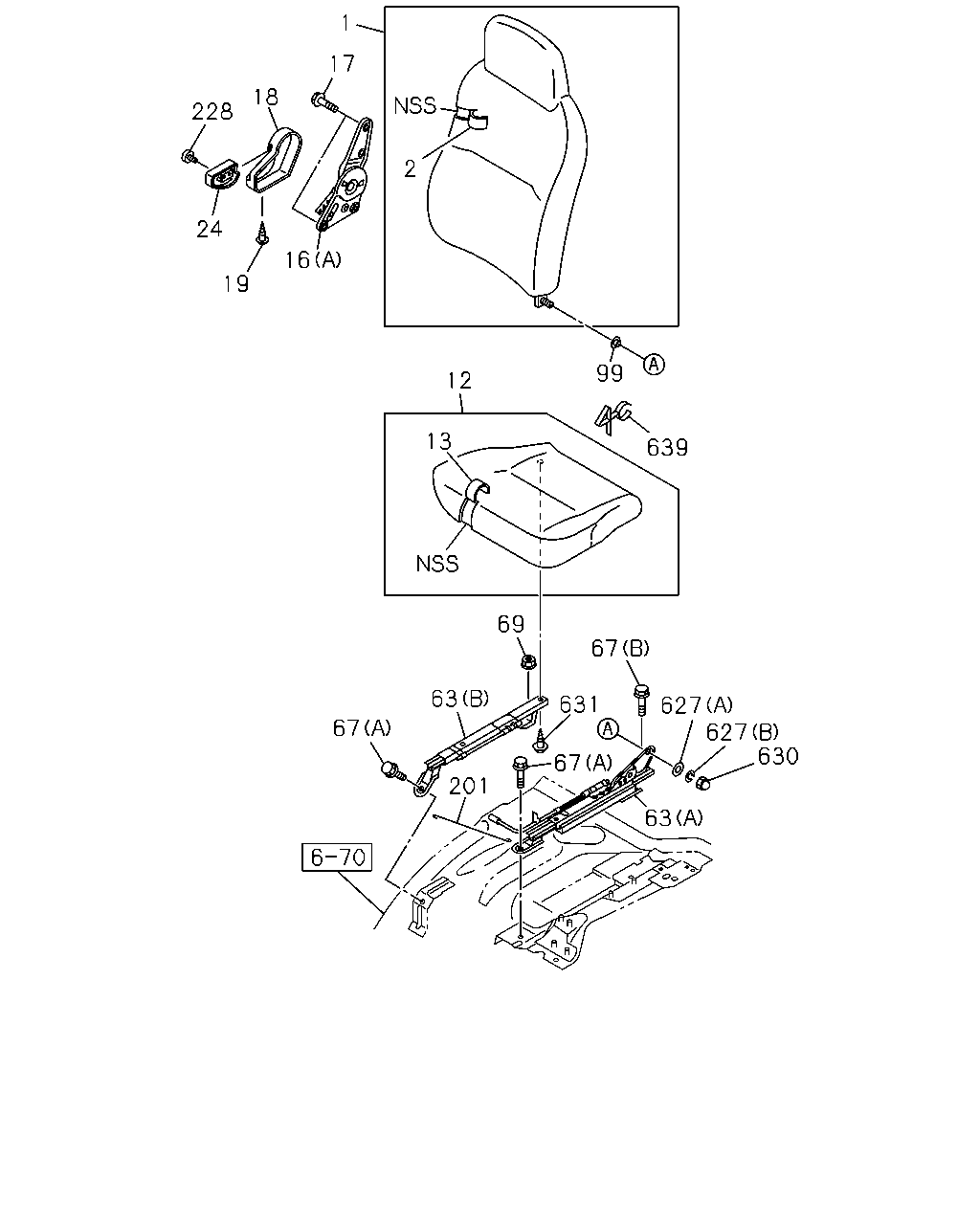

çizim 59576
1 17 18 228 2 24 16 19 99 12 13 639 69 67 63 631 627 627 630 67 67 201 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-145-5 01 1 0810-1009 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-235-1 01 1 1010- ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-313-6 01 1 0810-1009 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-234-1 01 1 1010- ● ●
1 16.720 BACK ASM; SEAT
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-142-7 01 1 0810- ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-312-7 01 1 0810- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-146-1 01 1 0810-1009 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-254-0 01 1 1010- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-319-2 01 1 0810-1009 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-253-0 01 1 1010- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97411-910-2 01 1 0810- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-318-2 01 1 0810- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-150-1 01 1 0810-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-248-2 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-147-3 01 1 0810-0902 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 0903-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-2 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-708-1 01 1 0810-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-247-2 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-323-3 01 1 0810-0902 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-251-1 01 1 0903-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-240-2 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-149-0 01 1 0810- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-143-4 01 1 0810- ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-706-0 01 1 0810- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-322-4 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-151-1 01 1 0810-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-268-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-148-2 01 1 0810-0902 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 0903-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-709-1 01 1 0810-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-267-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-329-3 01 1 0810-0902 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-259-0 01 1 0903-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-259-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-860-0 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-144-2 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-707-0 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-328-2 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-274-3 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0810- ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0810- ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0810- ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0810- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0810- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 0810- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 0810- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0810- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0810- ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0810- ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0810- ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0810- ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0810- ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0810- ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0810- ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0810- ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0810- ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0810- ● ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 0810- ● ●

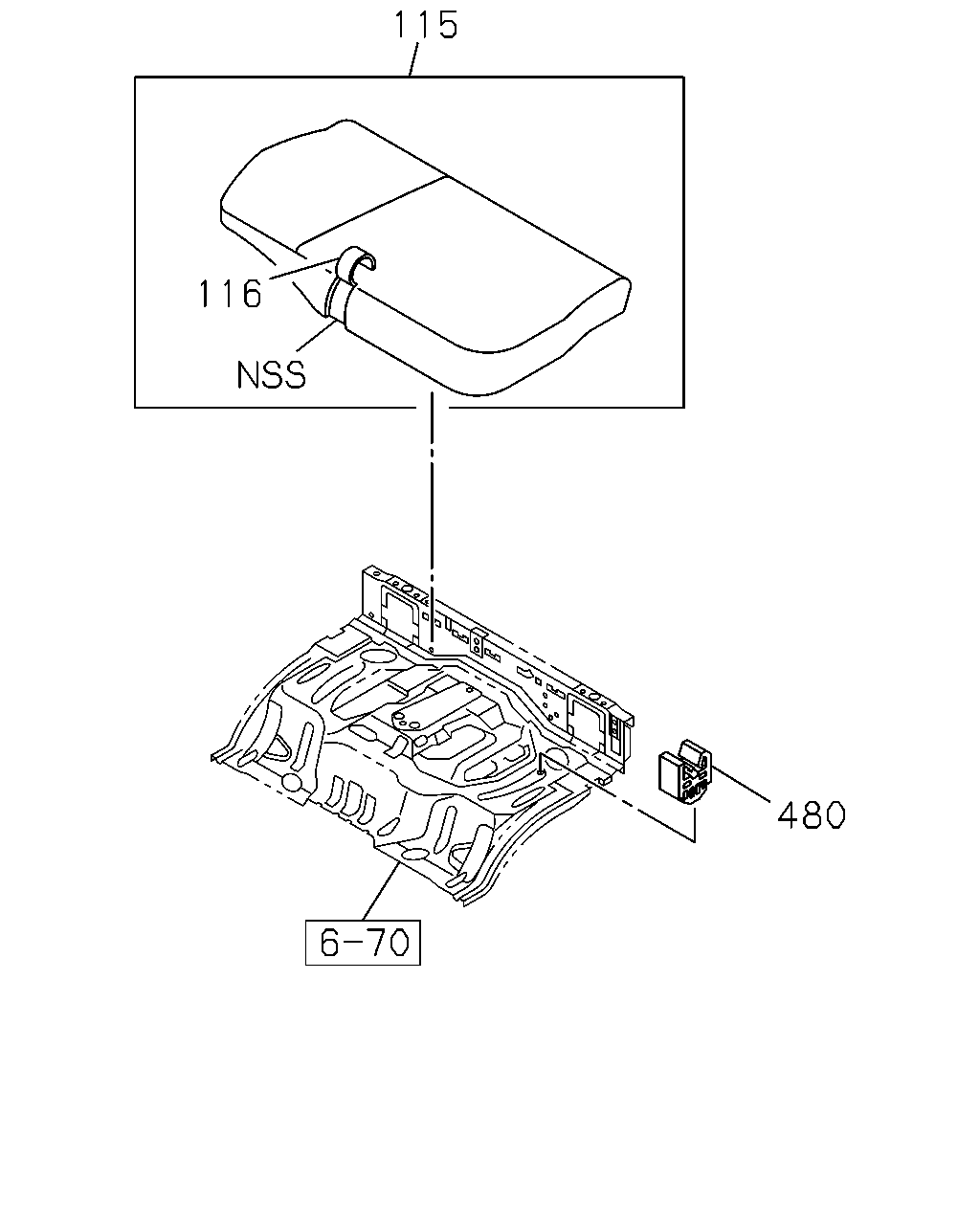

çizim 59577
115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-321-3 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0810-0810 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0811-0812 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0811-0812 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0901-0902 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0901-0902 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0903-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0903-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-344-4 01 1 0810-0902 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 0903-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-706-0 01 1 1001-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-320-3 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97405-346-5 01 1 0810- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-343-4 01 1 0810-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-705-2 01 1 1001- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-341-2 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0810-0810 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0811-0812 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0811-0812 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0901-0902 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0901-0902 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0903-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0903-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-288-2 01 1 0810-0902 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 0903-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-735-0 01 1 1001-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-340-2 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-290-3 01 1 0810- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-287-2 01 1 0810-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-734-1 01 1 1001- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
