Sayfa 6-07 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶

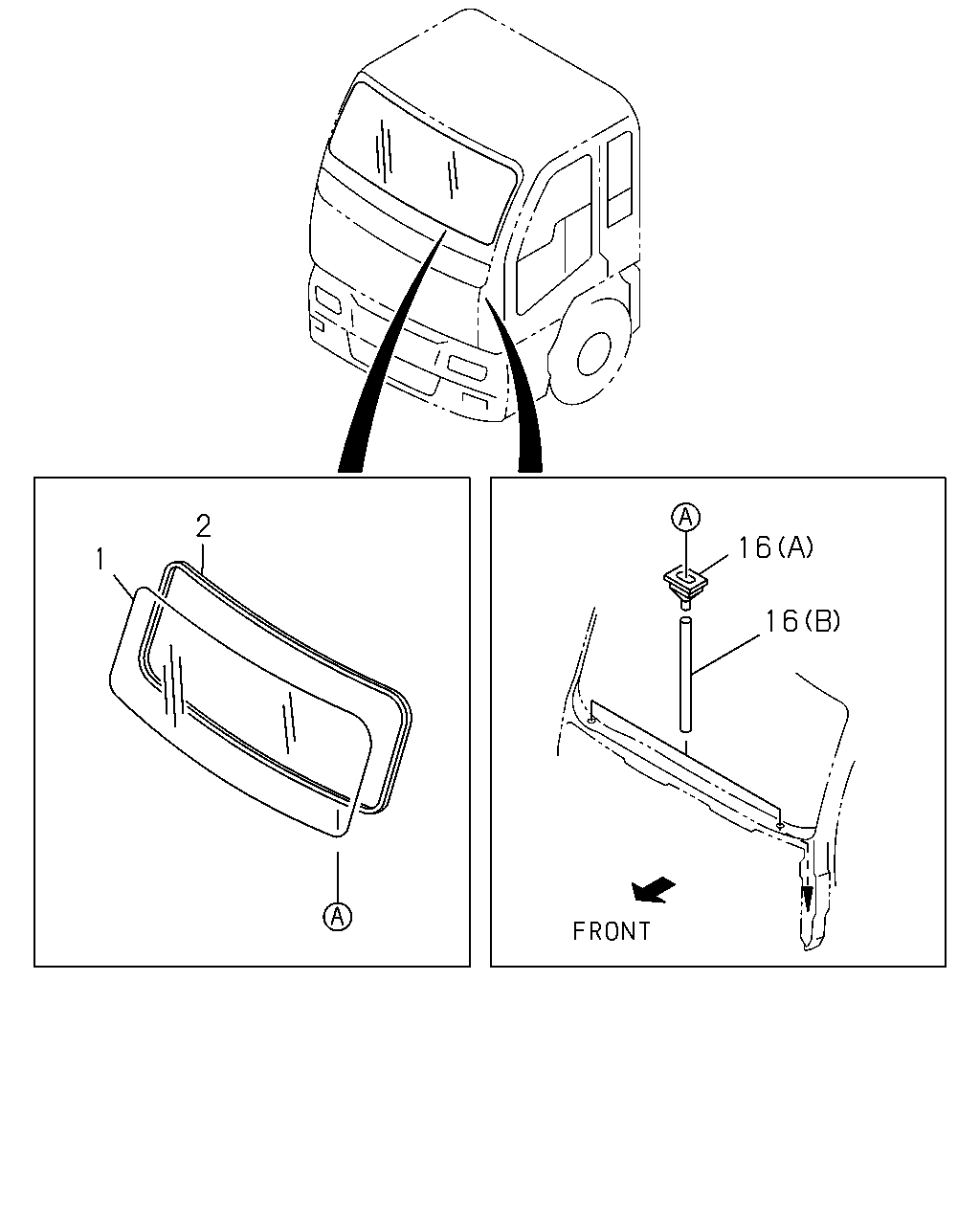

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#4903) — 20 parça

2 16 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GLASS; WINDSHIELD ASAHI	1-76117-037-2	01	1	9603-9611	●	●	●
1	GLASS; WINDSHIELD ASAHI	1-76117-045-1	01	1	9612-9901	●	●	●
1	GLASS; WINDSHIELD ASAHI	1-76117-045-2	01	1	9902-9904		●	●
1	GLASS; WINDSHIELD ASAHI	1-76117-045-2	01	1	9905-	●	●	●
1	GLASS; WINDSHIELD NSG	1-76117-042-1	01	1	9603-9611	●	●	●
1	GLASS; WINDSHIELD NSG	1-76117-046-1	01	1	9612-9901	●	●	●
1	GLASS; WINDSHIELD NSG	1-76117-046-2	01	1	9902-9904		●	●
1	GLASS; WINDSHIELD NSG	1-76117-046-2	01	1	9905-	●	●	●
1	GLASS; WINDSHIELD TAG	1-76117-047-1	01	1	9612-9901	●	●	●
1	GLASS; WINDSHIELD TAG	1-76117-047-1	01	1	9902-9904		●	●
1	GLASS; WINDSHIELD TAG	1-76117-047-1	01	1	9905-	●	●	●
2	WEATHERSTRIP; WINDSHIELD GLASS WHITE MARKS	1-76737-158-3	01	1	9603-9901	●	●	●
2	WEATHERSTRIP; WINDSHIELD GLASS WHITE MARKS	1-76737-158-3	01	1	9902-9904		●	●
2	WEATHERSTRIP; WINDSHIELD GLASS WHITE MARKS	1-76737-158-3	01	1	9905-	●	●	●
16	HOSE; DRAIN,WINDSHIELD (A) DRAIN ASSY	1-76738-090-1	02	1	9603-9901	●	●	●
16	HOSE; DRAIN,WINDSHIELD (A) DRAIN ASSY	1-76738-090-2	02	1	9902-9904		●	●
16	HOSE; DRAIN,WINDSHIELD (A) DRAIN ASSY	1-76738-090-2	02	1	9905-	●	●	●
16	HOSE; DRAIN,WINDSHIELD (B) HOSE L=700	1-76738-106-0	02	1	9603-9901	●	●	●
16	HOSE; DRAIN,WINDSHIELD (B) HOSE L=700	1-76738-106-0	02	1	9902-9904		●	●
16	HOSE; DRAIN,WINDSHIELD (B) HOSE L=700	1-76738-106-0	02	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
