7-10 — CAUTION PLATE AND LABEL (#49027) — 13 parça

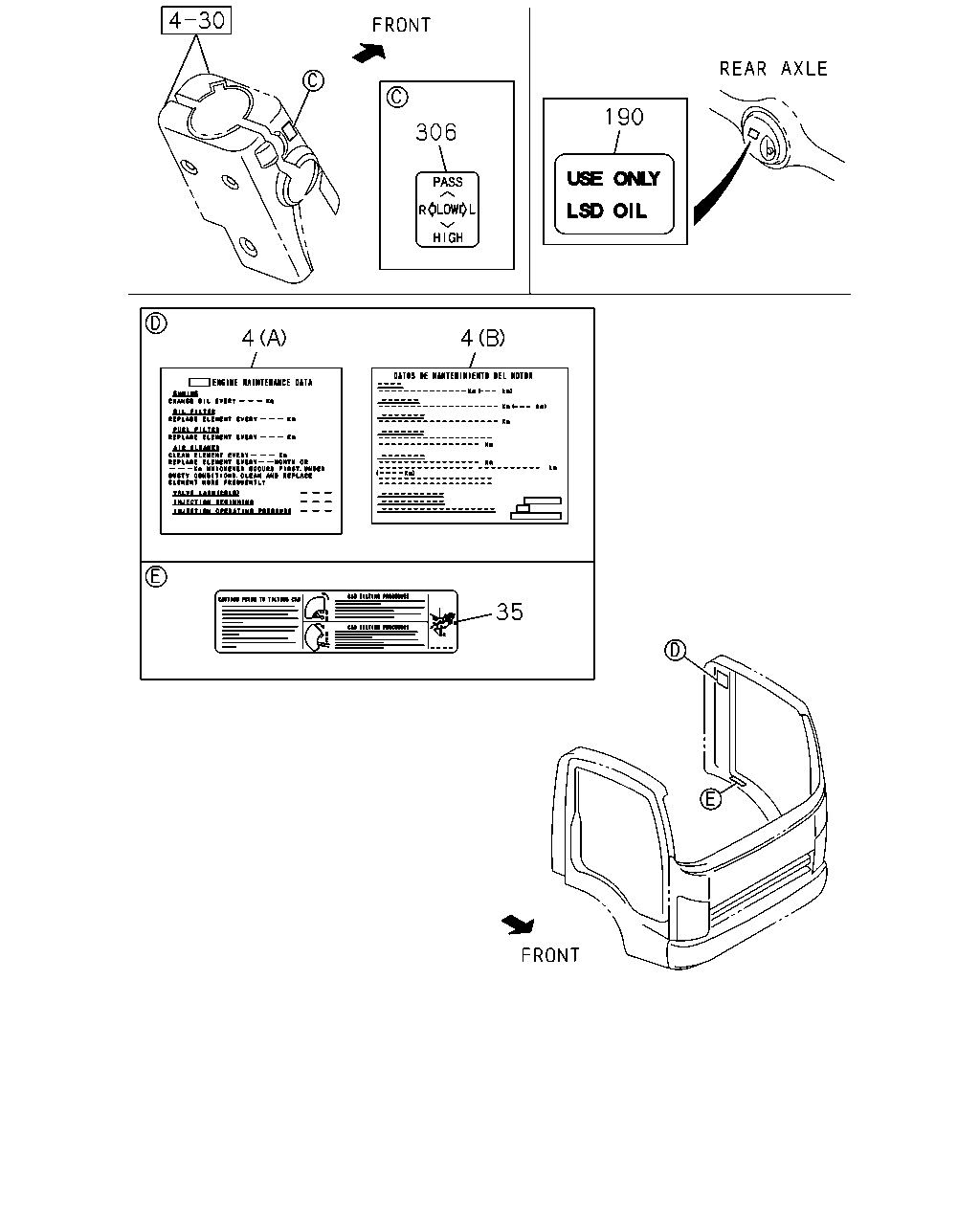

çizim 59822

190 306 4 4 35

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	00.004 LABEL; ENG MAINTENANCE CAUTION SPANISH<YN1> (B)	8-97189-402-1	01	1	0810-	●	●
	4	00.004 LABEL; ENG MAINTENANCE EXC. CAUTION SPANISH<YN1> (A)	8-97189-401-1	01	1	0810-	●	●
	35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1>	8-98070-512-0	01	1	0810-	●	●
	35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1>	8-98067-809-0	01	1	0810-	●	●
	190	08.808 PLATE; CAUTION,OIL CHANGE LIMITED SLIP DIFF<6LV>	8-97200-740-0	01	1	0810-	●
	306	08.808 LABEL; BEAM & PASS	8-98070-239-0	01	1	0810-	●	●

çizim 101152

49 234

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	49	08.808 PLATE; CAUTION,FUSE BOX	8-98090-175-0	01	1	0810-	●	●
	234	08.808 PLATE; CAUTION,ENG COVER CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA>	8-98071-067-0	01	1	0810-	●	●
	234	08.808 PLATE; CAUTION,ENG COVER INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1>	8-97994-545-0	01	1	0810-	●	●

çizim 101184

47 48

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	47	08.808 PLATE; CAUTION,DUMP CONT DUMP CHASSIS(V4D) CAUTION SPANISH<YN1>	8-98096-341-0	01	1	0810-	●
	47	08.808 PLATE; CAUTION,DUMP CONT DUMP CHASSIS(V4D) EXC. CAUTION SPANISH<YN1>	8-97115-792-0	01	1	0810-	●
	48	08.808 PLATE; CAUTION,PTO CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC)	8-94313-054-0	01	1	0810-	●	●
	48	08.808 PLATE; CAUTION,PTO PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1>	8-94469-277-0	01	1	0810-	●	●
