Isuzu WW
▶
TRUCKS
▶
NPR
▶
51187 - NPR/NQR(RHD) EURO1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

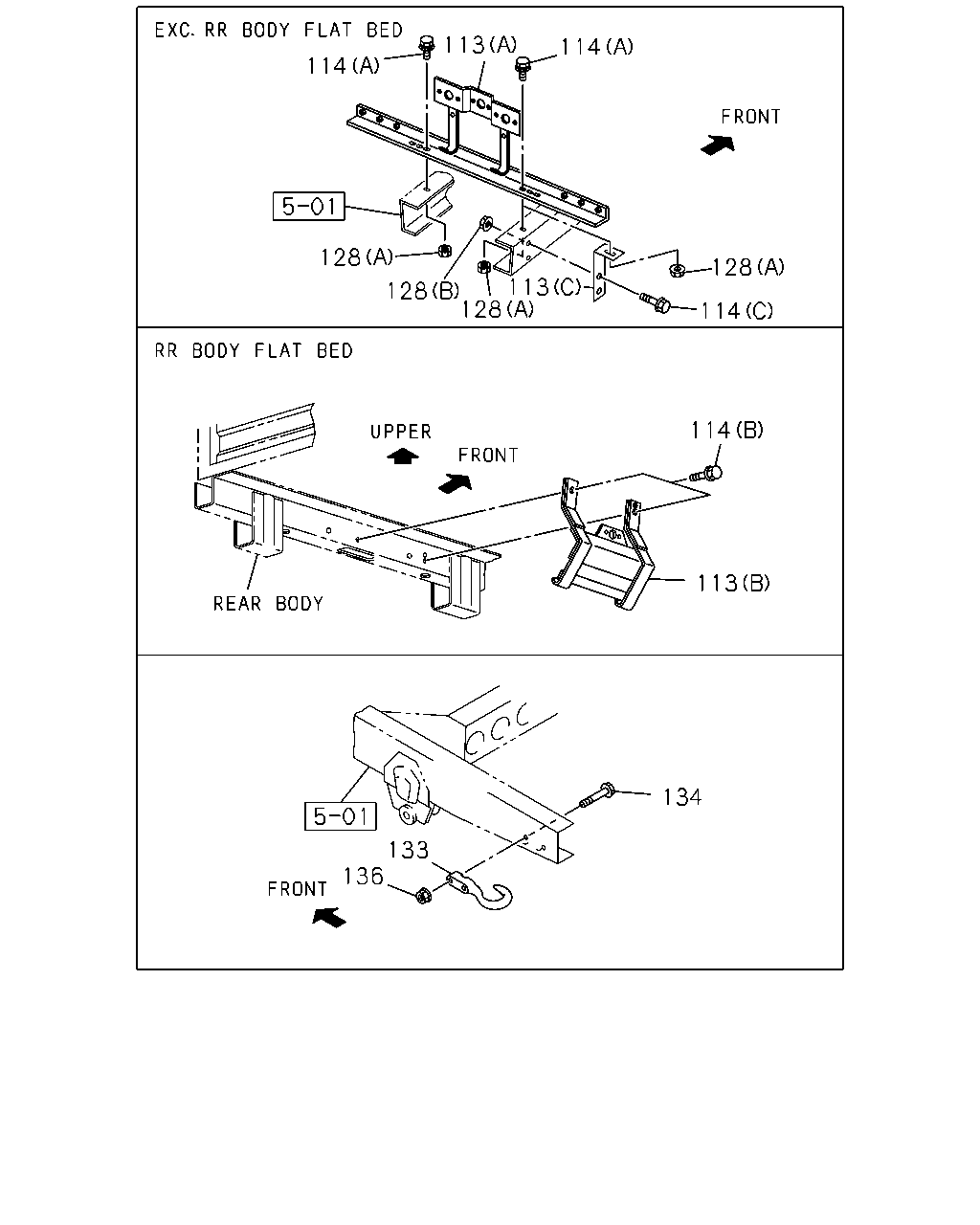

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#49025) — 19 parça
Tümü
A - NPR5SN
B - NPR5SS
113
114
114
128
128
128
113
128
114
114
113
134
133
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED<RS6> (B)
8-97077-573-2
01
1
0810-
●
113
07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6> (A)
8-98029-390-3
01
1
0810-
●
113
07.800 BRACKET; LICENSE PLATE
(A)
8-98029-390-3
01
1
0810-
●
113
07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W) (C)
8-98091-681-0
02
1
0810-
●
114
07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED<RS6> 00.685 (B) M6X25 FLANGE
0-28650-625-0
02
1
0810-
●
114
07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED<RS6> 00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
0810-
●
114
07.800 BOLT; BRKT,LICENSE PLATE
00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
0810-
●
114
07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W) 07.833 (C) M10X25 FLANGE
0-28661-025-0
04
1
0810-
●
128
02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6> 01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0810-
●
128
02.662 NUT; CROSS PLATE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0810-
●
128
02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE
0-91180-110-0
04
1
0810-
●
133
07.112 HOOK
07.068
8-94249-270-2
01
1
0810-1209
●
●
133
07.112 HOOK
07.068
8-94249-270-2
01
1
1210-
●
●
134
07.068 BOLT; HOOK
EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60
0-10861-460-0
02
1
1012-1209
●
●
134
07.068 BOLT; HOOK
EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60
0-10861-460-0
02
1
1210-
●
●
134
07.068 BOLT; HOOK
07.039 M14X50
0-10856-450-0
02
1
0810-1011
●
●
134
07.068 BOLT; HOOK
IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50
0-10856-450-0
02
1
1012-
●
●
136
07.068 NUT; HOOK
00.429 M14 FLANGE
0-91180-214-0
02
1
0810-1209
●
●
136
07.068 NUT; HOOK
00.429 M14 FLANGE
0-91180-214-0
02
1
1210-
●
●
