◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#49024) — 12 parça

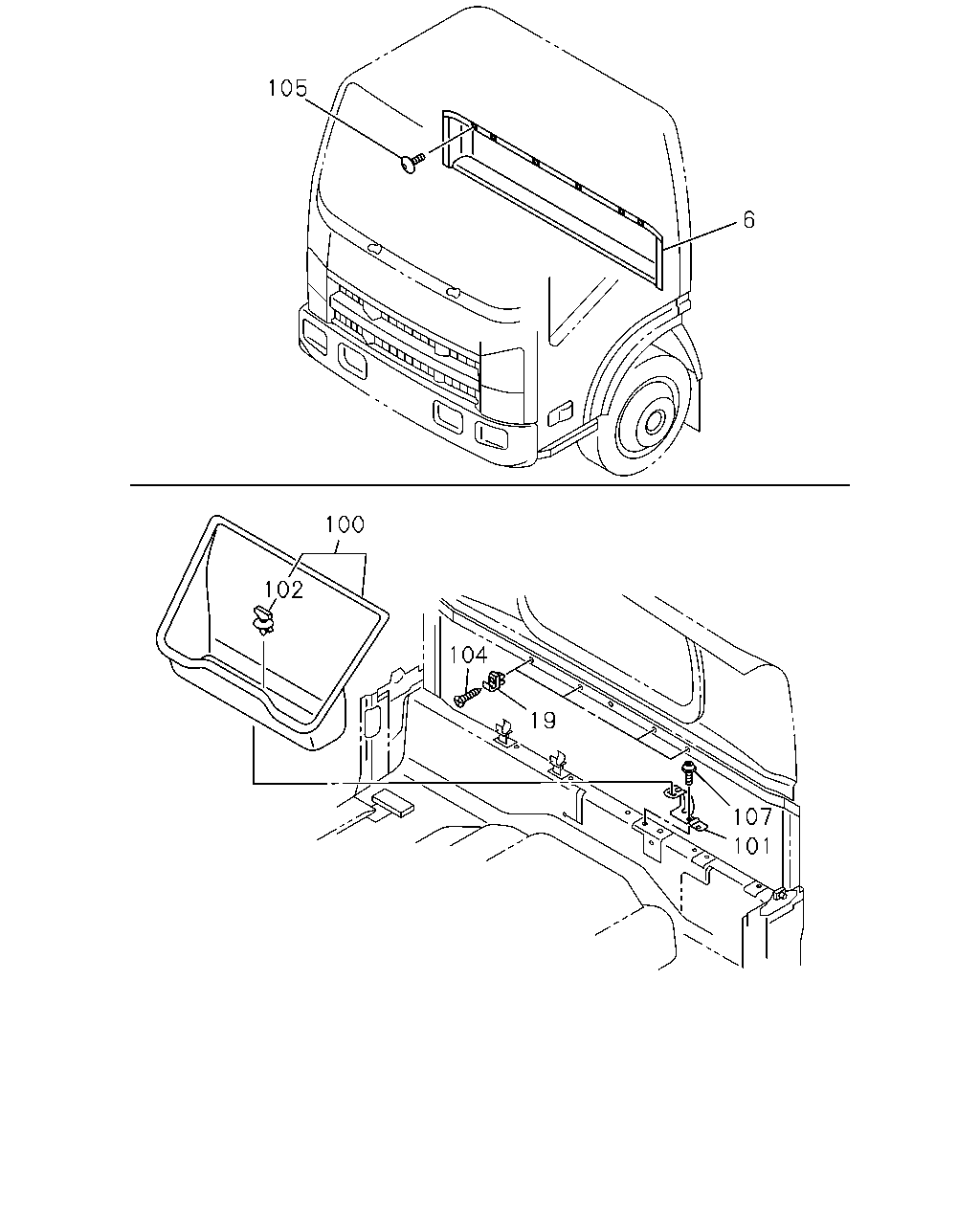

çizim 59740
105 6 100 102 104 19 107 101
BalonParca AdiParca NoAdetTipApplied Date A B
6 16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-290-3 01 1 0810- ● ●
6 16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-289-3 01 1 0810- ● ●
19 16.165 HOOK; RET
GRAY 		8-97406-042-0 04 1 0810- ● ●
100 16.587 TRAY; BACK PANEL
GRAY 		8-97405-174-1 01 1 0810-0912 ● ●
100 16.587 TRAY; BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> GRAY 		8-97405-174-1 01 1 1001- ● ●
101 17.225 BRACKET; TRAY,BACK PANEL 8-98029-438-1 01 1 0810-0912 ● ●
101 17.225 BRACKET; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98029-438-1 01 1 1001- ● ●
102 16.584 CLIP; TRAY,BACK PANEL
GRAY 		8-97406-996-0 01 1 0811-0912 ● ●
102 16.584 CLIP; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> GRAY 		8-97406-996-0 01 1 1001- ● ●
104 17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 0810- ● ●
105 16.166 CLIP; BACK TRIM
GRAY 		8-97405-295-0 02 1 0810- ● ●
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 0810- ● ●
