◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#49020) — 11 parça

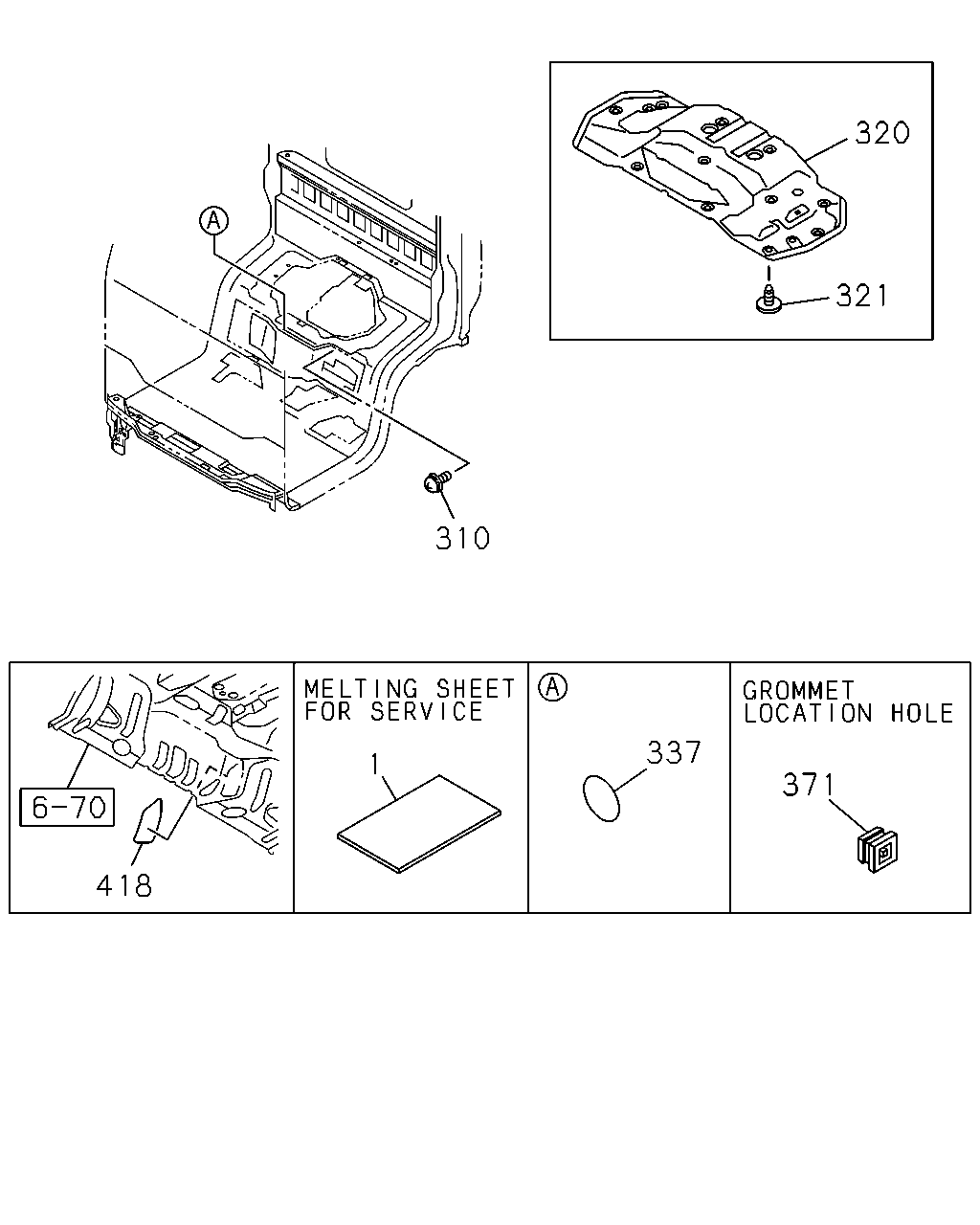

çizim 59766
320 321 310 337 1 371 418
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0810- ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 05 1 0811- ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97586-164-7 01 1 0810-1408 ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98242-225-0 01 1 1409- ● ●
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 15 1 0810- ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 04 1 0810- ● ●
337 16.545 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 08 1 0810- ● ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0810- ● ●
418 16.549 SEAL; PROTECTOR 8-98090-191-0 01 1 0810-0910 ● ●
418 16.549 SEAL; PROTECTOR 8-98090-192-0 01 1 0810-0910 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
