6-05 — FRONT PANEL (#4902) — 720 parça

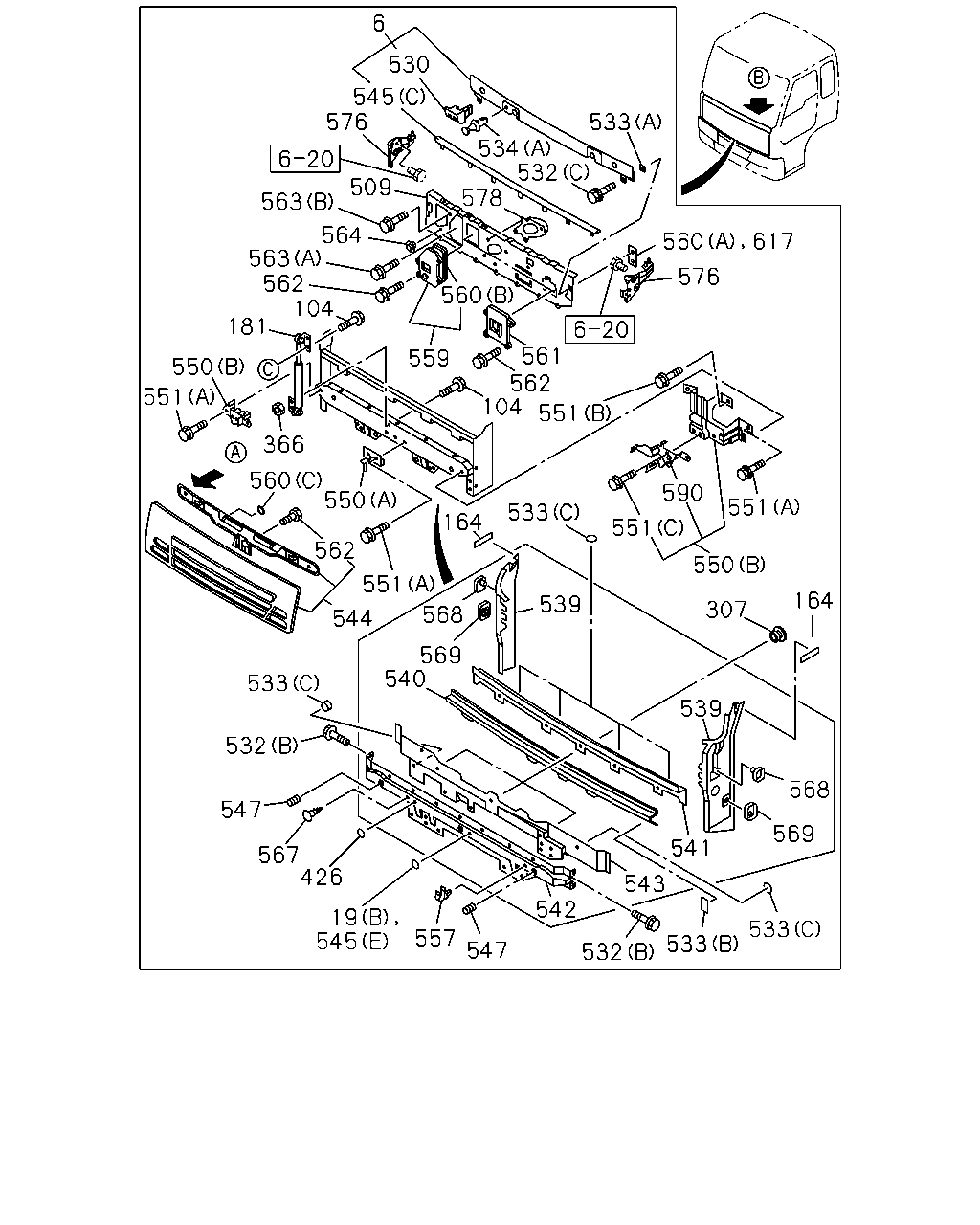

çizim 7253
6 530 545 576 533 534 532 509 578 563 564 560 617 563 562 104 576 560 181 561 562 104 559 550 551 551 366 560 550 590 551 533 164 551 562 550 551 164 539 307 568 544 569 540 533 539 532 568 547 569 541 543 567 426 542 19 545 533 557 533 547 532
BalonParca AdiParca NoAdetTipApplied Date A B C
6 PANEL; FRONT 1-65471-972-3 01 1 9603-9604 ● ● ●
6 PANEL; FRONT 1-65472-257-2 01 1 9605-9807 ● ● ●
6 PANEL; FRONT 1-65472-551-1 01 1 9808-9901 ● ● ●
6 PANEL; FRONT 1-65472-551-2 01 1 9902-9904 ● ●
6 PANEL; FRONT 1-65472-551-2 01 1 9905- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) L=581 		1-71907-160-4 01 1 9603-9901 ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-160-4 01 1 9603-9901 ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-160-4 01 1 9902-9904 ● ●
19 SEAL; FRT SIDE PANEL
(A) L=581 		1-71907-160-4 01 1 9905- ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-160-4 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(A) L=732 		1-71907-164-4 01 1 9603-9702 ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) L=732 		1-71907-164-4 01 1 9603-9702 ● ●
19 SEAL; FRT SIDE PANEL
EXC. SAKHALIN EQUIPMENT(TLE) (A) L=732 		1-71907-164-4 01 1 9703-9705 ● ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) L=732 		1-71907-164-4 01 1 9703-9705 ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) L=732 		1-71907-164-4 01 1 9706- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-9901 ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9902-9904 ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9905- ● ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-159-4 01 1 9603-9702 ● ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB>,SAKHALIN EQUIPMENT(TLE) (A) L=581 		1-71907-159-4 01 1 9703-9705 ● ● ●
19 SEAL; FRT SIDE PANEL
SAKHALIN EQUIPMENT(TLE) (A) L=581 		1-71907-159-4 01 1 9703-9705 ●
19 SEAL; FRT SIDE PANEL
(A) L=581 		1-71907-159-4 01 1 9706-9901 ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-159-4 01 1 9706-9901 ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-159-4 01 1 9902-9904 ● ●
19 SEAL; FRT SIDE PANEL
(A) L=581 		1-71907-159-4 01 1 9905- ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-159-4 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9902-9908 ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9909- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9902-9908 ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9909- ● ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) L=732 		1-71907-165-4 01 1 9603- ● ●
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9603-9901 ● ● ●
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9902-9904 ● ●
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9905- ● ● ●
104 BOLT; SUPPORT BAR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9603-9709 ● ● ●
164 SEAL; FRT PILLAR
L=75 		1-71907-414-0 02 1 9603-9901 ● ● ●
164 SEAL; FRT PILLAR
L=75 		1-71907-414-0 02 1 9902-9904 ● ●
164 SEAL; FRT PILLAR
L=75 		1-71907-414-0 02 1 9905- ● ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-118-0 01 1 9603-9609 ● ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9610-9901 ● ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9902-9904 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9905- ● ● ●
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9603-9703 ● ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9710-9901 ● ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9902-9904 ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9905- ● ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9603-9804 ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9603-9804 ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-9901 ● ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-9901 ● ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9902-9904 ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9902-9904 ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ● ●
426 GASKET
OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9603-9806 ● ● ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9807-9901 ● ● ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9902-9904 ● ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9905- ● ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 12 1 9603-9611 ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 9612-9901 ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 9902-9904 ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 9905- ● ●
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-3 01 1 9603-9901 ● ● ●
509 PANEL; DASH
EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS<Q3P>,HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-3 01 1 9902- ● ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-497-1 01 1 9902- ● ●
509 PANEL; DASH
ENG CONTROL TICS<Q3P> HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5) 		1-62270-497-1 01 1 9902- ● ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9902-9904 ● ●
509 PANEL; DASH
ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9902-9904 ● ●
509 PANEL; DASH 1-62270-496-1 01 1 9905- ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9905- ● ●
509 PANEL; DASH
ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9905- ● ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-493-2 01 1 9603-9901 ● ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS<Q3P> 		1-62270-493-2 01 1 9902- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9605-9901 ● ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9902-9904 ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9905- ● ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9605-9901 ● ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9902-9904 ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9905- ● ● ●
532 BOLT; FRT PANEL
(C) W/PL WASHER M8X20 		1-79198-002-0 02 1 9603-9901 ● ● ●
532 BOLT; FRT PANEL
(C) W/PL WASHER M8X20 		1-79198-002-0 02 1 9902-9904 ● ●
532 BOLT; FRT PANEL
(C) W/PL WASHER M8X20 		1-79198-002-0 02 1 9905- ● ● ●
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9603-9901 ● ● ●
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9902-9904 ● ●
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905- ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9603-9901 ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9902-9904 ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9905- ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9603-9901 ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9902-9904 ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9905- ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 16 1 9603-9709 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 16 1 9710-9806 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 16 1 9807-9901 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 16 1 9902-9904 ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 16 1 9905-9908 ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9909- ● ● ●
533 SEAL; FRT PANEL
(A) UPPER 25X25 		8-94272-533-0 02 1 9603-9901 ● ● ●
533 SEAL; FRT PANEL
(A) UPPER 25X25 		8-94272-533-0 02 1 9902-9904 ● ●
533 SEAL; FRT PANEL
(A) UPPER 25X25 		8-94272-533-0 02 1 9905- ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9603-9803 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-9901 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9902-9904 ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9905-0001 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002- ● ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9603-9901 ● ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9902-9904 ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9905- ● ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 9603-9901 ● ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 9902-9904 ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 9905- ● ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 9603-9901 ● ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 9902-9904 ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 9905- ● ● ●
540 PANEL; FRONT,OUTER 1-61470-699-2 01 1 9603-9901 ● ● ●
540 PANEL; FRONT,OUTER 1-61470-699-2 01 1 9902-9904 ● ●
540 PANEL; FRONT,OUTER 1-61470-699-2 01 1 9905- ● ● ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 9603-9901 ● ● ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 9902-9904 ● ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 9905- ● ● ●
542 RAIL; FRT MOUNTING 1-61470-701-1 01 1 9603-9901 ● ● ●
542 RAIL; FRT MOUNTING 1-61470-701-4 01 1 9902-9904 ● ●
542 RAIL; FRT MOUNTING 1-61470-701-4 01 1 9905- ● ● ●
543 CLOSING; FRT MTG RAIL 1-61470-703-0 01 1 9603-9901 ● ● ●
543 CLOSING; FRT MTG RAIL 1-61470-703-3 01 1 9902-9904 ● ●
543 CLOSING; FRT MTG RAIL 1-61470-703-3 01 1 9905- ● ● ●
544 LID; FRT 1-71107-107-6 01 1 9603-9901 ●
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-107-6 01 1 9603-9901 ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> 		1-71107-346-0 01 1 9902-9904 ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> 		1-71107-346-0 01 1 9905-0006 ● ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-71107-346-0 01 1 0007- ● ● ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> 		1-71107-108-6 01 1 9603-9901 ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> 		1-71107-345-0 01 1 9902- ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHEV BRAND PACKAGE<PS2> 		1-71107-370-0 01 1 9902- ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. CHEV BRAND PACKAGE<PS2> 		1-71107-281-0 01 1 9902- ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> CHEV BRAND PACKAGE<PS2> 		1-71107-373-0 01 1 9902- ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. CHEV BRAND PACKAGE<PS2> 		1-71107-293-0 01 1 9902-9904 ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. CHEV BRAND PACKAGE<PS2> 		1-71107-293-0 01 1 9905- ● ● ●
545 SEAL; FRT LID
(C) L=2068 		1-71907-152-2 01 1 9603-9604 ● ● ●
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9605-9901 ● ● ●
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9902-9904 ● ●
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9905- ● ● ●
545 SEAL; FRT LID
(A) RH L=560 		1-71907-372-1 01 1 9603-9901 ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) RH L=560 		1-71907-372-1 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) RH L=560 		1-71907-372-1 01 1 9905- ● ● ●
545 SEAL; FRT LID
(B) RH L=560 WHITE MARK 		1-71907-153-3 01 1 9603-9901 ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) RH L=560 WHITE MARK 		1-71907-153-3 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) RH L=560 WHITE MARK 		1-71907-153-3 01 1 9905- ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (F) CENTER GREEN MARK L=502 		1-71907-470-0 01 1 9902- ● ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 RH BULE MARK 		1-71907-572-0 01 1 9902- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) L=93 RH PINK MARK 		1-71907-472-0 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) L=93 RH PINK MARK 		1-71907-472-0 01 1 9905- ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63 		1-71998-963-2 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63 		1-71998-963-2 01 1 9905- ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) OD=25 BLACK 		1-76798-019-0 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ● ●
547 RUBBER; CUSHION
OD=22 L=39 		1-71907-419-0 02 1 9603-9901 ● ● ●
547 RUBBER; CUSHION
OD=22 L=39 		1-71907-419-0 02 1 9902-9904 ● ●
547 RUBBER; CUSHION
OD=22 L=39 		1-71907-419-0 02 1 9905- ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 9603-9901 ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 9902-9904 ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 9905- ● ● ●
550 LOCK ASM; FRT LID
(A) CENTER 		1-79317-002-1 01 1 9603-9901 ● ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) CENTER 		1-79317-002-2 01 1 9902-9904 ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) CENTER 		1-79317-002-2 01 1 9905- ● ● ●
550 LOCK ASM; FRT LID
(B) 		1-79318-007-4 01 1 9603-9901 ● ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-007-4 01 1 9902-9904 ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-007-4 01 1 9905- ● ● ●
550 LOCK ASM; FRT LID
(B) 		1-79318-006-2 01 1 9603-9901 ● ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-006-2 01 1 9902-9904 ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-006-2 01 1 9905- ● ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) CENTER 		1-79317-006-1 01 1 9902-9904 ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) CENTER 		1-79317-006-1 01 1 9905- ● ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-015-0 01 1 9902-9904 ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-015-0 01 1 9905- ● ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-014-0 01 1 9902-9904 ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-014-0 01 1 9905- ● ● ●
551 BOLT; LOCK
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9603-9901 ● ● ●
551 BOLT; LOCK
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9902-9904 ● ●
551 BOLT; LOCK
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9905- ● ● ●
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0102- ● ● ●
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9902-9904 ● ●
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 05 1 9603-9901 ● ● ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 05 1 9902-9904 ● ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 05 1 9905- ● ● ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 04 1 9902-9904 ● ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 04 1 9905- ● ● ●
559 COVER; EVAPOLATOR 1-71998-994-1 01 1 9603-9608 ● ● ●
559 COVER; EVAPOLATOR 1-71996-193-0 01 1 9609-9901 ● ● ●
559 COVER; EVAPOLATOR 1-71996-193-0 01 1 9902-9904 ● ●
559 COVER; EVAPOLATOR 1-71996-193-0 01 1 9905- ● ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) EVAPOLATOR COVER OD=36 BLACK 		1-76798-018-0 01 1 9603-9806 ● ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) EVAPOLATOR COVER OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-9901 ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) HEATER CORE COVER OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9902-9904 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) HEATER CORE COVER OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9905-9907 ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) HEATER CORE COVER OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908- ● ● ●
560 SEAL; COVER
(C) HEATER CORE COVER OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908- ● ● ●
560 SEAL; COVER
(A) 50X25 		1-61281-497-0 02 1 9603-9805 ● ● ●
560 SEAL; COVER
(B) L=885 EVAPOLATOR COVER 		1-71998-827-1 01 1 9603-9901 ● ● ●
560 SEAL; COVER
(B) L=885 EVAPOLATOR COVER 		1-71998-827-1 01 1 9902-9904 ● ●
560 SEAL; COVER
(B) L=885 EVAPOLATOR COVER 		1-71998-827-1 01 1 9905- ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) HEATER CORE COVER OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9603-9708 ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) HEATER CORE COVER OD=36 BLACK 		1-76798-018-0 02 1 9709-9806 ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) HEATER CORE COVER OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-9901 ● ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) EVAPOLATOR COVER OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9902-9904 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) EVAPOLATOR COVER OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9905- ● ● ●
560 SEAL; COVER
(C) STRUT GAS SPRING OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9902-9904 ● ●
560 SEAL; COVER
(C) STRUT GAS SPRING OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9905-9907 ● ● ●
560 SEAL; COVER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C) STRUT GAS SPRING OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9908- ● ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 9603-9901 ● ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 9902-9904 ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 9905- ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603-9901 ● ● ●
562 BOLT; COVER
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-9904 ● ●
562 BOLT; COVER
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905- ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-9901 ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-9904 ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905- ● ● ●
563 BOLT; DASH PANEL
(A) W/PL WASHER M8X20 		1-79198-002-0 16 1 9603-9707 ● ● ●
563 BOLT; DASH PANEL
(A) W/PL WASHER M8X20 		1-79198-002-0 14 1 9708-9807 ● ● ●
563 BOLT; DASH PANEL
(A) W/PL WASHER M8X20 		1-79198-002-0 18 1 9808-9901 ● ● ●
563 BOLT; DASH PANEL
(A) W/PL WASHER M8X20 		1-79198-002-0 18 1 9902-9904 ● ●
563 BOLT; DASH PANEL
(A) W/PL WASHER M8X20 		1-79198-002-0 18 1 9905- ● ● ●
563 BOLT; DASH PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9603-9707 ● ● ●
563 BOLT; DASH PANEL
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807 ● ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9603-9901 ● ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9902-9904 ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9905- ● ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 02 1 9603-9611 ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9612-9712 ● ●
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK 		8-94279-804-0 01 1 9801-9803 ● ● ●
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9603-9901 ● ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9902-9904 ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9905- ● ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9603-9901 ● ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9902-9904 ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9905- ● ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9603-9712 ● ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9801-9901 ● ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9902-9904 ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9905- ● ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 9603-9901 ● ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 9902-9904 ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 9905- ● ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 9603-9901 ● ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 9902-9904 ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 9905- ● ● ●
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9603-9901 ● ● ●
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9902-9904 ● ●
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9905-0009 ● ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0010- ● ● ●
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-007-4 01 1 0102- ● ● ●
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-006-2 01 1 0102- ● ● ●
617 SEAL; DASH
50X25 		1-61281-497-0 02 1 9806-9901 ● ● ●
617 SEAL; DASH
50X25 		1-61281-497-0 02 1 9902-9904 ● ●
617 SEAL; DASH
50X25 		1-61281-497-0 02 1 9905- ● ● ●

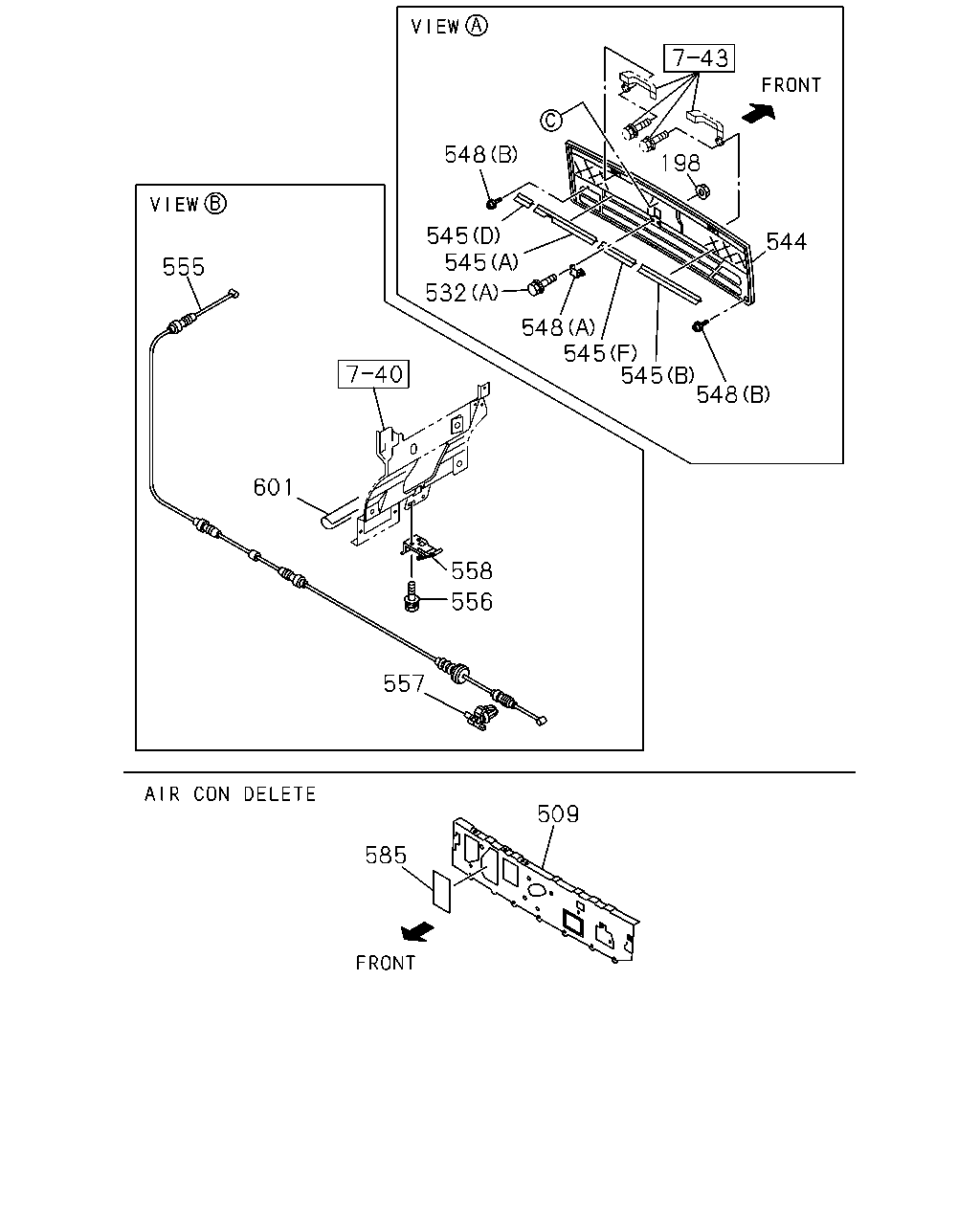

çizim 39390
548 198 545 545 544 555 532 548 545 545 548 601 558 556 557 509 585
BalonParca AdiParca NoAdetTipApplied Date A B C
198 NUT; PANEL
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE LID CENTER 		8-94197-199-0 02 1 9902-9904 ● ●
198 NUT; PANEL
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE LID CENTER 		8-94197-199-0 02 1 9905- ● ● ●
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-3 01 1 9603-9901 ● ● ●
509 PANEL; DASH
EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS<Q3P>,HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-3 01 1 9902- ● ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-497-1 01 1 9902- ● ●
509 PANEL; DASH
ENG CONTROL TICS<Q3P> HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5) 		1-62270-497-1 01 1 9902- ● ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9902-9904 ● ●
509 PANEL; DASH
ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9902-9904 ● ●
509 PANEL; DASH 1-62270-496-1 01 1 9905- ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9905- ● ●
509 PANEL; DASH
ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9905- ● ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-493-2 01 1 9603-9901 ● ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS<Q3P> 		1-62270-493-2 01 1 9902- ● ●
532 BOLT; FRT PANEL
(C) W/PL WASHER M8X20 		1-79198-002-0 02 1 9603-9901 ● ● ●
532 BOLT; FRT PANEL
(C) W/PL WASHER M8X20 		1-79198-002-0 02 1 9902-9904 ● ●
532 BOLT; FRT PANEL
(C) W/PL WASHER M8X20 		1-79198-002-0 02 1 9905- ● ● ●
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9603-9901 ● ● ●
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9902-9904 ● ●
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905- ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9603-9901 ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9902-9904 ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9905- ● ● ●
544 LID; FRT 1-71107-107-6 01 1 9603-9901 ●
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-107-6 01 1 9603-9901 ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> 		1-71107-346-0 01 1 9902-9904 ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> 		1-71107-346-0 01 1 9905-0006 ● ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-71107-346-0 01 1 0007- ● ● ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> 		1-71107-108-6 01 1 9603-9901 ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> 		1-71107-345-0 01 1 9902- ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHEV BRAND PACKAGE<PS2> 		1-71107-370-0 01 1 9902- ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. CHEV BRAND PACKAGE<PS2> 		1-71107-281-0 01 1 9902- ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> CHEV BRAND PACKAGE<PS2> 		1-71107-373-0 01 1 9902- ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. CHEV BRAND PACKAGE<PS2> 		1-71107-293-0 01 1 9902-9904 ● ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. CHEV BRAND PACKAGE<PS2> 		1-71107-293-0 01 1 9905- ● ● ●
545 SEAL; FRT LID
(C) L=2068 		1-71907-152-2 01 1 9603-9604 ● ● ●
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9605-9901 ● ● ●
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9902-9904 ● ●
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-0 01 1 9905- ● ● ●
545 SEAL; FRT LID
(A) RH L=560 		1-71907-372-1 01 1 9603-9901 ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) RH L=560 		1-71907-372-1 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) RH L=560 		1-71907-372-1 01 1 9905- ● ● ●
545 SEAL; FRT LID
(B) RH L=560 WHITE MARK 		1-71907-153-3 01 1 9603-9901 ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) RH L=560 WHITE MARK 		1-71907-153-3 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) RH L=560 WHITE MARK 		1-71907-153-3 01 1 9905- ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (F) CENTER GREEN MARK L=502 		1-71907-470-0 01 1 9902- ● ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 RH BULE MARK 		1-71907-572-0 01 1 9902- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) L=93 RH PINK MARK 		1-71907-472-0 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) L=93 RH PINK MARK 		1-71907-472-0 01 1 9905- ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63 		1-71998-963-2 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63 		1-71998-963-2 01 1 9905- ● ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) OD=25 BLACK 		1-76798-019-0 01 1 9902-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ● ●
548 STRIKER; FRT LID PANEL
(A) LID CENTER 		1-79317-003-0 01 1 9603-9901 ● ● ●
548 STRIKER; FRT LID PANEL
(A) LID CENTER 		1-79317-003-0 01 1 9902-9904 ● ●
548 STRIKER; FRT LID PANEL
(A) LID CENTER 		1-79317-003-0 01 1 9905- ● ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9603-9901 ● ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9902-9904 ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9905- ● ● ●
555 CABLE; FRT LID
L=2542 		1-79347-004-0 01 1 9603-9901 ● ● ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542 		1-79347-004-2 01 1 9902-9904 ● ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542 		1-79347-004-2 01 1 9905- ● ● ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782 		1-79347-006-2 01 1 9902-9904 ● ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782 		1-79347-006-2 01 1 9905- ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9603-9611 ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9612-9901 ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9902-9904 ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9905- ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 05 1 9603-9901 ● ● ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 05 1 9902-9904 ● ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 05 1 9905- ● ● ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 04 1 9902-9904 ● ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 04 1 9905- ● ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 9603-9901 ● ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 9902-9904 ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 9905- ● ● ●
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 9603- ● ●
601 FINISHER; LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190 		1-71998-300-0 01 1 9902- ● ●

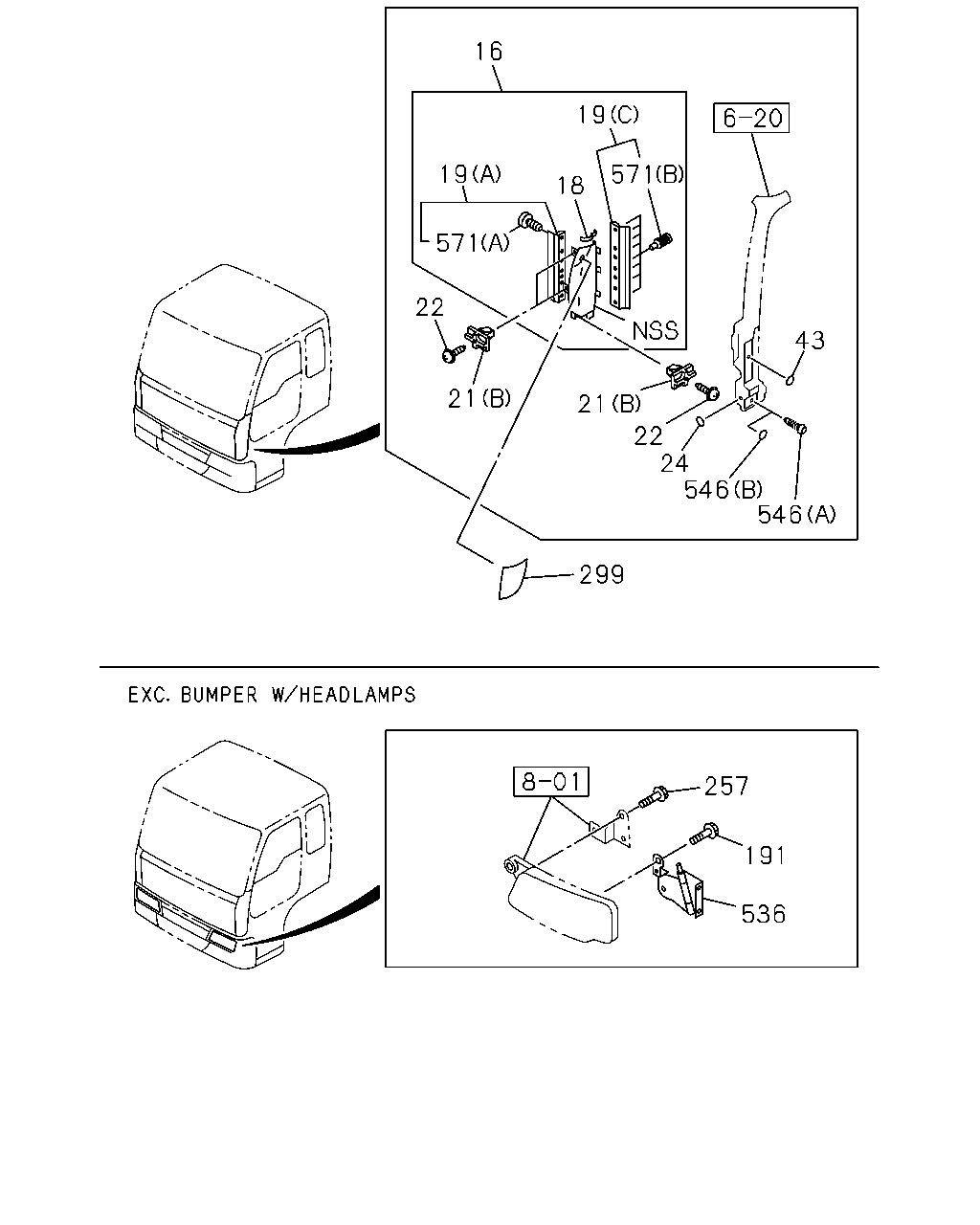

çizim 39401
16 19 19 571 18 571 22 43 21 21 22 24 546 546 299 257 191 536
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PANEL; FRONT,SIDE 1-65472-218-0 01 1 9603-9705 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65472-218-0 01 1 9603-9705 ● ●
16 PANEL; FRONT,SIDE 1-65471-896-0 01 1 9603-9702 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 9603-9702 ● ●
16 PANEL; FRONT,SIDE 1-65471-896-0 01 1 9703-9705 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB>,SAKHALIN EQUIPMENT(TLE) 		1-65471-896-0 01 1 9703-9705 ● ●
16 PANEL; FRONT,SIDE 1-65471-897-0 01 1 9706-9901 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 9706-9901 ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 9902-9904 ● ●
16 PANEL; FRONT,SIDE 1-65471-897-0 01 1 9905- ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 9905- ● ●
16 PANEL; FRONT,SIDE 1-65471-896-0 01 1 9706-9901 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 9706-9901 ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 9902-9904 ● ●
16 PANEL; FRONT,SIDE 1-65471-896-0 01 1 9905- ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 9905- ● ●
16 PANEL; FRONT,SIDE
SAKHALIN EQUIPMENT(TLE) 		1-65472-217-0 01 1 9703-9705 ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65472-220-0 01 1 9603-9705 ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-898-0 01 1 9603-9702 ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> EXC. SAKHALIN EQUIPMENT(TLE) 		1-65471-898-0 01 1 9703-9705 ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-898-0 01 1 9706- ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-899-0 01 1 9706- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9603-9901 ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9902-9908 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9909- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9603-9901 ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9902-9908 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9909- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) L=581 		1-71907-160-4 01 1 9603-9901 ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-160-4 01 1 9603-9901 ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-160-4 01 1 9902-9904 ● ●
19 SEAL; FRT SIDE PANEL
(A) L=581 		1-71907-160-4 01 1 9905- ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-160-4 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(A) L=732 		1-71907-164-4 01 1 9603-9702 ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) L=732 		1-71907-164-4 01 1 9603-9702 ● ●
19 SEAL; FRT SIDE PANEL
EXC. SAKHALIN EQUIPMENT(TLE) (A) L=732 		1-71907-164-4 01 1 9703-9705 ● ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) L=732 		1-71907-164-4 01 1 9703-9705 ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) L=732 		1-71907-164-4 01 1 9706- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-9901 ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9902-9904 ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9905- ● ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-159-4 01 1 9603-9702 ● ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB>,SAKHALIN EQUIPMENT(TLE) (A) L=581 		1-71907-159-4 01 1 9703-9705 ● ● ●
19 SEAL; FRT SIDE PANEL
SAKHALIN EQUIPMENT(TLE) (A) L=581 		1-71907-159-4 01 1 9703-9705 ●
19 SEAL; FRT SIDE PANEL
(A) L=581 		1-71907-159-4 01 1 9706-9901 ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-159-4 01 1 9706-9901 ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-159-4 01 1 9902-9904 ● ●
19 SEAL; FRT SIDE PANEL
(A) L=581 		1-71907-159-4 01 1 9905- ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) L=581 		1-71907-159-4 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9902-9908 ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9909- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9902-9908 ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9909- ● ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) L=732 		1-71907-165-4 01 1 9603- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-2 12 1 9603-9901 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9902-9904 ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9905- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9603-9901 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9902-9904 ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905- ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9603-9901 ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9902-9904 ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9905-0003 ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004- ● ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9603-9811 ● ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9812-9901 ● ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9902-9903 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 9904-9904 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 9905- ● ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 9812-9901 ● ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 9902-9904 ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 9905- ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9603-9901 ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9902-9904 ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9905- ● ● ●
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603-9901 ● ● ●
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9902-9904 ● ●
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905- ● ● ●
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9603-9901 ● ● ●
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9902-9904 ● ●
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905- ● ● ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 9706-9901 ● ● ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 9902-9904 ● ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 9905- ● ● ●
299 COVER; FRT PANEL SIDE
SAKHALIN EQUIPMENT(TLE) 		1-71998-995-1 01 1 9706-9801 ●
299 COVER; FRT PANEL SIDE
SAKHALIN EQUIPMENT(TLE),SAUDI ARABIA EQUIPMENT(WH1) 		1-71998-995-1 01 1 9802-9901 ● ●
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-995-1 01 1 9903- ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 9603-9901 ● ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 9902-9904 ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 9905- ● ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 9603-9901 ● ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 9902-9904 ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 9905- ● ● ●
546 PLUG; DUMMY HOLE
(A) BLACK OD=16 L=11 		1-76378-155-0 02 1 9603-9901 ● ● ●
546 PLUG; DUMMY HOLE
(A) BLACK OD=16 L=11 		1-76378-155-0 02 1 9902-9904 ● ●
546 PLUG; DUMMY HOLE
(A) BLACK OD=16 L=11 		1-76378-155-0 02 1 9905- ● ● ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 9603-9901 ● ● ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 9902-9904 ● ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 9905- ● ● ●
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 07 1 9703-9705 ● ● ●
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 9603-9702 ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 9902-9908 ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 9909- ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 9902-9908 ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 9909- ● ● ●
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 08 1 9703-9705 ● ●
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 14 1 9603-9702 ● ● ●
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 14 1 9902-9904 ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 14 1 9905- ●
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 14 1 9905- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 14 1 9706-9901 ●
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 14 1 9706-9901 ● ●
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 9706- ● ●

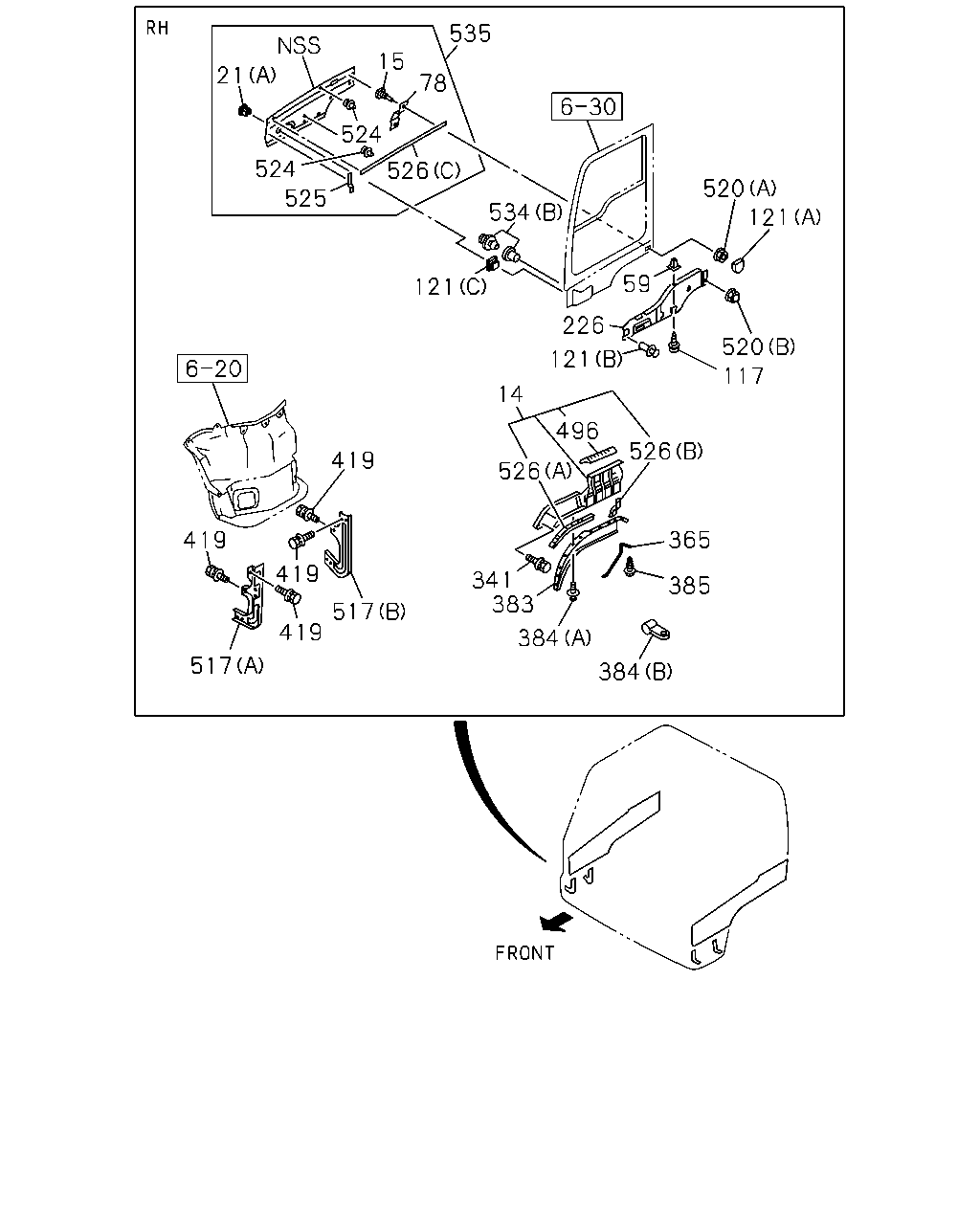

çizim 39733
535 15 21 78 524 524 526 520 121 525 534 59 121 226 121 520 117 14 496 526 419 526 365 419 419 341 383 385 517 419 384 517 384
BalonParca AdiParca NoAdetTipApplied Date A B C
14 FENDER; FRT 1-65471-888-1 01 1 9603-9704 ● ● ●
14 FENDER; FRT
WHITE 		1-65472-453-0 01 1 9705-9901 ● ● ●
14 FENDER; FRT
WHITE 		1-65472-453-2 01 1 9902-9904 ● ●
14 FENDER; FRT
WHITE 		1-65472-453-2 01 1 9905- ● ● ●
14 FENDER; FRT 1-65471-887-1 01 1 9603-9704 ● ● ●
14 FENDER; FRT
WHITE 		1-65472-452-0 01 1 9705-9901 ● ● ●
14 FENDER; FRT
WHITE 		1-65472-452-2 01 1 9902-9904 ● ●
14 FENDER; FRT
WHITE 		1-65472-452-2 01 1 9905- ● ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9603-9901 ● ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9902-9904 ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9905- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-2 12 1 9603-9901 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9902-9904 ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9905- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9603-9901 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9902-9904 ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905- ● ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9603-9901 ● ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9902-9904 ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9905- ● ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 9603-9901 ● ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 9902-9904 ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 9905- ● ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 9603-9901 ● ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 9902-9904 ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 9905- ● ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9603-9901 ● ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9902-9904 ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9905- ● ● ●
121 GROMMET; FENDER
(A) DOOR INNER 		1-09983-162-0 02 1 9603-9901 ● ● ●
121 GROMMET; FENDER
(A) DOOR INNER 		1-09983-162-0 02 1 9902-9904 ● ●
121 GROMMET; FENDER
(A) DOOR INNER 		1-09983-162-0 02 1 9905- ● ● ●
121 GROMMET; FENDER
(B) PUSH RIVET D8X13.5 		1-09987-248-1 08 1 9603-9901 ● ● ●
121 GROMMET; FENDER
(B) PUSH RIVET D8X13.5 		1-09987-248-1 08 1 9902-9904 ● ●
121 GROMMET; FENDER
(B) PUSH RIVET D8X13.5 		1-09987-248-1 08 1 9905- ● ● ●
121 GROMMET; FENDER
(C) BLACK 13X13 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9603-9603 ● ● ●
121 GROMMET; FENDER
(C) L=6 14.5X14.5 BLACK 		8-94279-714-0 02 1 9604-9901 ● ● ●
121 GROMMET; FENDER
(C) L=6 14.5X14.5 BLACK 		8-94279-714-0 02 1 9902-9904 ● ●
121 GROMMET; FENDER
(C) L=6 14.5X14.5 BLACK 		8-94279-714-0 02 1 9905- ● ● ●
226 PROTECTOR; FRT 1-71267-153-7 01 1 9603-9901 ● ● ●
226 PROTECTOR; FRT 1-71267-153-7 01 1 9902-9902 ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 9903-9904 ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 9905- ● ● ●
226 PROTECTOR; FRT 1-71267-152-7 01 1 9603-9901 ● ● ●
226 PROTECTOR; FRT 1-71267-152-7 01 1 9902-9902 ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 9903-9904 ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 9905- ● ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9603-9901 ● ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9902-9904 ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9905- ● ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 9902-9904 ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 9905- ● ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 9902-9904 ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 9905- ● ● ●
383 GUARD; MUD,FENDER LWR 1-71907-443-2 01 1 9603-9901 ● ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-443-2 01 1 9902- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-442-2 01 1 9603-9901 ● ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-442-2 01 1 9902- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 9902-9904 ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 9905- ● ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 9902-9904 ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 9905- ● ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 11 1 9603-9901 ● ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 09 1 9902-9904 ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 09 1 9905- ● ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) ID=6 		1-09987-266-0 04 1 9902-9904 ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) ID=6 		1-09987-266-0 04 1 9905- ● ● ●
384 CLIP; FENDER LWR
EXC. CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 11 1 9902- ● ●
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> W/PL WASHER M6X25 		1-65481-736-0 04 1 9902-9904 ● ●
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> W/PL WASHER M6X25 		1-65481-736-0 04 1 9905- ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9603-9901 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9902-9904 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9905- ● ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-862-0 01 1 9603-9901 ● ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-862-0 01 1 9902-9904 ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-862-0 01 1 9905- ● ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-861-0 01 1 9603-9901 ● ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-861-0 01 1 9902-9904 ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-861-0 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-531-1 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-531-1 01 1 9902-9904 ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-531-1 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-528-3 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-528-3 01 1 9902-9904 ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-766-1 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-530-1 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-530-1 01 1 9902-9904 ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-530-1 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-747-2 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-747-4 01 1 9902-9904 ● ●
517 SUPPORT; STEP PANEL
DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-747-4 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-529-3 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-767-1 01 1 9905-9905 ● ● ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) FRONT '990531- 		1-65671-767-1 01 1 9905- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9603-9901 ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9902-9904 ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9905- ● ● ●
520 NUT; FENDER
(B) CAP W/LK WASHER M6 		8-94343-366-1 02 1 9603-9901 ● ● ●
520 NUT; FENDER
(B) CAP W/LK WASHER M6 		8-94343-366-1 02 1 9902-9904 ● ●
520 NUT; FENDER
(B) CAP W/LK WASHER M6 		8-94343-366-1 02 1 9905- ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9603-9803 ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-9901 ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9902-9904 ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9905- ● ● ●
525 SEAL; FENDER
L=145 10X145 		1-71268-281-1 02 1 9603-9901 ● ● ●
525 SEAL; FENDER
L=145 10X145 		1-71268-281-1 02 1 9902-9904 ● ●
525 SEAL; FENDER
L=145 10X145 		1-71268-281-1 02 1 9905- ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9902-9904 ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9905- ● ● ●
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9902-9904 ● ●
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9905- ● ● ●
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9902-9904 ● ●
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9905- ● ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9902-9904 ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9905- ● ● ●
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9902-9904 ● ●
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9905- ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9603-9803 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-9901 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9902-9904 ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9905-0001 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002- ● ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9603-9901 ● ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9902-9904 ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9905- ● ● ●
535 FENDER; BLISTER 1-71267-186-2 01 1 9603-9901 ● ● ●
535 FENDER; BLISTER 1-71267-186-2 01 1 9902-9904 ● ●
535 FENDER; BLISTER 1-71267-186-2 01 1 9905- ● ● ●
535 FENDER; BLISTER 1-71267-185-2 01 1 9603-9901 ● ● ●
535 FENDER; BLISTER 1-71267-185-2 01 1 9902-9904 ● ●
535 FENDER; BLISTER 1-71267-185-2 01 1 9905- ● ● ●

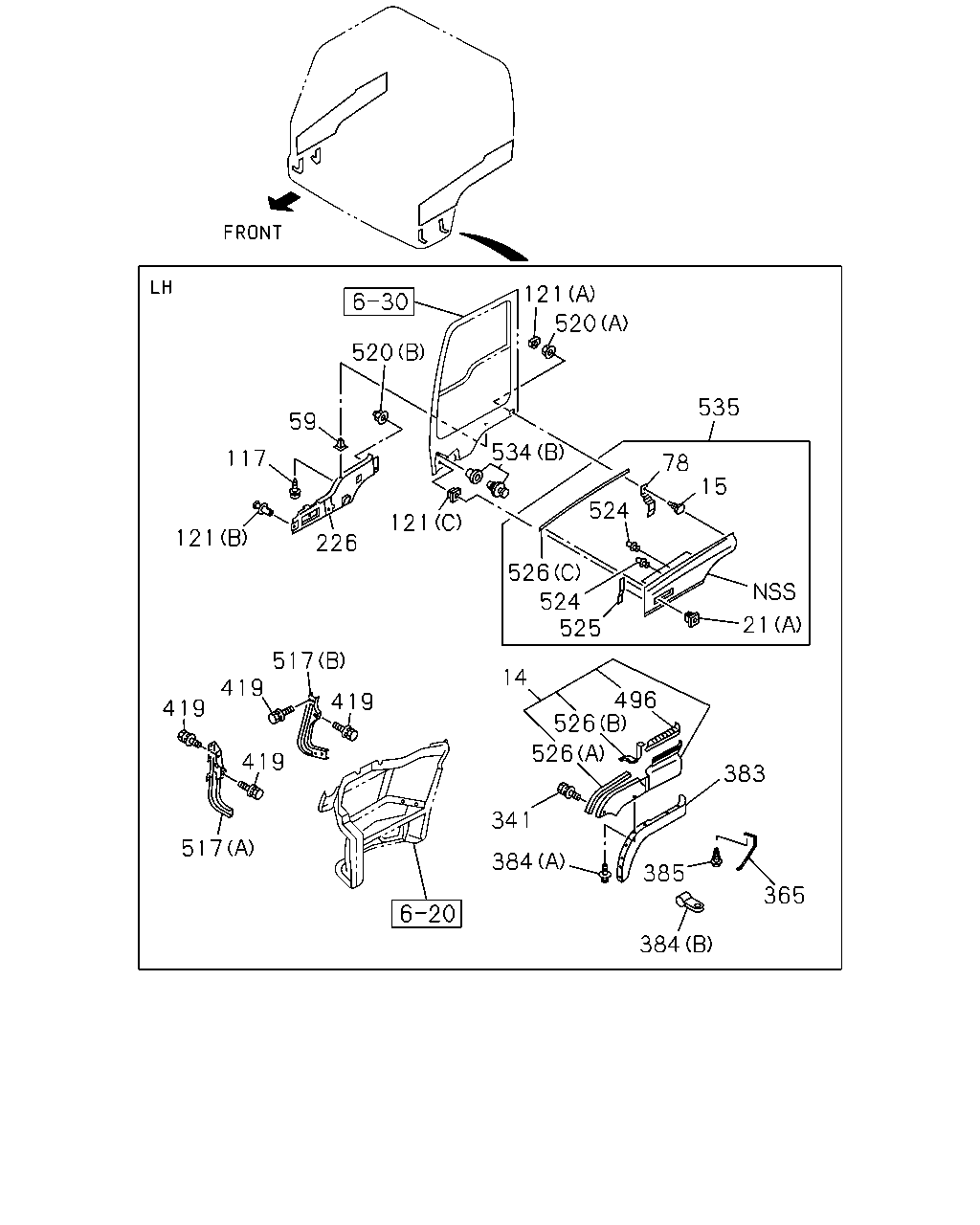

çizim 39921
121 520 520 535 59 534 117 78 15 524 121 121 226 526 524 525 21 517 14 419 496 526 419 419 526 419 383 341 517 384 385 365 384
BalonParca AdiParca NoAdetTipApplied Date A B C
14 FENDER; FRT 1-65471-888-1 01 1 9603-9704 ● ● ●
14 FENDER; FRT
WHITE 		1-65472-453-0 01 1 9705-9901 ● ● ●
14 FENDER; FRT
WHITE 		1-65472-453-2 01 1 9902-9904 ● ●
14 FENDER; FRT
WHITE 		1-65472-453-2 01 1 9905- ● ● ●
14 FENDER; FRT 1-65471-887-1 01 1 9603-9704 ● ● ●
14 FENDER; FRT
WHITE 		1-65472-452-0 01 1 9705-9901 ● ● ●
14 FENDER; FRT
WHITE 		1-65472-452-2 01 1 9902-9904 ● ●
14 FENDER; FRT
WHITE 		1-65472-452-2 01 1 9905- ● ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9603-9901 ● ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9902-9904 ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9905- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-2 12 1 9603-9901 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9902-9904 ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9905- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9603-9901 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9902-9904 ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905- ● ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9603-9901 ● ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9902-9904 ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9905- ● ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 9603-9901 ● ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 9902-9904 ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 9905- ● ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 9603-9901 ● ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 9902-9904 ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 9905- ● ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9603-9901 ● ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9902-9904 ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9905- ● ● ●
121 GROMMET; FENDER
(A) DOOR INNER 		1-09983-162-0 02 1 9603-9901 ● ● ●
121 GROMMET; FENDER
(A) DOOR INNER 		1-09983-162-0 02 1 9902-9904 ● ●
121 GROMMET; FENDER
(A) DOOR INNER 		1-09983-162-0 02 1 9905- ● ● ●
121 GROMMET; FENDER
(B) PUSH RIVET D8X13.5 		1-09987-248-1 08 1 9603-9901 ● ● ●
121 GROMMET; FENDER
(B) PUSH RIVET D8X13.5 		1-09987-248-1 08 1 9902-9904 ● ●
121 GROMMET; FENDER
(B) PUSH RIVET D8X13.5 		1-09987-248-1 08 1 9905- ● ● ●
121 GROMMET; FENDER
(C) BLACK 13X13 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9603-9603 ● ● ●
121 GROMMET; FENDER
(C) L=6 14.5X14.5 BLACK 		8-94279-714-0 02 1 9604-9901 ● ● ●
121 GROMMET; FENDER
(C) L=6 14.5X14.5 BLACK 		8-94279-714-0 02 1 9902-9904 ● ●
121 GROMMET; FENDER
(C) L=6 14.5X14.5 BLACK 		8-94279-714-0 02 1 9905- ● ● ●
226 PROTECTOR; FRT 1-71267-153-7 01 1 9603-9901 ● ● ●
226 PROTECTOR; FRT 1-71267-153-7 01 1 9902-9902 ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 9903-9904 ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 9905- ● ● ●
226 PROTECTOR; FRT 1-71267-152-7 01 1 9603-9901 ● ● ●
226 PROTECTOR; FRT 1-71267-152-7 01 1 9902-9902 ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 9903-9904 ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 9905- ● ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9603-9901 ● ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9902-9904 ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9905- ● ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 9902-9904 ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 9905- ● ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 9902-9904 ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 9905- ● ● ●
383 GUARD; MUD,FENDER LWR 1-71907-443-2 01 1 9603-9901 ● ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-443-2 01 1 9902- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-442-2 01 1 9603-9901 ● ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-442-2 01 1 9902- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 9902-9904 ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 9905- ● ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 9902-9904 ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 9905- ● ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 11 1 9603-9901 ● ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 09 1 9902-9904 ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 09 1 9905- ● ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) ID=6 		1-09987-266-0 04 1 9902-9904 ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) ID=6 		1-09987-266-0 04 1 9905- ● ● ●
384 CLIP; FENDER LWR
EXC. CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 11 1 9902- ● ●
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> W/PL WASHER M6X25 		1-65481-736-0 04 1 9902-9904 ● ●
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> W/PL WASHER M6X25 		1-65481-736-0 04 1 9905- ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9603-9901 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9902-9904 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9905- ● ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-862-0 01 1 9603-9901 ● ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-862-0 01 1 9902-9904 ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-862-0 01 1 9905- ● ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-861-0 01 1 9603-9901 ● ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-861-0 01 1 9902-9904 ● ●
496 RUBBER; STEP
RR TRAVERSE 		1-71998-861-0 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-531-1 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-531-1 01 1 9902-9904 ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-531-1 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-528-3 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-528-3 01 1 9902-9904 ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-766-1 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-530-1 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-530-1 01 1 9902-9904 ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-530-1 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-747-2 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-747-4 01 1 9902-9904 ● ●
517 SUPPORT; STEP PANEL
DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-747-4 01 1 9905- ● ● ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-529-3 01 1 9603-9901 ● ● ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-767-1 01 1 9905-9905 ● ● ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) FRONT '990531- 		1-65671-767-1 01 1 9905- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9603-9901 ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9902-9904 ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9905- ● ● ●
520 NUT; FENDER
(B) CAP W/LK WASHER M6 		8-94343-366-1 02 1 9603-9901 ● ● ●
520 NUT; FENDER
(B) CAP W/LK WASHER M6 		8-94343-366-1 02 1 9902-9904 ● ●
520 NUT; FENDER
(B) CAP W/LK WASHER M6 		8-94343-366-1 02 1 9905- ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9603-9803 ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-9901 ● ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9902-9904 ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9905- ● ● ●
525 SEAL; FENDER
L=145 10X145 		1-71268-281-1 02 1 9603-9901 ● ● ●
525 SEAL; FENDER
L=145 10X145 		1-71268-281-1 02 1 9902-9904 ● ●
525 SEAL; FENDER
L=145 10X145 		1-71268-281-1 02 1 9905- ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9902-9904 ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9905- ● ● ●
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9902-9904 ● ●
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9905- ● ● ●
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9902-9904 ● ●
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9905- ● ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9902-9904 ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9905- ● ● ●
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9603-9901 ● ● ●
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9902-9904 ● ●
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9905- ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9603-9803 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-9901 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9902-9904 ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9905-0001 ● ● ●
534 FASTENER
(B) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002- ● ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9603-9901 ● ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9902-9904 ● ●
534 FASTENER
(A) RIVET D6X12.5 		8-94146-425-0 02 1 9905- ● ● ●
535 FENDER; BLISTER 1-71267-186-2 01 1 9603-9901 ● ● ●
535 FENDER; BLISTER 1-71267-186-2 01 1 9902-9904 ● ●
535 FENDER; BLISTER 1-71267-186-2 01 1 9905- ● ● ●
535 FENDER; BLISTER 1-71267-185-2 01 1 9603-9901 ● ● ●
535 FENDER; BLISTER 1-71267-185-2 01 1 9902-9904 ● ●
535 FENDER; BLISTER 1-71267-185-2 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
