Isuzu WW
▶
TRUCKS
▶
NPR
▶
51187 - NPR/NQR(RHD) EURO1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

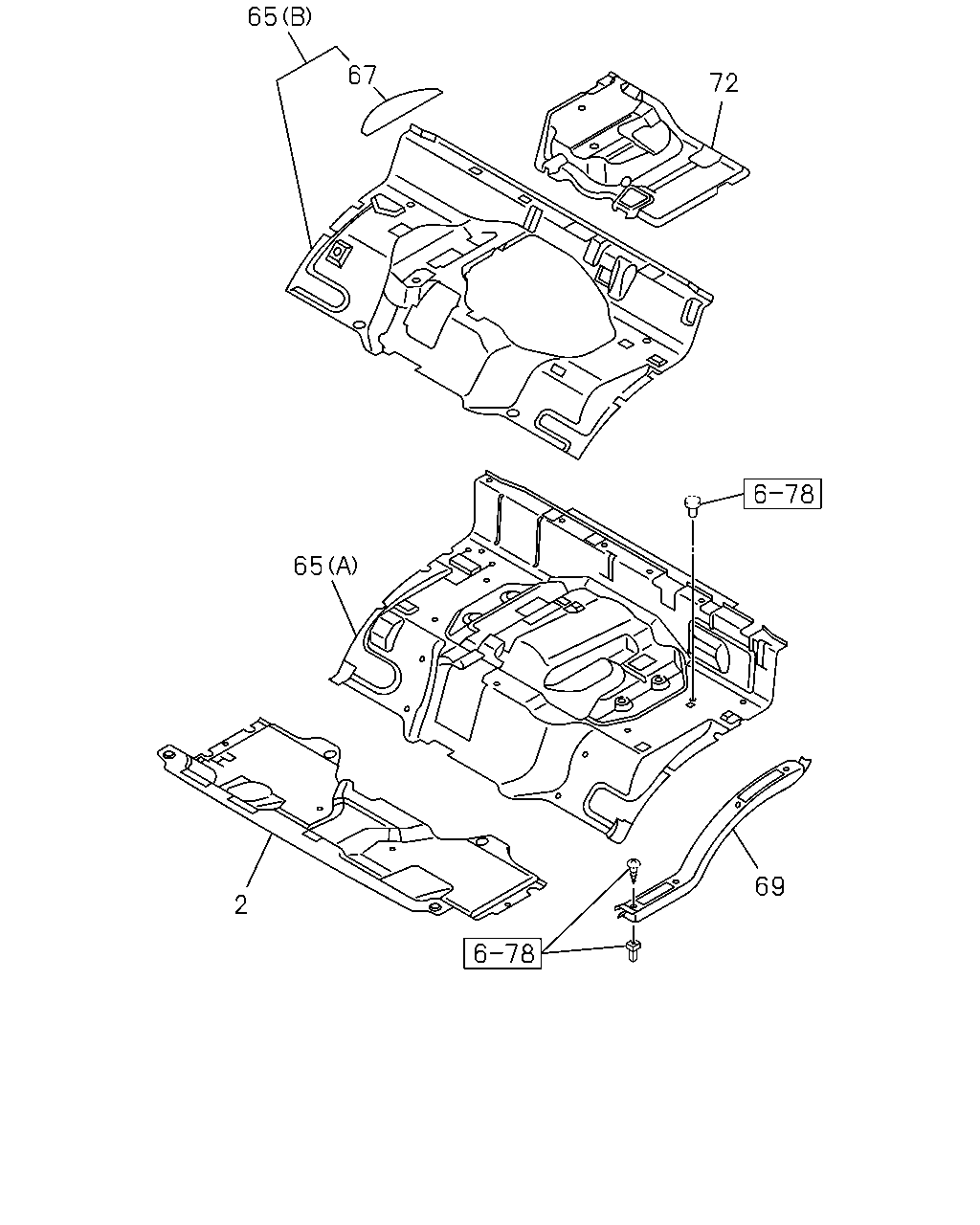

6-75 — MAT AND CARPET
(#49019) — 9 parça
Tümü
A - NPR5SN
B - NPR5SS
65
67
72
65
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.800 MAT; FLOOR
GRAY
8-97405-147-6
01
1
0810-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97405-200-6
01
1
0810-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97425-110-1
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97405-198-6
01
1
0810-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-119-1
01
1
1304-
●
●
67
16.549 LID; COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97408-863-0
01
1
0810-0904
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
0810-
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
0810-
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97406-252-3
01
1
0810-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
