◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#49018) — 76 parça

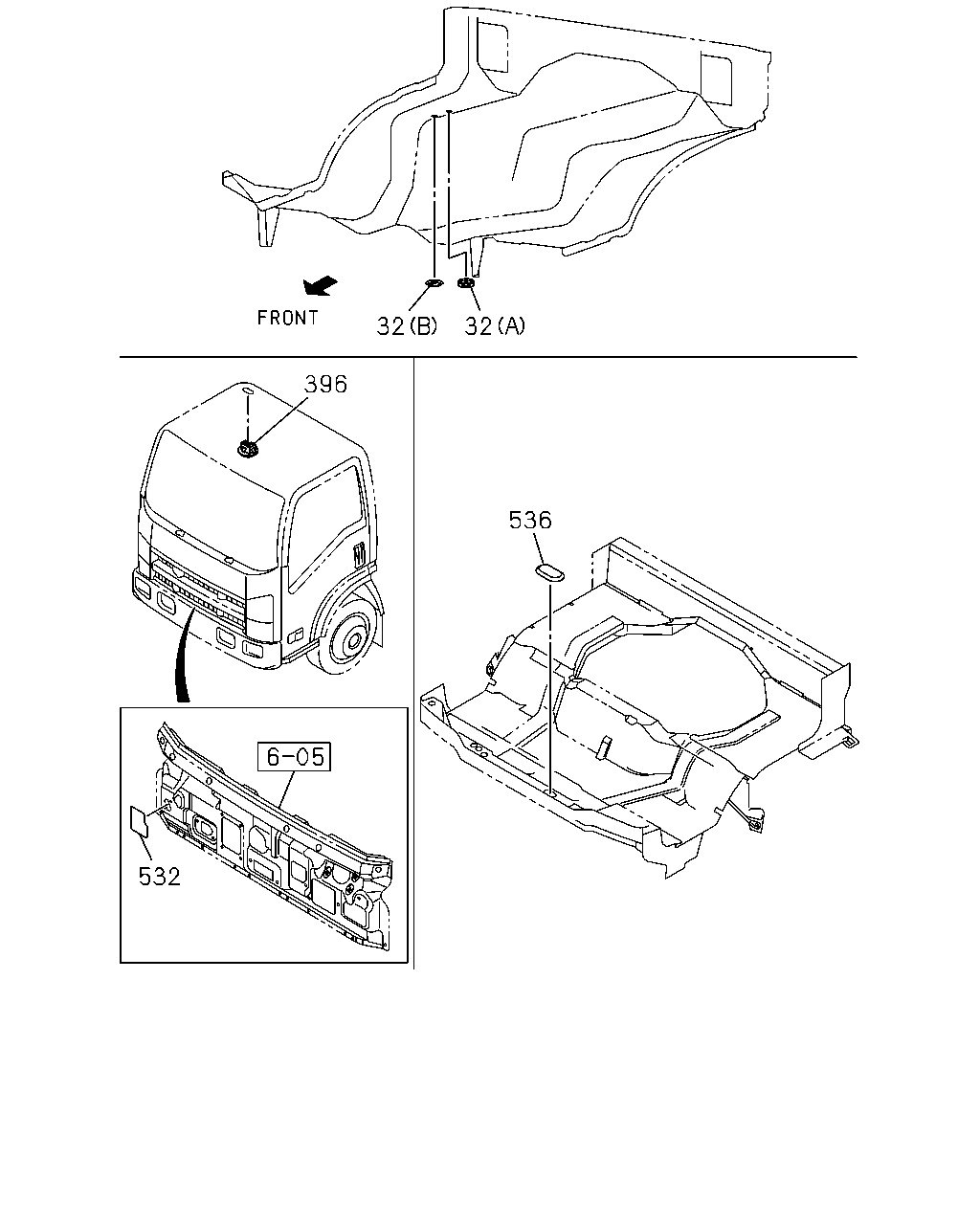

çizim 59792
32 32 396 536 532
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
00.785 (A) OD=16.2 		8-94492-493-0 02 1 0810-0908 ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 0909- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 0810- ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 0810- ● ●
532 16.520 SEAL; CABLE
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 0810- ●
532 16.520 SEAL; CABLE
EXC. PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 0810- ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 0810- ● ●

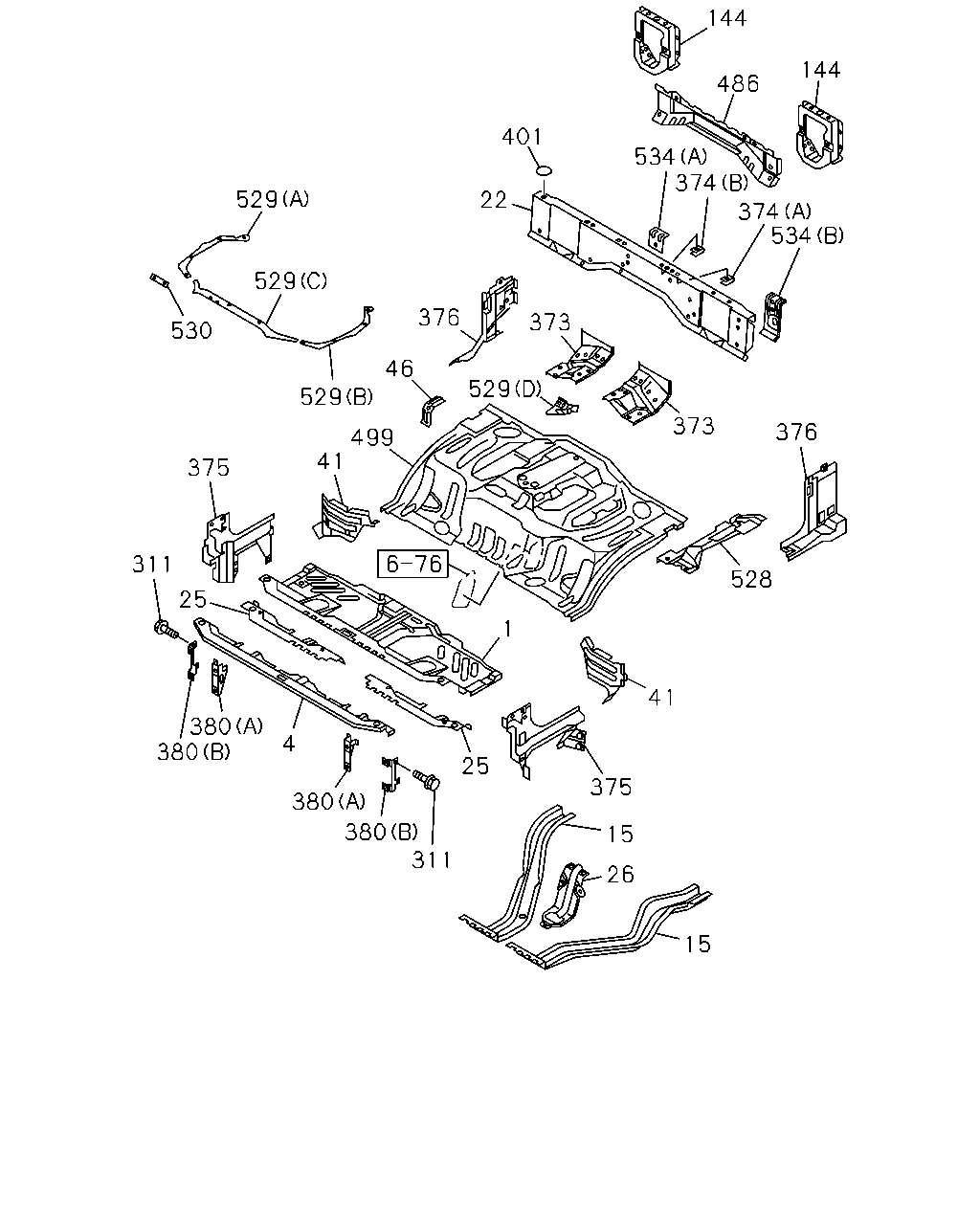

çizim 60334
529 529 530 529 375 311 380 380 380 311 25 1 41 499 46 376 373 373 528 376 41 375 15 26 15 380 25 4 529 22 401 534 374 374 486 144 144 534
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-870-0 01 1 0810-1506 ● ●
1 16.545 PANEL; FLOOR 8-98112-870-0 01 1 1507- ● ●
4 16.545 FRAME; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-595-0 01 1 0810-1506 ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1507- ● ●
15 16.545 FRAME; UNDER
EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-497-1 01 1 0810-1506 ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1507- ● ●
15 16.545 FRAME; UNDER
EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 0810-1506 ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1507- ● ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97587-394-4 01 1 1507- ● ●
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-848-4 01 1 0810-1506 ● ●
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-848-4 01 1 1507- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 0810-1506 ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1507- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 0810-1506 ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1507- ● ●
26 16.545 PANEL; GEAR CONT REINF
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-382-1 01 1 0810-1506 ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1507- ● ●
41 16.545 SUPPORT; STEP,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 0810-1506 ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1507- ● ●
41 16.545 SUPPORT; STEP,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 0810-1506 ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1507- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 0810-1506 ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1507- ● ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> 		8-98112-244-2 02 1 1507- ● ●
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-2 02 1 0810-1506 ● ●
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1507- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0810- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-523-2 01 1 0810-1506 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-523-2 01 1 1507- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-524-2 01 1 0810-1506 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-524-2 01 1 1507- ● ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 1507- ● ●
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 0810-1506 ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1507- ● ●
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0810-1506 ● ●
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1507- ● ●
375 16.545 CLOSING; PILLAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 0810-1506 ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1507- ● ●
375 16.545 CLOSING; PILLAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 0810-1506 ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1507- ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 0810-1506 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1507- ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 0810-1506 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1507- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0810- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0810- ● ●
380 16.545 BRACKET; HEAD LAMP
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 0810-1506 ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1507- ● ●
380 16.545 BRACKET; HEAD LAMP
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 0810-1506 ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1507- ● ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0810- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-614-2 01 1 1507- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 0810-1506 ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1507- ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-98205-116-0 01 1 1507- ● ●
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-828-6 01 1 0810-1207 ● ●
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98206-873-0 01 1 1208-1506 ● ●
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98206-873-0 01 1 1507- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-619-4 01 1 0810-1506 ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-619-4 01 1 1507- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-97589-249-0 01 1 1507- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-97589-467-1 01 1 1507- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-468-1 01 1 1507- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (D) 		8-98030-358-0 01 1 1507- ● ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 1507- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 01 1 0810-1506 ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 01 1 1507- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 0810-1506 ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1507- ● ●
