Sayfa 3-05 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51301 - NPS-RHD ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶

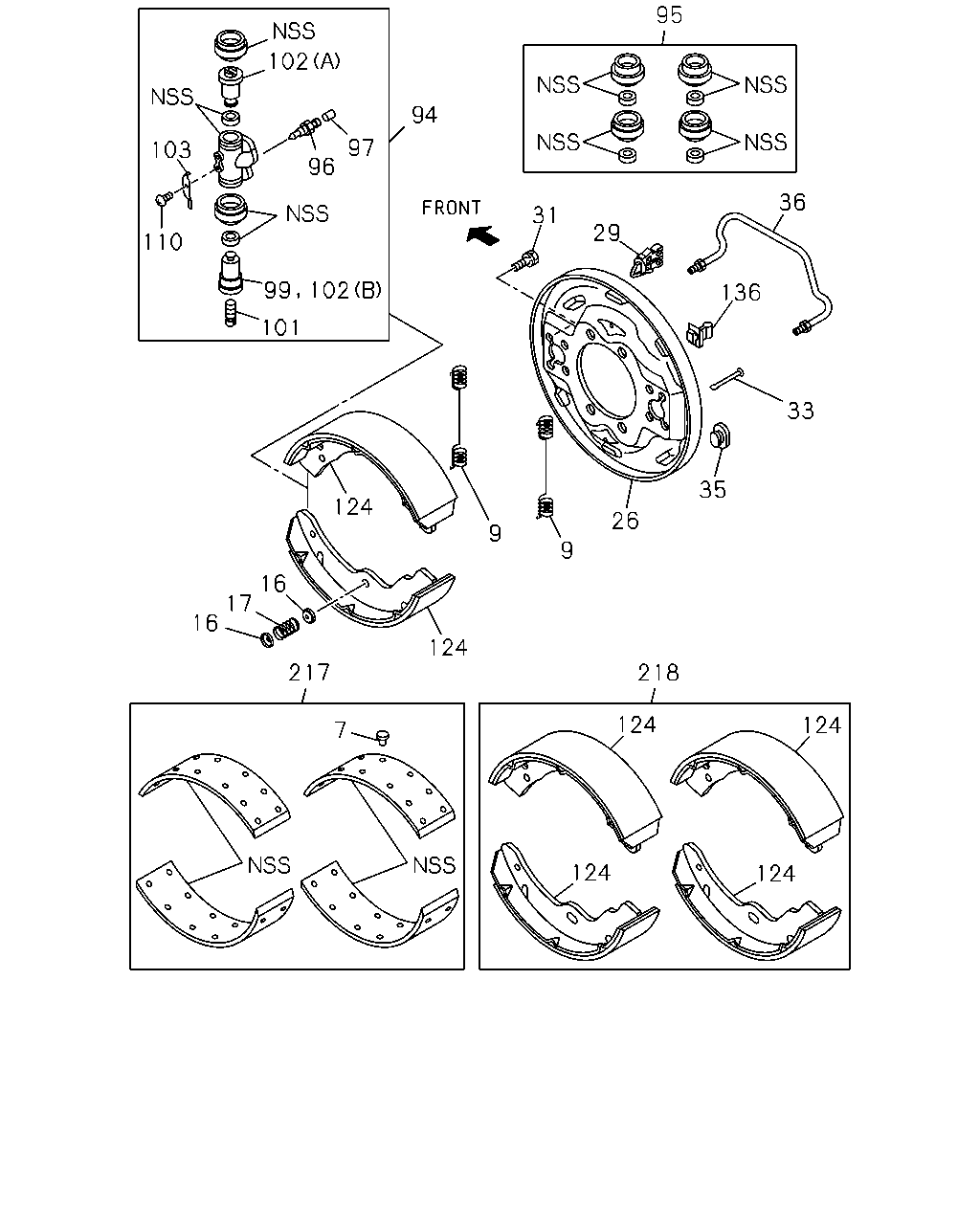

3-05 — REAR WHEEL BRAKE (#49016) — 56 parça

103 110 101 99 102 96 97 102 95 36 136 33 35 26 9 9 31 124 29 217 16 17 16 124 218 124 124 124 124 7 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	48	1	1012-1507	●
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	48	1	1508-	●	●
9	05.026 SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	1012-1507	●
9	05.026 SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	1508-	●	●
16	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	1012-1507	●
16	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	1508-	●	●
17	04.043 SPRING; SHOE HOLD DOWN 05.043	5-09580-101-1	04	1	1012-1507	●
17	04.043 SPRING; SHOE HOLD DOWN 05.043	5-09580-101-1	04	1	1508-	●	●
26	05.001 PLATE; BACK,RR BRK	8-97223-575-0	01	1	1012-1507	●
26	05.001 PLATE; BACK,RR BRK	8-97223-575-0	01	1	1508-	●	●
26	05.001 PLATE; BACK,RR BRK	8-97223-576-0	01	1	1012-1507	●
26	05.001 PLATE; BACK,RR BRK	8-97223-576-0	01	1	1508-	●	●
29	04.685 CLIP; PIPE,BRK	8-97022-086-0	02	1	1012-1507	●
29	04.685 CLIP; PIPE,BRK	8-97022-086-0	02	1	1508-	●	●
31	04.665 BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1012-1507	●
31	04.665 BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1508-	●	●
33	05.043 PIN; SHOE HOLD DOWN	8-97022-089-0	04	1	1012-1507	●
33	05.043 PIN; SHOE HOLD DOWN	8-97022-089-0	04	1	1508-	●	●
35	05.002 GROMMET; CHECK HOLE	8-97017-507-0	02	1	1012-1507	●
35	05.002 GROMMET; CHECK HOLE	8-97017-507-0	02	1	1508-	●	●
36	04.685 PIPE; OIL,RR BRK	8-97192-215-0	02	1	1012-1507	●
36	04.685 PIPE; OIL,RR BRK	8-97192-215-0	02	1	1508-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK FRONT	8-97332-225-0	01	1	1012-1507	●
94	04.665 CYLINDER; WHEEL,RR BRK FRONT	8-97332-225-0	01	1	1508-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK REAR	8-97332-226-0	01	1	1012-1507	●
94	04.665 CYLINDER; WHEEL,RR BRK REAR	8-97332-226-0	01	1	1508-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK	8-97332-227-0	02	1	1012-1507	●
94	04.665 CYLINDER; WHEEL,RR BRK	8-97332-227-0	02	1	1508-	●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1012-1507	●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1508-	●	●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-476-0	01	1	1012-1507	●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-476-0	01	1	1508-	●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	1012-1507	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	1508-	●	●
99	04.668 PISTON; RR WHEEL CYL	8-97332-229-0	03	1	1012-1507	●
99	04.668 PISTON; RR WHEEL CYL	8-97332-229-0	03	1	1508-	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL	8-94414-702-0	04	1	1012-1507	●
101	04.666 SCREW; ADJ,RR WHEEL CYL	8-94414-702-0	04	1	1508-	●	●
102	04.668 PISTON; REAR WHEEL CYL (A)	8-97332-043-0	04	1	1012-1507	●
102	04.668 PISTON; REAR WHEEL CYL (A)	8-97332-043-0	04	1	1508-	●	●
102	04.668 PISTON; REAR WHEEL CYL (B)	8-97332-229-0	01	1	1012-1507	●
102	04.668 PISTON; REAR WHEEL CYL (B)	8-97332-229-0	01	1	1508-	●	●
103	05.107 SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	1012-1507	●
103	05.107 SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	1508-	●	●
110	05.107 SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	1012-1507	●
110	05.107 SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	1508-	●	●
124	05.017 SHOE ASM; BRK,RR	8-97201-061-0	04	1	1012-1507	●
124	05.017 SHOE ASM; BRK,RR	8-97201-061-0	04	1	1508-	●	●
136	05.002 GROMMET	8-97044-742-1	04	1	1012-1507	●
136	05.002 GROMMET	8-97044-742-1	04	1	1508-	●	●
217	05.018 LINING KIT; RR BRK	5-87831-774-0	01	1	1012-1507	●
217	05.018 LINING KIT; RR BRK	5-87831-774-0	01	1	1508-	●	●
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	1012-1507	●
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	1508-	●	●
218	05.017 SHOE KIT; BRK,RR	5-87831-775-0	01	1	1012-1507	●
218	05.017 SHOE KIT; BRK,RR	5-87831-775-0	01	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
