◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51301 - NPS-RHD ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#49015) — 60 parça

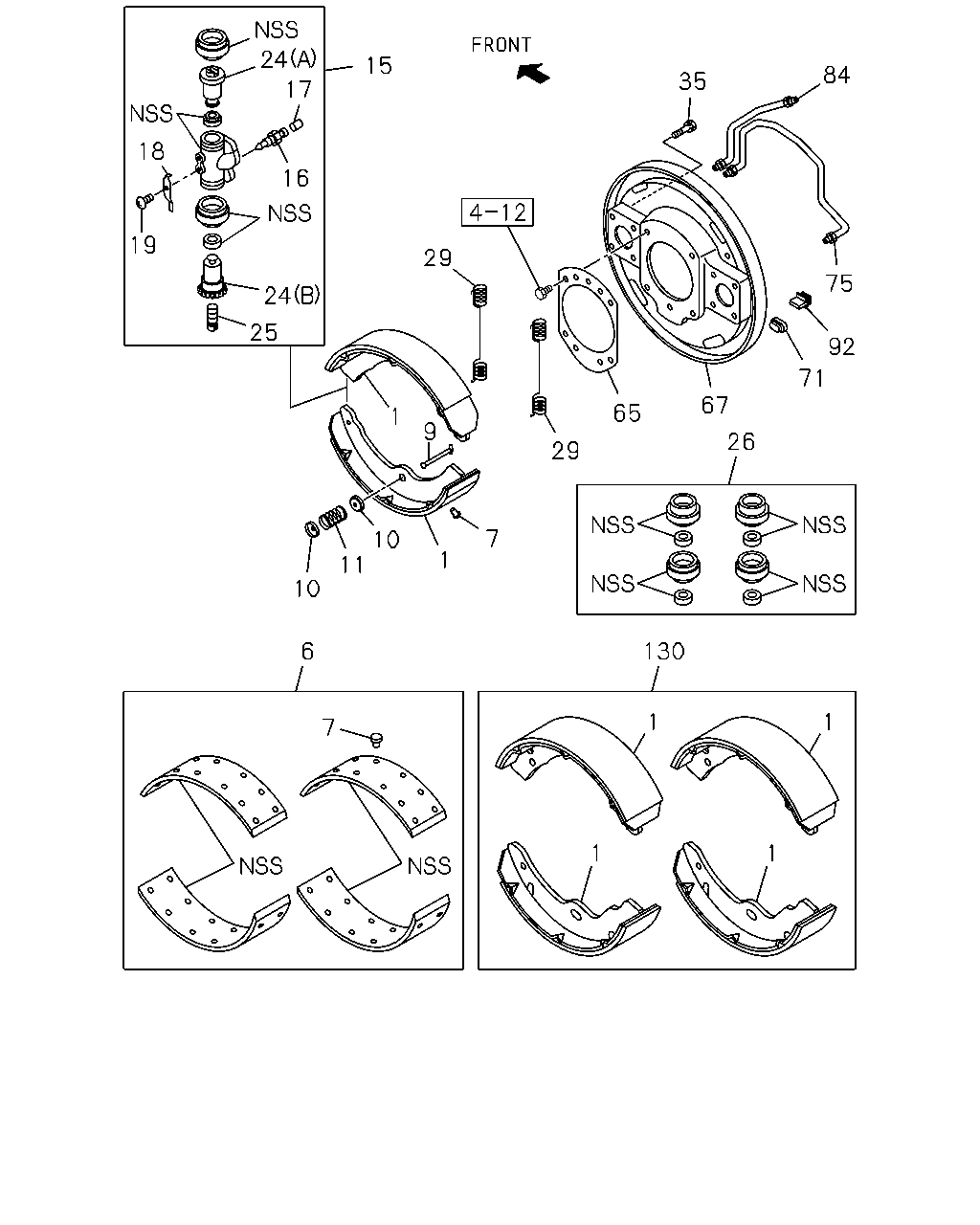

çizim 176137
24 16 17 24 25 19 18 29 15 35 84 75 92 71 26 67 65 29 7 1 10 11 10 1 6 9 130 1 1 1 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.017 SHOE; BRK,FRT 8-97287-778-0 04 1 1012-1507 ●
1 05.017 SHOE; BRK,FRT 8-97287-778-0 04 1 1508- ● ●
6 05.018 LINING KIT; FRT BRK 5-87831-801-0 01 1 1012-1507 ●
6 05.018 LINING KIT; FRT BRK 5-87831-801-0 01 1 1508- ● ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 1012-1507 ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 1508- ● ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 40 1 1012-1507 ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 40 1 1508- ● ●
9 05.026 PIN; SHOE HOLDER
05.043 		5-47162-001-0 04 1 1012-1507 ●
9 05.026 PIN; SHOE HOLDER
05.043 		5-47162-001-0 04 1 1508- ● ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1012-1507 ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1508- ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 1012-1507 ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT ID=30.16(1 3/16") 		8-97139-814-0 01 1 1012-1507 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT ID=30.16(1 3/16") 		8-97139-814-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT ID=30.16(1 3/16") 		8-97139-815-0 01 1 1012-1507 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT ID=30.16(1 3/16") 		8-97139-815-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR ID=30.16(1 3/16") 		8-97139-816-0 01 1 1012-1507 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR ID=30.16(1 3/16") 		8-97139-816-0 01 1 1508- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR ID=30.16(1 3/16") 		8-97139-817-0 01 1 1012-1507 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR ID=30.16(1 3/16") 		8-97139-817-0 01 1 1508- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1012-1507 ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1508- ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1012-1507 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1508- ● ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1012-1507 ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1508- ● ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1012-1507 ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1508- ● ●
24 04.668 PISTON; FRT WHEEL CYL
(A) 		8-94414-700-1 04 1 1012-1507 ●
24 04.668 PISTON; FRT WHEEL CYL
(A) 		8-94414-700-1 04 1 1508- ● ●
24 04.668 PISTON; FRT WHEEL CYL
(B) 		8-97078-045-0 04 1 1012-1507 ●
24 04.668 PISTON; FRT WHEEL CYL
(B) 		8-97078-045-0 04 1 1508- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-94414-702-0 04 1 1012-1507 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-94414-702-0 04 1 1508- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87831-598-0 02 1 1012-1507 ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87831-598-0 02 1 1508- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 5-09583-118-0 04 1 1012-1507 ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 5-09583-118-0 04 1 1508- ● ●
35 04.665 BOLT; FRT WHEEL CYL 5-09030-016-1 16 1 1012-1507 ●
35 04.665 BOLT; FRT WHEEL CYL 5-09030-016-1 16 1 1508- ● ●
65 05.815 COVER; OIL SHIELD,FRT 8-94438-775-1 02 1 1012-1507 ●
65 05.815 COVER; OIL SHIELD,FRT 8-94438-775-1 02 1 1508- ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97078-595-0 01 1 1012-1507 ●
67 05.001 PLATE; BACK,FRT BRK 8-97078-595-0 01 1 1508- ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97078-596-0 01 1 1012-1507 ●
67 05.001 PLATE; BACK,FRT BRK 8-97078-596-0 01 1 1508- ● ●
71 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 1012-1507 ●
71 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 1508- ● ●
75 04.685 PIPE; OIL,FWD,FRT BRK 8-94473-818-0 02 1 1012-1507 ●
75 04.685 PIPE; OIL,FWD,FRT BRK 8-94473-818-0 02 1 1508- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-819-1 01 1 1012-1507 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-819-1 01 1 1508- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-820-1 01 1 1012-1507 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-820-1 01 1 1508- ● ●
92 05.002 GROMMET; ADJ HOLE 9-09756-034-0 04 1 1012-1507 ●
92 05.002 GROMMET; ADJ HOLE 9-09756-034-0 04 1 1508- ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-047-0 01 1 1012-1507 ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-047-0 01 1 1508- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
