2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#49012) — 38 parça

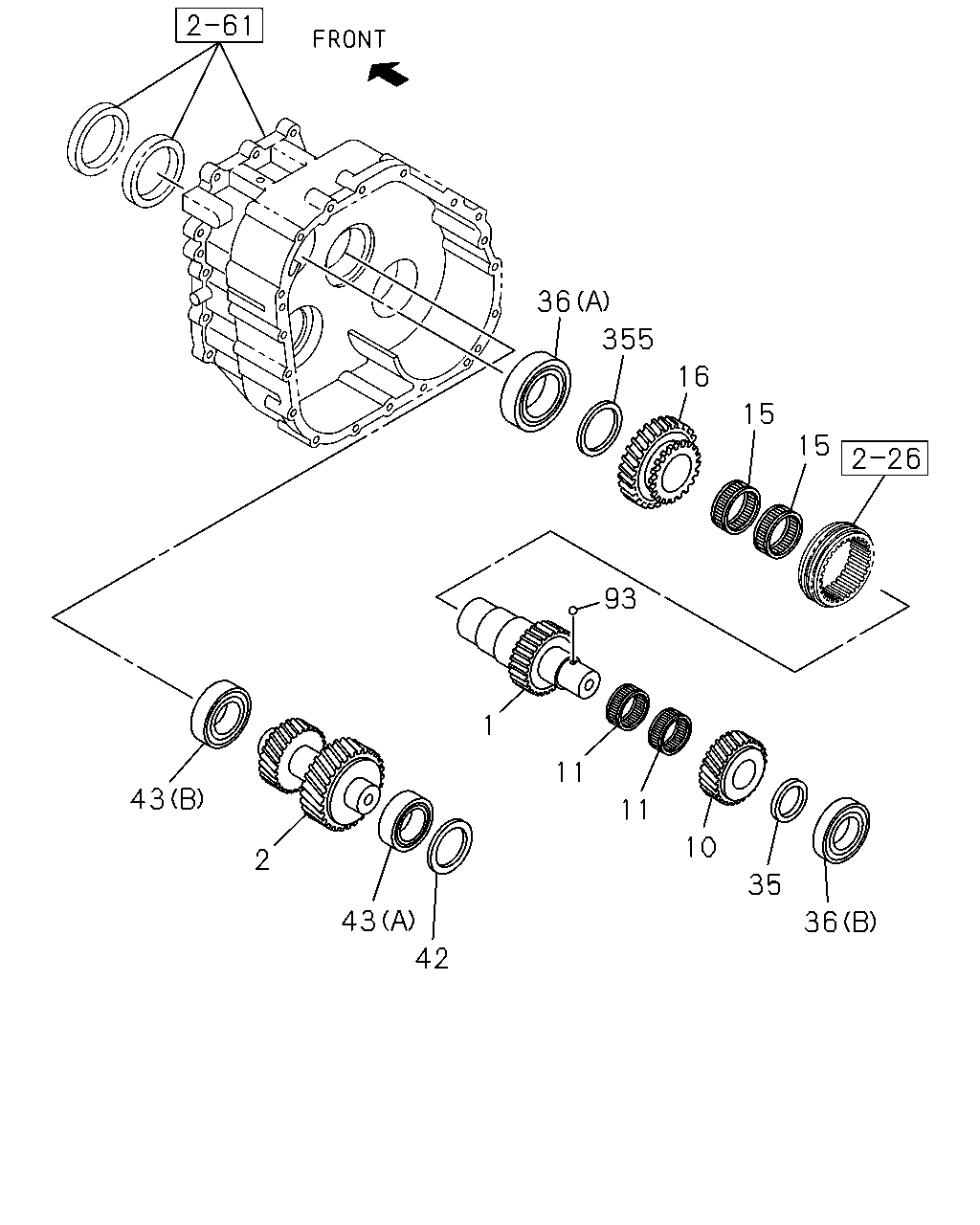

çizim 176177
43 2 43 42 36 35 10 11 11 1 93 15 15 16 355 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.162 SHAFT; GEAR,INPUT 8-97326-946-0 01 1 1012-1507 ●
1 04.162 SHAFT; GEAR,INPUT 8-97326-946-0 01 1 1508- ● ●
2 04.162 SHAFT; GEAR,IDLE 8-97326-921-0 01 1 1012-1507 ●
2 04.162 SHAFT; GEAR,IDLE 8-97326-921-0 01 1 1508- ● ●
10 04.532 GEAR; INPUT,LOW 8-98000-326-0 01 1 1012-1507 ●
10 04.532 GEAR; INPUT,LOW 8-98000-326-0 01 1 1508- ● ●
11 04.520 BEARING; LOW GEAR,TRANSFER 8-97351-791-0 02 1 1012-1507 ●
11 04.520 BEARING; LOW GEAR,TRANSFER 8-97351-791-0 02 1 1508- ● ●
15 04.520 BEARING; HIGH GEAR,TRANSFER 8-97326-943-0 02 1 1012-1507 ●
15 04.520 BEARING; HIGH GEAR,TRANSFER 8-97326-943-0 02 1 1508- ● ●
16 04.532 GEAR; INPUT,HIGH 8-97326-944-0 01 1 1012-1507 ●
16 04.532 GEAR; INPUT,HIGH 8-97326-944-0 01 1 1508- ● ●
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER 8-97326-937-0 01 1 1012-1507 ●
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER 8-97326-937-0 01 1 1508- ● ●
36 04.520 BEARING; IDLE SHAFT,TRANSFER
(B) 		8-97326-935-0 01 1 1012-1507 ●
36 04.520 BEARING; IDLE SHAFT,TRANSFER
(B) 		8-97326-935-0 01 1 1508- ● ●
36 04.520 BEARING; IDLE SHAFT,TRANSFER
(A) 		8-97326-936-0 01 1 1012-1507 ●
36 04.520 BEARING; IDLE SHAFT,TRANSFER
(A) 		8-97326-936-0 01 1 1508- ● ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.18 		8-97326-912-0 01 1 1012-1507 ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.18 		8-97326-912-0 01 1 1508- ● ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.50 		8-97326-913-0 02 1 1012-1507 ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.50 		8-97326-913-0 02 1 1508- ● ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.40 		8-97326-914-0 01 1 1012-1507 ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.40 		8-97326-914-0 01 1 1508- ● ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.35 		8-97326-915-0 01 1 1012-1507 ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.35 		8-97326-915-0 01 1 1508- ● ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.30 		8-97326-916-0 01 1 1012-1507 ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.30 		8-97326-916-0 01 1 1508- ● ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.25 		8-97326-917-0 01 1 1012-1507 ●
42 04.520 SHIM; IDLE SHAFT BRG
T=0.25 		8-97326-917-0 01 1 1508- ● ●
43 04.520 BEARING; ROLLER,IDLE SHAFT
(A) 		8-97326-919-0 01 1 1012-1507 ●
43 04.520 BEARING; ROLLER,IDLE SHAFT
(A) 		8-97326-919-0 01 1 1508- ● ●
43 04.520 BEARING; ROLLER,IDLE SHAFT
(B) 		8-97326-920-0 01 1 1012-1507 ●
43 04.520 BEARING; ROLLER,IDLE SHAFT
(B) 		8-97326-920-0 01 1 1508- ● ●
93 04.520 BALL; INPUT SHAFT 8-97328-680-0 01 1 1012-1507 ●
93 04.520 BALL; INPUT SHAFT 8-97328-680-0 01 1 1508- ● ●
355 04.520 WASHER; THRUST,INPUT SHAFT 8-97326-942-0 01 1 1012-1507 ●
355 04.520 WASHER; THRUST,INPUT SHAFT 8-97326-942-0 01 1 1508- ● ●
