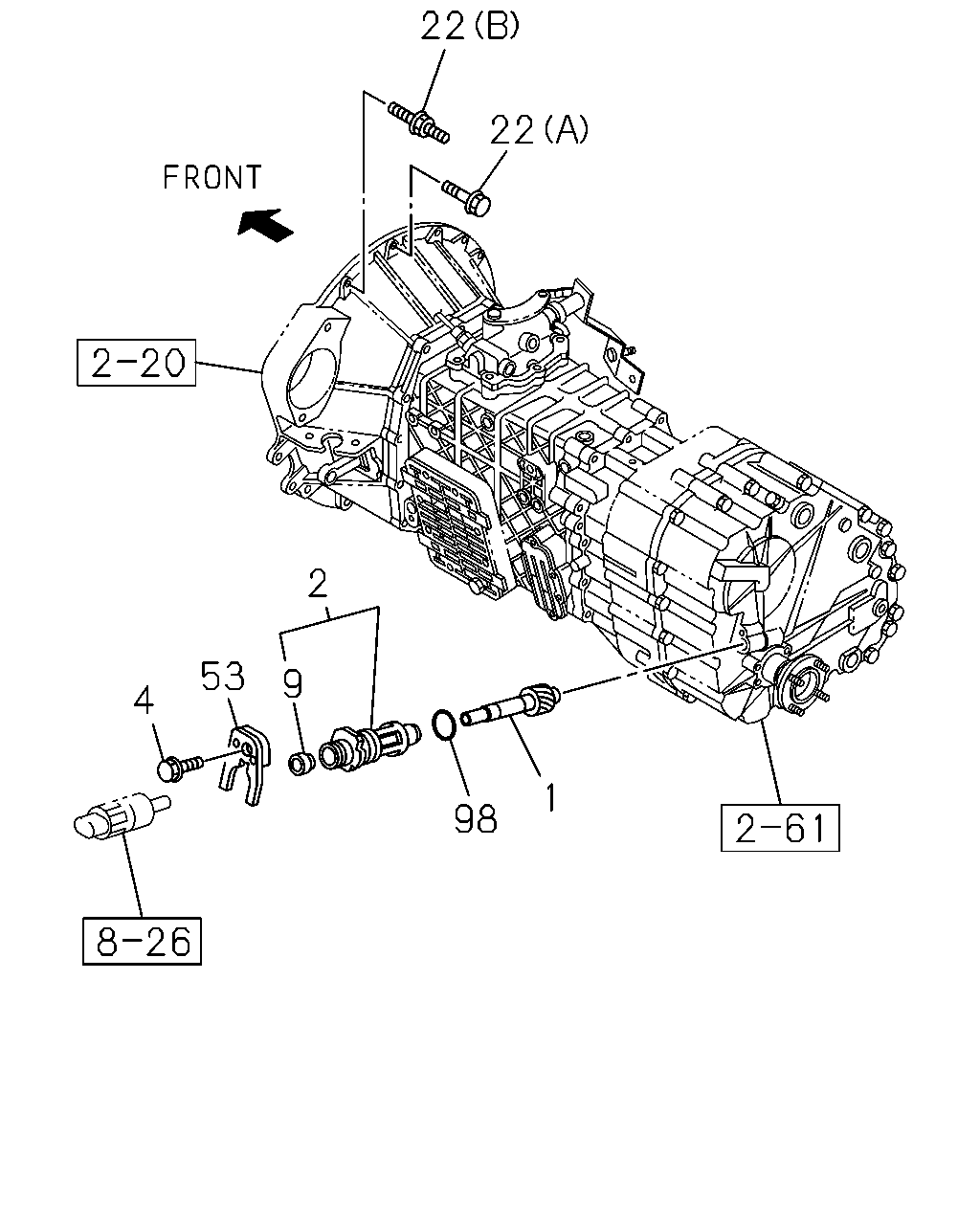

2-25 — SPEEDOMETER DRIVEN GEAR (#49005) — 32 parça

22 22 2 9 98 1 53 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) Z=14	8-97253-561-1	01	1	1012-1406	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) Z=14	8-97253-561-1	01	1	1407-1507	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) Z=14	8-97253-561-1	01	1	1508-	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) Z=13	8-97253-562-1	01	1	1012-1406	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) Z=13	8-97253-562-1	01	1	1407-1507	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) Z=13	8-97253-562-1	01	1	1508-	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/7(R42) Z=15	8-97253-560-1	01	1	1012-1406	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/7(R42) EXC. TACHOGRAPH 140KM/H<SM8> Z=15	8-97253-560-1	01	1	1407-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	1012-1507	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	1508-	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-1406	●
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1407-1507	●
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1508-	●	●
9	04.338 SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	1012-1507	●
9	04.338 SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	1508-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 09.171 (A) M10X30 FLANGE	0-28151-030-0	04	1	1302-1507	●
22	00.685 BOLT; TRANS CASE TO ENG 09.171 (A) M10X30 FLANGE	0-28151-030-0	04	1	1508-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 03.670 (A) M10X35 FLANGE	0-28151-035-0	01	1	1012-1301	●
22	00.685 BOLT; TRANS CASE TO ENG 03.670 (A) M10X35 FLANGE	0-28151-035-0	01	1	1302-1302	●
22	00.685 BOLT; TRANS CASE TO ENG 03.670 (A) M10X35 FLANGE	0-28151-035-0	01	1	1302-1302	●
22	00.685 BOLT; TRANS CASE TO ENG 03.670 (A) M10X35 FLANGE	0-28151-035-0	01	1	1302-1507	●
22	00.685 BOLT; TRANS CASE TO ENG 03.670 (A) M10X35 FLANGE	0-28151-035-0	01	1	1508-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 09.171 (A) M10X30 FLANGE	0-28151-030-0	02	1	1012-1301	●
22	00.685 BOLT; TRANS CASE TO ENG 09.171 (A) M10X30 FLANGE	0-28151-030-0	02	1	1012-1301	●
22	00.685 BOLT; TRANS CASE TO ENG 02.042 (A) M10X50 FLANGE	0-28151-050-0	02	1	1012-1507	●
22	00.685 BOLT; TRANS CASE TO ENG 02.042 (A) M10X50 FLANGE	0-28151-050-0	02	1	1508-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (B) M10X35 L=65	8-97178-725-0	02	1	1012-1507	●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (B) M10X35 L=65	8-97178-725-0	02	1	1508-	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1012-1507	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1508-	●	●
98	04.338 SEAL; OIL,BUSH 04.439	9-09561-324-0	01	1	1012-1507	●
98	04.338 SEAL; OIL,BUSH 04.439	9-09561-324-0	01	1	1508-	●	●
