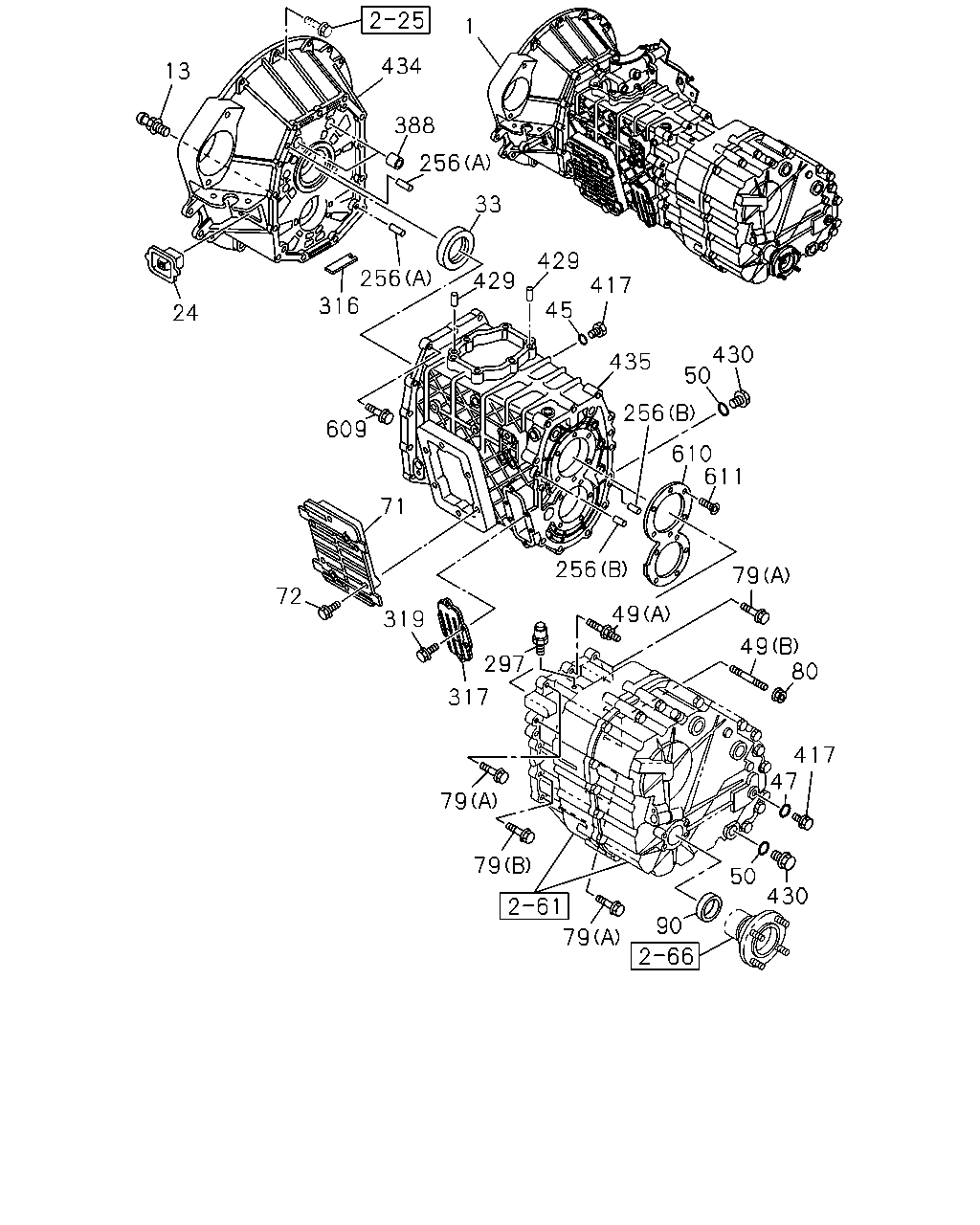

2-20 — MANUAL TRANSMISSION ASM AND CASE (#49004) — 35 parça

13 434 388 256 33 429 256 316 24 429 5 417 435 50 430 256 610 611 79 49 80 609 71 72 319 317 79 79 79 90 256 1 297 49 417 47 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ)	8-98067-692-0	01	1	1012-
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH)	8-98105-790-0	01	1	1012-1106
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH)	8-98187-421-0	01	1	1107-
13	04.302 SUPPORT; SHIFT FORK 4HK1-TCN ENG(RDQ)	8-97255-385-1	01	1	1012-
13	04.302 SUPPORT; SHIFT FORK 4HG1 ENG(RJH)	8-97255-384-1	01	1	1012-
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1012-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 04.105 ID=17	8-97115-712-0	01	1	1012-
49	04.510 STUD; TRANSFER CASE 03.275 (B) M10X35 L=50	0-44011-035-0	02	1	1012-
49	04.510 STUD; TRANSFER CASE (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	1012-1405
49	04.510 STUD; TRANSFER CASE (A) M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	03	1	1012-
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	1012-
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1012-
79	04.510 BOLT; TRANSFER CASE 09.171 (A) M10X40 FLANGE	0-28151-040-0	08	1	1012-1405
79	04.510 BOLT; TRANSFER CASE 09.171 (A) M10X40 FLANGE	0-28151-040-0	07	1	1406-
79	04.510 BOLT; TRANSFER CASE (B) M10X40 FLANGE	8-97365-377-0	02	1	1012-
80	04.510 NUT; TRANSFER CASE 04.085 M10 FLANGE	0-91180-210-0	02	1	1012-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1012-
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1012-
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1012-
297	04.104 BREATHER; AIR,TRANSFER CASE	8-98031-520-0	01	1	1012-
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1012-
317	04.109 COVER; CASE	8-97252-626-0	01	1	1012-
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1012-
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1012-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	02	1	1012-
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1012-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	03	1	1012-
434	00.683 HOUSING; CLU	8-97310-346-4	01	1	1012-
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1012-
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1012-
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1012-
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
