6-03 — RADIATOR GRILLE (#4900) — 78 parça

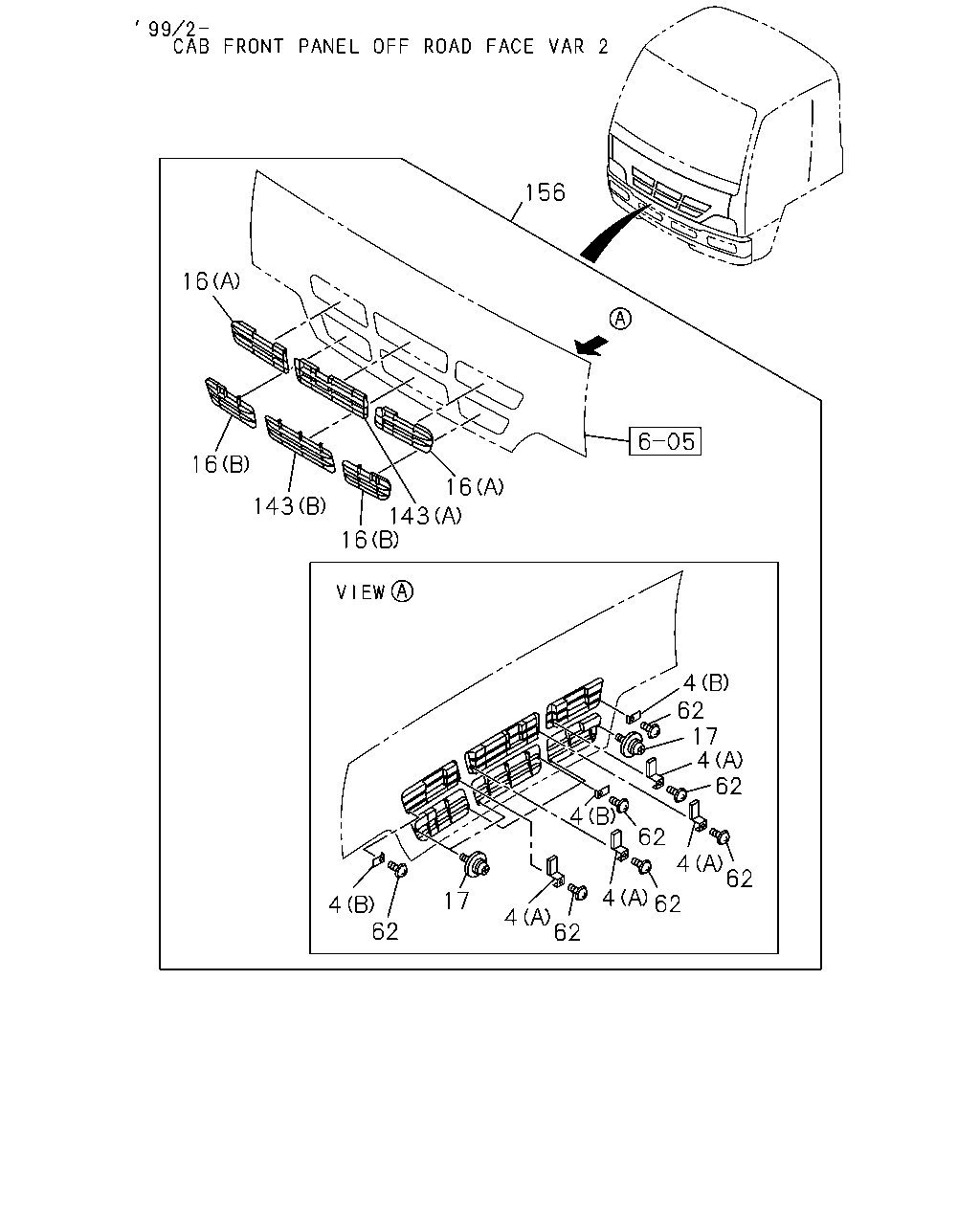

156 16 16 16 143 16 143 4 62 17 4 62 4 62 4 62 4 62 17 4 62 4 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	BRACKET; RAD GRILLE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)	1-71117-239-1	04	1	9902-	●	●
4	BRACKET; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)	1-71117-240-1	04	1	9902-9904	●	●
4	BRACKET; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)	1-71117-240-1	04	1	9905-	●	●	●
4	BRACKET; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71117-241-1	05	1	9902-9904	●	●
4	BRACKET; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71117-241-1	05	1	9905-	●	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER	1-71117-232-5	01	1	9902-	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER	1-71117-234-4	01	1	9902-	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER	1-71117-231-5	01	1	9902-	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER	1-71117-233-4	01	1	9902-	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-226-3	01	1	9902-9904	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-226-3	01	1	9905-	●	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-228-3	01	1	9902-9904	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-228-3	01	1	9905-	●	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-225-3	01	1	9902-9904	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-225-3	01	1	9905-	●	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-227-3	01	1	9902-9904	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-227-3	01	1	9905-	●	●	●
17	SCREW; RAD GRILLE CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5 TAPPING	1-71117-238-1	12	1	9902-	●	●
17	SCREW; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 TAPPING	1-71117-238-1	03	1	9902-9904	●	●
17	SCREW; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 TAPPING	1-71117-238-1	03	1	9905-	●	●	●
62	SCREW; BRKT,RAD GRILLE CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5 TAPPING W/PL WASHER	1-09981-539-0	04	1	9902-	●	●
62	SCREW; BRKT,RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 TAPPING W/PL WASHER	1-09981-539-0	09	1	9902-9904	●	●
62	SCREW; BRKT,RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 TAPPING W/PL WASHER	1-09981-539-0	09	1	9905-	●	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER	1-71117-229-3	02	1	9902-	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER	1-71117-230-4	02	1	9902-	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-223-3	01	1	9902-9904	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-223-3	01	1	9905-	●	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-224-3	01	1	9902-9904	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-224-3	01	1	9905-	●	●	●
156	GRILLE KIT; RAD CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71117-246-2	01	1	9902-	●	●
156	GRILLE KIT; RAD CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71117-245-0	01	1	9902-9904	●	●
156	GRILLE KIT; RAD CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71117-245-0	01	1	9905-	●	●	●

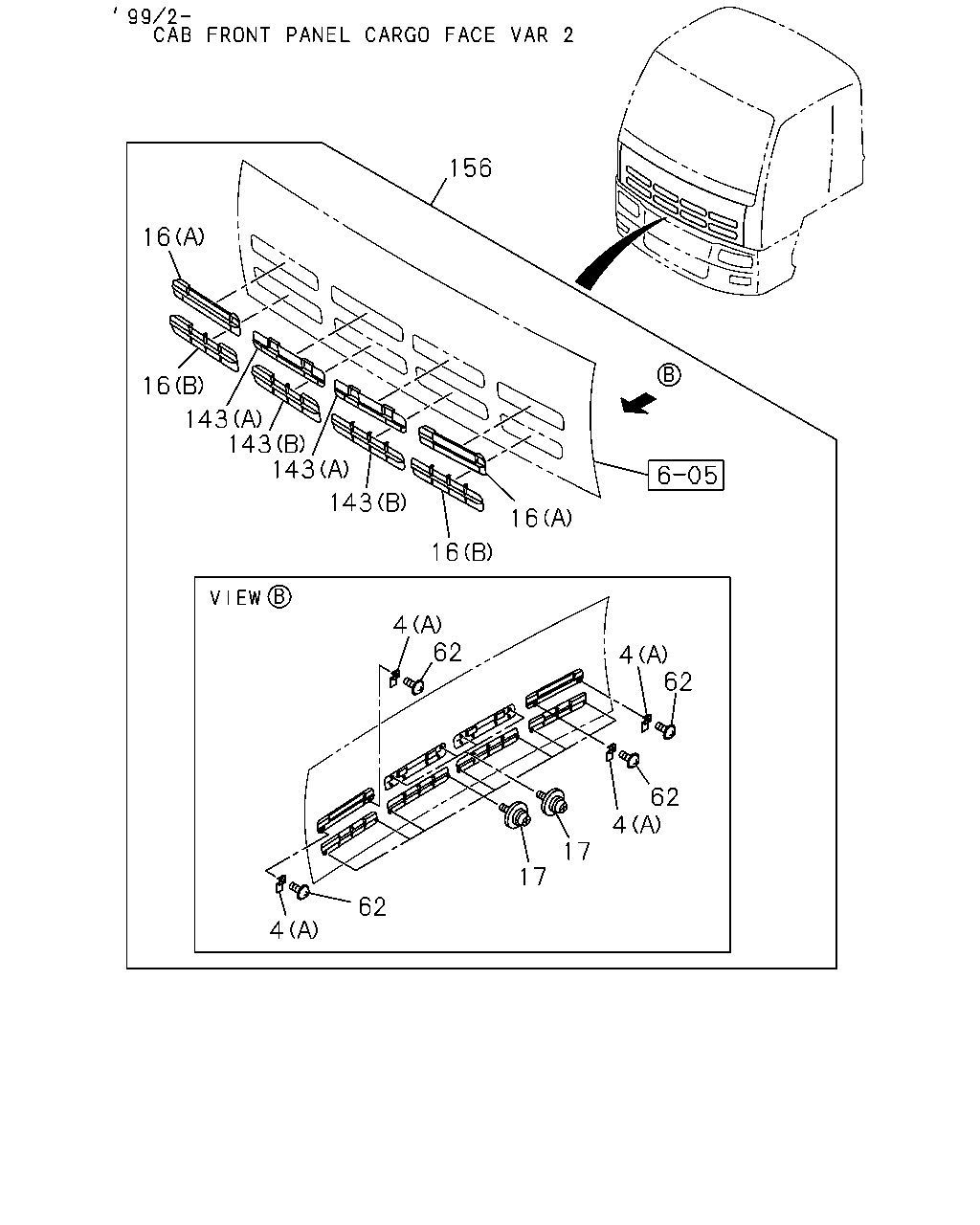

156 16 16 143 143 143 143 16 16 4 62 4 62 62 4 17 17 62 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	BRACKET; RAD GRILLE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)	1-71117-239-1	04	1	9902-	●	●
4	BRACKET; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)	1-71117-240-1	04	1	9902-9904	●	●
4	BRACKET; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A)	1-71117-240-1	04	1	9905-	●	●	●
4	BRACKET; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71117-241-1	05	1	9902-9904	●	●
4	BRACKET; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71117-241-1	05	1	9905-	●	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER	1-71117-232-5	01	1	9902-	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER	1-71117-234-4	01	1	9902-	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER	1-71117-231-5	01	1	9902-	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER	1-71117-233-4	01	1	9902-	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-226-3	01	1	9902-9904	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-226-3	01	1	9905-	●	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-228-3	01	1	9902-9904	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-228-3	01	1	9905-	●	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-225-3	01	1	9902-9904	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-225-3	01	1	9905-	●	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-227-3	01	1	9902-9904	●	●
16	GRILLE; RAD,SIDE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-227-3	01	1	9905-	●	●	●
17	SCREW; RAD GRILLE CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5 TAPPING	1-71117-238-1	12	1	9902-	●	●
17	SCREW; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 TAPPING	1-71117-238-1	03	1	9902-9904	●	●
17	SCREW; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 TAPPING	1-71117-238-1	03	1	9905-	●	●	●
62	SCREW; BRKT,RAD GRILLE CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5 TAPPING W/PL WASHER	1-09981-539-0	04	1	9902-	●	●
62	SCREW; BRKT,RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 TAPPING W/PL WASHER	1-09981-539-0	09	1	9902-9904	●	●
62	SCREW; BRKT,RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 TAPPING W/PL WASHER	1-09981-539-0	09	1	9905-	●	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER	1-71117-229-3	02	1	9902-	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER	1-71117-230-4	02	1	9902-	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-223-3	01	1	9902-9904	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) UPPER	1-71117-223-3	01	1	9905-	●	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-224-3	01	1	9902-9904	●	●
143	GRILLE; RAD,CENTER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) LOWER	1-71117-224-3	01	1	9905-	●	●	●
156	GRILLE KIT; RAD CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71117-246-2	01	1	9902-	●	●
156	GRILLE KIT; RAD CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71117-245-0	01	1	9902-9904	●	●
156	GRILLE KIT; RAD CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71117-245-0	01	1	9905-	●	●	●

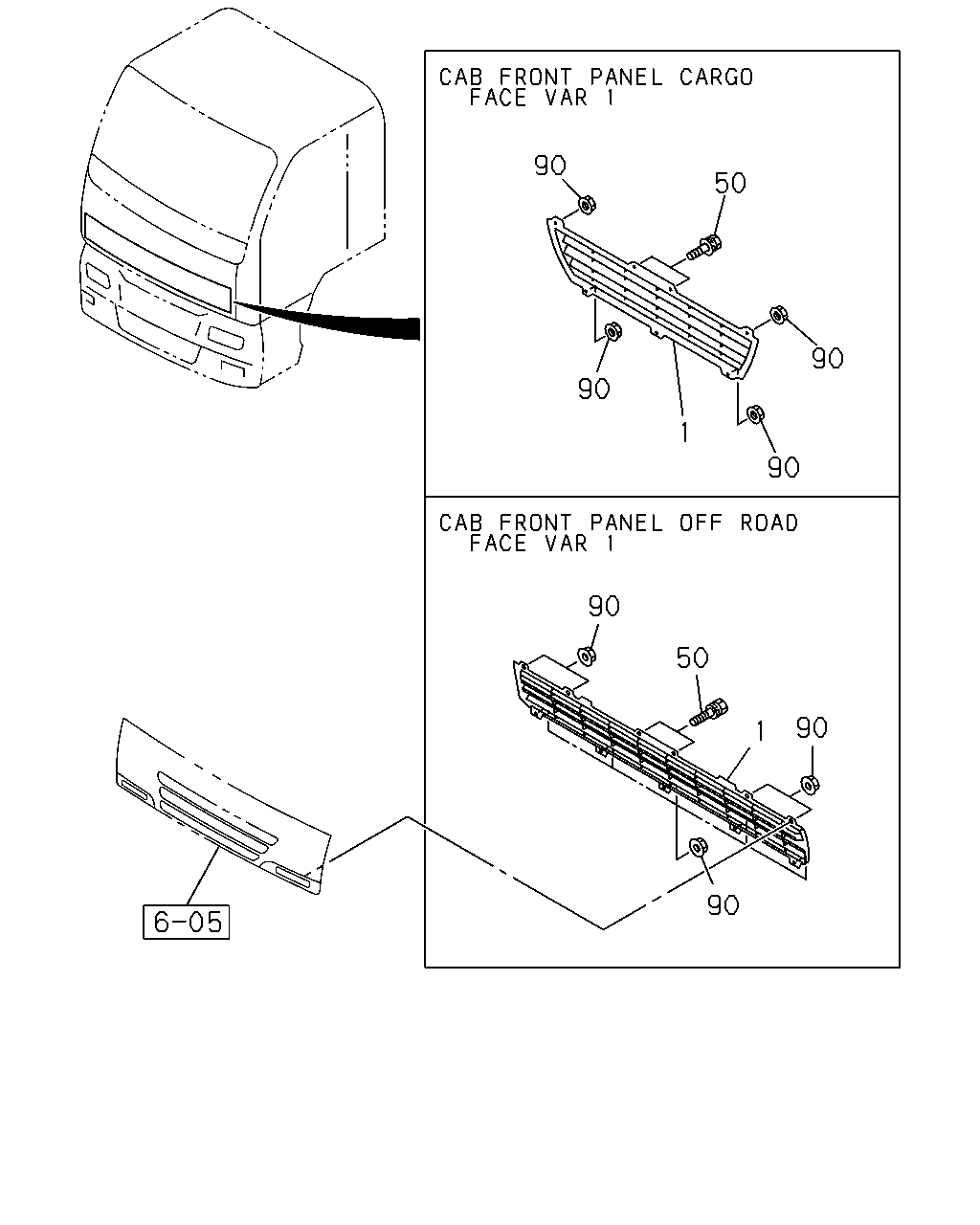

90 50 90 90 1 90 90 50 90 1 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GRILLE; RAD EXC. BUMPER W/HEADLAMPS<SLB>	1-71117-182-2	01	1	9603-9901	●	●	●
1	GRILLE; RAD CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71117-182-2	01	1	9902-9904	●	●
1	GRILLE; RAD CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71117-182-2	01	1	9905-	●	●	●
1	GRILLE; RAD BUMPER W/HEADLAMPS<SLB>	1-71117-181-3	01	1	9603-9610	●	●
1	GRILLE; RAD BUMPER W/HEADLAMPS<SLB>	1-71117-244-0	01	1	9611-9901	●	●
1	GRILLE; RAD CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71117-244-0	01	1	9902-	●	●
50	BOLT; GRILLE M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9901	●	●	●
50	BOLT; GRILLE CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●	●
50	BOLT; GRILLE CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●
90	NUT; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6 CAP NUT W/PL WASHER	1-65471-734-0	09	1	9603-9901	●	●	●
90	NUT; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> M6 CAP NUT W/PL WASHER	1-65471-734-0	09	1	9902-9904	●	●
90	NUT; RAD GRILLE CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> M6 CAP NUT W/PL WASHER	1-65471-734-0	09	1	9905-	●	●	●
90	NUT; RAD GRILLE BUMPER W/HEADLAMPS<SLB> M6 CAP NUT W/PL WASHER	1-65471-734-0	13	1	9603-9901	●	●
90	NUT; RAD GRILLE CAB FRT PANEL CARGO FACE VAR 1<NBH> M6 CAP NUT W/PL WASHER	1-65471-734-0	13	1	9902-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
