Sayfa 2-07 - Isuzu EPC

2-07 — CLUTCH BOOSTER; MINIPACK (#490) — 215 parça

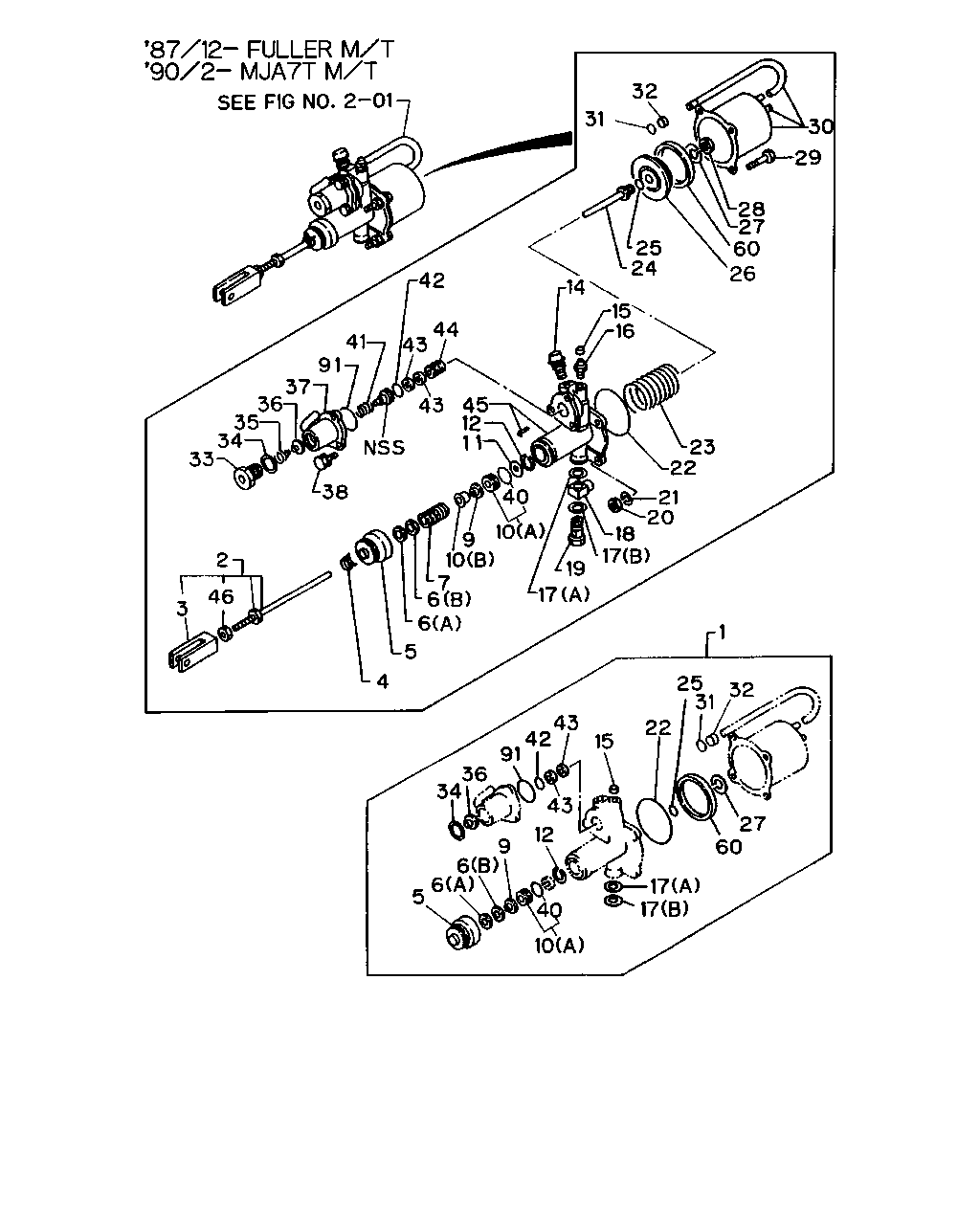

32 31 30 29 28 27 60 26 25 24 14 15 16 23 22 21 20 18 17 19 17 1 32 25 31 22 27 60 17 17 40 10 5 6 6 9 12 43 15 43 42 91 36 34 4 5 6 6 7 10 9 10 40 11 12 45 44 42 43 43 41 91 37 36 35 34 33 38 2 46 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	REPAIR KIT; CLU BOOSTER	1-31829-253-0	01	1	8902-9001	●
1	REPAIR KIT; CLU BOOSTER	1-31829-326-0	01	1	9002-		●
1	REPAIR KIT; CLU BOOSTER	1-31829-183-0	01	1	8712-9006			●	●	●	●
1	REPAIR KIT; CLU BOOSTER	1-85579-013-0	01	1	9007-			●	●	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-025-0	01	1	8902-9001	●
2	ROD; PUSH,CLU BOOSTER	1-31824-147-0	01	1	9002-9306		●
2	ROD; PUSH,CLU BOOSTER	1-31824-163-0	01	1	9307-		●
2	ROD; PUSH,CLU BOOSTER	1-31824-066-0	01	1	8712-			●	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	8902-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-189-0	01	1	8712-			●	●	●	●
4	CLAMP; BOOSTER	1-31829-063-0	01	1	8902-9001	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	8712-		●	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-062-0	01	1	8902-9001	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	8712-		●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-055-0	01	1	8712-	●	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-056-0	01	1	8712-	●	●	●	●	●	●
7	PISTON; CLU BOOSTER	1-31821-011-0	01	1	8902-9001	●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	8712-		●	●	●	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	8712-	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-107-0	01	1	8712-		●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-108-0	01	1	8712-		●	●	●	●	●
11	WASHER; PISTON,CLU BOOSTER	1-47819-031-0	01	1	8902-9001	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	8712-		●	●	●	●	●
12	RING; RET,CLU BOOSTER	9-83325-024-0	01	1	8902-9001	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9002-		●	●	●		●
12	RING; RET,CLU BOOSTER	9-83315-315-0	01	1	8712-9001				●	●
14	COVER; EXH,CLU BOOSTER	1-31829-059-0	01	1	8902-9001	●
14	COVER; EXH,CLU BOOSTER	1-31829-102-0	01	1	8712-		●	●	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	8712-	●	●	●	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	8712-	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-83331-206-0	01	1	8902-9001	●
17	GASKET; CONN,CLU BOOSTER (B)	9-83331-207-0	01	1	8902-9001	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	8712-		●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	8712-		●	●	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	9-83335-059-0	01	1	8902-9001	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9002-		●	●	●		●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-181-0	01	1	8712-9001				●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	8712-	●	●	●	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-88510-051-0	04	1	8902-9001	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	9002-		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	8712-			●	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER	9-48259-051-0	04	1	8902-9001	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	9002-		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	8712-			●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	8902-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	8712-			●	●	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-079-0	01	1	8902-9001	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-110-0	01	1	8712-		●	●	●	●	●
24	ROD; PUSH,CLU BOOSTER	1-31824-101-0	01	1	8902-9001	●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	8712-		●	●	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	8712-	●	●	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-007-0	01	1	8902-9001	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-017-0	01	1	9002-		●
26	PISTON; SHELL,CLU BOOSTER	1-31821-017-0	01	1	8712-9001				●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	9002-			●	●		●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	8712-	●	●	●	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	8712-	●	●	●	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	8902-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	8712-			●	●	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-010-0	01	1	8902-9001	●
30	SHELL; CYL,CLU BOOSTER	1-31811-061-0	01	1	9002-		●
30	SHELL; CYL,CLU BOOSTER	1-31811-026-0	01	1	8712-			●	●	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-057-0	01	1	8902-9001	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	9002-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	8712-			●	●	●	●
32	BUSHING; SHELL,CLU BOOSTER	9-83315-055-0	01	1	8902-9001	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	9002-		●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	8712-			●	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-017-0	01	1	8902-9001	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	8712-		●	●	●	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	8712-	●	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	8712-	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	8712-	●	●	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-012-0	01	1	8902-9001	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-053-0	01	1	9002-		●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-018-0	01	1	8712-9007			●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-014-0	01	1	9008-			●	●		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9002-		●	●	●		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	03	1	8712-9001				●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	05	1	8902-9001	●
40	GASKET; PISTON,CLU BOOSTER	9-83335-053-0	01	1	8902-9001	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	8712-		●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-078-0	01	1	8902-9001	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	9002-9306		●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-422-0	01	1	9307-		●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	8712-9601			●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	9602-			●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-061-0	01	1	8902-9001	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	9002-		●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	8712-			●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	8712-9007	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9008-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-083-0	02	1	9008-			●	●		●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-009-0	01	1	8902-9001	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	9002-		●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-019-0	01	1	8712-9007			●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-030-0	01	1	9008-			●	●		●
45	PLATE; END,CLU BOOSTER	1-31829-250-0	01	1	8902-9001	●
45	PLATE; END,CLU BOOSTER	1-31811-060-0	01	1	9002-		●
45	PLATE; END,CLU BOOSTER	1-31811-019-0	01	1	8712-9007			●	●	●	●
45	PLATE; END,CLU BOOSTER	1-31811-064-0	01	1	9008-			●	●		●
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	01	1	9002-		●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	9002-			●	●		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-058-0	01	1	9002-		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-066-0	01	1	8712-			●	●	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	8712-		●	●	●	●	●

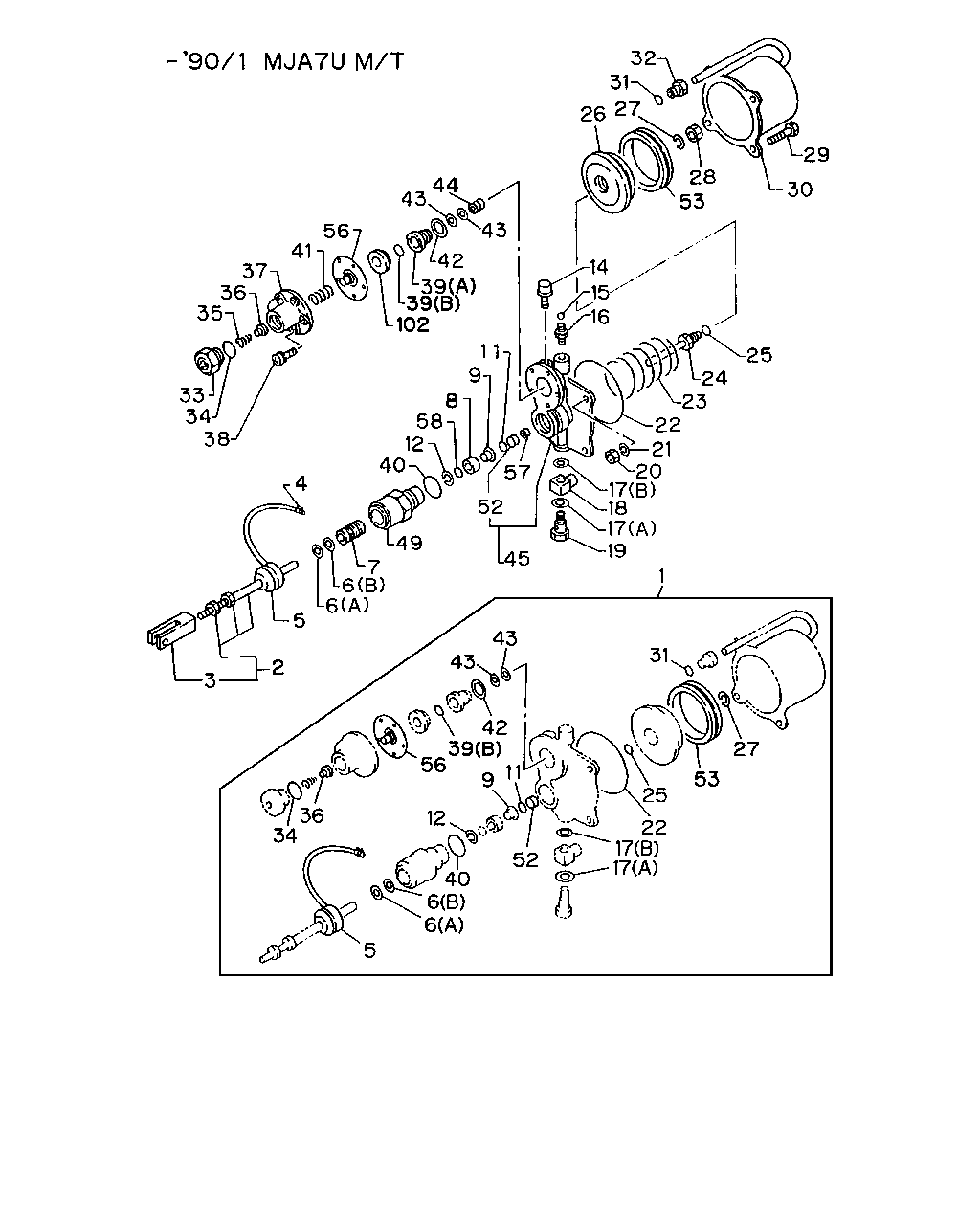

32 31 27 26 28 53 30 29 14 15 16 25 24 23 22 21 20 17 18 17 19 1 31 27 53 25 22 17 17 52 40 6 6 5 12 9 11 43 43 42 39 56 36 34 3 2 5 6 6 7 49 45 52 57 4 40 12 58 8 9 11 102 39 39 42 43 44 43 56 41 37 36 35 33 34 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	REPAIR KIT; CLU BOOSTER	1-31829-253-0	01	1	8902-9001	●
1	REPAIR KIT; CLU BOOSTER	1-31829-326-0	01	1	9002-		●
1	REPAIR KIT; CLU BOOSTER	1-31829-183-0	01	1	8712-9006			●	●	●	●
1	REPAIR KIT; CLU BOOSTER	1-85579-013-0	01	1	9007-			●	●	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-025-0	01	1	8902-9001	●
2	ROD; PUSH,CLU BOOSTER	1-31824-147-0	01	1	9002-9306		●
2	ROD; PUSH,CLU BOOSTER	1-31824-163-0	01	1	9307-		●
2	ROD; PUSH,CLU BOOSTER	1-31824-066-0	01	1	8712-			●	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	8902-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-189-0	01	1	8712-			●	●	●	●
4	CLAMP; BOOSTER	1-31829-063-0	01	1	8902-9001	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	8712-		●	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-062-0	01	1	8902-9001	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	8712-		●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-055-0	01	1	8712-	●	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-056-0	01	1	8712-	●	●	●	●	●	●
7	PISTON; CLU BOOSTER	1-31821-011-0	01	1	8902-9001	●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	8712-		●	●	●	●	●
8	RETAINER; DIAPH	1-31829-252-0	01	1	8902-9001	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	8712-	●	●	●	●	●	●
11	WASHER; PISTON,CLU BOOSTER	1-47819-031-0	01	1	8902-9001	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	8712-		●	●	●	●	●
12	RING; RET,CLU BOOSTER	9-83325-024-0	01	1	8902-9001	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9002-		●	●	●		●
12	RING; RET,CLU BOOSTER	9-83315-315-0	01	1	8712-9001				●	●
14	COVER; EXH,CLU BOOSTER	1-31829-059-0	01	1	8902-9001	●
14	COVER; EXH,CLU BOOSTER	1-31829-102-0	01	1	8712-		●	●	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	8712-	●	●	●	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	8712-	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-83331-206-0	01	1	8902-9001	●
17	GASKET; CONN,CLU BOOSTER (B)	9-83331-207-0	01	1	8902-9001	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	8712-		●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	8712-		●	●	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	9-83335-059-0	01	1	8902-9001	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9002-		●	●	●		●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-181-0	01	1	8712-9001				●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	8712-	●	●	●	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-88510-051-0	04	1	8902-9001	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	9002-		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	8712-			●	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER	9-48259-051-0	04	1	8902-9001	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	9002-		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	8712-			●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	8902-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	8712-			●	●	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-079-0	01	1	8902-9001	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-110-0	01	1	8712-		●	●	●	●	●
24	ROD; PUSH,CLU BOOSTER	1-31824-101-0	01	1	8902-9001	●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	8712-		●	●	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	8712-	●	●	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-007-0	01	1	8902-9001	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-017-0	01	1	9002-		●
26	PISTON; SHELL,CLU BOOSTER	1-31821-017-0	01	1	8712-9001				●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	9002-			●	●		●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	8712-	●	●	●	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	8712-	●	●	●	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	8902-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	8712-			●	●	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-010-0	01	1	8902-9001	●
30	SHELL; CYL,CLU BOOSTER	1-31811-061-0	01	1	9002-		●
30	SHELL; CYL,CLU BOOSTER	1-31811-026-0	01	1	8712-			●	●	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-057-0	01	1	8902-9001	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	9002-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	8712-			●	●	●	●
32	BUSHING; SHELL,CLU BOOSTER	9-83315-055-0	01	1	8902-9001	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	9002-		●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	8712-			●	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-017-0	01	1	8902-9001	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	8712-		●	●	●	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	8712-	●	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	8712-	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	8712-	●	●	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-012-0	01	1	8902-9001	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-053-0	01	1	9002-		●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-018-0	01	1	8712-9007			●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-014-0	01	1	9008-			●	●		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9002-		●	●	●		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	03	1	8712-9001				●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	05	1	8902-9001	●
39	FITTING; POPPET VLV,CLU BOOSTER (B)	1-46366-111-0	01	1	8902-9001	●
39	FITTING; POPPET VLV,CLU BOOSTER (A)	9-83315-101-0	01	1	8902-9001	●
40	GASKET; PISTON,CLU BOOSTER	9-83335-053-0	01	1	8902-9001	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	8712-		●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-078-0	01	1	8902-9001	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	9002-9306		●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-422-0	01	1	9307-		●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	8712-9601			●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	9602-			●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-061-0	01	1	8902-9001	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	9002-		●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	8712-			●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	8712-9007	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9008-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-083-0	02	1	9008-			●	●		●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-009-0	01	1	8902-9001	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	9002-		●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-019-0	01	1	8712-9007			●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-030-0	01	1	9008-			●	●		●
45	PLATE; END,CLU BOOSTER	1-31829-250-0	01	1	8902-9001	●
45	PLATE; END,CLU BOOSTER	1-31811-060-0	01	1	9002-		●
45	PLATE; END,CLU BOOSTER	1-31811-019-0	01	1	8712-9007			●	●	●	●
45	PLATE; END,CLU BOOSTER	1-31811-064-0	01	1	9008-			●	●		●
49	CYLINDER; CLU BOOSTER	1-31822-001-0	01	1	8902-9001	●
52	SEAL; OIL,END PLATE,CLU BOOSTER	1-47819-027-0	01	1	8902-9001	●
53	GASKET; LEATHER,CLU BOOSTER	1-31829-058-0	01	1	8902-9001	●
56	DIAPHRAGM; CLU BOOSTER	1-31829-067-0	01	1	8902-9001	●
57	SPACER; PISTON,CLU BOOSTER	1-31829-254-0	01	1	8902-9001	●
58	WASHER; PISTON,CLU BOOSTER	1-47819-028-0	01	1	8902-9001	●
102	PLATE; BOOSTER	1-31829-076-0	01	1	8902-9001	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
