2-05 — CLUTCH PIPING (#48999) — 51 parça

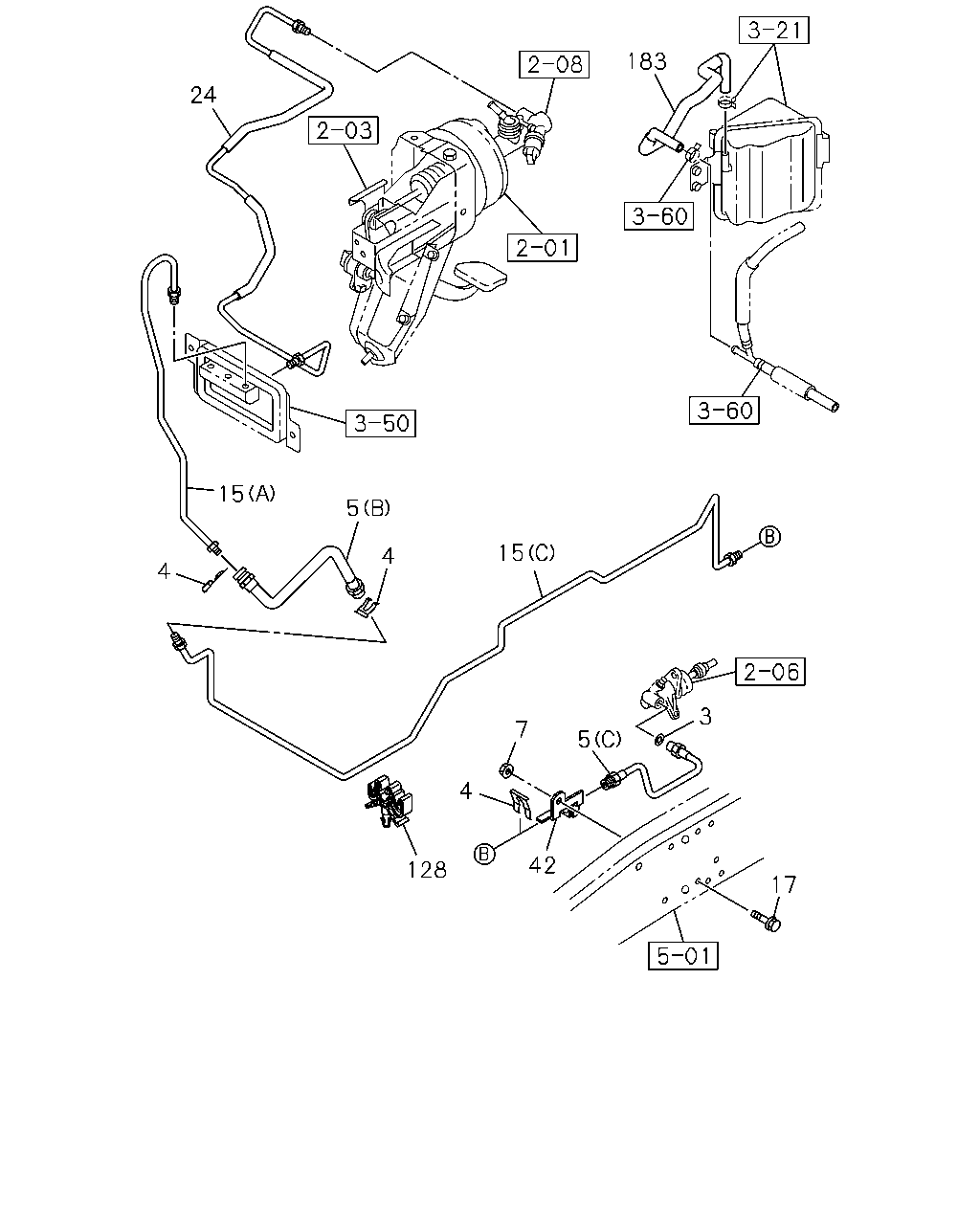

çizim 176127
24 183 15 5 15 4 128 42 3 7 4 5 17 4
BalonParca AdiParca NoAdetTipApplied Date
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012-
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH) 		9-09920-873-1 01 1 1012-
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 04.681 		8-97365-304-0 01 1 1012-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) (A) 		8-98077-611-2 01 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH) (C) 		8-97064-108-1 01 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) (B) 		8-98041-742-3 01 1 1012-
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH) (C) 		8-98100-236-0 01 1 1012-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97389-643-0 01 1 1012-1401
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98250-269-0 01 1 1402-
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-
17 00.785 BOLT; BRKT
4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97389-356-1 01 1 1012-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98077-617-0 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 		8-98100-943-1 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EXC. EURO2 SPECIFICATION(NT2) 		8-98082-472-2 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 		8-98102-893-0 01 1 1012-
128 00.785 CLIP; AIR PIPE
04.686 ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1012-
183 00.785 HOSE; VAC,VAC TANK SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-98017-169-1 01 1 1012-1012
183 00.785 HOSE; VAC,VAC TANK SIDE
4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 1012-1012
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 1101-

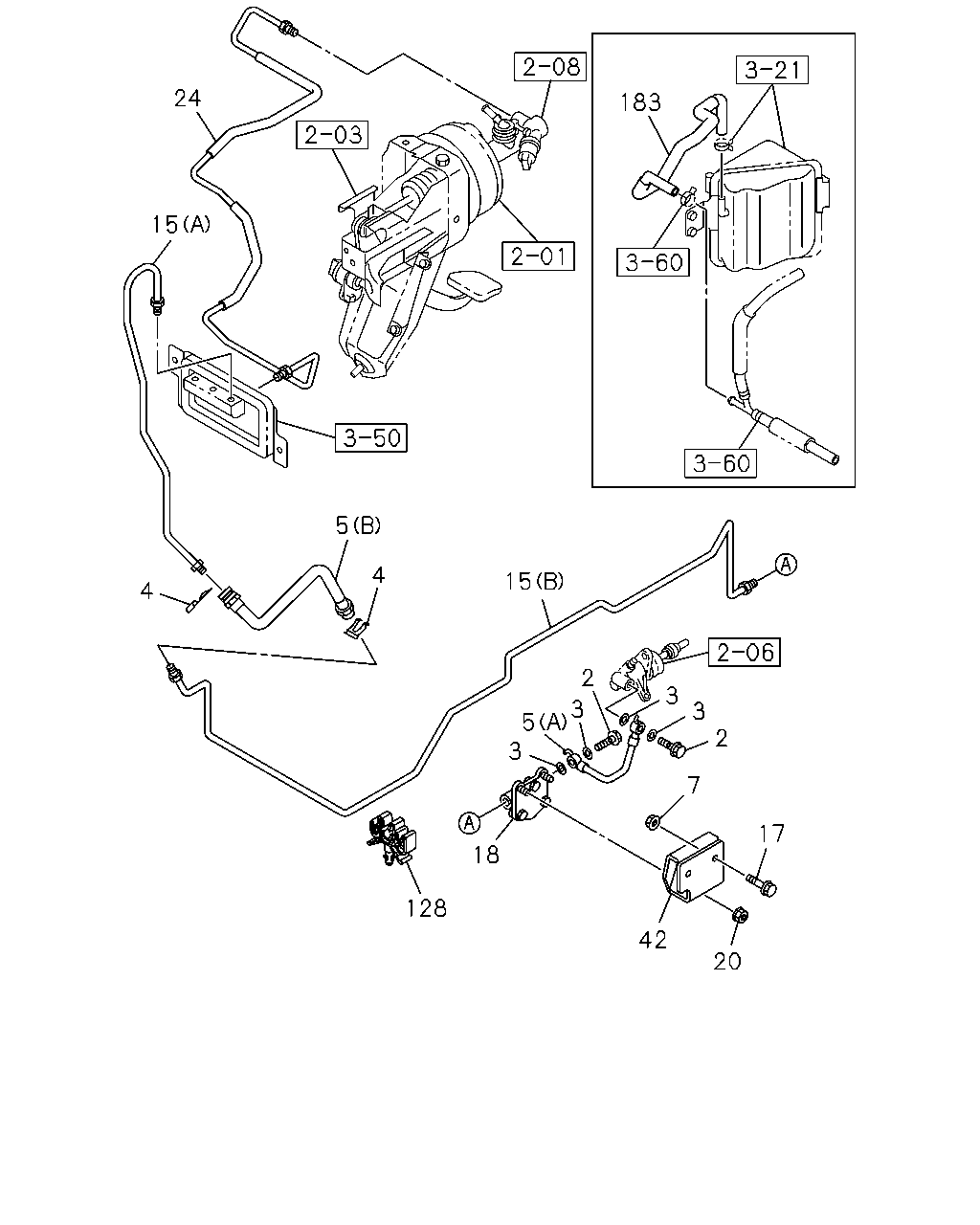

çizim 176129
24 15 5 4 4 15 2 3 3 2 17 20 42 18 128 183 5 3 3 7
BalonParca AdiParca NoAdetTipApplied Date
2 00.782 BOLT; EYE,SLAVE CYL
4HK1-TCN ENG(RDQ) 04.681 M10X22 		8-98014-005-0 02 1 1012-
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012-
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH) 		9-09920-873-1 01 1 1012-
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 04.681 		8-97365-304-0 01 1 1012-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) (A) 		8-98077-611-2 01 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH) (C) 		8-97064-108-1 01 1 1012-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) (B) 		8-98041-742-3 01 1 1012-
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH) (C) 		8-98100-236-0 01 1 1012-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97389-643-0 01 1 1012-1401
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98250-269-0 01 1 1402-
17 00.785 BOLT; BRKT
4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-
17 00.785 BOLT; BRKT
4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-
18 00.830 DAMPER ASM; CLU OIL
4HK1-TCN ENG(RDQ) 		8-98077-610-1 01 1 1012-
20 00.837 NUT; CLU OIL DAMPER
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97389-356-1 01 1 1012-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98077-617-0 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 		8-98100-943-1 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EXC. EURO2 SPECIFICATION(NT2) 		8-98082-472-2 01 1 1012-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1 ENG(RJH) 		8-98102-893-0 01 1 1012-
128 00.785 CLIP; AIR PIPE
04.686 ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1012-
183 00.785 HOSE; VAC,VAC TANK SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-98017-169-1 01 1 1012-1012
183 00.785 HOSE; VAC,VAC TANK SIDE
4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 1012-1012
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 1101-
