Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#48994) — 270 parça

1 38 319 2 36 44 84 25 1 88 8 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98082-540-0	01	1	1012-1507	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98082-540-0	01	1	1508-	●
1	03.609 PIPE; EXH (A)	8-98082-540-0	01	1	1508-		●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (B)	8-98082-542-0	01	1	1012-1507	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (B)	8-98082-542-0	01	1	1508-	●
1	03.609 PIPE; EXH (B)	8-98082-542-0	01	1	1508-		●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-98108-162-1	01	1	1012-1404	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-98216-284-0	01	1	1405-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (C)	8-98108-166-1	01	1	1012-	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1012-1507	●
2	03.611 GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1508-	●	●
8	03.704 BRACKET; EXH PIPE	8-98072-165-0	01	1	1012-1507	●
8	03.704 BRACKET; EXH PIPE	8-98072-165-0	01	1	1508-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98082-541-0	01	1	1012-1507	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98082-541-0	01	1	1508-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98082-541-0	01	1	1508-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-98108-165-1	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-		●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) 00.833 (C) M10	0-91110-510-0	01	1	1012-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-1507	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1508-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	1012-1507	●
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	1508-	●	●
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	1012-1507	●
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-1507	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-1507	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1507	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1508-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1508-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1508-	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1508-		●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●

611 116 112 1 2 36 44 1 44 84 319 25 8 36 38 34 17 167 237 611 616 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98082-540-0	01	1	1012-1507	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98082-540-0	01	1	1508-	●
1	03.609 PIPE; EXH (A)	8-98082-540-0	01	1	1508-		●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (B)	8-98082-542-0	01	1	1012-1507	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (B)	8-98082-542-0	01	1	1508-	●
1	03.609 PIPE; EXH (B)	8-98082-542-0	01	1	1508-		●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-98108-162-1	01	1	1012-1404	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-98216-284-0	01	1	1405-	●
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (C)	8-98108-166-1	01	1	1012-	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1012-1507	●
2	03.611 GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1508-	●	●
8	03.704 BRACKET; EXH PIPE	8-98072-165-0	01	1	1012-1507	●
8	03.704 BRACKET; EXH PIPE	8-98072-165-0	01	1	1508-	●	●
17	03.613 BOLT; EXH PIPE 4HG1 ENG(RJH) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98082-541-0	01	1	1012-1507	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-98082-541-0	01	1	1508-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98082-541-0	01	1	1508-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-98108-165-1	01	1	1012-	●
34	03.613 WASHER; EXH PIPE 4HG1 ENG(RJH) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-		●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) 00.833 (C) M10	0-91110-510-0	01	1	1012-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-1507	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1508-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	1012-1507	●
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	1508-	●	●
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	1012-1507	●
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-		●
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-98072-183-0	01	1	1012-	●
116	03.704 BOLT; BRKT 4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1012-1112	●
116	03.704 BOLT; BRKT 4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1201-	●
167	03.706 HANGER; EXH PIPE 4HG1 ENG(RJH)	8-98126-485-0	01	1	1012-	●
237	03.706 SPACER; EXH PIPE 4HG1 ENG(RJH) L=37.5	9-22151-217-0	01	1	1012-	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
513	03.704 NUT; INSULATOR 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	01	1	1012-	●
611	03.706 INSULATOR; HANGER 4HG1 ENG(RJH) 03.704 (A)	8-94457-277-1	01	1	1012-	●
611	03.706 INSULATOR; HANGER 4HG1 ENG(RJH) 03.704 (B)	8-94457-278-1	01	1	1012-	●
616	03.704 WASHER; INSULATOR 4HG1 ENG(RJH) OD=55	9-09852-169-0	01	1	1012-	●

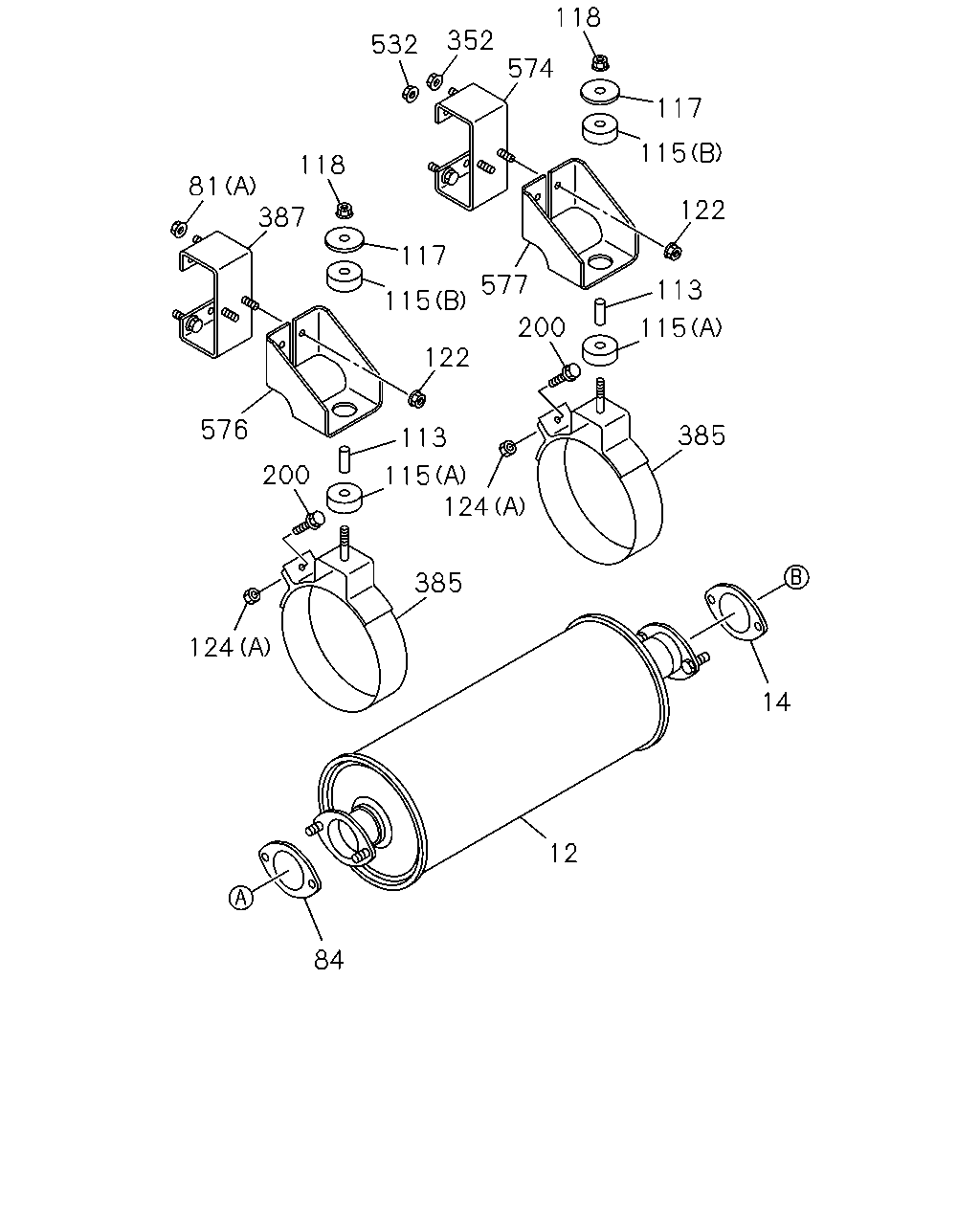

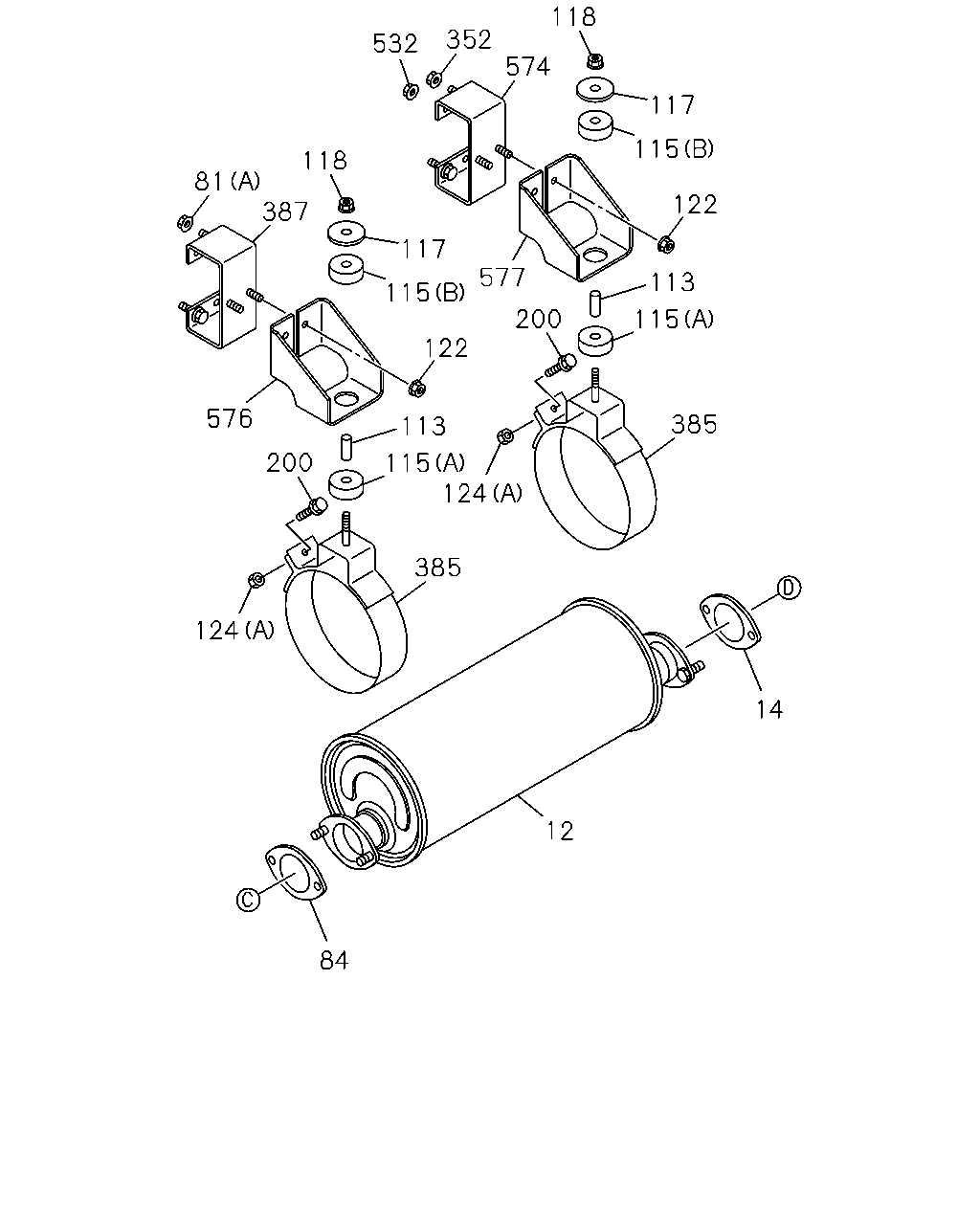

81 118 387 576 124 200 84 12 14 385 115 113 124 122 115 117 532 352 118 574 117 115 122 113 115 577 200 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1012-1507	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1508-	●
12	03.701 SILENCER ASM; EXH	8-98090-839-0	01	1	1508-		●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-98126-484-0	01	1	1012-	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1012-1507	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1508-	●	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1112	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1201-1507	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-1507	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1508-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1012-1507	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1508-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1012-1507	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1508-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-1507	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1508-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-1507	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1508-	●	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-1507	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1508-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-1507	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1508-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ)	8-97207-224-0	02	1	1012-1507	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ)	8-97207-224-0	02	1	1508-	●
385	03.704 BRACKET; SILENCER MTG	8-97207-224-0	02	1	1508-		●
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706	8-97076-020-0	02	1	1012-	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1012-1507	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1508-	●	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1012-1507	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1508-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1012-1507	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1508-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1012-1507	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1508-	●	●

94 162 104 137 126 88 165 95 125 70 97 137 81 144 94 143 36 3 105 357 88 164 166 124 329 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ)	8-97355-648-0	01	1	1012-1507	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ)	8-97355-648-0	01	1	1508-	●
3	03.609 PIPE; EXH,CENTER	8-97355-648-0	01	1	1508-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-		●
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) 00.833 (C) M10	0-91110-510-0	01	1	1012-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1012-1507	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1508-	●	●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1507	●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1112	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1201-1507	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-1507	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-1507	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1012-1507	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1508-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1508-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1508-	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1508-		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-1507	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1508-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-1507	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1508-	●	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1507	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1507	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1508-	●	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1012-1507	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1508-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-1507	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1508-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1012-1507	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1508-	●	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98082-543-0	01	1	1012-1507	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ)	8-98082-543-0	01	1	1508-	●
126	03.705 PIPE; EXH,RR	8-98082-543-0	01	1	1508-		●
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH)	8-98108-167-0	01	1	1012-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	1012-1507	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	1508-	●	●
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	1012-1507	●
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	1508-	●	●
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	1012-1507	●
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	1508-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1012-1507	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1508-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1012-1507	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1508-	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1012-1507	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1508-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1507	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1508-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-1507	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1508-	●	●

385 115 113 122 115 117 118 574 352 532 118 387 81 117 115 200 576 124 385 124 115 113 122 577 200 12 84 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1012-1507	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-98090-839-0	01	1	1508-	●
12	03.701 SILENCER ASM; EXH	8-98090-839-0	01	1	1508-		●
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-98126-484-0	01	1	1012-	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1012-1507	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1508-	●	●
81	03.704 NUT; BRKT 4HG1 ENG(RJH) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1112	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1201-1507	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1012-1507	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 ID=64.7	8-94328-352-0	01	1	1508-	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1508-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1012-1507	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1508-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1012-1507	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1508-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1012-1507	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1508-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-1507	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1508-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-1507	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1508-	●	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1012-1507	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	1508-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-1507	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1508-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ)	8-97207-224-0	02	1	1012-1507	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ)	8-97207-224-0	02	1	1508-	●
385	03.704 BRACKET; SILENCER MTG	8-97207-224-0	02	1	1508-		●
385	03.704 BRACKET; SILENCER MTG 4HG1 ENG(RJH) 03.706	8-97076-020-0	02	1	1012-	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1012-1507	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1508-	●	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-1507	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-	●	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1012-1507	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1508-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1012-1507	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	1508-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1012-1507	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
