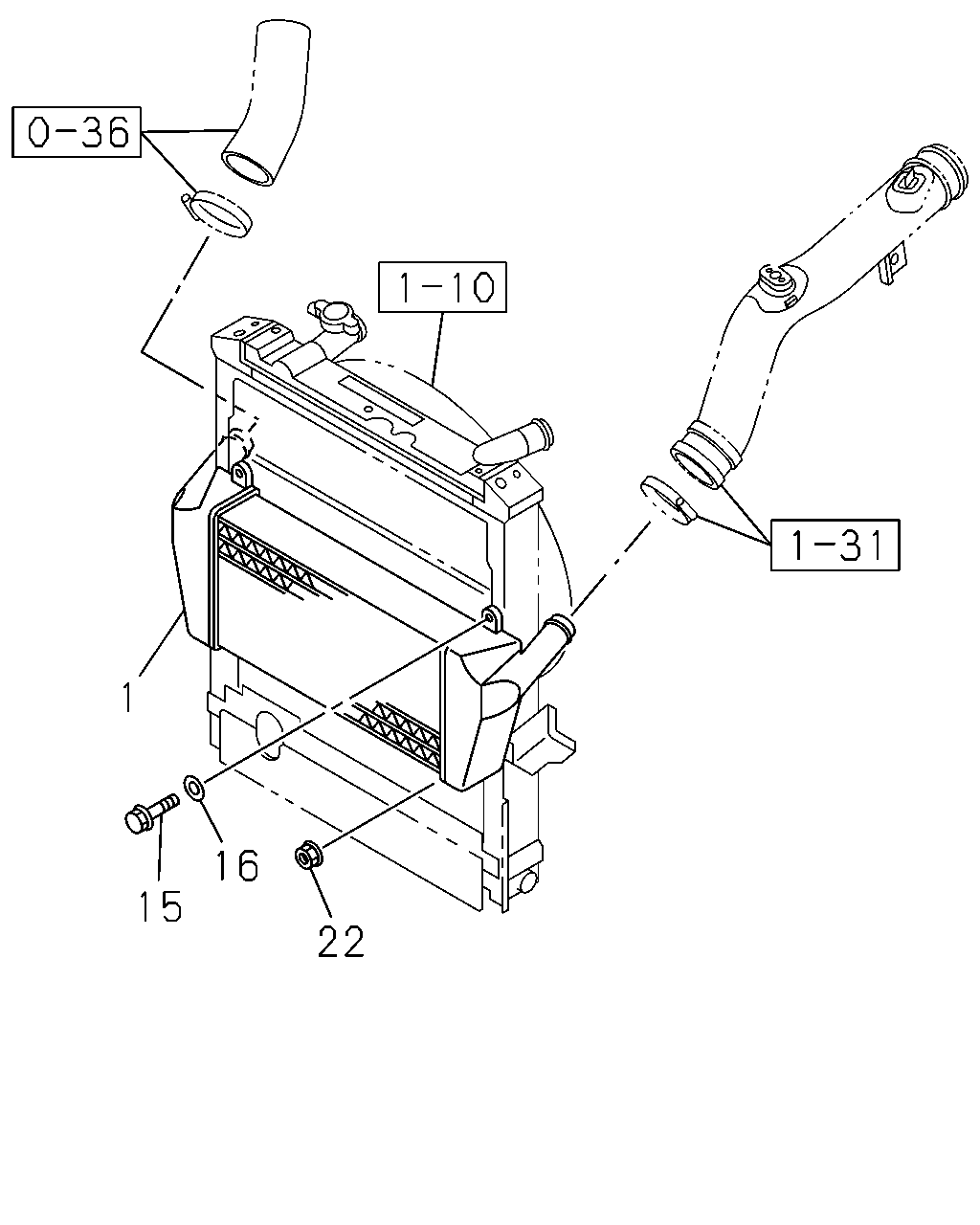

1-35 — CHARGE AIR COOLER
(#48990) — 12 parça
Tümü
A - NPS5SN
B - NPS5WN
1
15
16
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ)
8-98006-479-1
01
1
1012-1507
●
1
03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ)
8-98006-479-1
01
1
1508-
●
1
03.374 COOLER; CHARGE AIR
8-98006-479-1
01
1
1508-
●
15
03.374 BOLT; CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 03.275 M8X25 FLANGE
0-28050-825-0
02
1
1012-1507
●
15
03.374 BOLT; CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 03.275 M8X25 FLANGE
0-28050-825-0
02
1
1508-
●
15
03.374 BOLT; CHARGE AIR COOLER
03.275 M8X25 FLANGE
0-28050-825-0
02
1
1508-
●
16
03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 03.417 ID=8.4 OD=16
0-91610-508-0
02
1
1012-1507
●
16
03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 03.417 ID=8.4 OD=16
0-91610-508-0
02
1
1508-
●
16
03.374 WASHER; PL,CHARGE AIR COOLER
03.417 ID=8.4 OD=16
0-91610-508-0
02
1
1508-
●
22
03.374 NUT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE
0-91180-108-0
02
1
1012-1507
●
22
03.374 NUT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE
0-91180-108-0
02
1
1508-
●
22
03.374 NUT
01.062 M8 FLANGE
0-91180-108-0
02
1
1508-
●
