Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#48989) — 548 parça

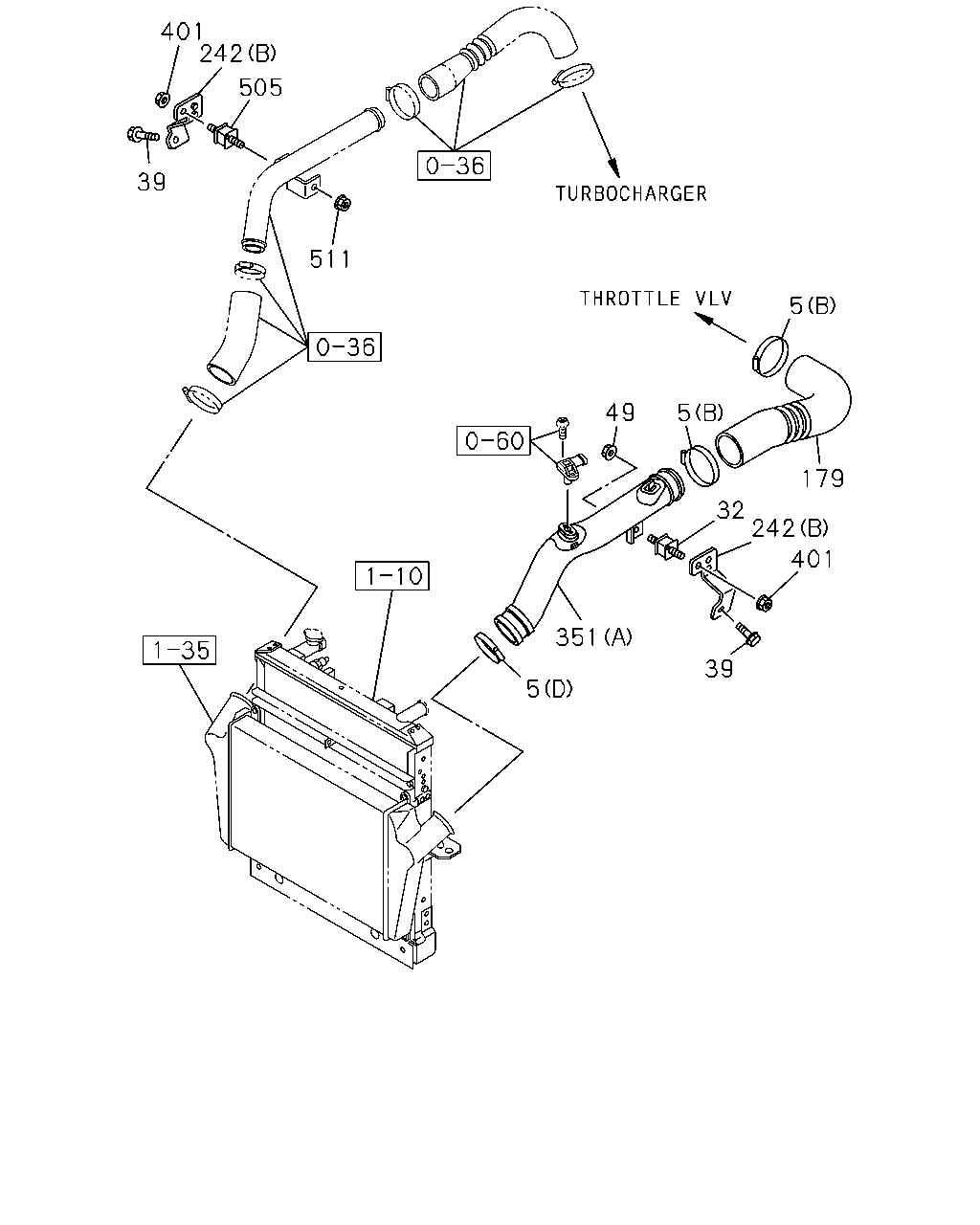

401 505 242 39 511 49 5 5 179 32 242 401 39 351 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (F) ID=55-75	8-98133-349-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=58-79	1-09707-136-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1508-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1508-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ)	8-98036-826-0	01	1	1012-1106		●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ)	8-97081-886-0	01	1	1107-1507		●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ)	8-97081-886-0	01	1	1508-		●
32	03.417 RUBBER; AIR DUCT MTG	8-97081-886-0	01	1	1508-	●
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1507		●
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-		●
39	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507		●
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98114-719-0	01	1	1012-1507		●
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98114-719-0	01	1	1508-		●
179	03.417 HOSE; AIR INT	8-98114-719-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (I)	8-98049-012-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-		●
351	03.407 DUCT; AIR (B)	8-98070-850-0	01	1	1508-	●
351	03.407 DUCT; AIR (C)	8-98070-863-1	01	1	1508-	●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) 03.417 (A)	8-98059-995-2	01	1	1012-1507		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) 03.417 (A)	8-98059-995-2	01	1	1508-		●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	1508-	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507		●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507		●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-98036-826-0	01	1	1012-1106		●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-97081-886-0	01	1	1107-1507		●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.417	8-97081-886-0	01	1	1508-		●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1508-	●
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507		●
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●

281 317 314 381 389 242 381 5 351 5 242 381 389 381 314 317 5 232 314 26 317 409 40 5 35 297 242 61 384 5 480 351 381 242 297 564 48 5 232 381 48 381 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (F) ID=55-75	8-98133-349-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=58-79	1-09707-136-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1508-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1508-	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1508-	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-1507		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1508-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1507		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1508-	●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
232	03.417 HOSE; CONN (E)	8-98094-582-2	01	1	1508-	●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-1507		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1508-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98049-012-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98061-757-2	01	1	1508-	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-1507		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-		●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
297	03.417 BOLT; DUCT 02.510 (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1508-	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-1507		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1508-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●	●
351	03.407 DUCT; AIR (B)	8-98070-850-0	01	1	1508-	●
351	03.407 DUCT; AIR (C)	8-98070-863-1	01	1	1508-	●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) 03.417 (A)	8-98059-995-2	01	1	1012-1507		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) 03.417 (A)	8-98059-995-2	01	1	1508-		●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	1508-	●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1508-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1507		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1508-	●	●
480	03.417 ADAPTER	8-98086-417-0	01	1	1508-	●
564	03.417 GASKET; ADAPTER	8-98071-416-0	01	1	1508-	●

563 287 232 287 242 409 40 26 5 35 61 317 314 389 242 381 389 381 64 381 242 389 242 381 381 314 317 281 314 317 5 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (F) ID=55-75	8-98133-349-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=58-79	1-09707-136-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1508-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1508-	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1508-	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-1507		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1508-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1507		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-		●
232	03.417 HOSE; CONN (E)	8-98094-582-2	01	1	1508-	●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-1507		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1508-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98049-012-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98061-757-2	01	1	1508-	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-1507		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85	8-98133-350-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90	8-98122-372-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1012-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-1507		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1508-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●	●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1508-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1507		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1508-	●	●
563	03.417 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98090-587-0	01	1	1012-1507		●
563	03.417 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98090-587-0	01	1	1508-		●
563	03.417 BRACKET; CLIP	8-98090-587-0	01	1	1508-	●

317 314 381 242 381 351 5 232 48 48 381 242 5 381 242 381 381 389 281 317 314 5 232 317 26 409 40 5 35 5 297 242 61 384 297 564 314 480 351 389 381 389 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (F) ID=55-75	8-98133-349-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=58-79	1-09707-136-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1508-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1508-	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1508-	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-1507		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1508-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1507		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1508-	●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
232	03.417 HOSE; CONN (E)	8-98094-582-2	01	1	1508-	●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-1507		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1508-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98049-012-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98061-757-2	01	1	1508-	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-1507		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-		●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
297	03.417 BOLT; DUCT 02.510 (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1508-	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-1507		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1508-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●	●
351	03.407 DUCT; AIR (B)	8-98070-850-0	01	1	1508-	●
351	03.407 DUCT; AIR (C)	8-98070-863-1	01	1	1508-	●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) 03.417 (A)	8-98059-995-2	01	1	1012-1507		●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ) 03.417 (A)	8-98059-995-2	01	1	1508-		●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	1508-	●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1508-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1507		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1508-	●	●
480	03.417 ADAPTER	8-98086-417-0	01	1	1508-	●
564	03.417 GASKET; ADAPTER	8-98071-416-0	01	1	1508-	●

317 314 381 389 242 381 242 317 314 242 381 381 64 389 232 317 314 409 40 61 242 26 5 35 287 232 287 563 5 389 381 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (F) ID=55-75	8-98133-349-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=58-79	1-09707-136-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1508-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1508-	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1508-	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-1507		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1508-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1507		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-		●
232	03.417 HOSE; CONN (E)	8-98094-582-2	01	1	1508-	●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-1507		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1508-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98049-012-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98061-757-2	01	1	1508-	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-1507		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85	8-98133-350-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90	8-98122-372-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1012-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-1507		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1508-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●	●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1508-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1507		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1508-	●	●
563	03.417 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98090-587-0	01	1	1012-1507		●
563	03.417 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98090-587-0	01	1	1508-		●
563	03.417 BRACKET; CLIP	8-98090-587-0	01	1	1508-	●

317 314 281 317 314 381 242 381 389 381 242 381 64 389 381 389 242 317 314 61 242 26 40 409 232 5 5 35 287 287 232 232 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (F) ID=55-75	8-98133-349-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=58-79	1-09707-136-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1508-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1508-	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1508-	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-1507		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1508-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1507		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-		●
232	03.417 HOSE; CONN (E)	8-98094-582-2	01	1	1508-	●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-1507		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1508-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98049-012-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98061-757-2	01	1	1508-	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-1507		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85	8-98133-350-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90	8-98122-372-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1012-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-1507		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1508-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●	●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1508-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1507		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1508-	●	●

317 314 281 317 314 381 389 242 381 242 381 381 389 242 64 389 314 5 232 317 61 409 40 26 5 35 242 287 287 232 232 287 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (F) ID=55-75	8-98133-349-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=58-79	1-09707-136-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1508-	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1508-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1508-	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1012-1507		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1508-	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1508-	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1012-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-1507		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1508-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1507		●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1508-	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-		●
232	03.417 HOSE; CONN (E)	8-98094-582-2	01	1	1508-	●
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1012-1309		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-1507		●
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1508-	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B)	8-98070-857-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (C)	8-98105-926-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (D)	8-98131-538-1	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98049-012-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98032-142-1	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1012-1507		●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98080-412-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1012-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98061-757-2	01	1	1508-	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1012-1507		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1012-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50	8-98133-347-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85	8-98133-350-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60	8-94175-940-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90	8-98122-372-0	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1012-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-1507		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1508-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●	●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1012-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1012-1507		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1508-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-1507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1508-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-1507		●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
