1-11 — RADIATOR HOSE AND SUB TANK (#48987) — 61 parça

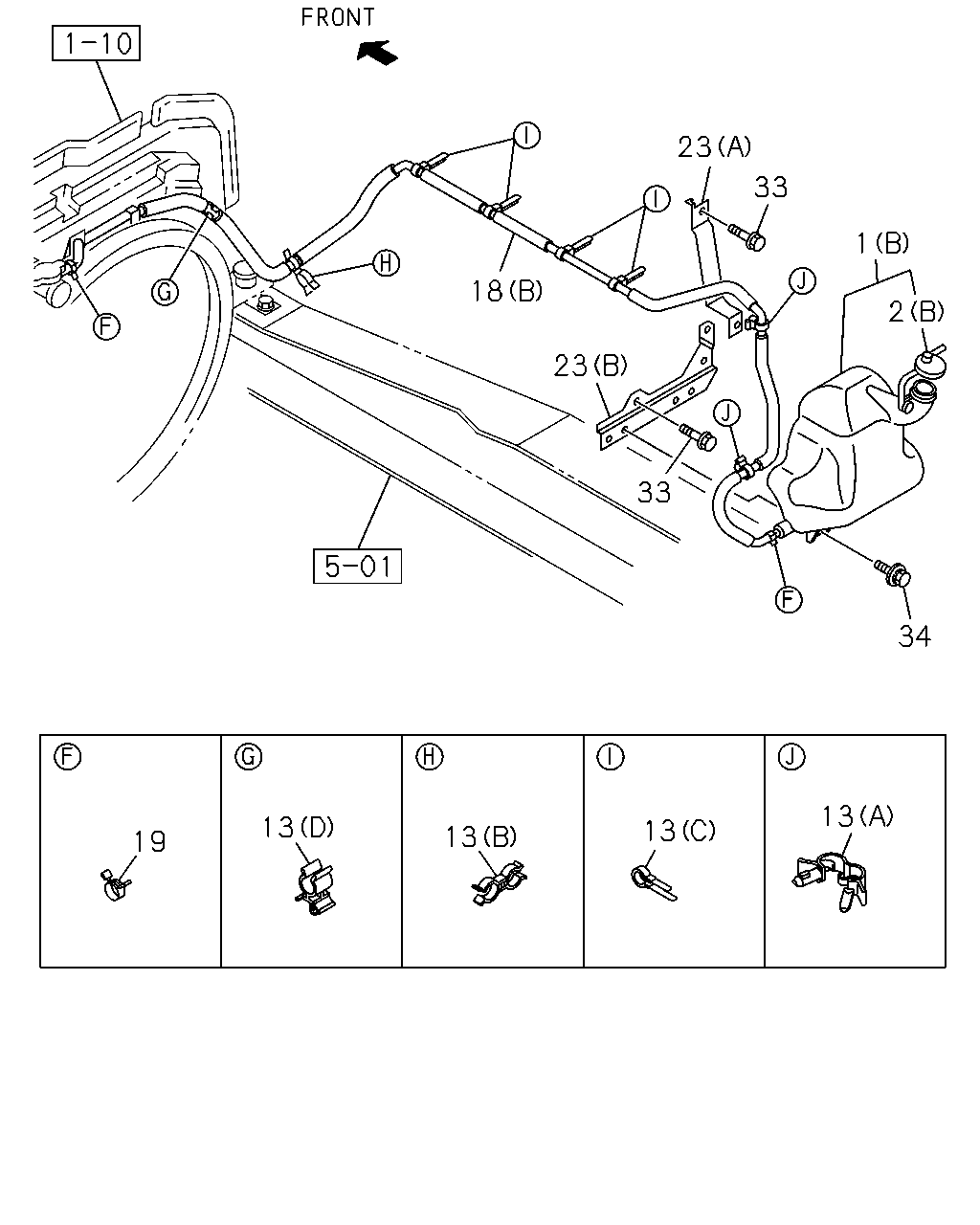

23 33 1 2 34 33 23 18 19 13 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1508-	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1012-		●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1508-	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1012-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-1106		●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1107-1507		●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (D) ID=12	8-98029-256-0	01	1	1012-1507		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (D) ID=12	8-98029-256-0	01	1	1508-		●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1508-	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1012-1507		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1508-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1012-1507		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1508-	●	●
18	01.240 HOSE; RAD TO SURGE TANK (B) L=1810	8-98049-556-0	01	1	1508-	●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) (A) L=1660	8-98049-555-0	01	1	1012-		●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH) (A) L=1660	8-98095-672-0	01	1	1012-		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1012-1507		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1508-	●	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-252-0	01	1	1508-	●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-502-1	01	1	1508-	●
33	01.277 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1508-	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1012-1507		●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1508-	●	●

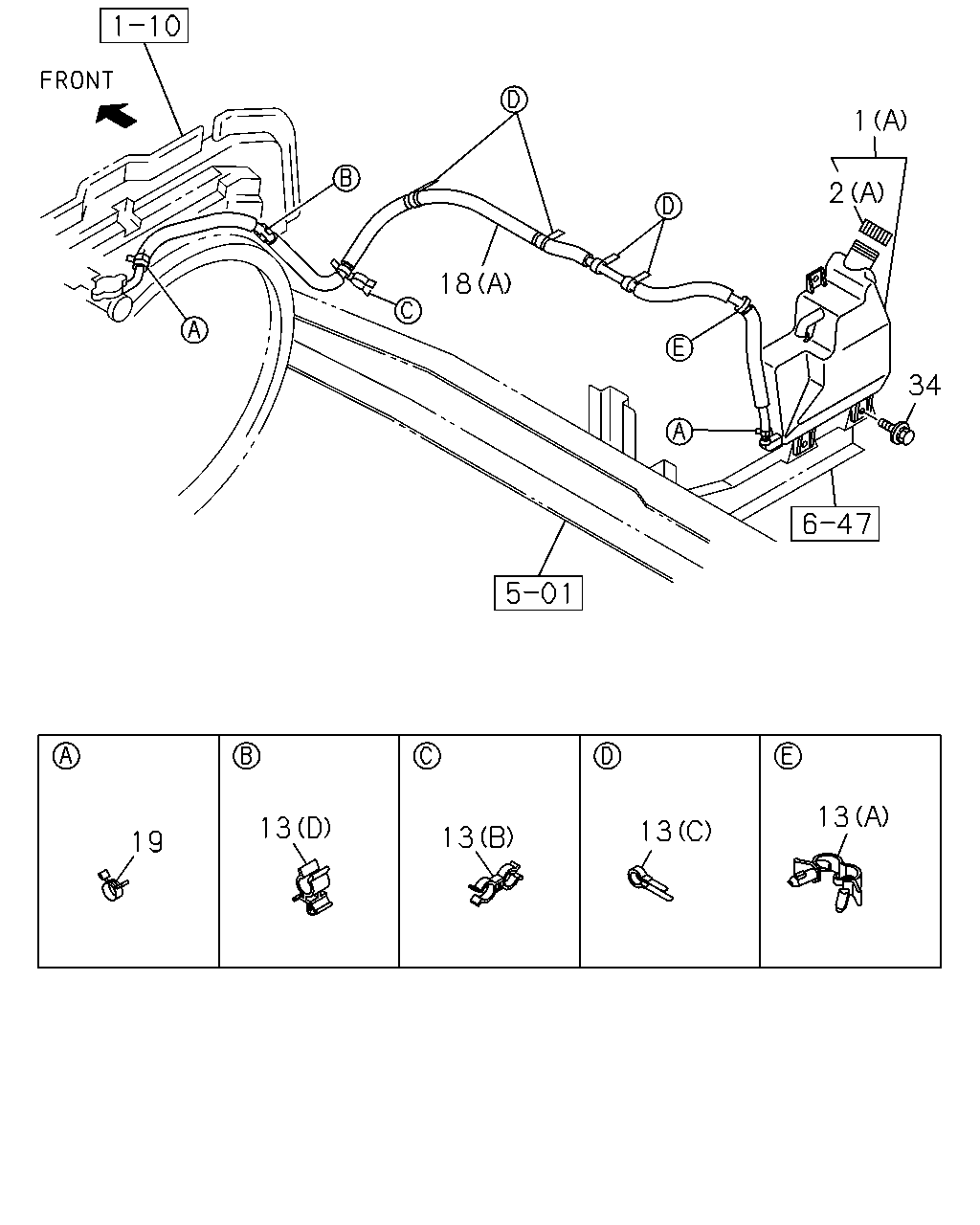

18 2 34 1 13 13 13 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1508-	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1012-		●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1508-	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1012-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-1106		●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1107-1507		●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (D) ID=12	8-98029-256-0	01	1	1012-1507		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (D) ID=12	8-98029-256-0	01	1	1508-		●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1508-	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1012-1507		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1508-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1012-1507		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1508-	●	●
18	01.240 HOSE; RAD TO SURGE TANK (B) L=1810	8-98049-556-0	01	1	1508-	●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) (A) L=1660	8-98049-555-0	01	1	1012-		●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH) (A) L=1660	8-98095-672-0	01	1	1012-		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1012-1507		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1508-	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1012-1507		●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1508-	●	●

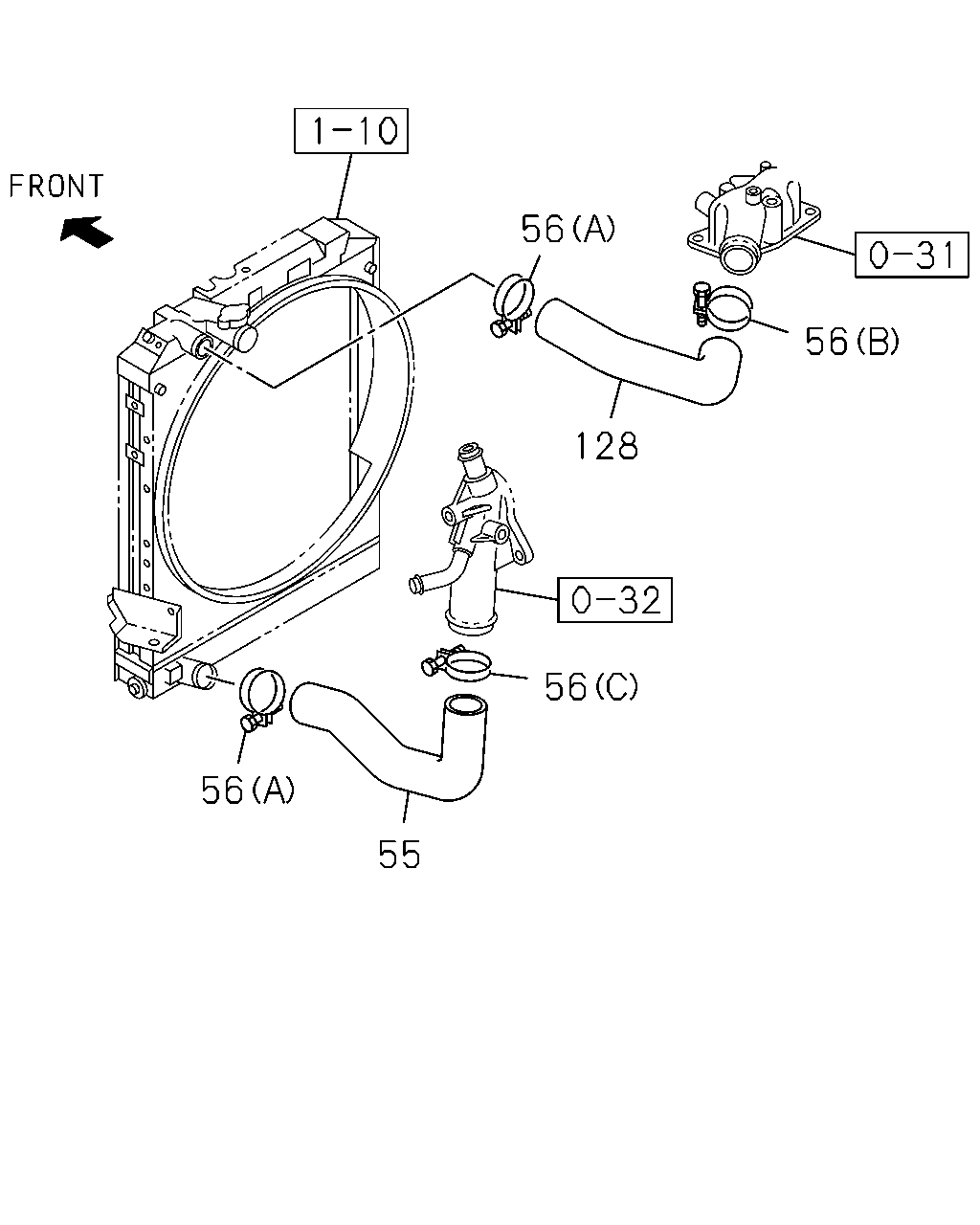

56 128 56 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ)	8-97387-525-0	01	1	1012-1507		●
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ)	8-97387-525-0	01	1	1508-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-97387-525-0	01	1	1508-	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH)	8-98095-579-0	01	1	1012-		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	1012-1507		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	1508-	●	●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1012-1507		●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1508-	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-98133-956-0	02	1	1012-1507		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-98133-956-0	02	1	1508-	●	●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ)	8-97387-524-0	01	1	1012-1507		●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ)	8-97387-524-0	01	1	1508-		●
128	01.159 HOSE; WATER,RAD INL	8-97387-524-0	01	1	1508-	●
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH)	8-98095-578-0	01	1	1012-		●
