◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#4898) — 114 parça

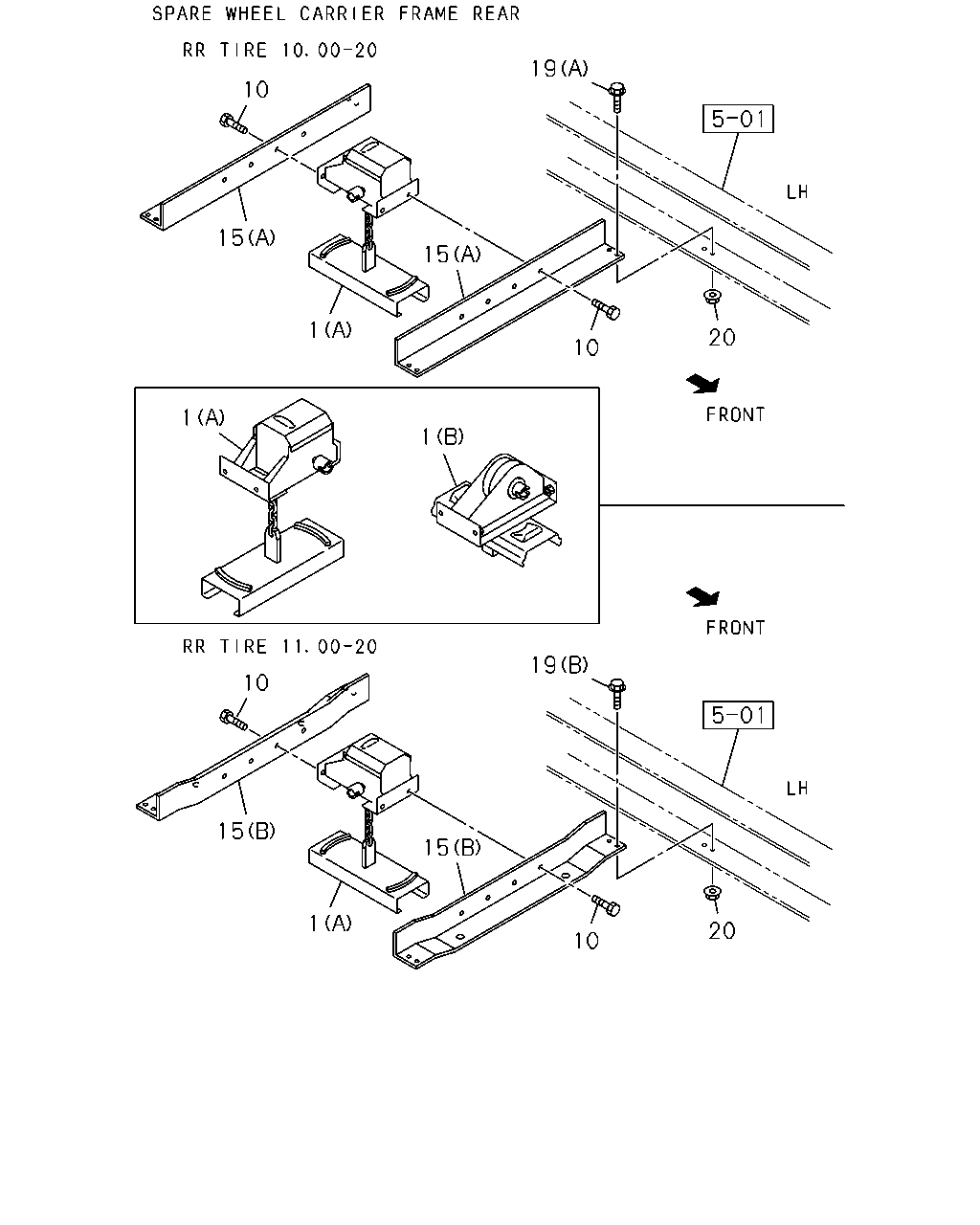

çizim 39916
19 10 15 15 1 20 10 1 1 19 10 15 15 1 20 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 02 1 9603-9608 ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 02 1 9609-0006 ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 02 1 0007- ● ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 02 1 0007- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-218-0 01 1 9603-9608 ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 01 1 9603-9608 ● ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-218-0 02 1 9603-9608 ● ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9609- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-208-1 01 1 9603-9608 ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9609- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9603-9608 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9609-0006 ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 0007- ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 9603-9606 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9607-0006 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> M12X30 FLANGE 		0-28681-230-0 04 1 0007- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 0007- ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0007- ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> (A) 		1-53631-394-0 02 1 9603-9901 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53631-394-0 02 1 9902-0012 ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> (B) 		1-53631-395-1 02 1 9603-9901 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> (B) 		1-53631-395-1 02 1 9603-9901 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53631-395-1 02 1 9902-0012 ● ●
15 MEMBER; CROSS,SPARE TIRE
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> (B) 		1-53631-395-1 02 1 9902-0012 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> (B) 		1-53631-395-1 02 1 0101- ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> (A) M10X25 FLANGE 		0-28081-025-0 08 1 9603-9901 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X25 FLANGE 		0-28081-025-0 08 1 9902- ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> (B) M10X35 FLANGE 		0-28081-035-0 08 1 9603-9904 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10X35 FLANGE 		0-28081-035-0 08 1 9603-9904 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) M10X35 FLANGE 		0-28081-035-0 08 1 9905- ● ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10X35 FLANGE 		0-28081-035-0 08 1 9905- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9603-9606 ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9607-9904 ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9905- ● ●
çizim 40178
24 28 29 31 31
BalonParca AdiParca NoAdetTipApplied Date A B C
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9603- ● ● ●
24 BOLT; SPARE TIRE
SILENCER SINGLE VERTICAL<N28> SPARE WHEEL CARRIER FRAME SIDE<P13> (C) M12X25 FLANGE 		0-28681-225-0 02 1 9806-9903 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28680-825-0 04 1 9607-9805 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X25 FLANGE 		0-28680-825-0 04 1 9806-9903 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28680-825-0 04 1 9904-0006 ●
24 BOLT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28680-825-0 08 1 0007- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28680-825-0 04 1 0007- ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> (B) M8X25 FLANGE 		0-28680-825-0 04 1 0007- ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9603- ● ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 02 1 9603-9608 ● ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-814-0 02 1 9609- ● ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> 50X50X450 		1-53637-007-0 02 1 9603- ● ● ●

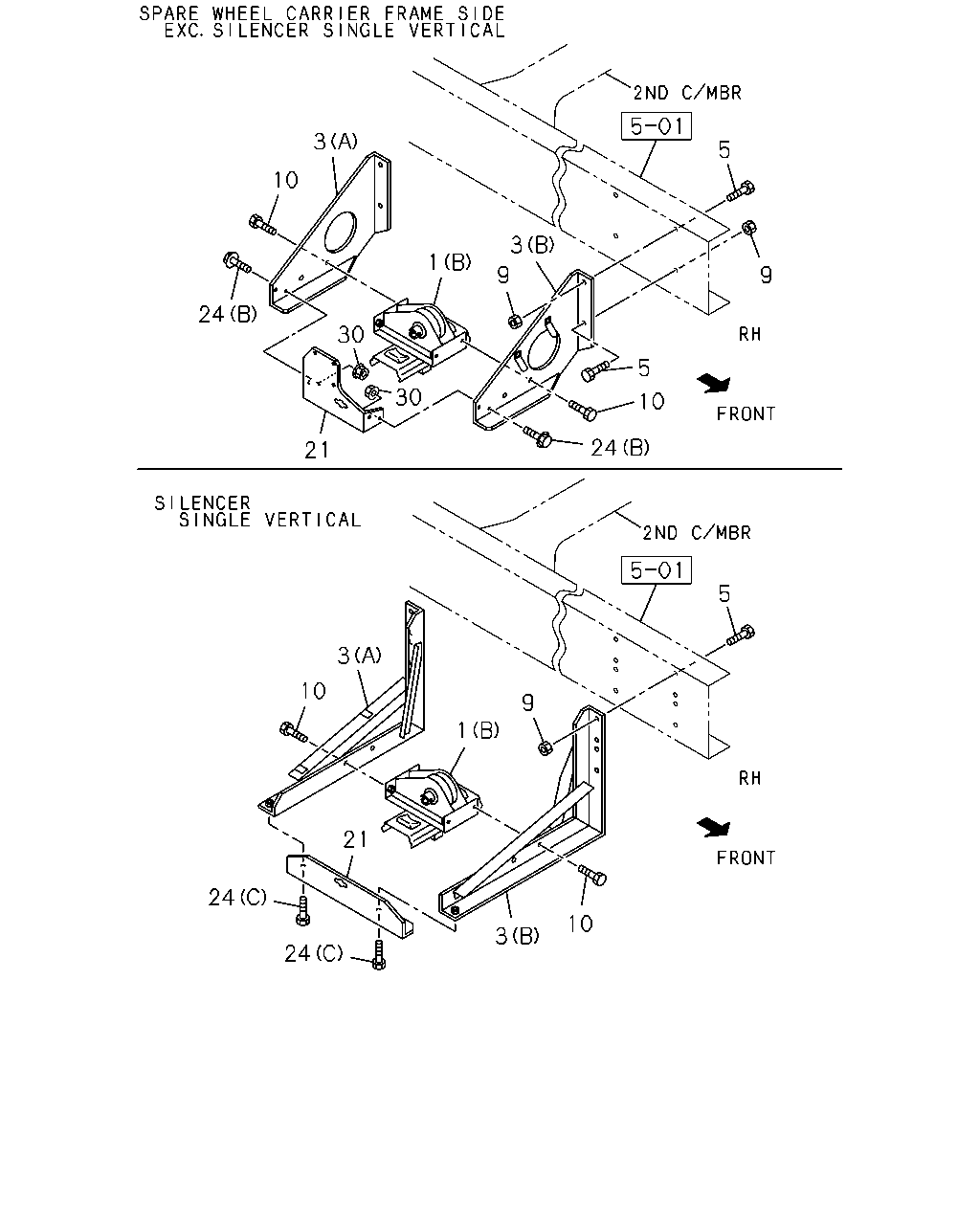

çizim 42317
3 5 10 3 1 9 9 24 30 5 30 10 24 21 5 3 10 9 1 21 24 10 3 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 02 1 9603-9608 ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 02 1 9609-0006 ● ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 02 1 0007- ● ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 02 1 0007- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-218-0 01 1 9603-9608 ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 01 1 9603-9608 ● ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-218-0 02 1 9603-9608 ● ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9609- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-208-1 01 1 9603-9608 ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9609- ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9603-9608 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9609-0006 ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 0007- ● ● ●
3 BRACKET; TIRE CARRIER,FRT
SILENCER SINGLE VERTICAL<N28> SPARE WHEEL CARRIER FRAME SIDE<P13> (A) REAR 		1-53631-389-0 01 1 9806-9903 ●
3 BRACKET; TIRE CARRIER,FRT
SILENCER SINGLE VERTICAL<N28> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) FRONT 		1-53631-393-0 01 1 9806-9903 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) REAR 		1-53631-323-1 01 1 9603-9805 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> (A) REAR 		1-53631-323-1 01 1 9806-9903 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) REAR 		1-53631-323-1 01 1 9904-0006 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) REAR 		1-53631-323-1 01 1 0007- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> (A) REAR 		1-53631-323-1 01 1 0007- ●
3 BRACKET; TIRE CARRIER,FRT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> (A) REAR 		1-53631-323-1 02 1 0007- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) FRONT 		1-53631-324-0 01 1 9603-9805 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> (B) FRONT 		1-53631-324-0 01 1 9806-9903 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) FRONT 		1-53631-324-0 01 1 9904-0006 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) FRONT 		1-53631-324-0 01 1 0007- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> (B) FRONT 		1-53631-324-0 01 1 0007- ●
3 BRACKET; TIRE CARRIER,FRT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) FRONT 		1-53631-324-0 02 1 0007- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28081-235-0 04 1 9603-9606 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9607-9805 ●
5 BOLT; BRKT TO FRAME
SILENCER SINGLE VERTICAL<N28> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 06 1 9806-9901 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE 		0-28681-235-0 04 1 9806-9901 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9902-9902 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 04 1 9903-0006 ●
5 BOLT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 08 1 0007- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 04 1 0007- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> M12X40 FLANGE 		0-28681-240-0 04 1 0007- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 04 1 9603-9805 ●
9 NUT; BRKT TO FRAME
SILENCER SINGLE VERTICAL<N28> SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 03 1 9806-9901 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> M12 		9-99110-512-0 04 1 9806-9901 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 04 1 9911-0006 ●
9 NUT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 08 1 0007- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 04 1 0007- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> M12 		9-99110-512-0 04 1 0007- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 9603-9606 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9607-0006 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> M12X30 FLANGE 		0-28681-230-0 04 1 0007- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 0007- ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0007- ● ●
21 BRACKET; SPARE TIRE HANGER
SILENCER SINGLE VERTICAL<N28> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9806-9903 ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> 		1-53631-328-0 01 1 9806-9903 ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-328-0 01 1 9603-9903 ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-428-0 01 1 9904-0006 ●
21 BRACKET; SPARE TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-428-0 02 1 0007- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-428-0 01 1 0007- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> 		1-53631-428-0 01 1 0007- ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9603- ● ● ●
24 BOLT; SPARE TIRE
SILENCER SINGLE VERTICAL<N28> SPARE WHEEL CARRIER FRAME SIDE<P13> (C) M12X25 FLANGE 		0-28681-225-0 02 1 9806-9903 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28680-825-0 04 1 9607-9805 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X25 FLANGE 		0-28680-825-0 04 1 9806-9903 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28680-825-0 04 1 9904-0006 ●
24 BOLT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28680-825-0 08 1 0007- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X25 FLANGE 		0-28680-825-0 04 1 0007- ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT> (B) M8X25 FLANGE 		0-28680-825-0 04 1 0007- ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 04 1 9904-0006 ●
30 NUT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 08 1 0007- ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14<NJT>,SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 04 1 0007- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
