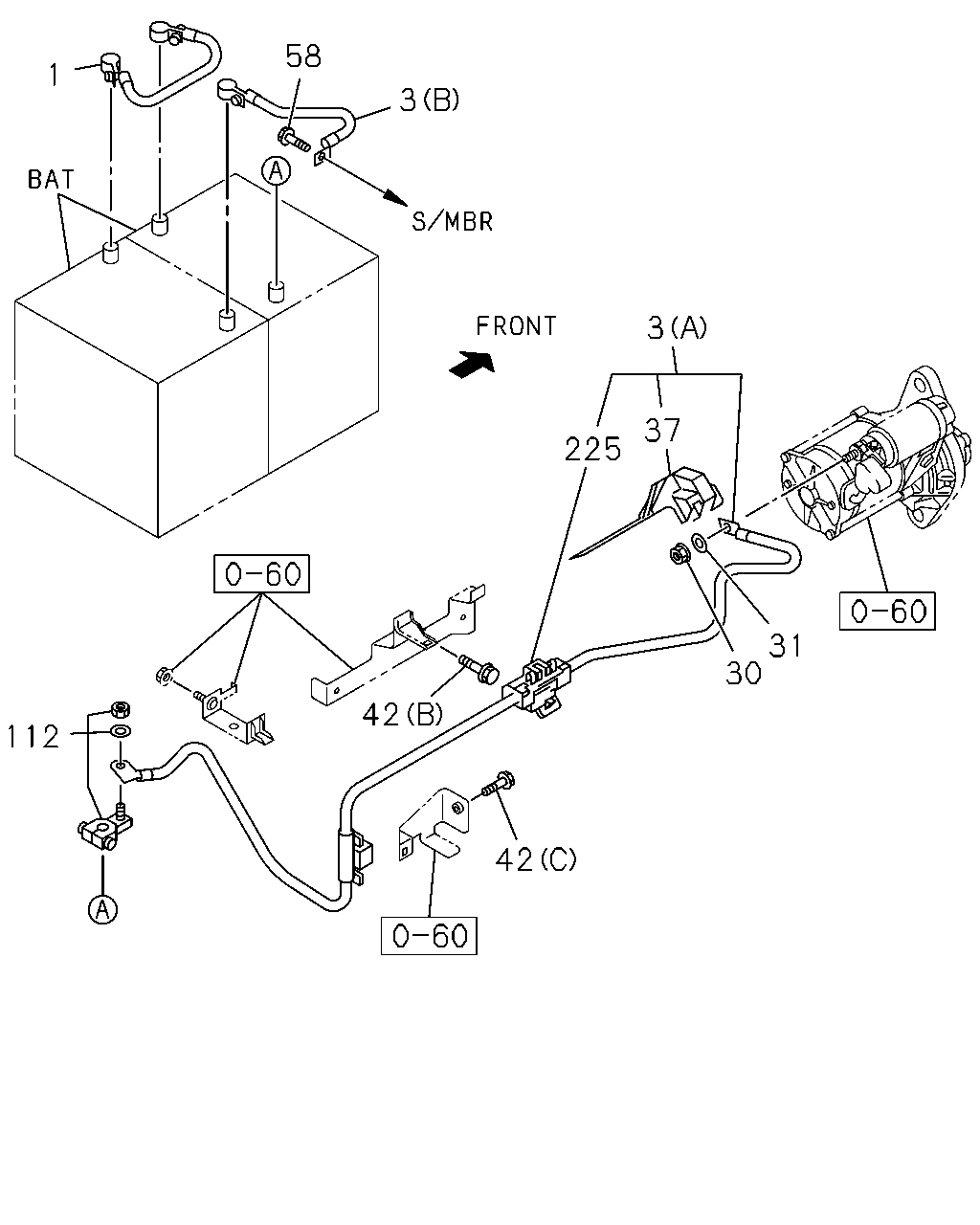

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#48974) — 57 parça

225 37 3 30 42 31 42 112 1 58 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1012-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE NPS DBL CAB(NP*W) BATTERY 115E41L<8MA> (D) L=450	8-98072-275-1	01	1	1508-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE NPS DBL CAB(NP*W) BATTERY 115E41L<8MA> (C)	8-98294-733-0	01	1	1508-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE NPS DBL CAB(NP*W) EXC. BATTERY 115E41L<8MA> (B) L=250	8-98056-338-1	01	1	1508-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE NPS DBL CAB(NP*W) EXC. BATTERY 115E41L<8MA> (A)	8-98294-722-0	01	1	1508-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EURO1 SPECIFICATION(NT1) EXC. BATTERY 115E41L<8MA> (A)	8-98137-178-1	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98137-178-1	01	1	1302-1409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98294-695-0	01	1	1410-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98056-339-1	01	1	1012-1203	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98201-105-0	01	1	1204-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (C)	8-98070-230-2	01	1	1012-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (C)	8-98294-721-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. EURO1 SPECIFICATION(NT1),BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1302-1409	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98294-718-0	01	1	1410-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (B) L=200	8-98056-337-1	01	1	1012-	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1012-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1012-	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1012-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE NPS DBL CAB(NP*W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1508-	●
42	02.343 BOLT; BRKT,BATTERY CABLE NPS SGL CAB(NP*S) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1507	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (B) M6X16 FLANGE	8-97329-599-0	01	1	1012-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1012-	●	●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1012-1409	●	●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1410-	●	●

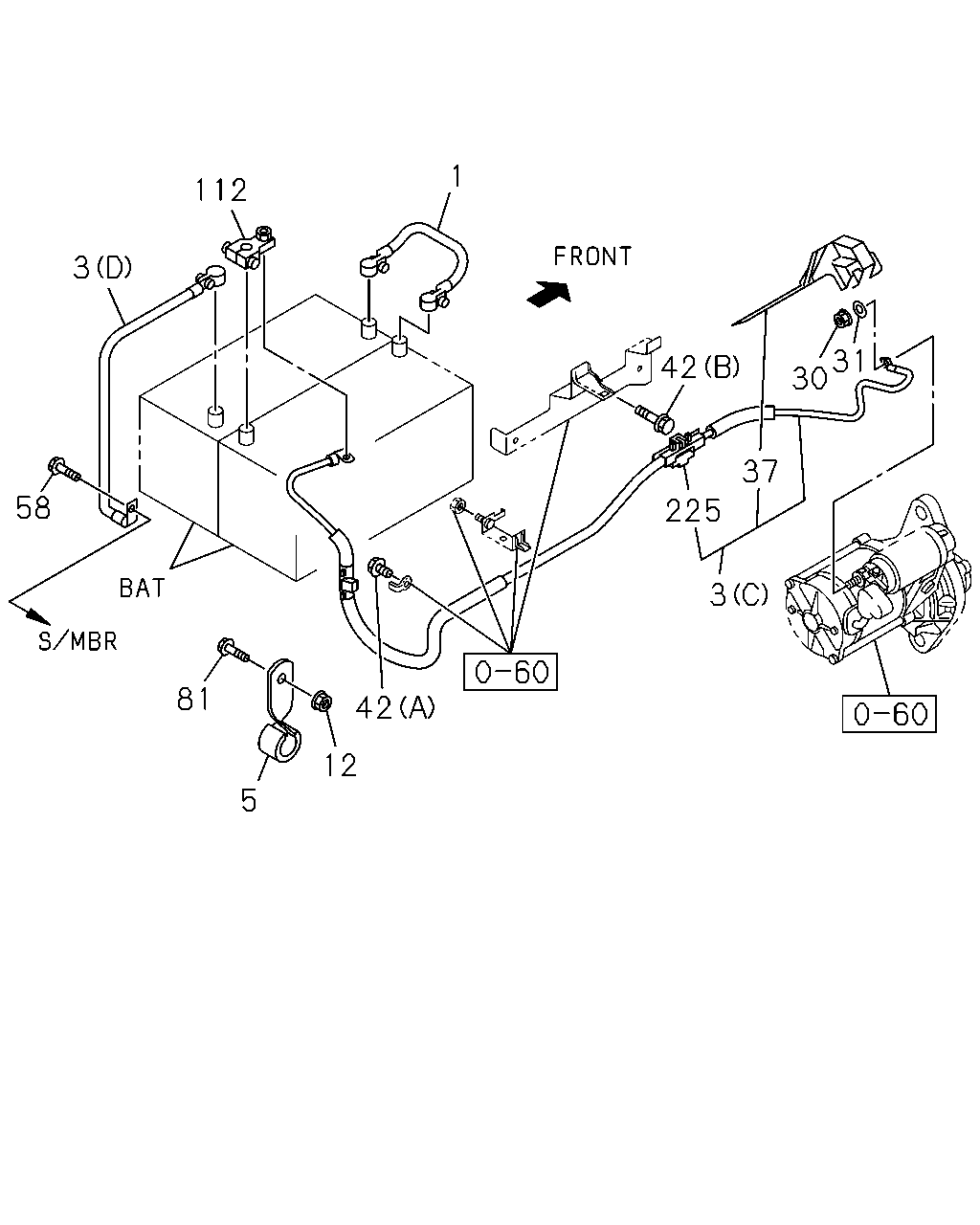

1 112 3 58 81 5 42 12 3 225 42 31 30 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1012-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE NPS DBL CAB(NP*W) BATTERY 115E41L<8MA> (D) L=450	8-98072-275-1	01	1	1508-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE NPS DBL CAB(NP*W) BATTERY 115E41L<8MA> (C)	8-98294-733-0	01	1	1508-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE NPS DBL CAB(NP*W) EXC. BATTERY 115E41L<8MA> (B) L=250	8-98056-338-1	01	1	1508-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE NPS DBL CAB(NP*W) EXC. BATTERY 115E41L<8MA> (A)	8-98294-722-0	01	1	1508-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EURO1 SPECIFICATION(NT1) EXC. BATTERY 115E41L<8MA> (A)	8-98137-178-1	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98137-178-1	01	1	1302-1409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98294-695-0	01	1	1410-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98056-339-1	01	1	1012-1203	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98201-105-0	01	1	1204-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (C)	8-98070-230-2	01	1	1012-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (C)	8-98294-721-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. EURO1 SPECIFICATION(NT1),BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1302-1409	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98294-718-0	01	1	1410-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (B) L=200	8-98056-337-1	01	1	1012-	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY NPS DBL CAB(NP*W) BATTERY 115E41L<8MA> ID=19 L=58	1-09700-733-1	01	1	1508-	●
12	02.343 NUT; BATTERY CABLE CLIP NPS DBL CAB(NP*W) BATTERY 115E41L<8MA> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1012-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1012-	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1012-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE NPS DBL CAB(NP*W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1508-	●
42	02.343 BOLT; BRKT,BATTERY CABLE NPS SGL CAB(NP*S) BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1507	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (B) M6X16 FLANGE	8-97329-599-0	01	1	1012-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●
81	02.559 BOLT; BATTERY CABLE NPS DBL CAB(NP*W) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
112	02.343 TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1012-	●	●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1012-1409	●	●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1410-	●	●
