◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#4897) — 23 parça

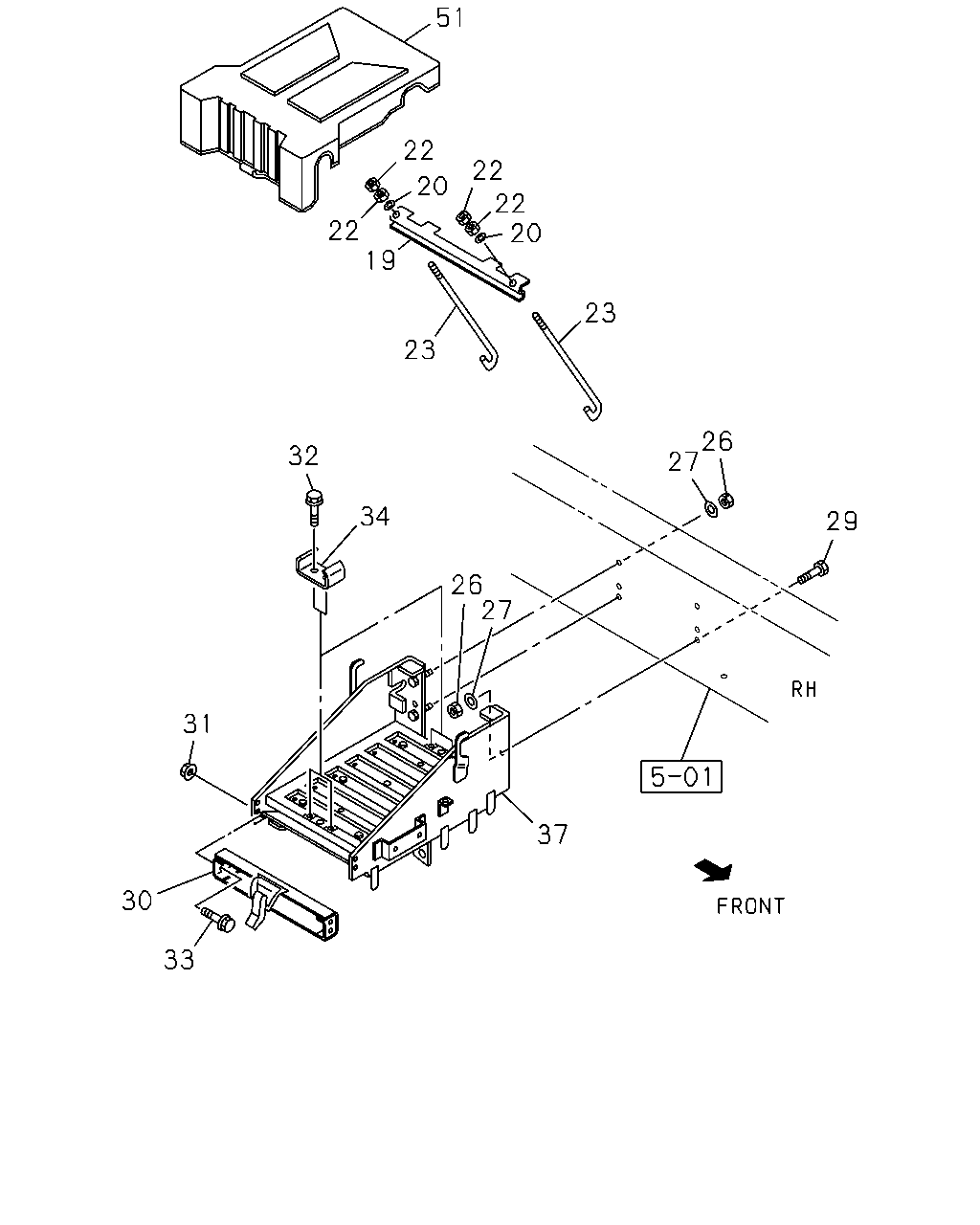

çizim 42645
51 22 22 22 20 20 22 19 23 23 26 27 32 34 29 26 27 31 37 30 33
BalonParca AdiParca NoAdetTipApplied Date A B C
19 STAY; BATTERY 1-53618-039-2 01 1 9603- ● ● ●
20 WASHER; PL,STAY
ID=8.4 OD=22 		9-09164-708-0 02 1 9603- ● ● ●
22 NUT; STAY
M8 		9-09110-508-0 04 1 9603-9606 ● ● ●
22 NUT; STAY
M8 FLANGE 		0-91150-108-0 04 1 9607-9812 ● ● ●
22 NUT; STAY
M8 		9-09110-408-0 04 1 9901- ● ● ●
23 BOLT; STAY
L=250 		1-53616-108-0 02 1 9603- ● ● ●
26 NUT; BRKT
M14 		9-99110-514-0 04 1 9603- ● ● ●
27 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 9603- ● ● ●
29 BOLT; BRKT TO FRAME
M14X40 		0-20801-440-0 02 1 9603- ● ● ●
30 PLATE; BATTERY 1-53619-086-0 01 1 9603- ● ● ●
31 NUT; PLATE
M8 		9-09110-508-0 04 1 9603-9606 ● ● ●
31 NUT; PLATE
M8 FLANGE 		0-91150-108-0 04 1 9607- ● ● ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE 		0-28080-816-0 04 1 9603-9606 ● ● ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X20 FLANGE 		0-28680-820-0 04 1 9607-9912 ● ● ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE 		0-28080-816-0 04 1 0001- ● ● ●
33 BOLT; PLATE TO BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 9603-9606 ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 9607- ● ● ●
34 SPACER; BATTERY BRKT
EXC. BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> 		1-53619-084-0 02 1 9603- ● ● ●
37 BRACKET; BATTERY 1-53610-131-1 01 1 9603-9810 ● ● ●
37 BRACKET; BATTERY 1-53610-131-1 01 1 9811- ●
37 BRACKET; BATTERY
EXC. SILENCER SINGLE VERTICAL<N28> 		1-53610-131-1 01 1 9811- ● ●
37 BRACKET; BATTERY
SILENCER SINGLE VERTICAL<N28> 		1-53610-130-0 01 1 9811- ● ●
51 COVER; BATTERY 1-53612-040-1 01 1 9603- ● ● ●
