0-41 — FUEL FILTER AND BRACKET (#48966) — 77 parça

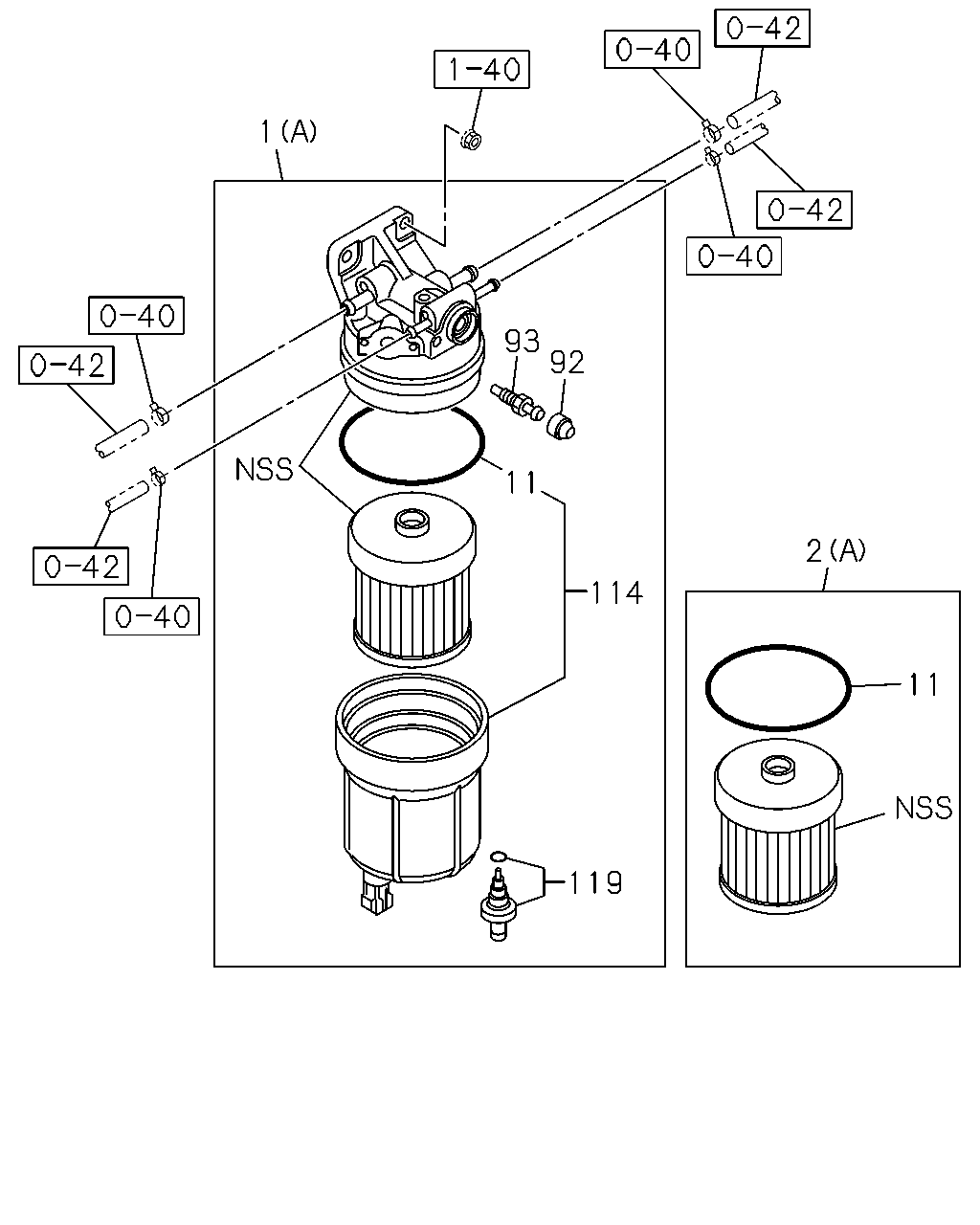

1 93 92 11 114 119 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL (C)	8-97171-451-2	01	1	1012-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B) (D)	8-98006-454-0	01	1	1012-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	1012-		●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1012-		●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-97172-549-1	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) (D)	8-97916-993-2	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	1012-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1012-1112		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-		●
2	03.890 ELEMENT KIT; FUEL FILTER (C) BEST VALUE PARTS	5-87610-041-0	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-		●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	1012-1112		●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-		●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	1012-	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	1012-		●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	1012-	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	1012-		●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	1012-		●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	1012-		●

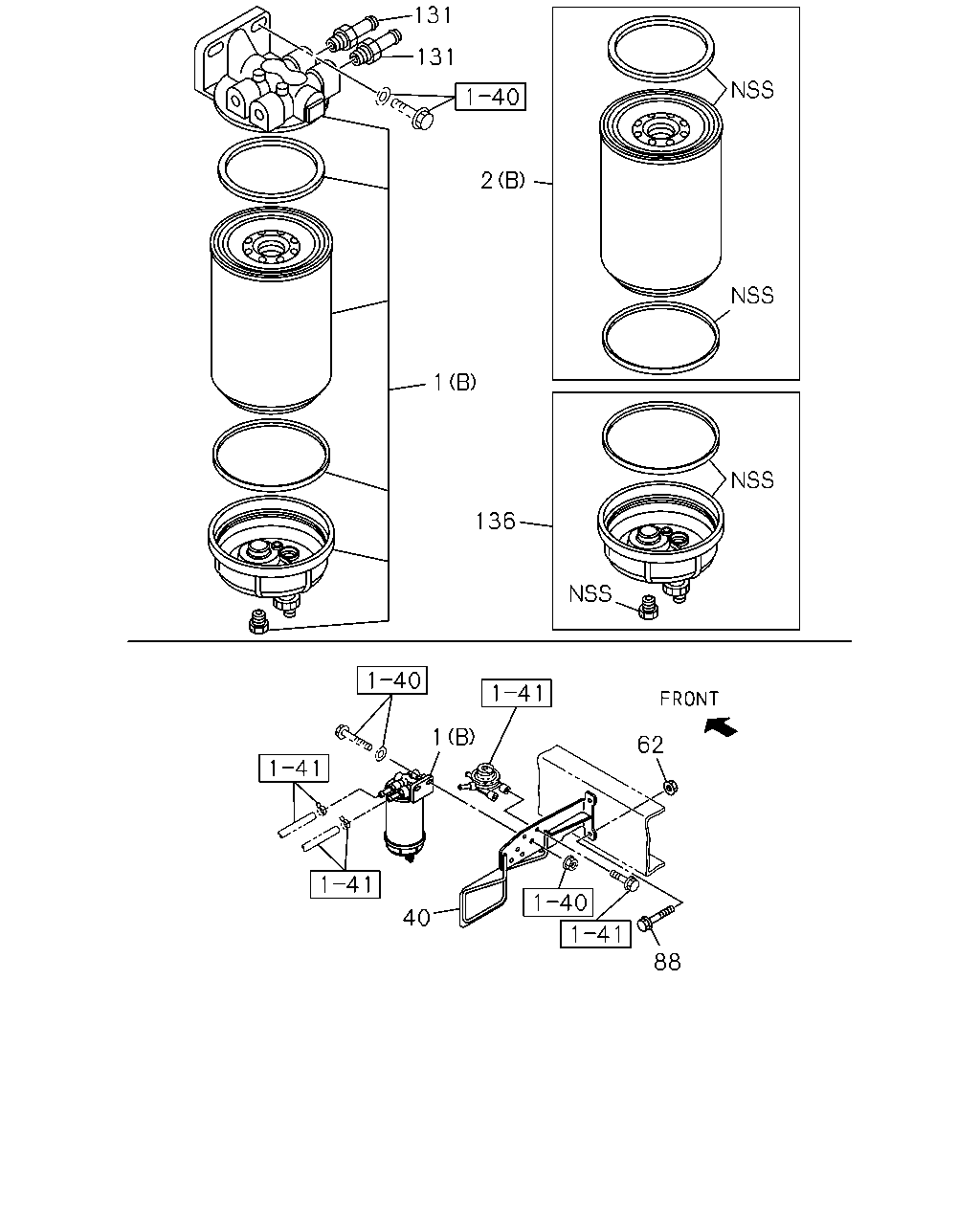

131 131 2 1 136 40 62 1 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL (C)	8-97171-451-2	01	1	1012-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B) (D)	8-98006-454-0	01	1	1012-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	1012-		●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1012-		●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-97172-549-1	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) (D)	8-97916-993-2	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	1012-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1012-1112		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-		●
2	03.890 ELEMENT KIT; FUEL FILTER (C) BEST VALUE PARTS	5-87610-041-0	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-		●
40	03.890 BRACKET; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98107-354-3	01	1	1012-1405		●
40	03.890 BRACKET; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ>	8-98107-354-3	01	1	1406-		●
40	03.890 BRACKET; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) EXC. INDONESIA EQUIPMENT(B00),FRAME STRAIGHT TYPE<7KJ>	8-98107-354-3	01	1	1406-		●
40	03.890 BRACKET; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98121-710-0	01	1	1012-1405	●
40	03.890 BRACKET; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> EXC. INDONESIA EQUIPMENT(B00),POOR QUALITY DIESEL FUEL(KF0)	8-98121-710-0	01	1	1406-	●
62	03.895 NUT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
88	03.895 BOLT; BRKT,FUEL FILTER FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
131	03.890 PIPE; FILTER 03.163	5-15411-223-1	02	1	1012-	●
131	03.890 PIPE; FILTER POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1012-		●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98096-004-0	01	1	1012-1408		●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98279-324-0	01	1	1409-		●

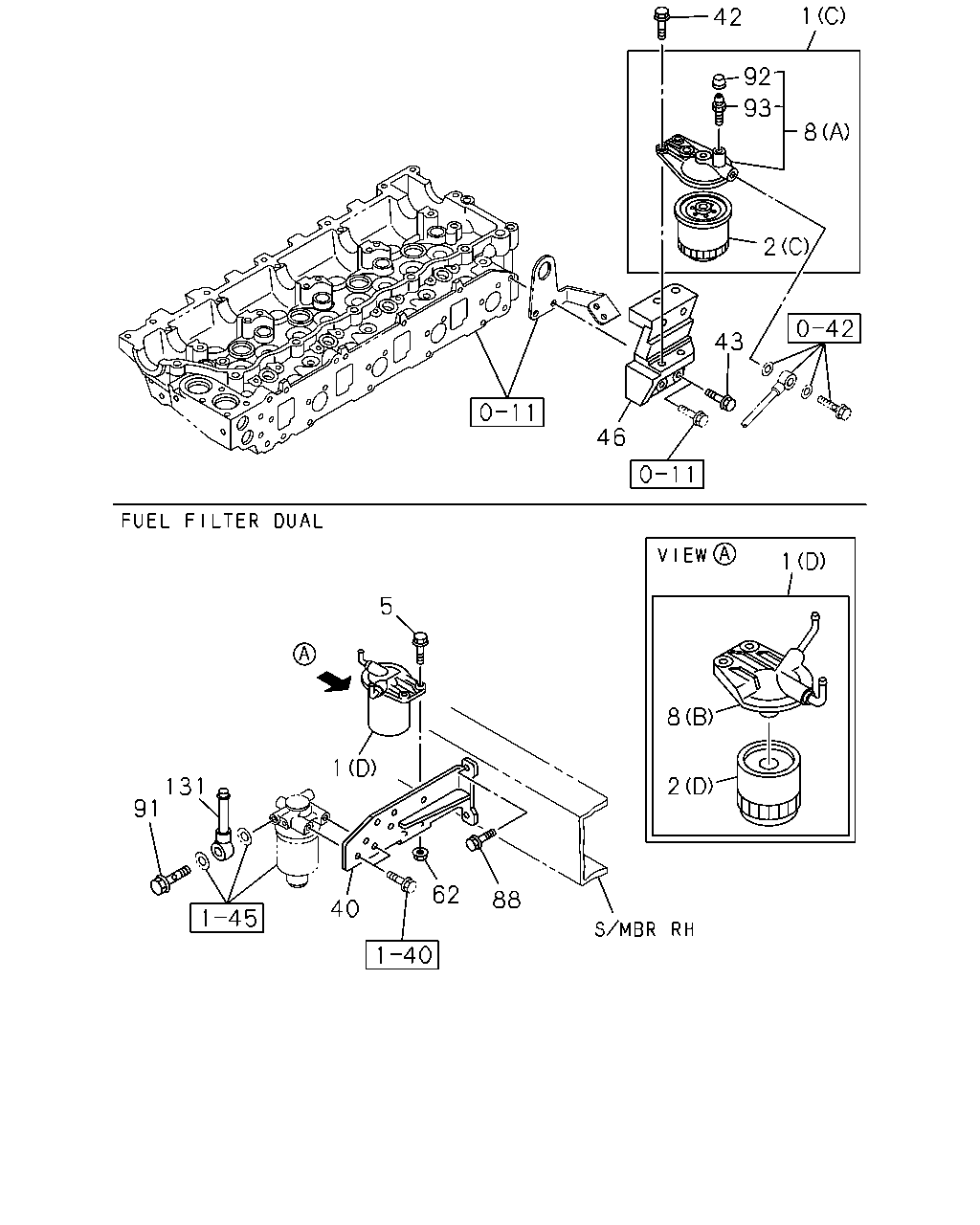

42 1 92 93 8 2 43 46 5 1 131 91 40 62 88 2 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL (C)	8-97171-451-2	01	1	1012-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B) (D)	8-98006-454-0	01	1	1012-	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	1012-		●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1012-		●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-97172-549-1	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) (D)	8-97916-993-2	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	1012-		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1012-1112		●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-		●
2	03.890 ELEMENT KIT; FUEL FILTER (C) BEST VALUE PARTS	5-87610-041-0	01	1	1012-	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-		●
5	03.890 BOLT; FUEL FILTER NPS SGL CAB(NP*S) FUEL FILTER DUAL(S6B) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1012-1507	●
5	03.890 BOLT; FUEL FILTER FUEL FILTER DUAL(S6B) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1508-	●
8	03.890 COVER; FUEL FILTER (A)	8-97172-543-1	01	1	1012-	●
8	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-97917-558-0	01	1	1012-	●
40	03.890 BRACKET; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98107-354-3	01	1	1012-1405		●
40	03.890 BRACKET; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ>	8-98107-354-3	01	1	1406-		●
40	03.890 BRACKET; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) EXC. INDONESIA EQUIPMENT(B00),FRAME STRAIGHT TYPE<7KJ>	8-98107-354-3	01	1	1406-		●
40	03.890 BRACKET; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98121-710-0	01	1	1012-1405	●
40	03.890 BRACKET; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> EXC. INDONESIA EQUIPMENT(B00),POOR QUALITY DIESEL FUEL(KF0)	8-98121-710-0	01	1	1406-	●
42	03.890 BOLT; FUEL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1012-	●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	1012-	●
46	03.890 BRACKET	8-97061-452-0	01	1	1012-	●
62	03.895 NUT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
88	03.895 BOLT; BRKT,FUEL FILTER FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
91	03.890 BOLT; FUEL FILTER 03.162 M14X29 EYE-BOLT	9-09906-325-1	02	1	1012-	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	1012-	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	1012-		●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	1012-	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	1012-		●
131	03.890 PIPE; FILTER 03.163	5-15411-223-1	02	1	1012-	●
131	03.890 PIPE; FILTER POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1012-		●
