Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#48965) — 194 parça

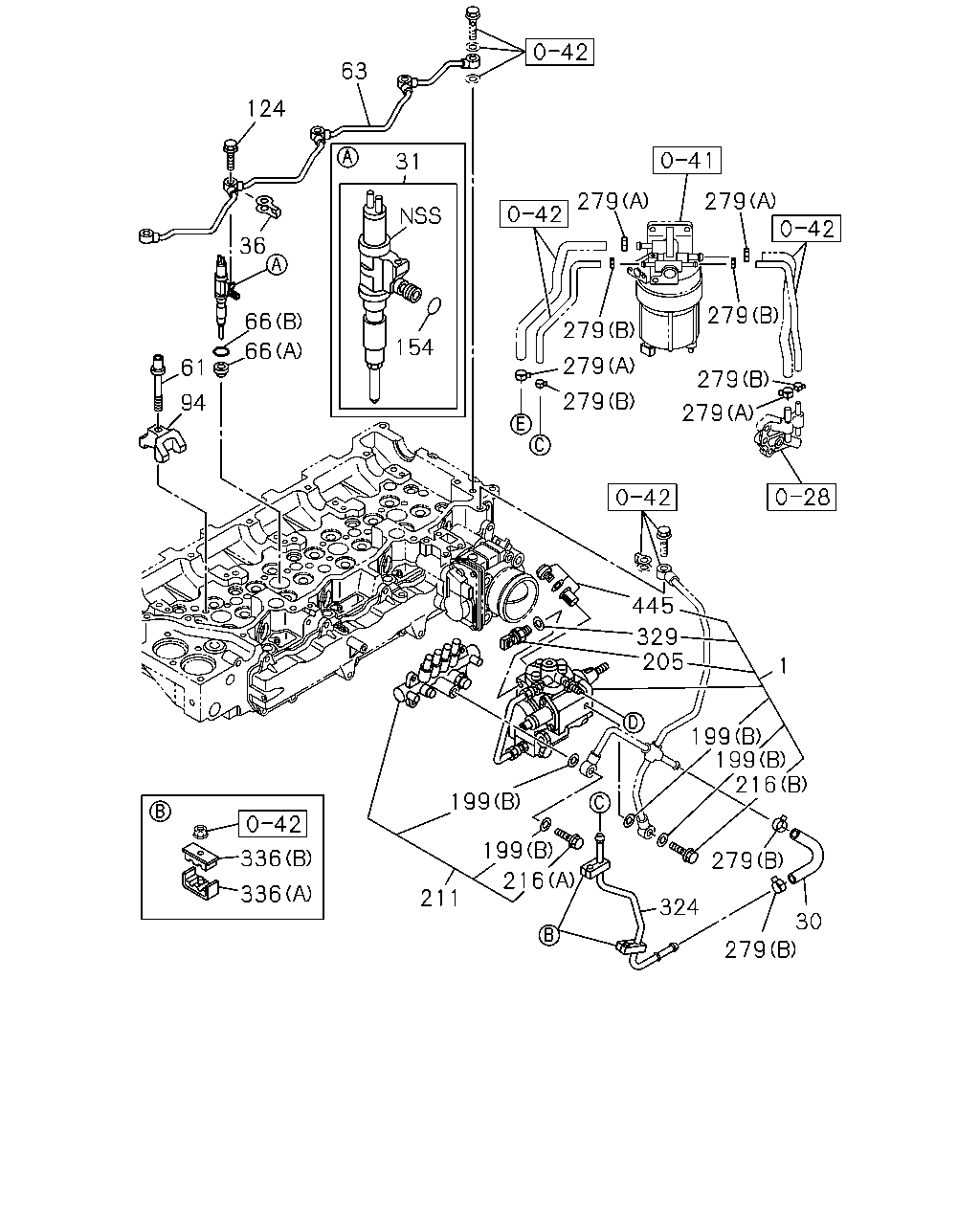

63 124 31 36 279 279 279 279 279 279 279 279 154 66 66 61 94 445 329 205 199 199 216 279 30 279 324 216 199 199 211 336 336 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-101-0	01	1	1012-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1012-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60)	8-97385-476-0	01	1	1012-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97385-476-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97386-557-5	01	1	1012-		●
30	03.163 HOSE; RUBBER,FUEL LEAK	8-98036-320-2	01	1	1012-		●
31	03.332 NOZZLE ASM; INJ	8-97119-811-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1012-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	1012-1312	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-98246-930-0	04	1	1401-	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1012-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1012-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	1012-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D)	8-94326-439-0	04	1	1012-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1012-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1012-		●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1012-		●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1012-		●
154	03.332 GASKET; CONNECTOR 06.609 ID=11.0	9-09561-111-0	04	1	1012-1106		●
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1107-		●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1012-		●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1012-		●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1012-		●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1012-		●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1012-		●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1012-		●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1012-		●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1012-		●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	06	1	1012-		●
324	03.330 PIPE; FUEL RETURN	8-98036-173-0	01	1	1012-		●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1012-1201		●
336	03.163 CLIP; FUEL PIPE 01.531 (A) ID=8 & 9 L=25	8-97603-522-0	02	1	1012-		●
336	03.163 CLIP; FUEL PIPE 01.531 (B) ID=8 & 9 L=25	8-97603-523-0	02	1	1012-		●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1012-		●

31 32 34 58 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	03.332 NOZZLE ASM; INJ	8-97119-811-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1012-		●
32	03.332 HOLDER ASM; NOZZLE	8-94311-966-2	04	1	1012-	●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	1012-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	1012-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE	8-94329-555-0	04	1	1012-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	1012-	●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	1012-	●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.10	8-97027-432-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.20	8-97027-433-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.30	8-97027-434-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.40	8-97027-435-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.50	8-97027-436-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.52	8-97027-437-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.54	8-97027-438-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.56	8-97027-439-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.58	8-97027-440-0	AR	1	1012-	●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	1012-	●

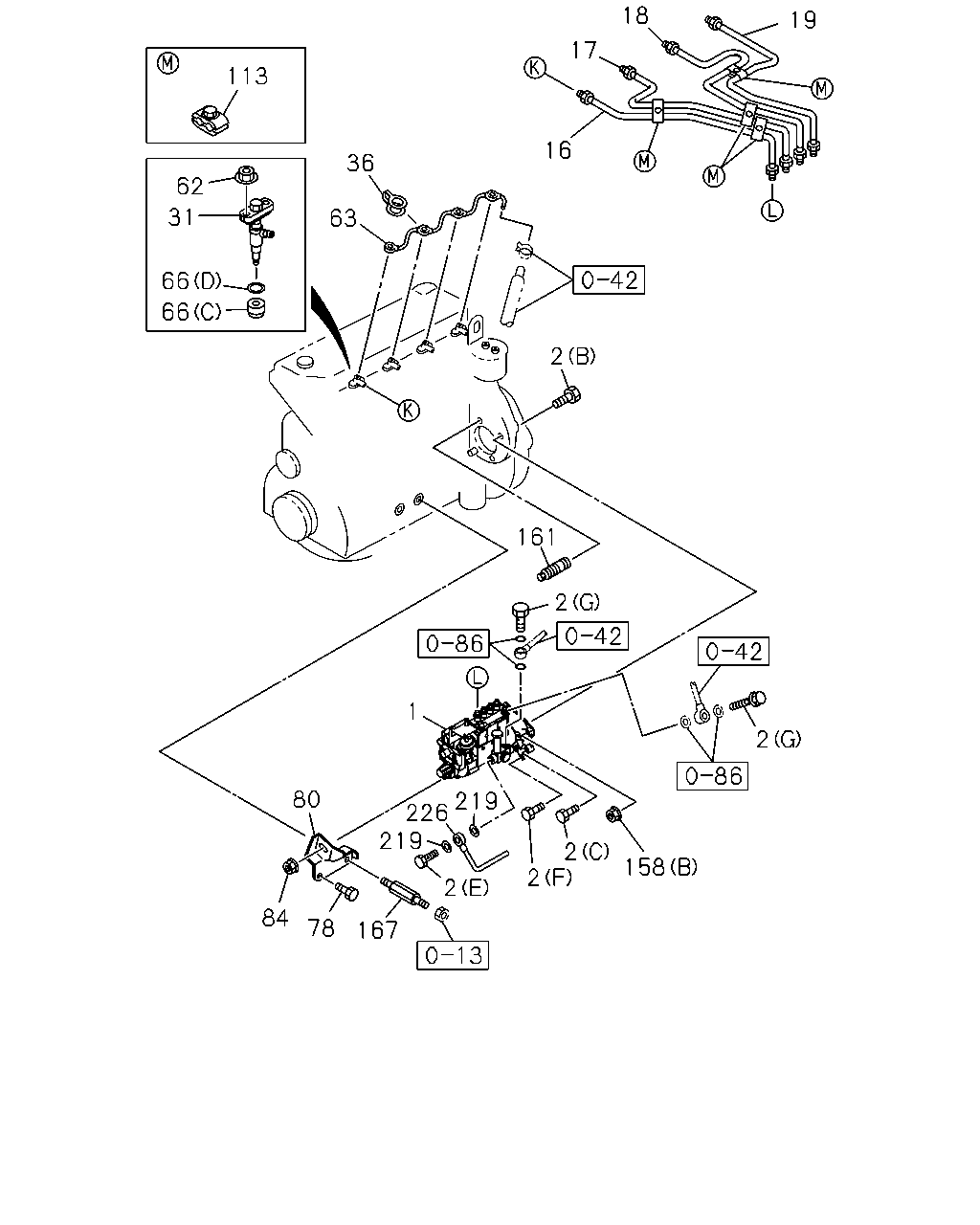

113 62 31 66 66 63 36 16 17 18 19 2 161 2 2 158 2 2 2 226 167 78 84 219 219 1 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-101-0	01	1	1012-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1012-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60)	8-97385-476-0	01	1	1012-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97385-476-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97386-557-5	01	1	1012-		●
2	03.330 BOLT; INJ PUMP (F) M12X90 FLANGE	0-28151-290-0	01	1	1012-	●
2	03.330 BOLT; INJ PUMP 03.162 (G) M14X27 FLANGE	1-09675-086-0	02	1	1012-	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	1012-	●
2	03.330 BOLT; INJ PUMP 00.685 (A) M10X60 FLANGE	0-28051-060-0	03	1	1012-		●
2	03.330 BOLT; INJ PUMP 02.277 (B) M10X70 FLANGE	0-28151-070-0	01	1	1012-	●	●
2	03.330 BOLT; INJ PUMP 00.206 (C) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●	●
2	03.330 BOLT; INJ PUMP (D) M12X95 FLANGE	8-94396-485-1	01	1	1012-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	1012-	●
16	03.330 PIPE; INJ NO.1	8-98039-934-0	01	1	1012-1102		●
16	03.330 PIPE; INJ NO.1	8-98185-344-0	01	1	1103-1404		●
16	03.330 PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501		●
16	03.330 PIPE; INJ NO.1	8-98298-606-0	01	1	1502-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	1012-	●
17	03.330 PIPE; INJ NO.2	8-98039-935-0	01	1	1012-1102		●
17	03.330 PIPE; INJ NO.2	8-98185-345-0	01	1	1103-1404		●
17	03.330 PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501		●
17	03.330 PIPE; INJ NO.2	8-98298-607-0	01	1	1502-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	1012-	●
18	03.330 PIPE; INJ NO.3	8-98039-936-0	01	1	1012-1102		●
18	03.330 PIPE; INJ NO.3	8-98185-346-0	01	1	1103-1404		●
18	03.330 PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501		●
18	03.330 PIPE; INJ NO.3	8-98298-608-0	01	1	1502-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	1012-	●
19	03.330 PIPE; INJ NO.4	8-98039-937-0	01	1	1012-1102		●
19	03.330 PIPE; INJ NO.4	8-98185-347-0	01	1	1103-1404		●
19	03.330 PIPE; INJ NO.4	8-98271-205-0	01	1	1405-1501		●
19	03.330 PIPE; INJ NO.4	8-98298-609-0	01	1	1502-		●
31	03.332 NOZZLE ASM; INJ	8-97119-811-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1012-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	1012-1312	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-98246-930-0	04	1	1401-	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1012-		●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	1012-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	1012-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D)	8-94326-439-0	04	1	1012-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1012-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1012-		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	1012-	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	1012-	●
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	1012-		●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	1012-	●
113	03.162 CLIP; INJ PIPE	8-97213-050-0	04	1	1012-	●
158	03.330 NUT; INJ PUMP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
158	03.330 NUT; INJ PUMP 07.529 (A) M14 FLANGE	0-91180-114-0	01	1	1012-		●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1012-	●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	1012-	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	1012-	●

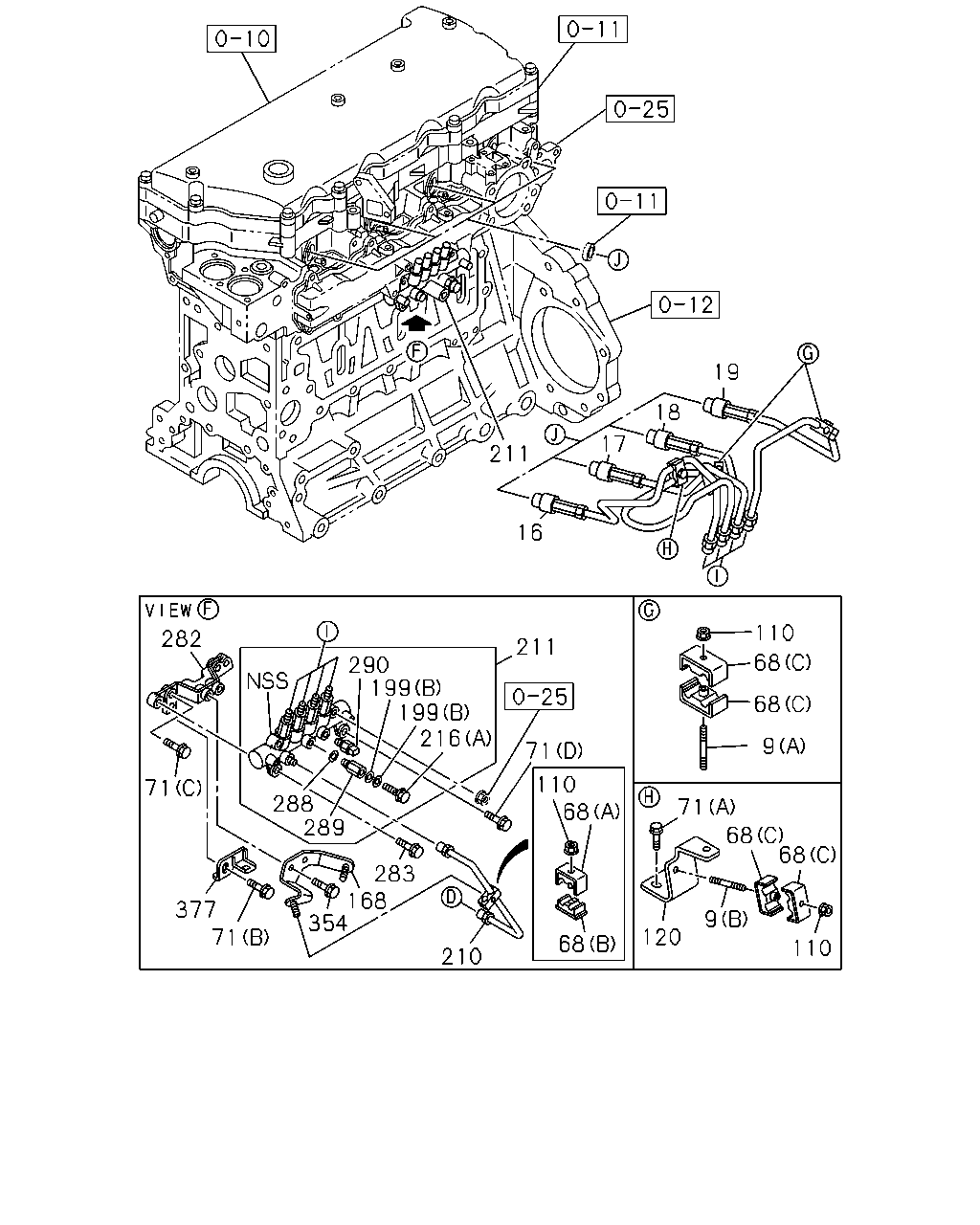

211 16 17 18 19 110 68 68 9 211 282 71 377 71 354 210 168 288 290 199 199 216 283 289 71 110 68 68 71 68 9 120 110 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP 00.413 (A) M6X30 L=38	0-41010-630-0	02	1	1012-		●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1012-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	1012-	●
16	03.330 PIPE; INJ NO.1	8-98039-934-0	01	1	1012-1102		●
16	03.330 PIPE; INJ NO.1	8-98185-344-0	01	1	1103-1404		●
16	03.330 PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501		●
16	03.330 PIPE; INJ NO.1	8-98298-606-0	01	1	1502-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	1012-	●
17	03.330 PIPE; INJ NO.2	8-98039-935-0	01	1	1012-1102		●
17	03.330 PIPE; INJ NO.2	8-98185-345-0	01	1	1103-1404		●
17	03.330 PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501		●
17	03.330 PIPE; INJ NO.2	8-98298-607-0	01	1	1502-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	1012-	●
18	03.330 PIPE; INJ NO.3	8-98039-936-0	01	1	1012-1102		●
18	03.330 PIPE; INJ NO.3	8-98185-346-0	01	1	1103-1404		●
18	03.330 PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501		●
18	03.330 PIPE; INJ NO.3	8-98298-608-0	01	1	1502-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	1012-	●
19	03.330 PIPE; INJ NO.4	8-98039-937-0	01	1	1012-1102		●
19	03.330 PIPE; INJ NO.4	8-98185-347-0	01	1	1103-1404		●
19	03.330 PIPE; INJ NO.4	8-98271-205-0	01	1	1405-1501		●
19	03.330 PIPE; INJ NO.4	8-98298-609-0	01	1	1502-		●
68	03.162 CLIP; INJ PIPE (A)	1-09701-195-3	01	1	1012-		●
68	03.162 CLIP; INJ PIPE (B)	1-09701-196-2	01	1	1012-		●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98039-293-0	06	1	1012-1405		●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-		●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-		●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-		●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	1012-		●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	1012-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-		●
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1012-		●
168	03.890 BRACKET; FUEL PIPE	8-98036-175-1	01	1	1012-		●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1012-		●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1012-		●
210	03.330 PIPE; INJ,C/R	8-98036-176-1	01	1	1012-		●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1012-		●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1012-		●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1012-		●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1012-		●
282	03.163 BRACKET; COMMON RAIL	8-98157-115-0	01	1	1012-		●
283	03.330 BOLT; COMMON RAIL 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1012-		●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1012-		●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1012-		●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1012-		●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
377	03.332 BRACKET; HARNESS	8-97310-438-1	01	1	1012-		●

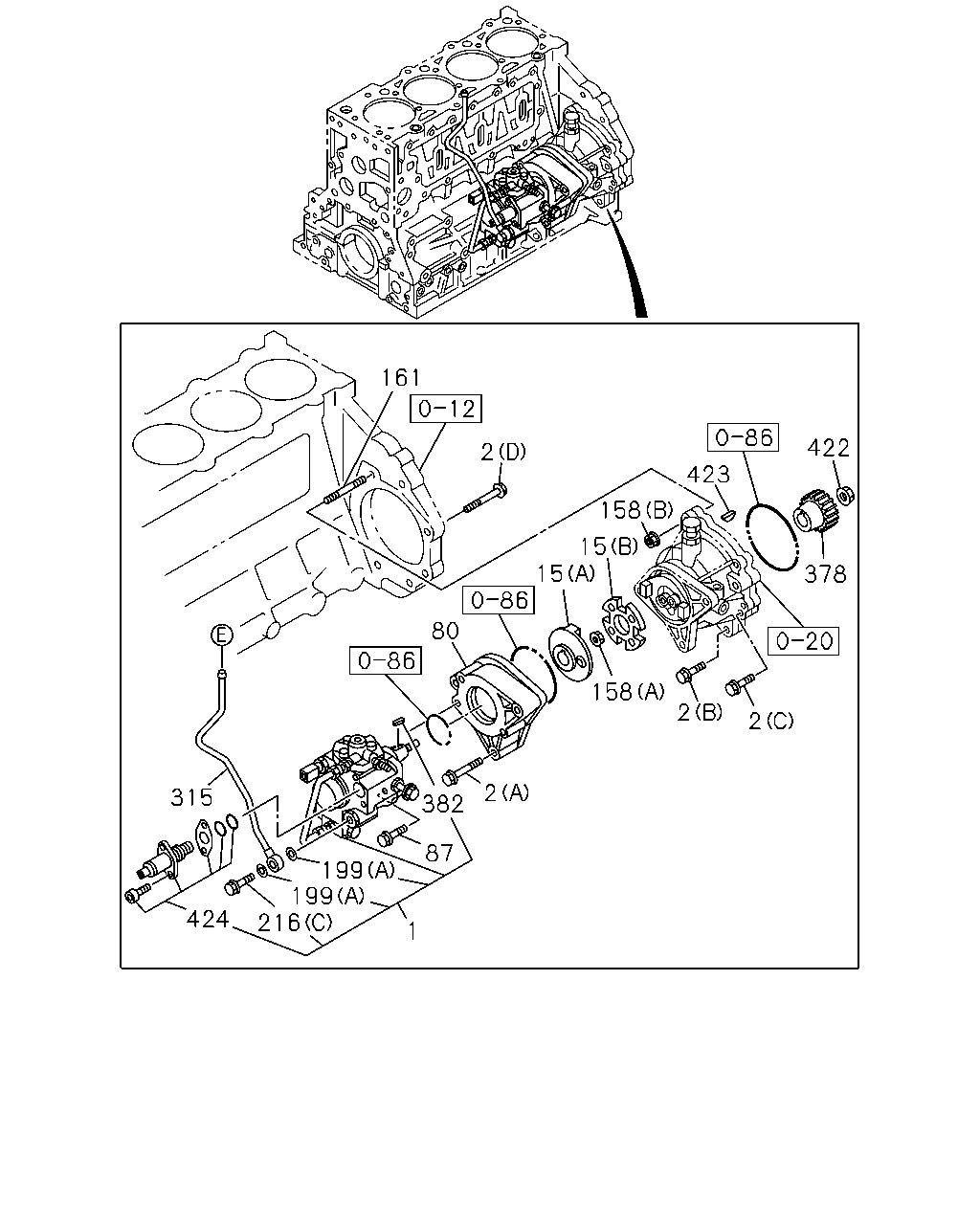

161 2 423 422 378 2 158 2 315 382 199 199 87 216 424 2 158 15 15 80 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-101-0	01	1	1012-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1012-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60)	8-97385-476-0	01	1	1012-1405	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97385-476-0	01	1	1406-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97386-557-5	01	1	1012-		●
2	03.330 BOLT; INJ PUMP (F) M12X90 FLANGE	0-28151-290-0	01	1	1012-	●
2	03.330 BOLT; INJ PUMP 03.162 (G) M14X27 FLANGE	1-09675-086-0	02	1	1012-	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	1012-	●
2	03.330 BOLT; INJ PUMP 00.685 (A) M10X60 FLANGE	0-28051-060-0	03	1	1012-		●
2	03.330 BOLT; INJ PUMP 02.277 (B) M10X70 FLANGE	0-28151-070-0	01	1	1012-	●	●
2	03.330 BOLT; INJ PUMP 00.206 (C) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●	●
2	03.330 BOLT; INJ PUMP (D) M12X95 FLANGE	8-94396-485-1	01	1	1012-		●
15	03.340 COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1012-		●
15	03.340 COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1012-		●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	1012-	●
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	1012-		●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	1012-		●
158	03.330 NUT; INJ PUMP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
158	03.330 NUT; INJ PUMP 07.529 (A) M14 FLANGE	0-91180-114-0	01	1	1012-		●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1012-	●	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1012-		●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1012-		●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1012-		●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1012-		●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1012-		●
315	03.163 PIPE; FUEL,SUCTION	8-98126-333-0	01	1	1012-		●
378	03.330 GEAR; PUMP Z=35	8-98017-915-0	01	1	1012-		●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1012-1201		●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-		●
422	03.330 NUT; GEAR 06.172 M18	8-97141-154-0	01	1	1012-		●
423	03.162 KEY; GEAR 08.960	9-08055-519-0	01	1	1012-		●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
