0-33 — FAN AND FAN BELT (#48961) — 75 parça

36 144 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	1012-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-098-0	01	1	1012-	●
144	01.060 TENSIONER; DRIVE BELT GENERATOR 24V80A(7YN) EXC. KD PREPARATORY PACK<6HF> 09.180 1-GROOVE	8-98031-811-1	01	1	1012-1407		●
144	01.060 TENSIONER; DRIVE BELT GENERATOR 24V80A(7YN) 09.180 1-GROOVE	8-98031-811-1	01	1	1408-		●
147	01.060 BOLT; BELT TENSIONER GENERATOR 24V80A(7YN) EXC. KD PREPARATORY PACK<6HF> 03.417 M10X20 FLANGE	0-28151-020-0	03	1	1012-1407		●
147	01.060 BOLT; BELT TENSIONER GENERATOR 24V80A(7YN) 03.417 M10X20 FLANGE	0-28151-020-0	03	1	1408-		●

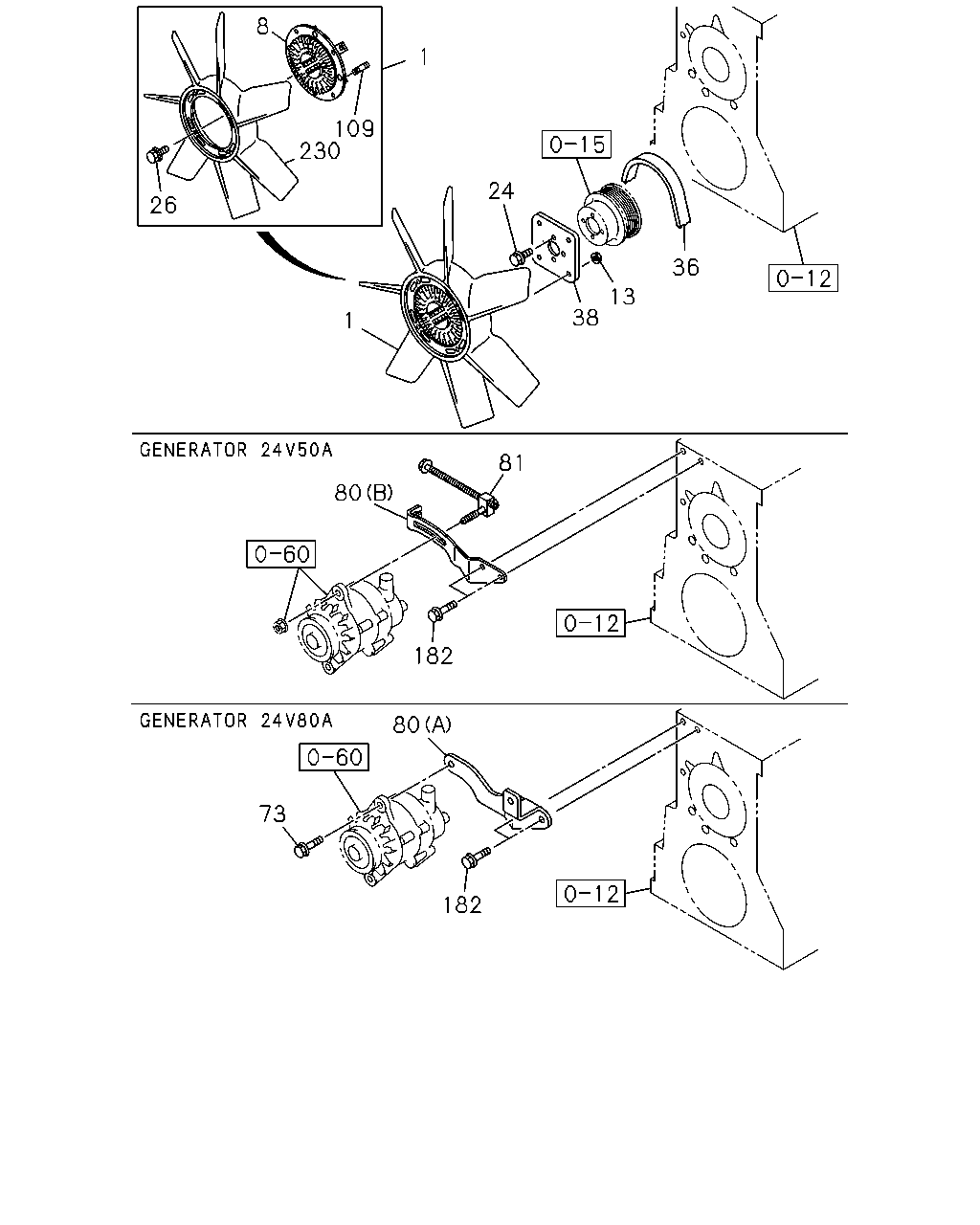

8 26 230 109 1 1 24 38 13 36 80 81 182 73 80 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	1012-	●
1	01.064 FAN; COOLING OD=510	8-98003-191-0	01	1	1012-1108		●
1	01.064 FAN; COOLING OD=510	8-98190-148-1	01	1	1109-		●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	1012-	●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1012-		●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
24	01.062 BOLT; FAN 08.900 M8X18 FLANGE	0-28080-818-0	04	1	1012-	●	●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	1012-	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1012-		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	1012-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-098-0	01	1	1012-	●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	1012-	●	●
73	02.277 BOLT; GEN TO ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X130 FLANGE	8-97172-720-1	01	1	1012-1307	●
73	02.277 BOLT; GEN TO ADJ PLATE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.317 M8X130 FLANGE	8-97172-720-1	01	1	1308-	●
73	02.277 BOLT; GEN TO ADJ PLATE GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1012-		●
80	02.317 PLATE; ADJ (C)	8-97164-089-2	01	1	1012-	●
80	02.317 PLATE; ADJ GENERATOR 24V50A(6QN) (B)	8-98035-085-1	01	1	1012-		●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) 02.277 (A)	8-98036-550-1	01	1	1012-1507		●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) (A)	8-98288-436-1	01	1	1508-		●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97257-223-0	01	1	1012-1307	●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97257-223-0	01	1	1308-	●
81	02.317 PIECE; SLIDING EXC. GENERATOR 24V80A(7YN)	8-98075-762-0	01	1	1012-		●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1012-	●	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1012-	●	●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	1012-	●
230	01.055 FAN; COOLING	8-97367-381-0	01	1	1012-1108		●
230	01.055 FAN; COOLING	8-98190-058-0	01	1	1109-		●

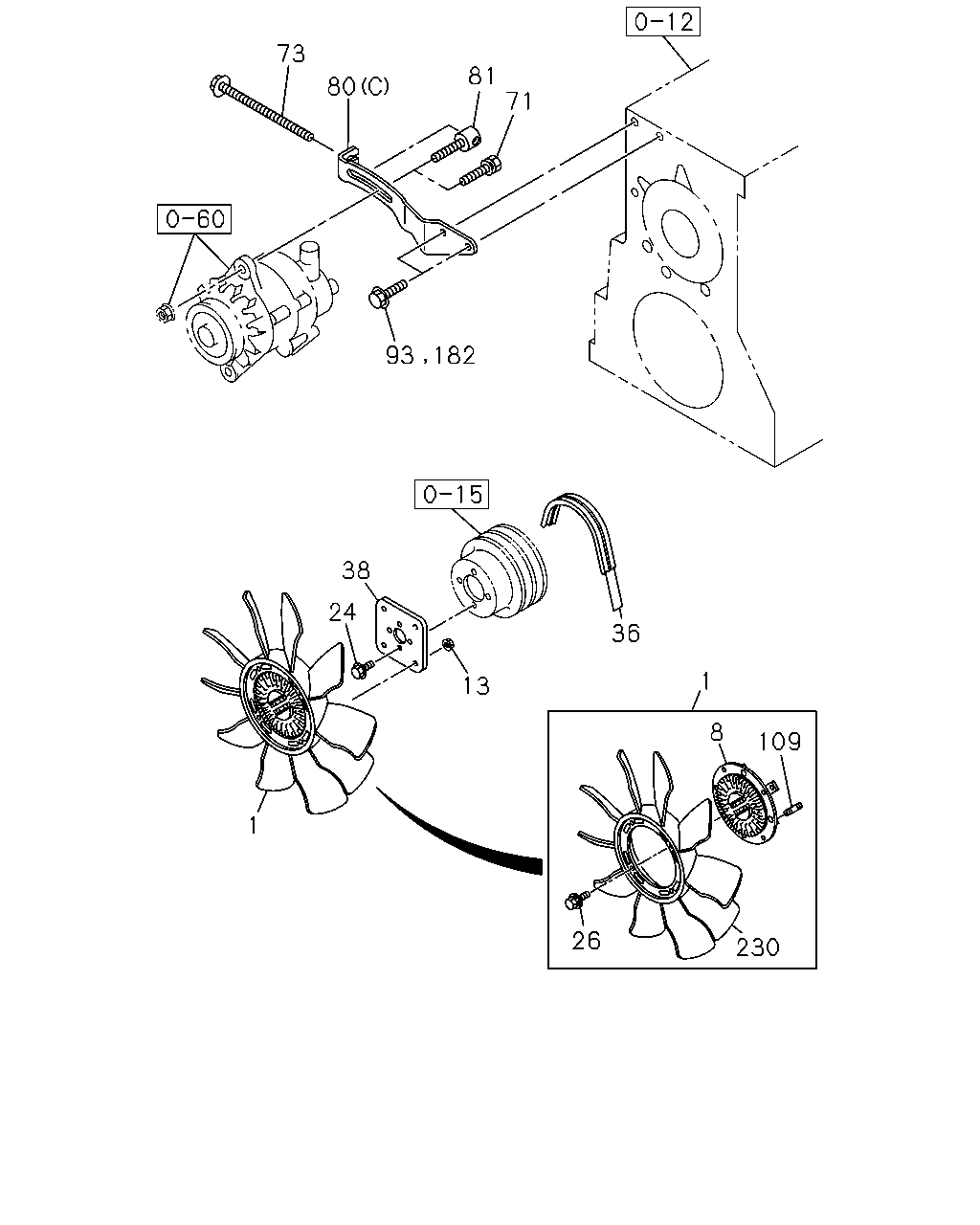

73 81 93 182 38 24 13 36 1 8 109 230 26 80 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	1012-	●
1	01.064 FAN; COOLING OD=510	8-98003-191-0	01	1	1012-1108		●
1	01.064 FAN; COOLING OD=510	8-98190-148-1	01	1	1109-		●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	1012-	●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1012-		●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
24	01.062 BOLT; FAN 08.900 M8X18 FLANGE	0-28080-818-0	04	1	1012-	●	●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	1012-	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1012-		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	1012-	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1121	8-98038-423-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-102-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1012-		●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-098-0	01	1	1012-	●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	1012-	●	●
71	02.317 BOLT; ADJ PLATE,GEN EXC. AIR CONDITIONER MANUAL CONT(C60) M8X40 W/WASHER	8-97011-792-4	01	1	1012-1307	●
71	02.317 BOLT; ADJ PLATE,GEN EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M8X40 W/WASHER	8-97011-792-4	01	1	1308-	●
73	02.277 BOLT; GEN TO ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X130 FLANGE	8-97172-720-1	01	1	1012-1307	●
73	02.277 BOLT; GEN TO ADJ PLATE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.317 M8X130 FLANGE	8-97172-720-1	01	1	1308-	●
73	02.277 BOLT; GEN TO ADJ PLATE GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1012-		●
80	02.317 PLATE; ADJ (C)	8-97164-089-2	01	1	1012-	●
80	02.317 PLATE; ADJ GENERATOR 24V50A(6QN) (B)	8-98035-085-1	01	1	1012-		●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) 02.277 (A)	8-98036-550-1	01	1	1012-1507		●
80	02.317 PLATE; ADJ GENERATOR 24V80A(7YN) (A)	8-98288-436-1	01	1	1508-		●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97257-223-0	01	1	1012-1307	●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97257-223-0	01	1	1308-	●
81	02.317 PIECE; SLIDING EXC. GENERATOR 24V80A(7YN)	8-98075-762-0	01	1	1012-		●
93	02.317 BOLT; ADJ PLATE BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1012-1106	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1012-	●	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1012-	●	●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	1012-	●
230	01.055 FAN; COOLING	8-97367-381-0	01	1	1012-1108		●
230	01.055 FAN; COOLING	8-98190-058-0	01	1	1109-		●
