0-32 — WATER PIPING; ENGINE (#48960) — 11 parça

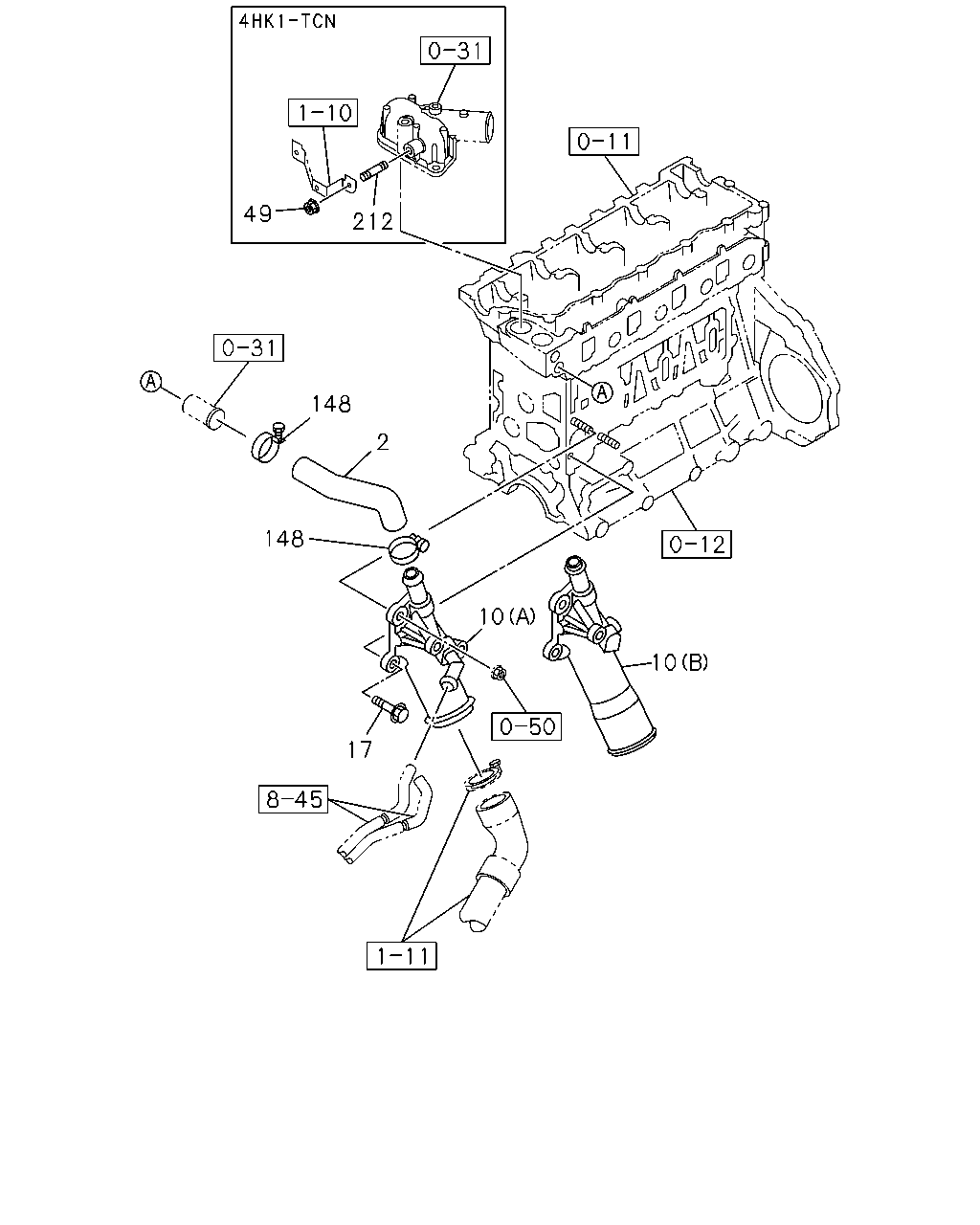

çizim 176365
49 148 17 10 10 2 148 212
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 1012- ●
2 01.097 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1012- ●
10 01.153 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98212-009-0 01 1 1203- ●
10 01.153 PIPE; SUCTION
(A) 		8-98166-992-0 01 1 1012-1202 ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98166-992-0 01 1 1203-1405 ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98166-992-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
(A) 		8-98166-991-0 01 1 1012- ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 1012- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 1012- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 1012- ●
